Charvet CL , Guégnard F , Courtot E , Cortet J , Neveu C .

P40 OD010440 NIH HHS

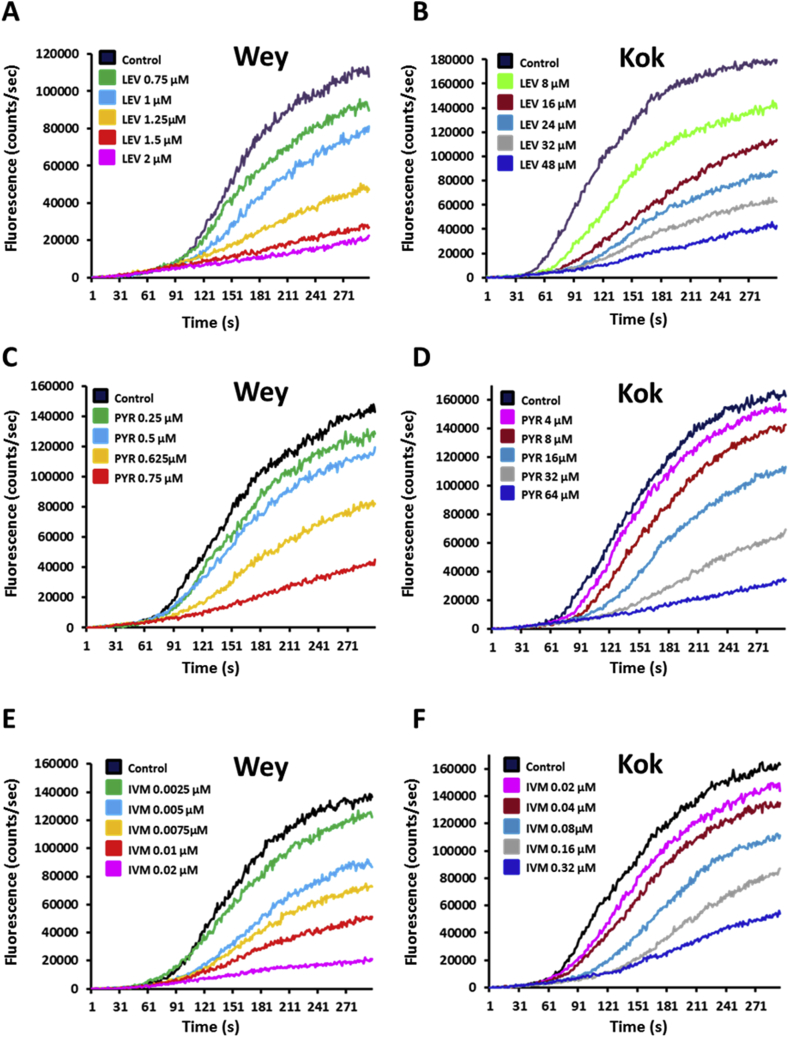

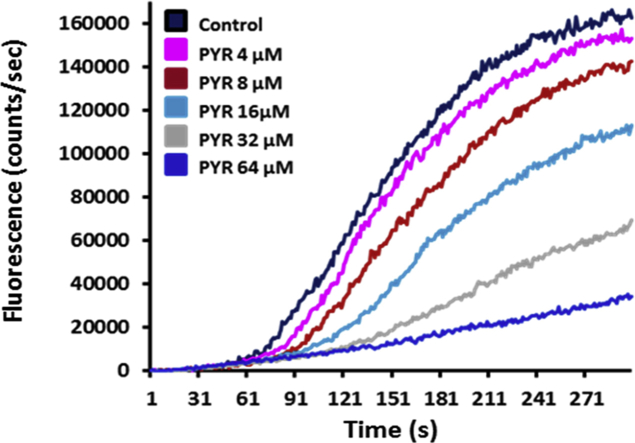

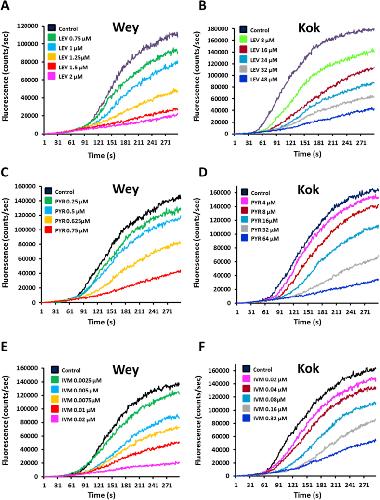

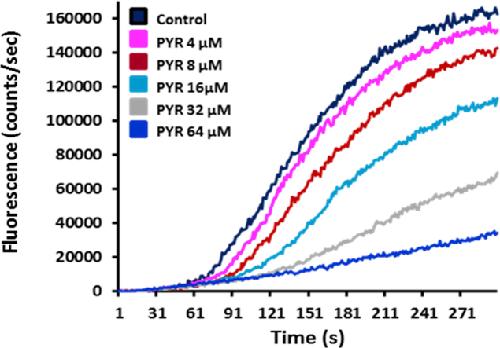

	Fig. 1. Motility modulation of H. contortus L3 larvae exposed to levamisole, pyrantel or ivermectin. The automated larval migration assay (ALMA) was used to determine dose-dependent paralysis effect of Lev, Pyr or Ivm on the H. contortus L3 from Weybridge (A; C and E) or Kokstad isolate (B; D and F). Representative recording traces of the real-time fluorescence counting relative to the L3 migration during 5 min exposed to Lev (A and B); Pyr (C and D) or Ivm (E and F). Each trace corresponds to the mean data from 3 runs performed with 7500 L3 larvae. The controls correspond to untreated L3 larvae.

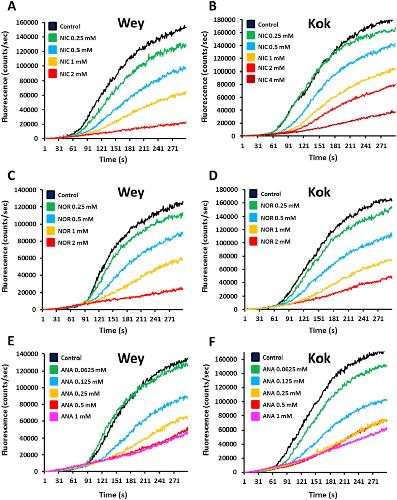

	Fig. 2. Motility modulation of H. contortus L3 larvae exposed to nicotine, nornicotine or anabasine. The automated larval migration assay (ALMA) was used to determine dose-dependent paralysis effect of Nic, Nor or Ana on the H. contortus L3 from Weybridge (A; C and E) or Kokstad isolate (B; D and F). Representative recording traces of the real-time fluorescence counting relative to the L3 migration during 5 min exposed to Nic (A and B); Nor (C and D) or Ana (E and F). Each trace corresponds to the mean data from 3 runs performed with 7500 L3 larvae. The controls correspond to untreated L3 larvae.

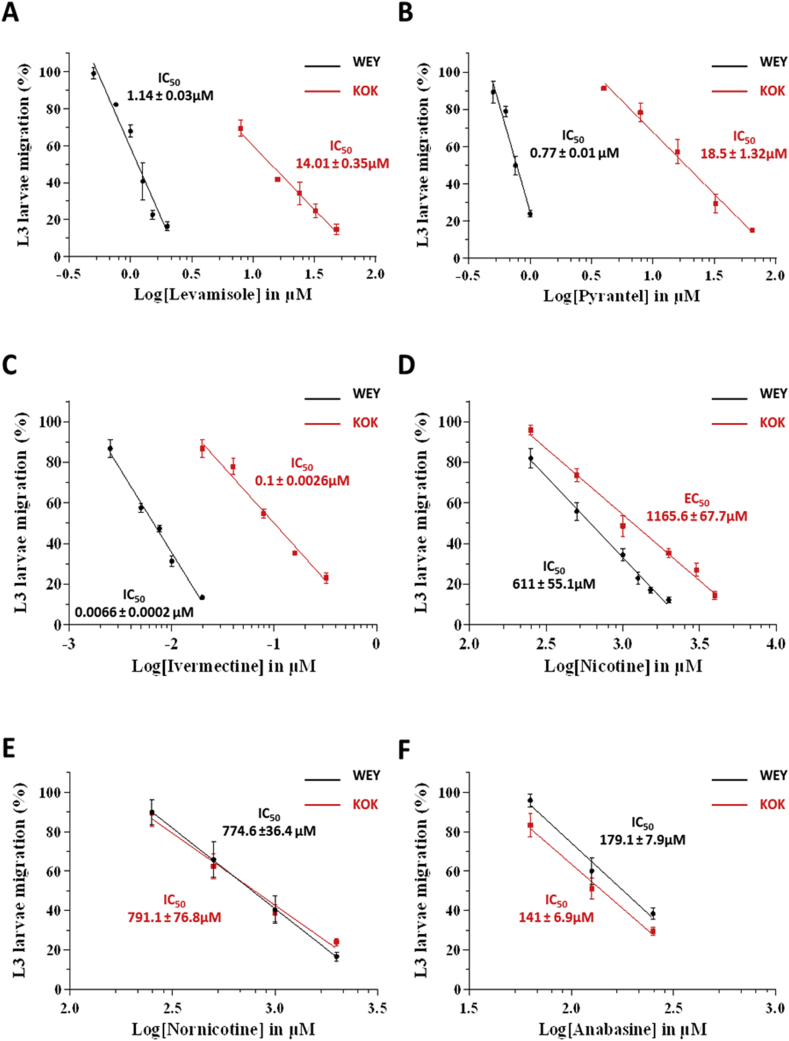

	Fig. 3. Determination of the dose response relationships for levamisole (A); pyrantel (B); ivermectin (C); nicotine (D); nornicotine (E) and anabasine (F) on H. contortus L3 larvae using the automated larval migration assay (ALMA). Results are shown as the mean ± se from 3 distinct ALMA assays performed with 7500 H. contortus L3 larvae from the Weybridge isolate (in black) or Kokstad isolate (in red). IC50 values are indicated on the graphs. (For interpretation of the references to colour in this figure legend, the reader is referred to the Web version of this article.)

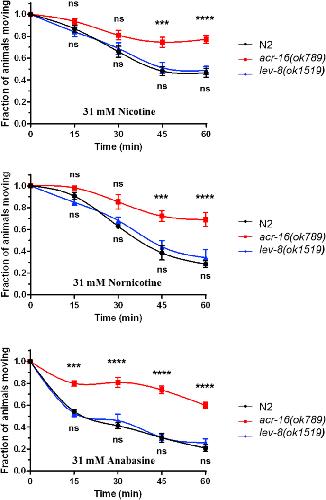

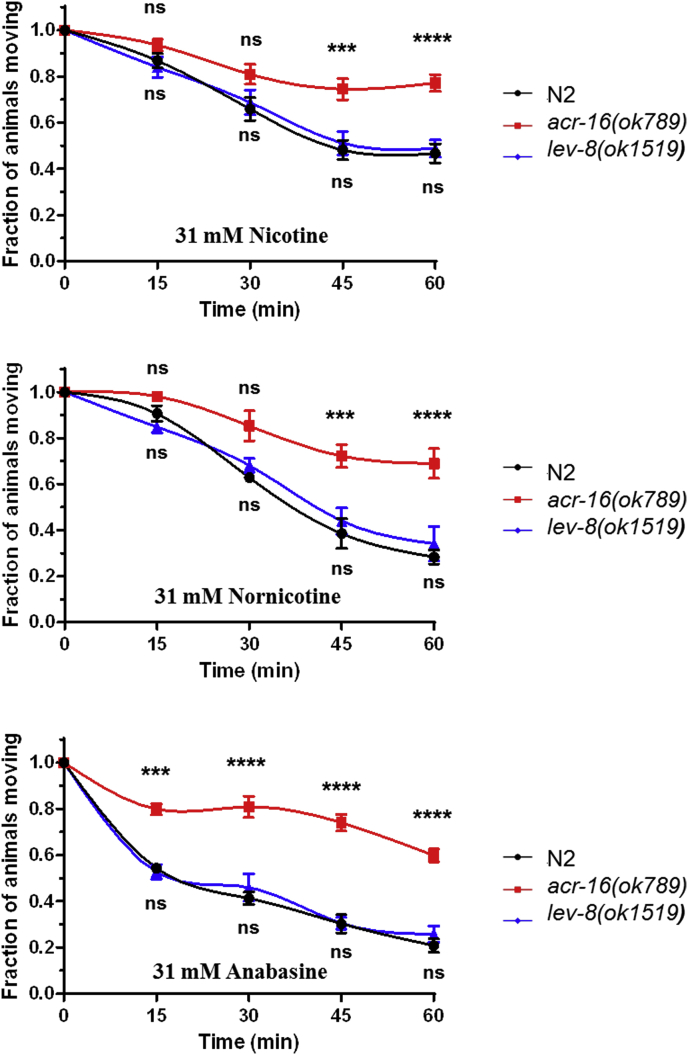

	Fig. 4. Effects of nicotine, nornicotine or anabasine on the motility of C. elegans. Paralysis assays were performed on N2, acr-16 (ok789) and lev-8 (ok1519) C. elegans strains in agar plate containing 31 mM of nicotine (A), nornicotine (B) or anabasine (C) after 15, 30, 45 and 60 min drug exposure. Paralysis was scored based on the absence of worm's movement in response to prodding. Data are the mean ± SEM of n = 12, ****p < 0.0001, ***p < 0.001, **p < 0.01 and *p < 0.05, one way ANOVA with Bonferroni post-hoc test between N2 and the mutant strains.

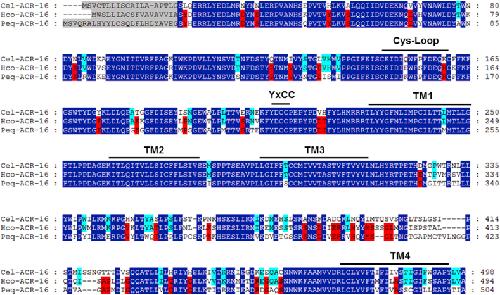

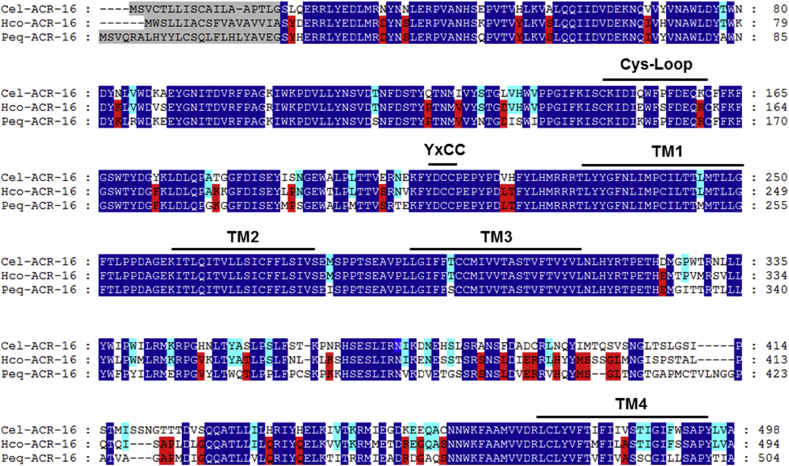

	Fig. 5. Amino-acid alignments of ACR-16 subunit sequences from Caenorhabditis elegans, Haemonchus contortus and Parascaris equorum. acr-16 deduced amino-acid sequences were aligned using the MUSCLE algorithm (Edgar, 2004) and further processed using GeneDoc. Predicted signal peptide sequences are shaded in grey. Amino acids conserved between all the ACR-16 sequences are highlighted in dark blue. Amino acids specifically shared by ACR-16 homologs from parasitic species are highlighted in red. Amino acids specifically shared by Clade V nematode species (C. elegans and H. contortus) are highlighted in light blue. The cys-loop, the four transmembrane regions (TM1–TM4) and the primary agonist binding (YxCC) are indicated above the sequences. Cel (Caenorhabditis elegans), Hco (Haemonchus contortus), Peq (Parascaris equorum). (For interpretation of the references to colour in this figure legend, the reader is referred to the Web version of this article.)

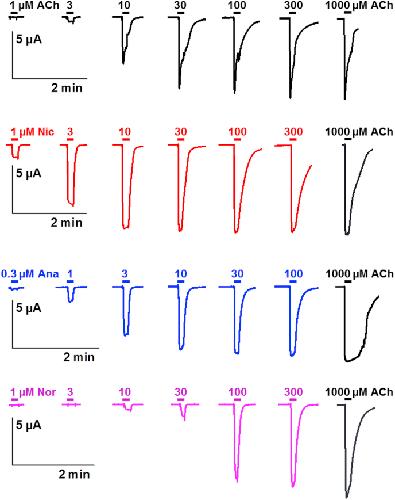

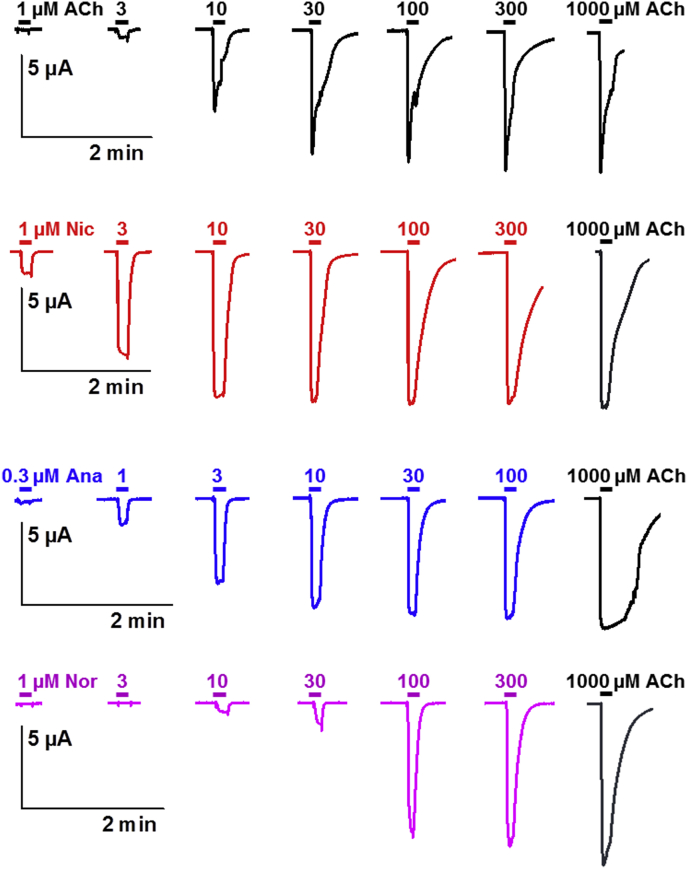

	Fig. 6. Concentration-response relationships of acetylcholine and nicotine derivatives on the P. equorum N-AChR expressed in Xenopus oocytes. Representative current traces for single oocytes perfused with acetylcholine (ACh), nicotine (Nic), anabasine (Ana) and nornicotine (Nor). The concentration of agonist (μM) is indicated above each trace.

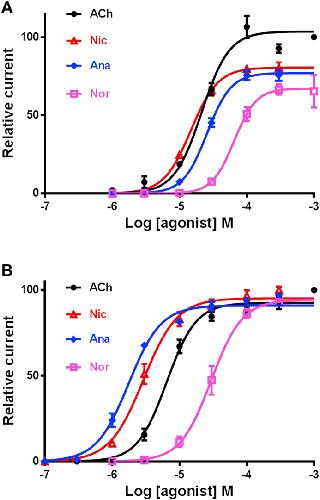

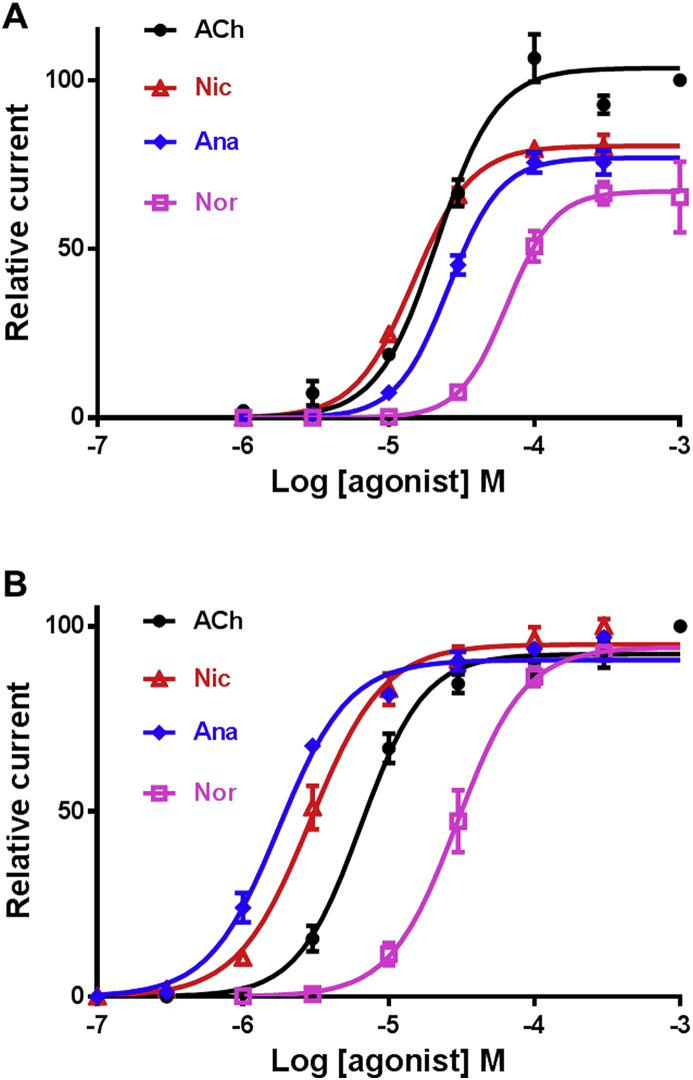

	Fig. 7. Concentration-response curves of acetylcholine and nicotine derivatives on the C. elegans (A) and P. equorum (B) N-AChRs expressed in Xenopus oocytes. The N-AChRs were challenged with acetylcholine (ACh), nicotine (Nic), anabasine (Ana) and nornicotine (Nor). All responses are normalized to 1 mM Ach. Results are shown as the mean ± se.

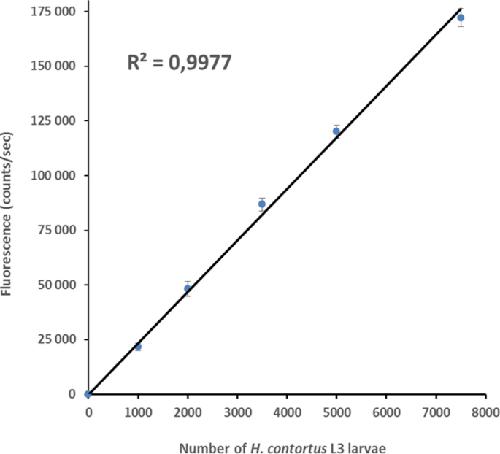

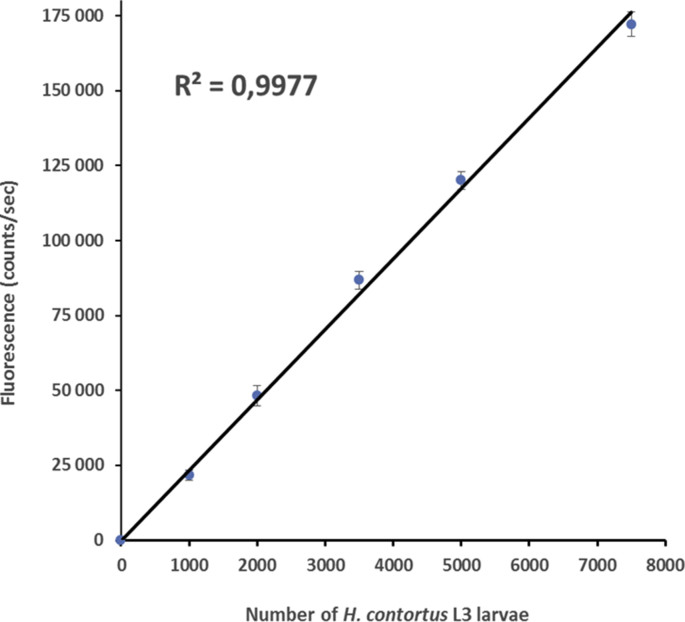

	S1Fig. tif. H. contortus L3 larvae migration assay using auto-fluorescence quantification. Correlation between the fluorescence counting (counts/sec) and the number of L3 larvae that migrated to the recording chamber during 5min. Migration assays were performed using 1000, 2000, 3500, 5000 and 7500 L3 larvae respectively. Each data point represents mean ± SE of three independent runs

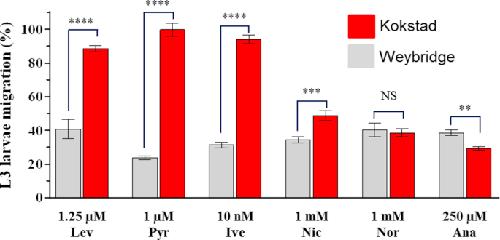

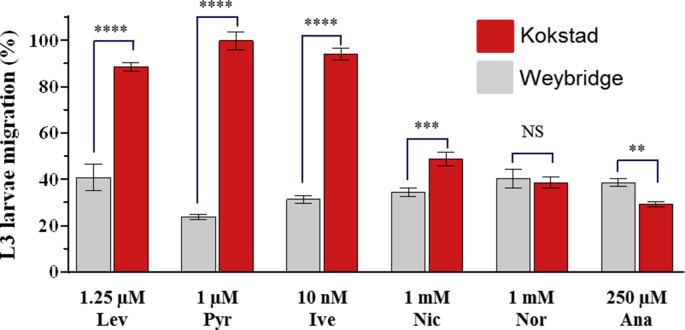

	S2Fig. tif. Comparison of the motility reduction of H. contortus L3 from the Weybridge vs Kokstad isolates exposed to Levamisole (Lev), Pyrantel (Pyr), Ivermectin (Ivm), Nicotine (Nic), Nornicotine (Nor), Anabasine (Ana) as determined by ALMA assays. Mean data of the twenty last fluorescence measures ± SEM. Welsh two sample t-test, Wey vs Kok. ****p < 0.001, ***p < 0.001, **p < 0.01

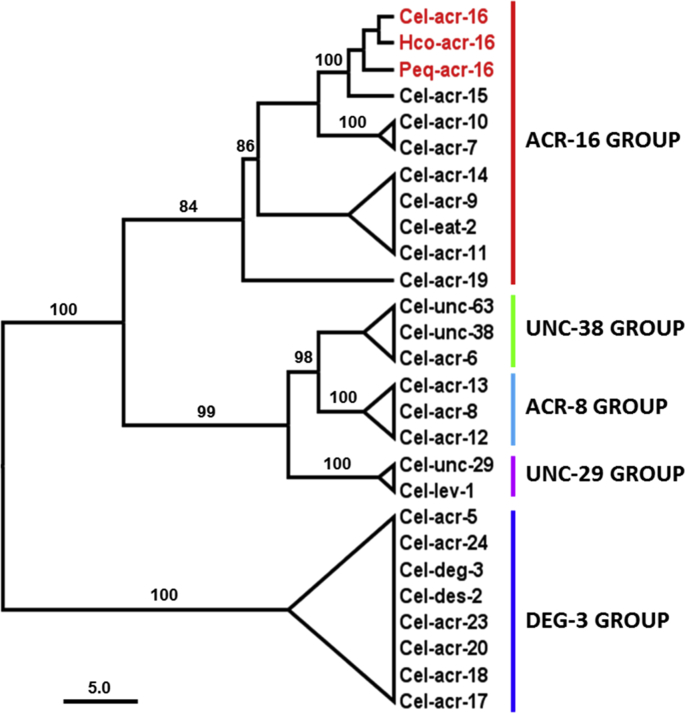

	S3Fig. tif. 1. Maximum likelihood tree showing relationships of ACR-16 acetylcholine receptor (AChR) subunits from C.elegans, H. contortus and P. equorum with other C. elegans AChR subunits. Tree was built upon an alignment of AChR subunit sequences excluding the predicted signal peptide and the variable region between TM3 and TM4. The tree was rooted with DEG-3 group subunit sequences. Scale bar represents the number of substitution per site. Boostrap values > 80% are indicated on branches. Accession numbers for sequences used in the phylogenetic analysis are provided in Material and Methods section. C. elegans AChR subunit groups are named as proposed by Mongan et al. (Mongan et al., 2002). Cel, Hco and Peq refer to Caenorhabitis elegans, Haemonchus contortus and Parascaris equorum respectively

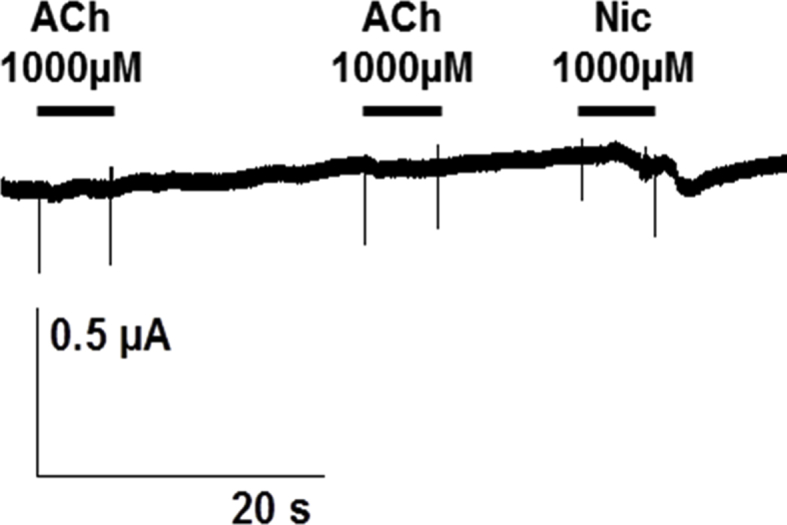

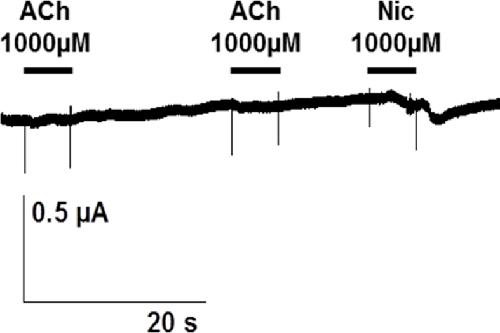

	S4Fig. tif. Tentative expression of Hco-ACR-16 subunit in Xenopus oocytes. Representative recording traces from a single oocyte challenged with 1 mM ACh and 1 mM Nic. Experiment repeated in three independent batches of oocytes.

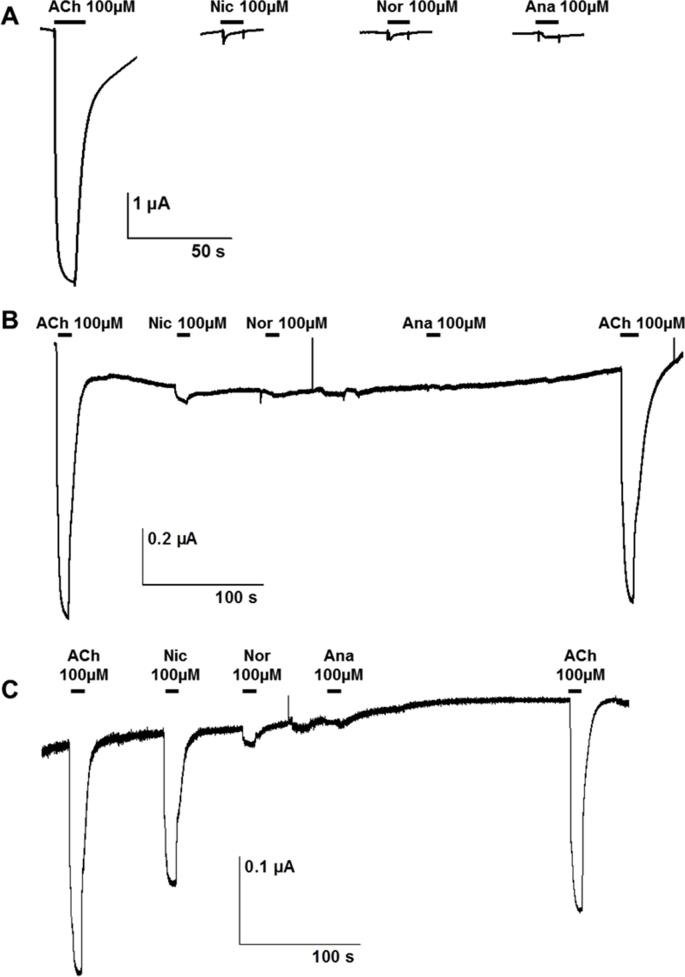

	S5Fig. tif. Representative recording traces showing the effect of 100 μM acetylcholine (ACh), nicotine (Nic), anabasine (Ana) and nornicotine (Nor) on Xenopus oocytes expressing the C. elegans L-AChR (A), the H. contortus L-AChR-1 (B) and the the H. contortus L-AChR-2 (C)

Abongwa, Pharmacological profile of Ascaris suum ACR-16, a new homomeric nicotinic acetylcholine receptor widely distributed in Ascaris tissues. 2016, Pubmed, Xenbase

Abongwa, Pharmacological profile of Ascaris suum ACR-16, a new homomeric nicotinic acetylcholine receptor widely distributed in Ascaris tissues. 2016, Pubmed , Xenbase
Aceves, The mechanism of the paralysing action of tetramisole on Ascaris somatic muscle. 1970, Pubmed
Altschul, Gapped BLAST and PSI-BLAST: a new generation of protein database search programs. 1997, Pubmed
Aubry, Aspects of the pharmacology of a new anthelmintic: pyrantel. 1970, Pubmed
Ballivet, Nicotinic acetylcholine receptors in the nematode Caenorhabditis elegans. 1996, Pubmed , Xenbase
Beech, Nematode parasite genes: what's in a name? 2010, Pubmed
Beech, The evolution of pentameric ligand-gated ion-channels and the changing family of anthelmintic drug targets. 2015, Pubmed
Bendtsen, Improved prediction of signal peptides: SignalP 3.0. 2004, Pubmed
Blanchard, Deciphering the molecular determinants of cholinergic anthelmintic sensitivity in nematodes: When novel functional validation approaches highlight major differences between the model Caenorhabditis elegans and parasitic species. 2018, Pubmed , Xenbase
Boulin, Functional reconstitution of Haemonchus contortus acetylcholine receptors in Xenopus oocytes provides mechanistic insights into levamisole resistance. 2011, Pubmed , Xenbase
Boulin, Eight genes are required for functional reconstitution of the Caenorhabditis elegans levamisole-sensitive acetylcholine receptor. 2008, Pubmed , Xenbase
Buxton, Investigation of acetylcholine receptor diversity in a nematode parasite leads to characterization of tribendimidine- and derquantel-sensitive nAChRs. 2014, Pubmed , Xenbase
Coles, World Association for the Advancement of Veterinary Parasitology (W.A.A.V.P.) methods for the detection of anthelmintic resistance in nematodes of veterinary importance. 1992, Pubmed
Courtot, Functional Characterization of a Novel Class of Morantel-Sensitive Acetylcholine Receptors in Nematodes. 2015, Pubmed , Xenbase
Culetto, The Caenorhabditis elegans unc-63 gene encodes a levamisole-sensitive nicotinic acetylcholine receptor alpha subunit. 2004, Pubmed
Delannoy-Normand, A suite of genes expressed during transition to parasitic lifestyle in the trichostrongylid nematode Haemonchus contortus encode potentially secreted proteins conserved in Teladorsagia circumcincta. 2010, Pubmed
de Lourdes Mottier, Genetic analysis of a relationship between macrocyclic lactone and benzimidazole anthelmintic selection on Haemonchus contortus. 2008, Pubmed
Edgar, MUSCLE: multiple sequence alignment with high accuracy and high throughput. 2004, Pubmed
Fauvin, cDNA-AFLP analysis in levamisole-resistant Haemonchus contortus reveals alternative splicing in a nicotinic acetylcholine receptor subunit. 2010, Pubmed
Fleming, Caenorhabditis elegans levamisole resistance genes lev-1, unc-29, and unc-38 encode functional nicotinic acetylcholine receptor subunits. 1997, Pubmed , Xenbase
Gottschalk, Identification and characterization of novel nicotinic receptor-associated proteins in Caenorhabditis elegans. 2005, Pubmed
Halevi, Conservation within the RIC-3 gene family. Effectors of mammalian nicotinic acetylcholine receptor expression. 2003, Pubmed , Xenbase
Hernando, Contribution of subunits to Caenorhabditis elegans levamisole-sensitive nicotinic receptor function. 2012, Pubmed
Kaplan, Anthelmintic resistance in nematodes of horses. 2002, Pubmed
Kaplan, Drug resistance in nematodes of veterinary importance: a status report. 2004, Pubmed
Kelly, Resistance of animal helminths to anthelmintics. 1979, Pubmed
Lassen, Anthelmintic resistance of intestinal nematodes to ivermectin and pyrantel in Estonian horses. 2015, Pubmed
Lee, Relative toxicities and neuromuscular nicotinic receptor agonistic potencies of anabasine enantiomers and anabaseine. 2006, Pubmed
Lewis, The genetics of levamisole resistance in the nematode Caenorhabditis elegans. 1980, Pubmed
Lewis, Cholinergic receptor mutants of the nematode Caenorhabditis elegans. 1987, Pubmed
Martin, Levamisole receptors: a second awakening. 2012, Pubmed , Xenbase
Matthews, Anthelmintic resistance in equine nematodes. 2014, Pubmed
McKellar, Veterinary anthelmintics: old and new. 2004, Pubmed
Ménez, Acquired Tolerance to Ivermectin and Moxidectin after Drug Selection Pressure in the Nematode Caenorhabditis elegans. 2016, Pubmed
Mongan, Novel alpha7-like nicotinic acetylcholine receptor subunits in the nematode Caenorhabditis elegans. 2002, Pubmed
Mortensen, Evaluation of prevalence and clinical implications of anthelmintic resistance in gastrointestinal nematodes in goats. 2003, Pubmed
Neveu, Identification of levamisole resistance markers in the parasitic nematode Haemonchus contortus using a cDNA-AFLP approach. 2007, Pubmed
Neveu, Genetic diversity of levamisole receptor subunits in parasitic nematode species and abbreviated transcripts associated with resistance. 2010, Pubmed
Peter, Haemonchus contortus: parasite problem No. 1 from tropics - Polar Circle. Problems and prospects for control based on epidemiology. 2005, Pubmed
Richmond, One GABA and two acetylcholine receptors function at the C. elegans neuromuscular junction. 1999, Pubmed
Robertson, Resistance to levamisole resolved at the single-channel level. 1999, Pubmed
Roos, Molecular analysis of selection for benzimidazole resistance in the sheep parasite Haemonchus contortus. 1990, Pubmed
Sangster, Investigation of the mechanism of levamisole resistance trichostrongylid nematodes of sheep. 1988, Pubmed
Sangster, Binding of [3H]m-aminolevamisole to receptors in levamisole-susceptible and -resistant Haemonchus contortus. 1998, Pubmed
Schultz, SMART, a simple modular architecture research tool: identification of signaling domains. 1998, Pubmed
Touroutine, acr-16 encodes an essential subunit of the levamisole-resistant nicotinic receptor at the Caenorhabditis elegans neuromuscular junction. 2005, Pubmed
Towers, The Caenorhabditis elegans lev-8 gene encodes a novel type of nicotinic acetylcholine receptor alpha subunit. 2005, Pubmed
Unwin, Refined structure of the nicotinic acetylcholine receptor at 4A resolution. 2005, Pubmed
Van Wyk, Anthelmintic resistance in South Africa: surveys indicate an extremely serious situation in sheep and goat farming. 1999, Pubmed
Waller, Plants as de-worming agents of livestock in the Nordic countries: historical perspective, popular beliefs and prospects for the future. 2001, Pubmed
Wolstenholme, The interactions of anthelmintic drugs with nicotinic receptors in parasitic nematodes. 2017, Pubmed
Zheng, (S)-5-ethynyl-anabasine, a novel compound, is a more potent agonist than other nicotine alkaloids on the nematode Asu-ACR-16 receptor. 2017, Pubmed , Xenbase
