Toxins (Basel)
2018 Jan 15;101:. doi: 10.3390/toxins10010043.
Show Gene links
Show Anatomy links
The Peptide PnPP-19, a Spider Toxin Derivative, Activates μ-Opioid Receptors and Modulates Calcium Channels.
Freitas ACN
,
Peigneur S
,
Macedo FHP
,
Menezes-Filho JE
,
Millns P
,
Medeiros LF
,
Arruda MA
,
Cruz J
,
Holliday ND
,
Tytgat J
,
Hathway G
,
de Lima ME
.
???displayArticle.abstract???
The synthetic peptide PnPP-19 comprehends 19 amino acid residues and it represents part of the primary structure of the toxin δ-CNTX-Pn1c (PnTx2-6), isolated from the venom of the spider Phoneutria nigriventer. Behavioural tests suggest that PnPP-19 induces antinociception by activation of CB1, μ and δ opioid receptors. Since the peripheral and central antinociception induced by PnPP-19 involves opioid activation, the aim of this work was to identify whether this synthetic peptide could directly activate opioid receptors and investigate the subtype selectivity for μ-, δ- and/or κ-opioid receptors. Furthermore, we also studied the modulation of calcium influx driven by PnPP-19 in dorsal root ganglion neurons, and analyzed whether this modulation was opioid-mediated. PnPP-19 selectively activates μ-opioid receptors inducing indirectly inhibition of calcium channels and hereby impairing calcium influx in dorsal root ganglion (DRG) neurons. Interestingly, notwithstanding the activation of opioid receptors, PnPP-19 does not induce β-arrestin2 recruitment. PnPP-19 is the first spider toxin derivative that, among opioid receptors, selectively activates μ-opioid receptors. The lack of β-arrestin2 recruitment highlights its potential for the design of new improved opioid agonists.

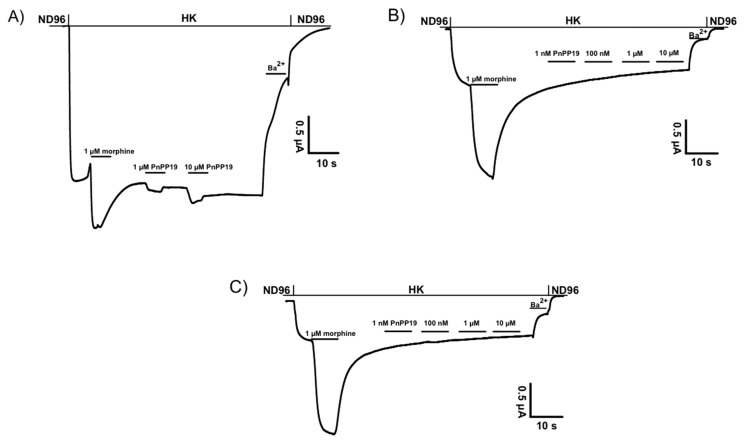

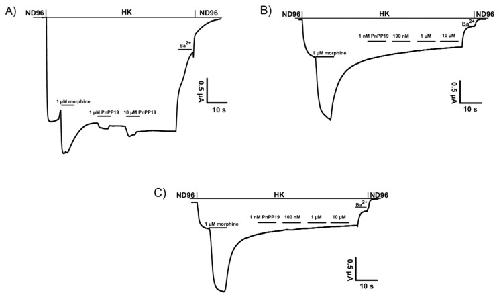

Figure 1. (A) Shows representative current traces of agonist-gated currents evoked from oocytes expressing human μ-opioid receptor (hMOR) by 1 μM morphine and 1 or 10 μM PnPP-19. PnPP-19 could not activate human δ-opioid receptor (hDOR) (B) or human κ-opioid receptor (hKOR) (C) up to a concentration of 10 μM.

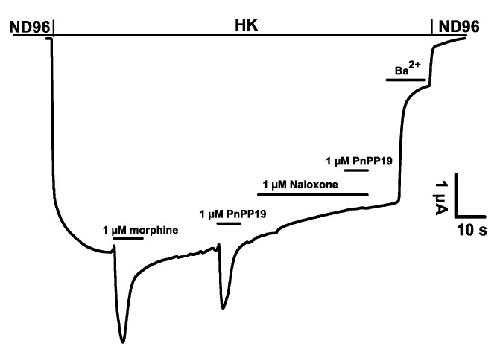

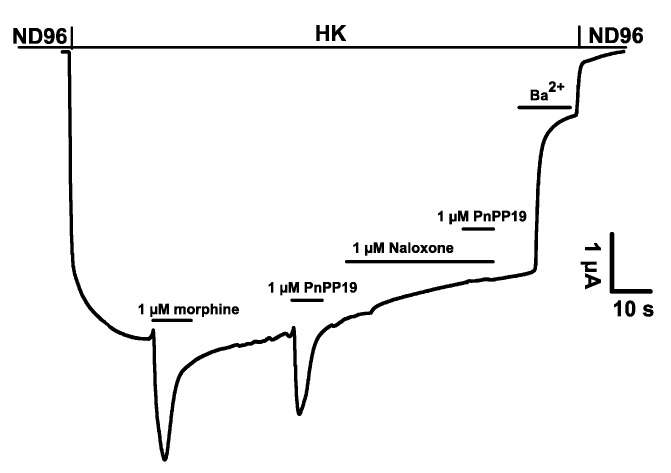

Figure 2. Representative current traces evoked from X. laevis oocytes co-expressing GIRK1/GIRK2 channels and RGS4 with hMOR. In addition, 1 μM naloxone inhibits the agonistic activity of PnPP-19.

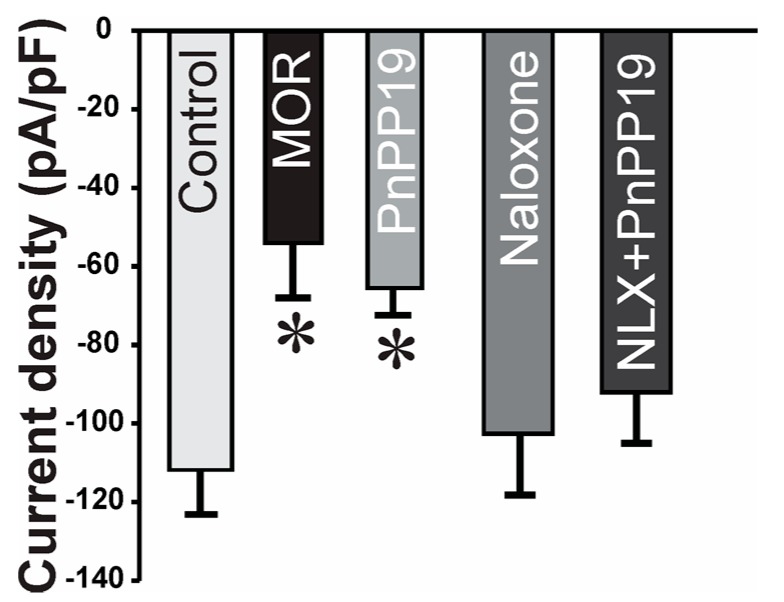

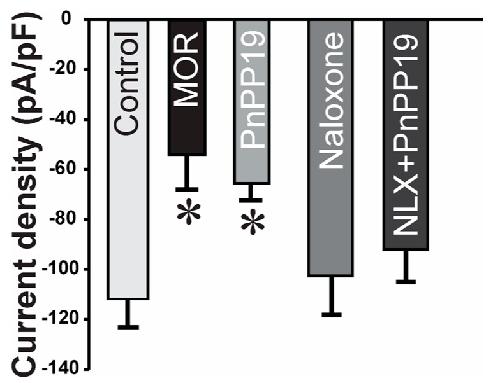

Figure 3. Effect of PnPP-19 and morphine on calcium current density evoked in dorsal root ganglion (DRG) neurons. Calcium currents were evoked by depolarizing pulses to 10 mV (200 ms) from a holding potential of −90 mV in DRG neurons incubated with 1 μM morphine, 1 μM PnPP-19 or 10 μM naloxone. Control group: cells incubated only with external/bath solution. Group NLX + PnPP-19: cells were previously incubated for 30 min with 10 μM naloxone and then PnPP-19 was added reaching a final concentration of 1 μM. MOR: morphine and NLX: naloxone. Data shown are the means ± SEM (n = 8 cells, 5 animals). * p < 0.05 compared with control (one-way ANOVA + Bonferroni’s test).

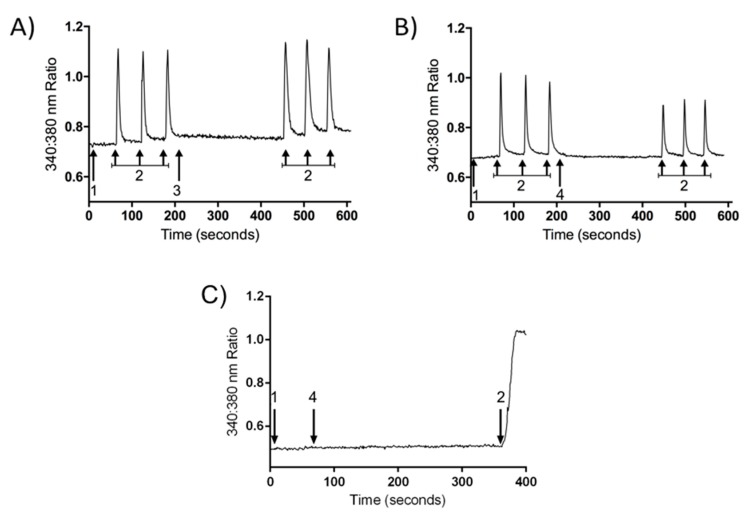

Figure 4. Representative trace showing calcium influx (changes in 340:380 nm ratios) in a single DRGneuron stimulated by KCl before and after 5 min incubation with buffer or PnPP-19. A perfusion system was used to incubate DRG neurons with buffer for 1 min (1) followed by consecutive KCl (30 mM) stimulations (2). After that, cells were perfused with buffer (3) or PnPP-19 (1 μM) (4) for 5 min, and again depolarized by KCl (30 mM) at three different time points (2). Control cells incubated only with buffer after first set of KCl stimulations do not show a significant difference in calcium influx during the second set of stimulations (A); However, cells incubated with PnPP-19 display a decrease in calcium influx during the second set of KCl stimulations (B); As a negative control, PnPP-19 does not influence calcium influx on its own (C).

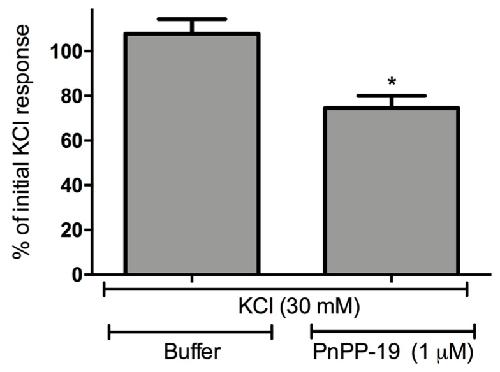

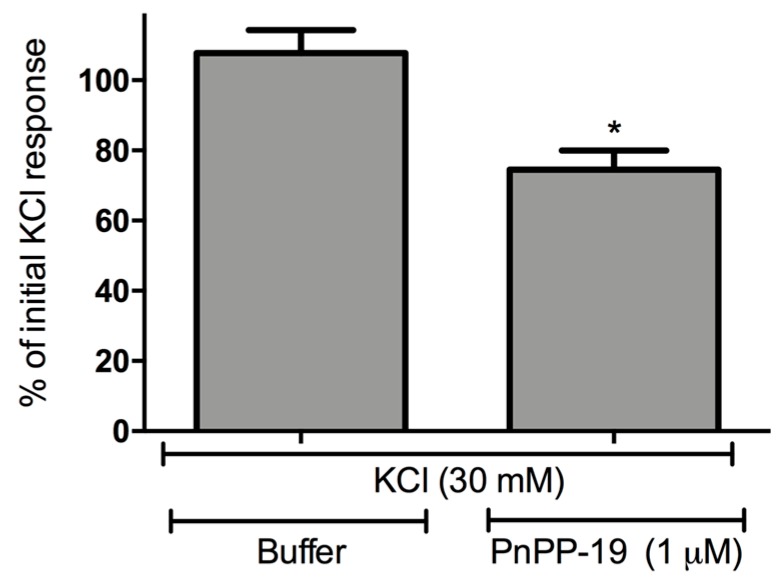

Figure 5. Effect of pre-incubation with PnPP-19 (1 μM) on KCl-evoked (30 mM) responses. The bars represent the percentage of the maximum amplitude response during the second set of KCl stimuli corresponding to the initial KCl stimulations (100%). The peak of response in each situation was calculated, and the amplitude was assessed by diminishing this value of the baseline. The baseline corresponds to the pre-incubation of cells with buffer, before any KCl stimulation. Data shown are the means ± SEM (n = 5). * p < 0.05 compared with KCl (30 mM) + Buffer (two-tailed t-test).

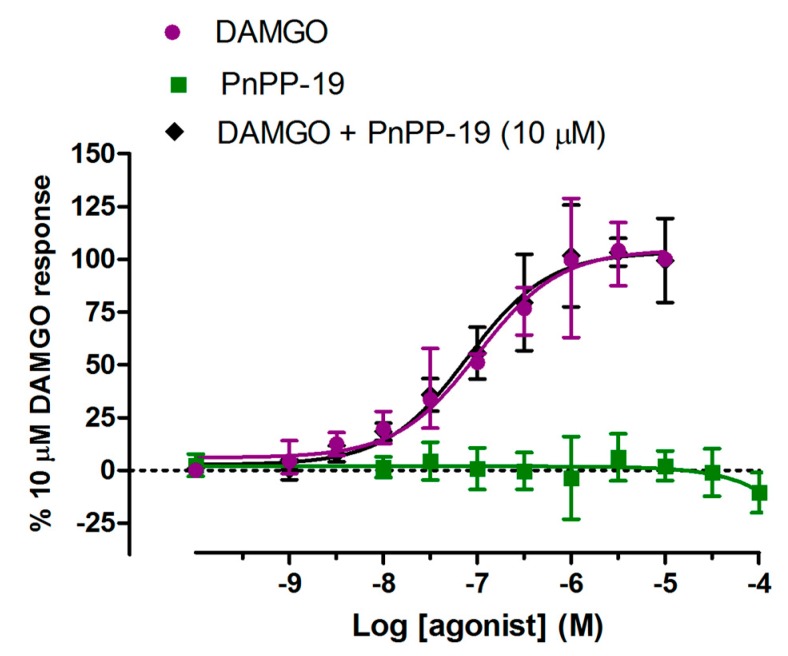

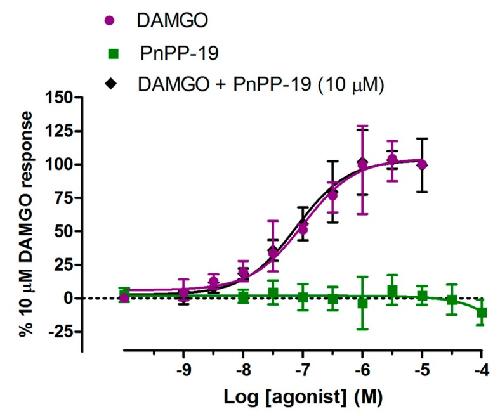

Figure 6. Recruitment of β-arrestin2 by activation of μ-opioid receptors. Stably transfected HEK293 cells coexpressing μ-opioid receptors and β-arrestin2 were pretreated for 60 min with DAMGO or PnPP-19 at the indicated concentrations. The group âDAMGO + PnPP-19â represents prior incubation of the cells with 10 μM of PnPP-19 for 30 min. β-arrestin2 recruitment was quantified by high content imaging complementation assay as described in Materials and Methods (n = 5).
Benyamin,
Opioid complications and side effects.
2008, Pubmed
Benyamin,
Opioid complications and side effects.
2008,
Pubmed
Berecki,
Voltage-Gated R-Type Calcium Channel Inhibition via Human μ-, δ-, and κ-opioid Receptors Is Voltage-Independently Mediated by Gβγ Protein Subunits.
2016,
Pubmed
Bezanilla,
A low-cost signal averager and data-acquisition device.
1977,
Pubmed
Bohn,
Enhanced morphine analgesia in mice lacking beta-arrestin 2.
1999,
Pubmed
Bohn,
Differential mechanisms of morphine antinociceptive tolerance revealed in (beta)arrestin-2 knock-out mice.
2002,
Pubmed
Bohn,
Mu-opioid receptor desensitization by beta-arrestin-2 determines morphine tolerance but not dependence.
2000,
Pubmed
Bundey,
Inhibition of receptor-mediated calcium responses by corticotrophin-releasing hormone in the CATH.a cell line.
1999,
Pubmed
da Fonseca Pacheco,
A spider derived peptide, PnPP-19, induces central antinociception mediated by opioid and cannabinoid systems.
2016,
Pubmed
Dalmolin,
Antinociceptive effect of Brazilian armed spider venom toxin Tx3-3 in animal models of neuropathic pain.
2011,
Pubmed
DeWire,
A G protein-biased ligand at the μ-opioid receptor is potently analgesic with reduced gastrointestinal and respiratory dysfunction compared with morphine.
2013,
Pubmed
Emerich,
δ-Ctenitoxin-Pn1a, a Peptide from Phoneutria nigriventer Spider Venom, Shows Antinociceptive Effect Involving Opioid and Cannabinoid Systems, in Rats.
2016,
Pubmed
Freitas,
PnPP-19, a spider toxin peptide, induces peripheral antinociception through opioid and cannabinoid receptors and inhibition of neutral endopeptidase.
2016,
Pubmed
Freitas,
The synthetic peptide PnPP-19 induces peripheral antinociception via activation of NO/cGMP/KATP pathway: Role of eNOS and nNOS.
2017,
Pubmed
Jung,
The effect of PnTx2-6 protein from Phoneutria nigriventer spider toxin on improvement of erectile dysfunction in a rat model of cavernous nerve injury.
2014,
Pubmed
King,
A rational nomenclature for naming peptide toxins from spiders and other venomous animals.
2008,
Pubmed
Law,
Molecular mechanisms and regulation of opioid receptor signaling.
2000,
Pubmed
Liman,
Subunit stoichiometry of a mammalian K+ channel determined by construction of multimeric cDNAs.
1992,
Pubmed
,
Xenbase
Lindsay,
Nerve growth factors (NGF, BDNF) enhance axonal regeneration but are not required for survival of adult sensory neurons.
1988,
Pubmed
Liu,
Identification of a Cyanine-Dye Labeled Peptidic Ligand for Y1R and Y4R, Based upon the Neuropeptide Y C-Terminal Analogue, BVD-15.
2016,
Pubmed
Manglik,
Structure-based discovery of opioid analgesics with reduced side effects.
2016,
Pubmed
Marker,
Spinal G-protein-gated potassium channels contribute in a dose-dependent manner to the analgesic effect of mu- and delta- but not kappa-opioids.
2005,
Pubmed
McGivern,
Ziconotide: a review of its pharmacology and use in the treatment of pain.
2007,
Pubmed
North,
Mu and delta receptors belong to a family of receptors that are coupled to potassium channels.
1987,
Pubmed
Nunes,
Tx2-6 toxin of the Phoneutria nigriventer spider potentiates rat erectile function.
2008,
Pubmed
Phillips,
The Cost and Burden of Chronic Pain.
2009,
Pubmed
Piros,
Voltage-dependent inhibition of Ca2+ channels in GH3 cells by cloned mu- and delta-opioid receptors.
1996,
Pubmed
Raehal,
Morphine side effects in beta-arrestin 2 knockout mice.
2005,
Pubmed
Rhim,
Opioid receptors modulate diverse types of calcium channels in the nucleus tractus solitarius of the rat.
1994,
Pubmed
Rusin,
mu-Opioid receptor activation reduces multiple components of high-threshold calcium current in rat sensory neurons.
1995,
Pubmed
Schneider,
Opioid-activated postsynaptic, inward rectifying potassium currents in whole cell recordings in substantia gelatinosa neurons.
1998,
Pubmed
Schroeder,
Activation of mu opioid receptors inhibits transient high- and low-threshold Ca2+ currents, but spares a sustained current.
1991,
Pubmed
Seseña,
Activation of μ-opioid receptors inhibits calcium-currents in the vestibular afferent neurons of the rat through a cAMP dependent mechanism.
2014,
Pubmed
Silva,
PnPP-19, a Synthetic and Nontoxic Peptide Designed from a Phoneutria nigriventer Toxin, Potentiates Erectile Function via NO/cGMP.
2015,
Pubmed
,
Xenbase
Soergel,
Biased agonism of the μ-opioid receptor by TRV130 increases analgesia and reduces on-target adverse effects versus morphine: A randomized, double-blind, placebo-controlled, crossover study in healthy volunteers.
2014,
Pubmed
Souza,
Analgesic effect in rodents of native and recombinant Ph alpha 1beta toxin, a high-voltage-activated calcium channel blocker isolated from armed spider venom.
2008,
Pubmed
Ulens,
Changes in GIRK1/GIRK2 deactivation kinetics and basal activity in the presence and absence of RGS4.
2000,
Pubmed
,
Xenbase
Wilson,
Acute respiratory failure from abused substances.
2004,
Pubmed
