Ejlassi A , Menil-Philippot V , Galvani A , Thiriet C .

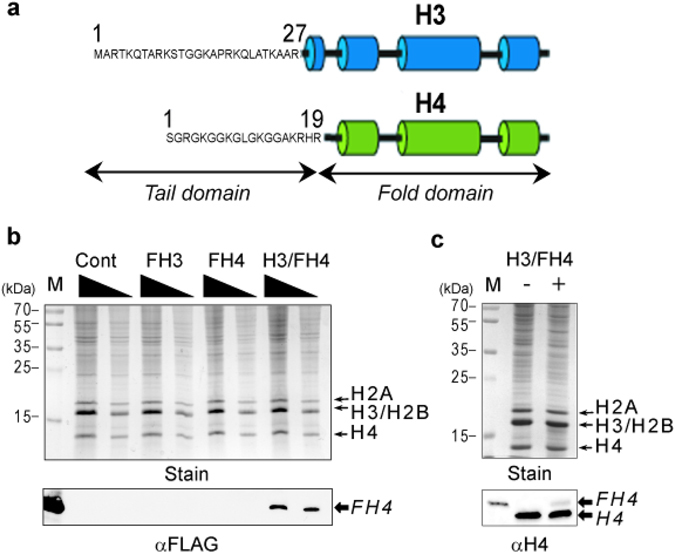

	Figure 1. Folded histone complex of H3 and H4 is required for nuclear import in the S-phase. (a) Diagram of histones H3 and H4 illustrating the two histone domains; the N-terminal tail domain and the fold domain. (b) Nuclear import of exogenous histones requires the correct folding of histones. Trace amounts of purified FLAG-tagged histone H3 (FH3), FLAG-tagged H4 (FH4) and folded complex H3/FH4 (H3/FH4) were incorporated into Physarum macroplasmodium fragments in the early S-phase, using an untreated cell fragment as the control (Cont). The cell fragments were then harvested, and nuclei were isolated and analyzed by SDS-PAGE (Stain) and Western blotting with anti-FLAG antibody. Lane M corresponds to the molecular weight marker in (Stain) and the purified H3/FH4 complex revealed by anti-FLAG antibody in (αFLAG). (c) Trace amount of exogenous H3/FH4 complex is incorporated into nuclei. Nuclei from cell fragments untreated (−) and treated with H3/FH4 (+) were isolated, analyzed by SDS-PAGE (Stain) and Western blotting revealed with anti-H4 antibodies (αH4). The determination of the amount of exogenous histone relative to endogenous was determined by Western blotting with anti-H4 antibodies. Lane M corresponds to the molecular weight marker in (Stain) and the purified H3/FH4 complex revealed by anti-H4 antibodies in (αH4).

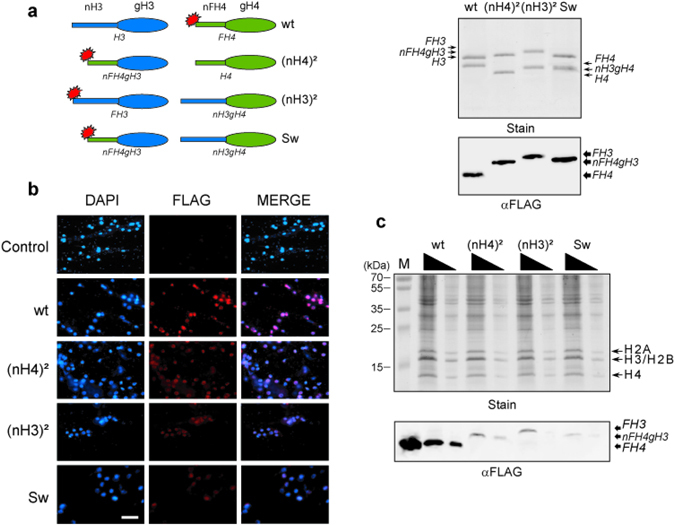

	Figure 2. Function of the H3/H4 amino-tail domains in nuclear import in the S-phase. (a) Nomenclature and preparation of the exogenous histone complexes. The right panel is a diagram of the different histones used to form the different complexes. The regions in blue correspond to H3 domains, in green to H4 domains, and the red stars represent the FLAG-tag epitope. The complex wt corresponds to H3/FH4, (nH4)² to nH4gH3/FH4 (duplicate of the H4 tail), (nH3)² to FH3/nH3gH4 (duplicate of the H3 tail), and Sw to nFH4gH3/nH3gH4 (swapping of the two tail domains), respectively (the histone sequences are indicated in supplementary information). The right panel shows the SDS-PAGE (Stain) and the Western blot (αFLAG) of the complexes wt, (nH4)², (nH3)² and sw, respectively. (b) Microscopic observations of the different H3/H4 complexes. Following incorporation of exogenous complexes, cell fragments were squashed, fixed, and stained with anti-FLAG antibody (FLAG) and counterstained with DAPI (DAPI). The bar corresponds to 20 μm. (c) Nuclear import of H3/H4 complexes. Physarum fragments were treated during the S-phase with exogenous histone complexes: wt (H3/FH4), (nH4)² (nFH4gH3/H4), (nH3)² (FH3/nH3gH4) and Sw (nFH4gH3/nH3gH4), respectively. Nuclei were then isolated and analyzed by SDS-PAGE (Stain) and Western blotting (αFLAG). Lane M corresponds to the molecular weight marker in (Stain) and the purified H3/FH4 complex revealed by anti-FLAG antibody in (αFLAG).

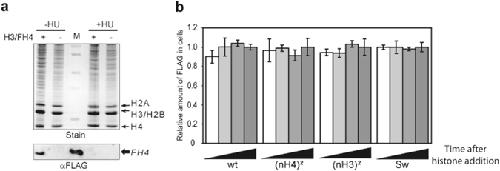

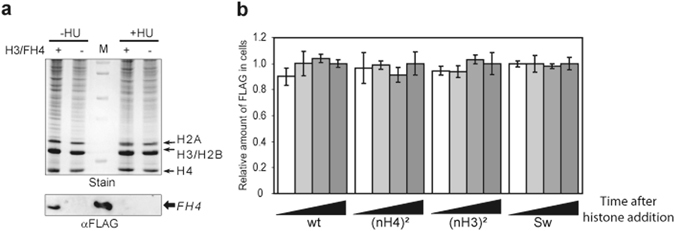

	Figure 3. Exogenous histone complexes are stably incorporated into Physarum cells. (a) Hydroxy-urea treatment inhibits nuclear import. Cell fragments in early S-phase were untreted (−) and treated (+) with exogenous H3/FH4, and untreated (−HU) and treated with hydroxyl-urea (+HU), concomitantly. Nuclei were prepared and analyzed by SDS-PAGE (Stain) and Western blotting (αFLAG). Lane M corresponds to the molecular weight marker in (Stain) and the purified H3/FH4 complex revealed by anti-FLAG antibody in (αFLAG). (b) Determination of the stability of exogenous histone complexes in Physarum. Cell fragments were treated with HU and exogenous complexes were incorporated for 15 min, 30 min, 45 min and 60 min, respectively. Shown is the quantitative analysis of Flag signal relative to the amount of total soluble proteins determined by dot blotting. The quantification at time point 60 min was arbitrary assigned to 1.0 for each complex. Note that signals of untreated cell fragments with exogenous histones were ~10%. (c) Exogenous histone complexes are transported in nuclei with similar rates. The different histone complexes were spread onto Physarum surfaces and harvested after 20 min, 40 min and 60 min, respectively. Nuclei were then prepared and analyzed by Western blotting. Shown is the amount of exogenous histone complexes in the nuclear fractions at specific incorporation duration. The value 1 for each complex corresponded to the incorporation after 60 min.

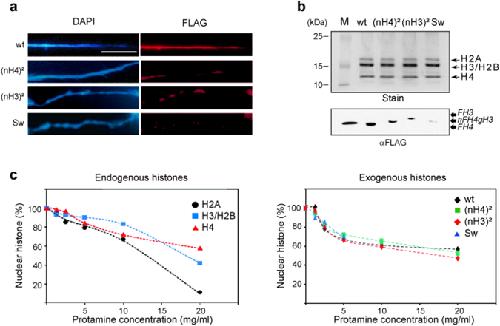

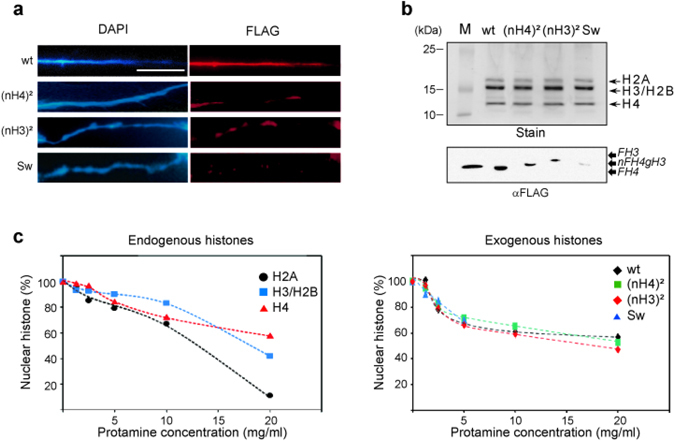

	Figure 4. Chromatin assembly in the S-phase occurs regardless of histone tail positioning. (a) Microscopic distribution mapping of exogenous H3/H4 complexes. Following exogenous H3/H4 incorporation, nuclei were prepared, chromatin was combed, immuno-stained with anti-FLAG (FLAG) and counterstained with DAPI (DAPI). The chromatin fibers were imaged by fluorescent microscopy. (b) Exogenous H3/H4 complexes assembled in nucleosomes. Following incorporation, nucleosomes were isolated from nuclei by MNase digestion and sucrose gradient. Nucleosomal proteins were analyzed by SDS-PAGE (Stain) and Western blotting revealed with anti-FLAG antibody (αFLAG). Lane M corresponds to the molecular weight marker in (Stain) and the purified H3/FH4 complex revealed by anti-FLAG antibody in (αFLAG). (c) Histone stability in chromatin. Protamine competition assays were performed on nuclei and analyzed by SDS-PAGE (Endogenous histones) and Western blotting (Exogenous histones), respectively.

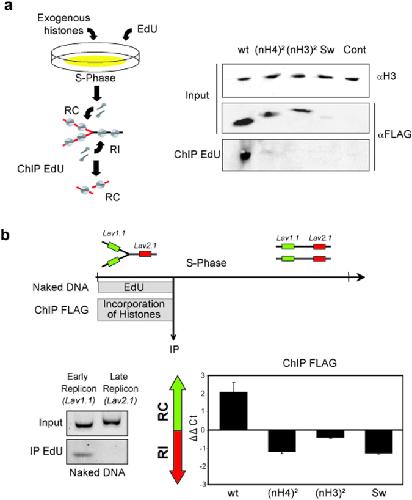

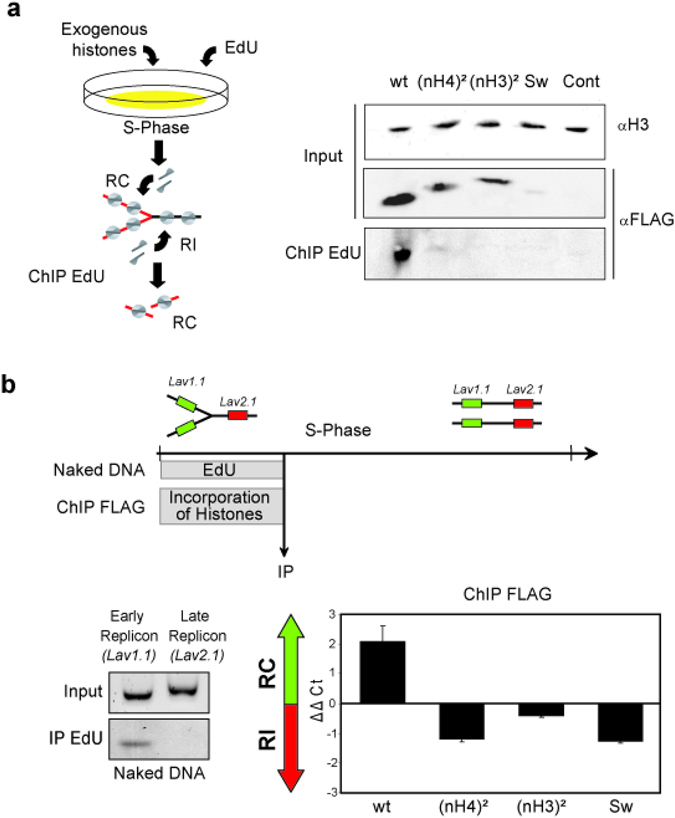

	Figure 5. Replication-coupled chromatin assembly requires properly positioned amino-tail domains for transferring H3/H4 from the nuclear import chaperone to the chromatin assembly complex. (a) Chromatin assembly in the S-phase occurs by replication-coupled and replication-independent chromatin assembly, which can be discriminated by EdU pulse as depicted in the diagram. Following exogenous H3/H4 complex incorporation, click reactions were performed to couple biotin to EdU and ChIP was carried out with avidin. Crosslinks of immuno-precipitated chromatin were reversed and proteins analyzed by Western blotting. Input fractions were examined with anti-H3 antibody (H3) and anti-FLAG antibody (FLAG), respectively. Immuno-precipitated fractions (ChIP EdU) were examined with anti-FLAG antibody (FLAG). (b) Replicon-specific analyses of the H3/H4 tail requirement in replication-coupled chromatin assembly and in replication-independent chromatin assembly. The top diagram represents the experimental strategy for examining replication-coupled and replication-independent chromatin assembly at specific loci. (Left gels) Physarum was pulsed for 1 h with EdU and replicated DNA was isolated by IP with avidin. Immuno-precipitated DNA was analyzed by PCR with primers specific to Lav1.1 (early replicon) and Lav2.1 (late replicon), respectively. (Right graph) Following exogenous complex incorporation, ChIP analyses were carried out using anti-FLAG antibody and qPCR with primers specific to the early replicon (Lav1.1) and the late replicon (Lav2.1), respectively. The graph represents the ΔΔCt = ΔCt (ChIP Late replicon normalized) −ΔCt (ChIP Early replicon normalized) for the different exogenous complexes. Value > 0 corresponds to preferential replication-coupled chromatin assembly (RC) and values < 0 corresponds to preferential replication-independent chromatin assembly (RI), respectively.

Ahmad, The histone variant H3.3 marks active chromatin by replication-independent nucleosome assembly. 2002, Pubmed

Ahmad, The histone variant H3.3 marks active chromatin by replication-independent nucleosome assembly. 2002, Pubmed
Almouzni, Chromatin assembly on replicating DNA in vitro. 1990, Pubmed , Xenbase
Blackwell, Mutational analysis of H3 and H4 N termini reveals distinct roles in nuclear import. 2007, Pubmed
Bradbury, Molecular basis of control of mitotic cell division in eukaryotes. 1974, Pubmed
Campos, The program for processing newly synthesized histones H3.1 and H4. 2010, Pubmed
Chicoine, A single histone acetyltransferase from Tetrahymena macronuclei catalyzes deposition-related acetylation of free histones and transcription-related acetylation of nucleosomal histones. 1987, Pubmed
Ejlassi-Lassallette, H4 replication-dependent diacetylation and Hat1 promote S-phase chromatin assembly in vivo. 2011, Pubmed
Elliott, Replication-independent nucleosome exchange is enhanced by local and specific acetylation of histone H4. 2013, Pubmed
Freeman, Functional domains for assembly of histones H3 and H4 into the chromatin of Xenopus embryos. 1996, Pubmed , Xenbase
Galvani, In vivo study of the nucleosome assembly functions of ASF1 histone chaperones in human cells. 2008, Pubmed
Jenuwein, Translating the histone code. 2001, Pubmed
Kayne, Extremely conserved histone H4 N terminus is dispensable for growth but essential for repressing the silent mating loci in yeast. 1988, Pubmed
Kubbies, Mitotic cell cycle control in Physarum. Unprecedented insights via flow-cytometry. 1983, Pubmed
Li, Hat2p recognizes the histone H3 tail to specify the acetylation of the newly synthesized H3/H4 heterodimer by the Hat1p/Hat2p complex. 2014, Pubmed
Ling, Yeast histone H3 and H4 amino termini are important for nucleosome assembly in vivo and in vitro: redundant and position-independent functions in assembly but not in gene regulation. 1996, Pubmed
Loidl, Histone synthesis during the cell cycle of Physarum polycephalum. Synthesis of different histone species is not under a common regulatory control. 1987, Pubmed
Loidl, Postsynthetic acetylation of histones during the cell cycle: a general function for the displacement of histones during chromatin rearrangements. 1987, Pubmed
Luger, Crystal structure of the nucleosome core particle at 2.8 A resolution. 1997, Pubmed
Luger, Expression and purification of recombinant histones and nucleosome reconstitution. 1999, Pubmed
Mosammaparast, Pathways mediating the nuclear import of histones H3 and H4 in yeast. 2002, Pubmed
Mosammaparast, Nuclear import of histone H2A and H2B is mediated by a network of karyopherins. 2001, Pubmed
Nagarajan, Histone acetyl transferase 1 is essential for mammalian development, genome stability, and the processing of newly synthesized histones H3 and H4. 2013, Pubmed
Oppenheim, Advancing the onset of mitosis by cell free preparations of Physarum polycephalum. 1971, Pubmed
Parthun, The major cytoplasmic histone acetyltransferase in yeast: links to chromatin replication and histone metabolism. 1996, Pubmed
Pierron, Replication timing of 10 developmentally regulated genes in Physarum polycephalum. 1989, Pubmed
Polo, New histone incorporation marks sites of UV repair in human cells. 2006, Pubmed
Prior, Incorporation of exogenous pyrene-labeled histone into Physarum chromatin: a system for studying changes in nucleosomes assembled in vivo. 1980, Pubmed
Richman, Micronuclei and the cytoplasm of growing Tetrahymena contain a histone acetylase activity which is highly specific for free histone H4. 1988, Pubmed
Schuster, Yeast histone H2A and H2B amino termini have interchangeable functions. 1986, Pubmed
Shibahara, The N-terminal domains of histones H3 and H4 are not necessary for chromatin assembly factor-1- mediated nucleosome assembly onto replicated DNA in vitro. 2000, Pubmed
Sobel, Conservation of deposition-related acetylation sites in newly synthesized histones H3 and H4. 1995, Pubmed
Soniat, Recognition Elements in the Histone H3 and H4 Tails for Seven Different Importins. 2016, Pubmed
Sullivan, Optical mapping of protein-DNA complexes on chromatin fibers. 2010, Pubmed
Tagami, Histone H3.1 and H3.3 complexes mediate nucleosome assembly pathways dependent or independent of DNA synthesis. 2004, Pubmed
Thiriet, Histone proteins in vivo: cell-cycle-dependent physiological effects of exogenous linker histones incorporated into Physarum polycephalum. 1999, Pubmed
Thiriet, Analysis of chromatin assembled in vivo using exogenous histones in Physarum polycephalum. 2004, Pubmed
Thiriet, Chromatin remodeling by cell cycle stage-specific extracts from Physarum polycephalum. 1999, Pubmed
Thiriet, Linker histone phosphorylation regulates global timing of replication origin firing. 2009, Pubmed
Thiriet, A novel labeling technique reveals a function for histone H2A/H2B dimer tail domains in chromatin assembly in vivo. 2001, Pubmed
Thiriet, Replication-independent core histone dynamics at transcriptionally active loci in vivo. 2005, Pubmed , Xenbase
Verreault, Nucleosomal DNA regulates the core-histone-binding subunit of the human Hat1 acetyltransferase. 1998, Pubmed
Verreault, Nucleosome assembly by a complex of CAF-1 and acetylated histones H3/H4. 1996, Pubmed
