Cold Spring Harb Mol Case Stud
2018 Feb 01;41:. doi: 10.1101/mcs.a002303.
Show Gene links
Show Anatomy links
A de novo Ser111Thr variant in aquaporin-4 in a patient with intellectual disability, transient signs of brain ischemia, transient cardiac hypertrophy, and progressive gait disturbance.
Berland S
,
Toft-Bertelsen TL
,
Aukrust I
,
Byska J
,
Vaudel M
,
Bindoff LA
,
MacAulay N
,
Houge G
.
???displayArticle.abstract???
Aquaporin-4, encoded by AQP4, is the major water channel in the central nervous system and plays an important role in the brain's water balance, including edema formation and clearance. Using genomic copy-number analysis and trio-exome sequencing, we investigated a male patient with intellectual disability, hearing loss, and progressive gait dysfunction and found a de novo missense change Ser111Thr in AQP4 as the only suspicious finding. Perinatally, signs of brain ischemia were detected in relation to acute collapse 2 h after birth that resolved a few days later. At the age of 3 mo, cardiac hypertrophy was detected that persisted through childhood but was completely resolved by age 16. In theory, this neurodevelopmental disorder with transient cardiomyopathy could be caused by a disturbance of cellular water balance. Ser111 is an extremely conserved residue in the short cytoplasmic loop between AQP4 transmembrane helix 2 and 3, present across all AQP isoforms from plants to mammals, and it does not appear to be a phosphorylation site. We found that the Ser111Thr change does not affect water permeability or protein stability, suggesting another and possibly regulatory role. Although causality remains unproven, this case study draws attention to AQP4 as a candidate gene for a unique developmental disorder and to a specific serine as a residue of possibly great functional importance in many AQPs.
Figure 1. Patient pictures. Patient pictures from ages 3 (A), 16 (DâH), 18 (B), and 25 (C) years.

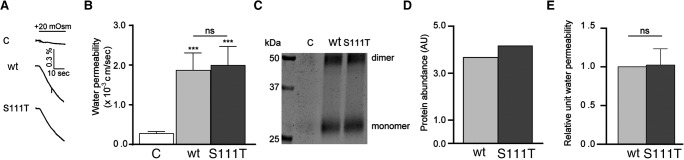

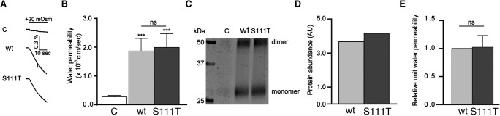

Figure 2. The relative unit water permeability of AQP4-wt and AQP4-S111T expressed in oocytes. (A) Representative volume traces from an uninjected oocyte (labeled C) and oocytes expressing AQP4-wt or AQP4-S111T challenged with a hyperosmotic gradient of +20 mOsm (indicated by a black bar). (B) The water permeabilities are given for uninjected control oocytes (labeled âCâ), AQP4-wt-, and AQP4-S111T-expressing oocytes for one representative experiment (n = 4 oocytes, error bars given as ±SD, statistical significance above the histograms refers to comparison to uninjected oocytes). (C) A representative western blot of biotinylated oocyte plasma membranes from one experiment (n = 4 oocytes in each lane). (D) Quantification of the representative western blot in C. (E) The relative unit water permeability was obtained for each experiment by division of the AQP4-mediated water permeabilities from B with plasma membrane AQP4 abundance (D), normalized to AQP4-wt and summarized across individual experiments (n = 3, error bars given as ±SEM). Water permeabilities were compared using one-way ANOVA with Dunnett's multiple comparison post hoc test and the relative unit water permeabilities were compared using Student's paired t-test. ***, P < 0.001; ns, not significant.

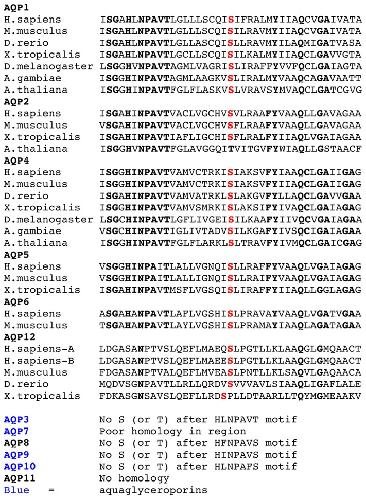

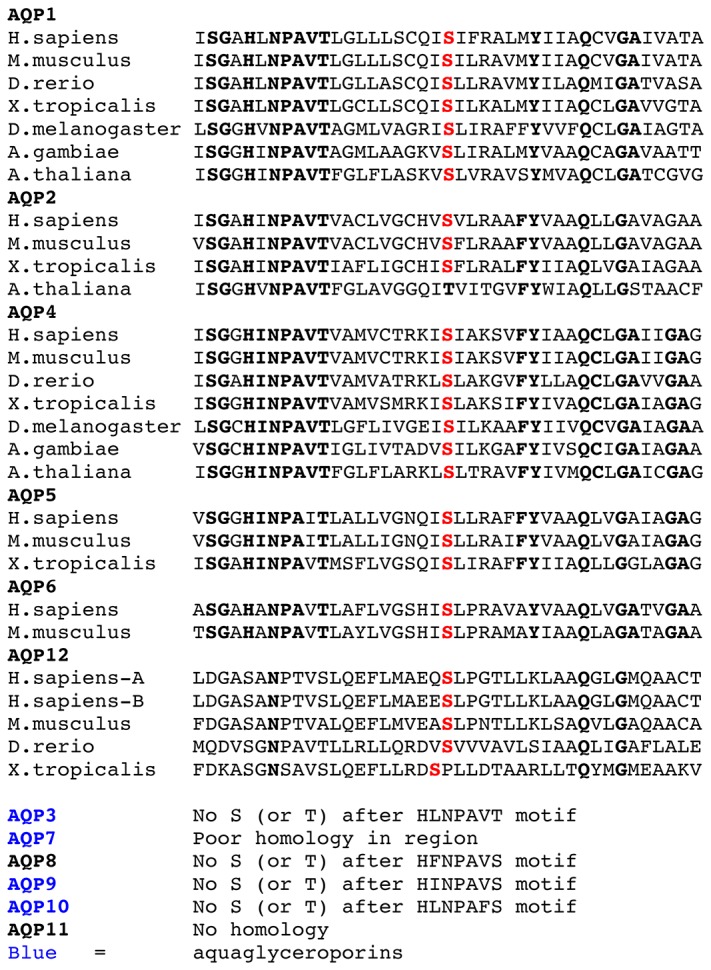

Figure 3. Conservation of Ser111 in AQP4 and between aquaporins.
Acuna-Hidalgo,
New insights into the generation and role of de novo mutations in health and disease.
2016, Pubmed
Acuna-Hidalgo,
New insights into the generation and role of de novo mutations in health and disease.
2016,
Pubmed
Agre,
Aquaporin water channels: molecular mechanisms for human diseases.
2003,
Pubmed
Assentoft,
AQP4 plasma membrane trafficking or channel gating is not significantly modulated by phosphorylation at COOH-terminal serine residues.
2014,
Pubmed
,
Xenbase
Assentoft,
Phosphorylation of rat aquaporin-4 at Ser(111) is not required for channel gating.
2013,
Pubmed
,
Xenbase
Bredrup,
High myopia-excavated optic disc anomaly associated with a frameshift mutation in the MYC-binding protein 2 gene (MYCBP2).
2015,
Pubmed
Christensen,
Age-related hearing loss: aquaporin 4 gene expression changes in the mouse cochlea and auditory midbrain.
2009,
Pubmed
Crane,
Live-cell imaging of aquaporin-4 diffusion and interactions in orthogonal arrays of particles.
2010,
Pubmed
Fenton,
Differential water permeability and regulation of three aquaporin 4 isoforms.
2010,
Pubmed
,
Xenbase
Furman,
Aquaporin-4 square array assembly: opposing actions of M1 and M23 isoforms.
2003,
Pubmed
Ho,
Crystal structure of human aquaporin 4 at 1.8 A and its mechanism of conductance.
2009,
Pubmed
Houge,
[Where is the boundary between diagnostics and research?].
2015,
Pubmed
Hubbard,
Expression of the Astrocyte Water Channel Aquaporin-4 in the Mouse Brain.
2015,
Pubmed
Kitchen,
Identification and Molecular Mechanisms of the Rapid Tonicity-induced Relocalization of the Aquaporin 4 Channel.
2015,
Pubmed
Kozlikova,
CAVER Analyst 1.0: graphic tool for interactive visualization and analysis of tunnels and channels in protein structures.
2014,
Pubmed
Lek,
Analysis of protein-coding genetic variation in 60,706 humans.
2016,
Pubmed
Papadopoulos,
Aquaporin-4 and brain edema.
2007,
Pubmed
Philippakis,
The Matchmaker Exchange: a platform for rare disease gene discovery.
2015,
Pubmed
Pisani,
Translational regulation mechanisms of aquaporin-4 supramolecular organization in astrocytes.
2011,
Pubmed
Rutkovskiy,
Deletion of the aquaporin-4 gene alters expression and phosphorylation of protective kinases in the mouse heart.
2014,
Pubmed
Rutkovskiy,
Cardiac aquaporins.
2013,
Pubmed
Skucas,
Impairment of select forms of spatial memory and neurotrophin-dependent synaptic plasticity by deletion of glial aquaporin-4.
2011,
Pubmed
Song,
Potassium dependent regulation of astrocyte water permeability is mediated by cAMP signaling.
2012,
Pubmed
Szu,
The Role of Astrocytic Aquaporin-4 in Synaptic Plasticity and Learning and Memory.
2016,
Pubmed
Verkman,
Aquaporins at a glance.
2011,
Pubmed
Verkman,
Aquaporins in clinical medicine.
2012,
Pubmed
Zampighi,
A method for determining the unitary functional capacity of cloned channels and transporters expressed in Xenopus laevis oocytes.
1995,
Pubmed
,
Xenbase
Zeuthen,
Water transport by GLUT2 expressed in Xenopus laevis oocytes.
2007,
Pubmed
,
