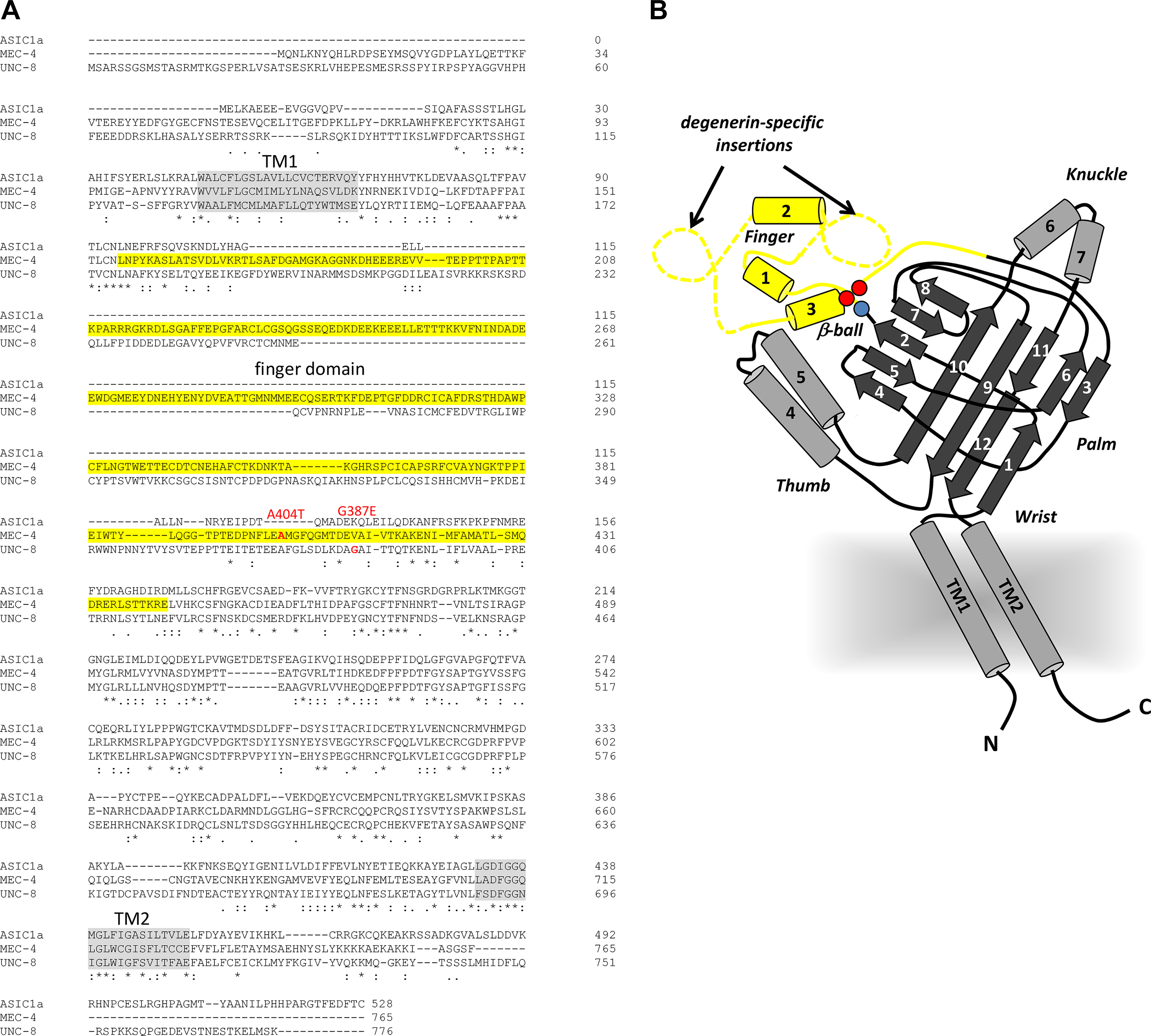

Fig. 1.
The finger domain contains the most divergent sequence. A: sequence alignment (Clustal Omega, https://www.ebi.ac.uk/Tools/msa/clustalo/) of human acid-sensing ion channel (ASIC) ASIC1a and Caenorhabditis elegans degenerin (DEG) channels MEC-4 and UNC-8. Shaded in gray are transmembrane domains TM1 and TM2; in yellow is the finger domain of MEC-4. B: schematic representation of a DEG/epithelial Na+ channel subunit. Cylinders and arrows represent α-helixes and β-sheets, respectively; lines depict loops. α-Helixes and β-sheets are numbered according to the primary protein sequence. In yellow, the finger domain with the degenerin-specific domains shown as dotted lines. Red dots represent hyperactive MEC-4 mutation A404T and UNC-8 mutation G387E; the gray dot represents mutation A387S in brain liver intestine Na+ channel (BLINaC) (56). Gray-shaded area represents the plasma membrane.
|
|

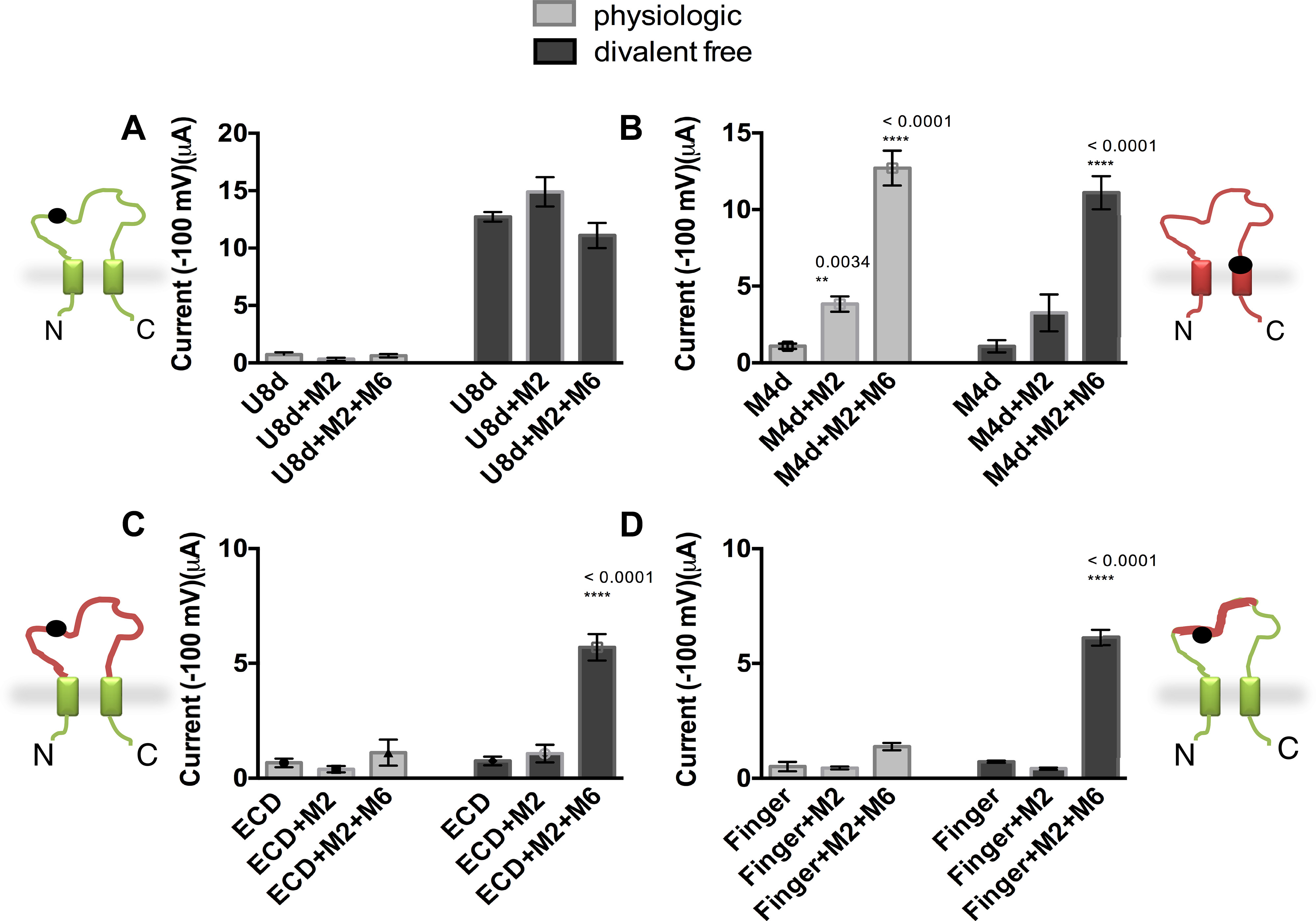

Fig. 2.
MEC-6 exerts its effects on current amplitude via the finger domain. Schematic representations of channel subunits expressed and comparison of mean current amplitudes recorded at â100 mV in physiologic solution (gray columns) and divalent-free solution (black columns). A: UNC-8(d), UNC-8(d) +MEC-2, and UNC-8(d) +MEC-2 +MEC-6. n = 11, 5, and 15 respectively in physiologic solution, and n = 9, 5, and 8 in divalent-free solution. B: MEC-4(d), MEC-4(d) + MEC-2, and MEC-4(d) + MEC-2 + MEC-6; n = 5, 12, and 14 respectively in physiologic solution, and n = 5, 4, and 8 in divalent-free solution. C: UNC-8/MEC-4 A404T (extracellular domain, ECD) chimera, UNC-8/MEC-4 A404T (ECD) + MEC-2, and UNC-8/MEC-4 A404T (ECD) + MEC-2 + MEC-6; n = 11, 11, and 8 respectively in physiologic solution, and n = 11, 14, and 8 in divalent-free solution. D: UNC-8/MEC-4 A404T (finger) chimera, UNC-8/MEC-4 A404T (finger) + MEC-2, and UNC-8/MEC-4 A404T (finger) + MEC-2 + MEC-6; n = 8, 8, and 10 respectively in physiologic solution, and n = 8, 8, and 10 in divalent-free solution. Data are expressed as mean ± SD. Statistical significance (by ANOVA with Bonferroni correction) between MEC-4(d) and MEC-4(d) coexpressed with MEC-2, and MEC-6 in physiologic solution and divalent-free solution and between UNC-8/ME-4 A404T (ECD) and UNC-8/MEC-4 A404T (finger) chimeras alone and coexpressed with MEC-6 is indicated by asterisks. P values are shown above the columns.
|
|

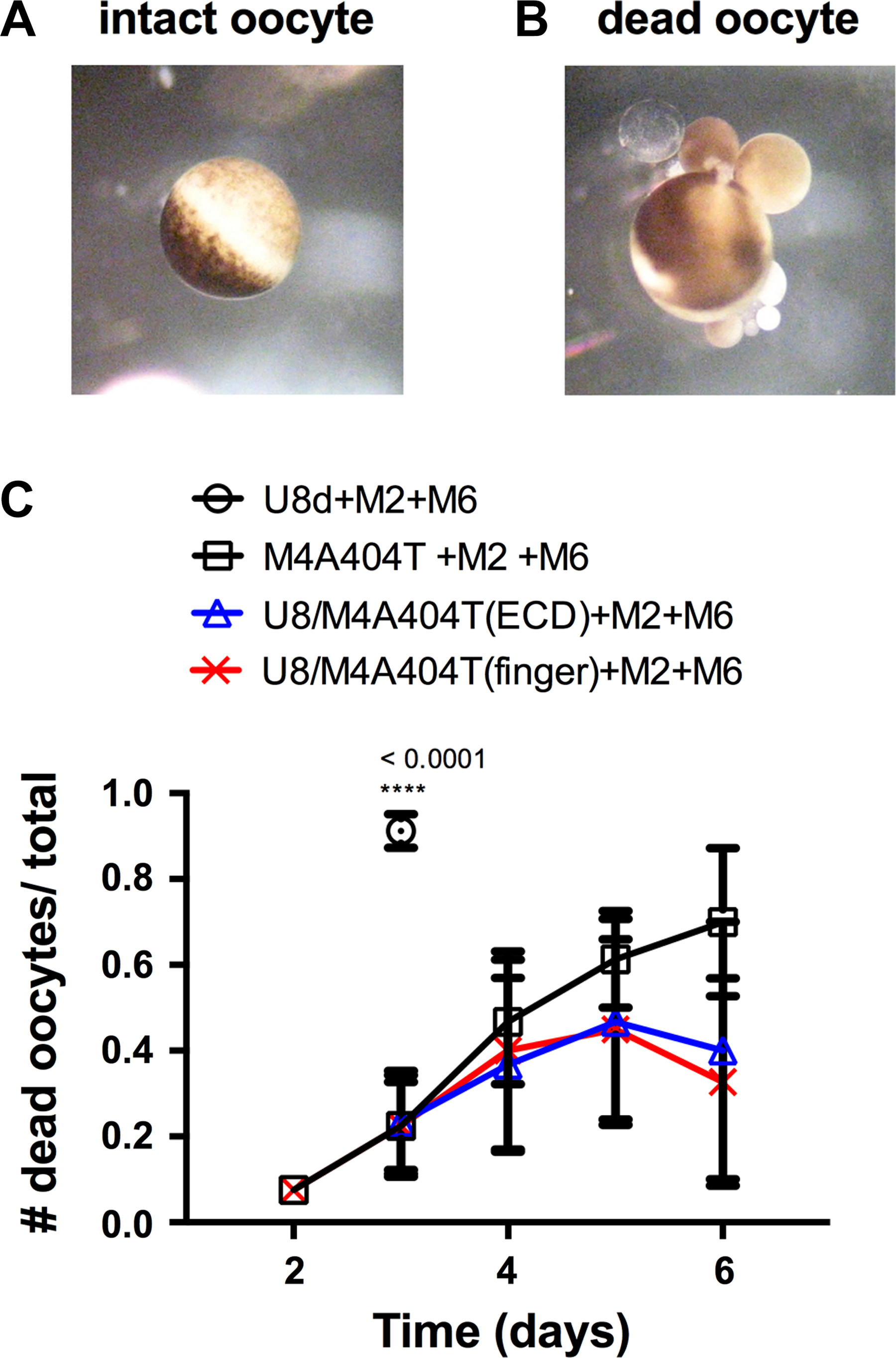

Fig. 3.
The finger domain establishes the cell death phenotype. A and B: micrographs of an intact healthy oocyte (noninjected) and a ruptured dead one [injected with UNC-8(G387E)] 3 days after injection. C: we scored cell death by counting the ratio of ruptured oocytes or oocytes with cytoplasmic protrusions over the course of 5 days, starting from day 2 after injection for oocytes injected with UNC-8(d) + MEC-2 + MEC-6 (black open circles, n of experiments was 5, with 10â15 oocytes injected per experiment), MEC-4(A404T) + MEC-2 + MEC-6 (black open squares, n = 2â4, with 10â15 oocytes injected per experiment), UNC-8/MEC-4 A404T (extracellular domain, ECD) + MEC-2 + MEC-6 (blue open triangles n = 2â3, with 10â15 oocytes injected per experiment), and UNC-8/MEC-4 A404T (finger) + MEC-2 + MEC-6 (pink asterisks, n = 2â4, with 10â15 oocytes injected per experiment). Data are expressed as mean ± SE.
|
|

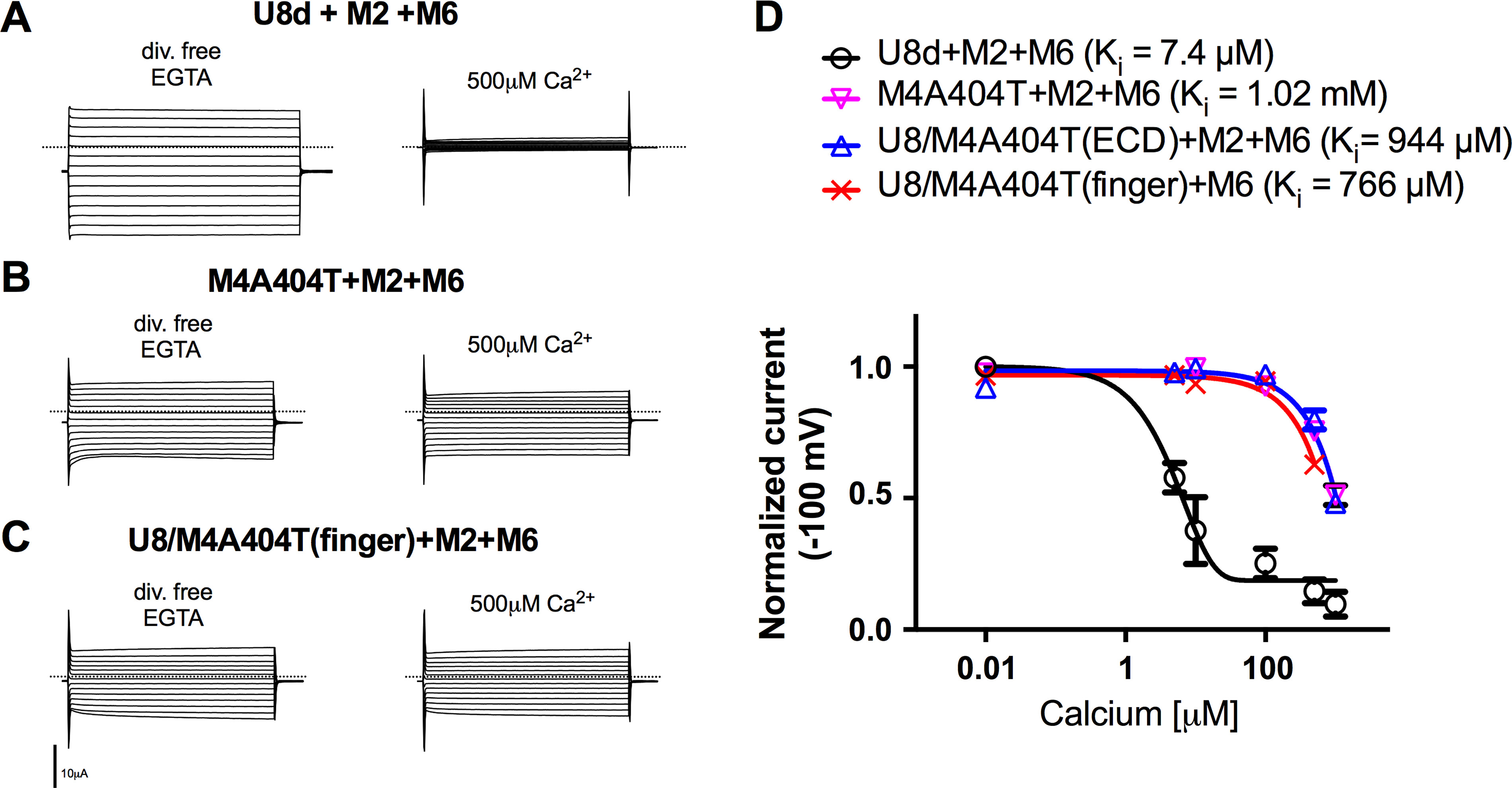

Fig. 4.
UNC-8 Ca2+ block is conferred by the finger domain. A: representative whole cell currents recorded from an oocyte expressing UNC-8(d) + MEC-2 +MEC-6 perfused with a divalent cation-free NaCl solution containing 1 mM EGTA. The voltage protocol consisted of a holding potential of â30 mV and steps from â160 to + 100 mV in 20 mV increments. Right column currents represent same oocyte perfused with 500 µM Ca2+. B: same as in A for oocyte expressing MEC-4(A404T) +MEC-2 +MEC-6. Right column represents same oocyte perfused with 500 µM Ca2+. C: Same as in A and B for oocyte expressing UNC-8/MEC-4 (A404T) (finger) chimera +MEC-2 +MEC-6. Right column represents same oocyte perfused with 500 µM Ca2+. D: calcium dose-response curves for oocytes expressing UNC-8(d) +MEC-2 +MEC-6 (n = 10; black open circles, Kiâ=â7.4 µM), MEC-4 (A404T)+MEC-2+MEC-6 (n = 6) (pink open triangles, Kiâ=â1002 µM), UNC-8/MEC-4 (A404T) (extracellular, ECD) chimera + MEC-2+MEC-6 (n = 8) (blue open triangles, Kiâ=â944 µM), and UNC-8/MEC-4 (A404T) (finger) chimera+MEC-2+MEC-6 (n = 9; red asterisk, Kiâ=â766 µM). Data are expressed as mean ± SE and were fitted with a sigmoidal curve.
|
|

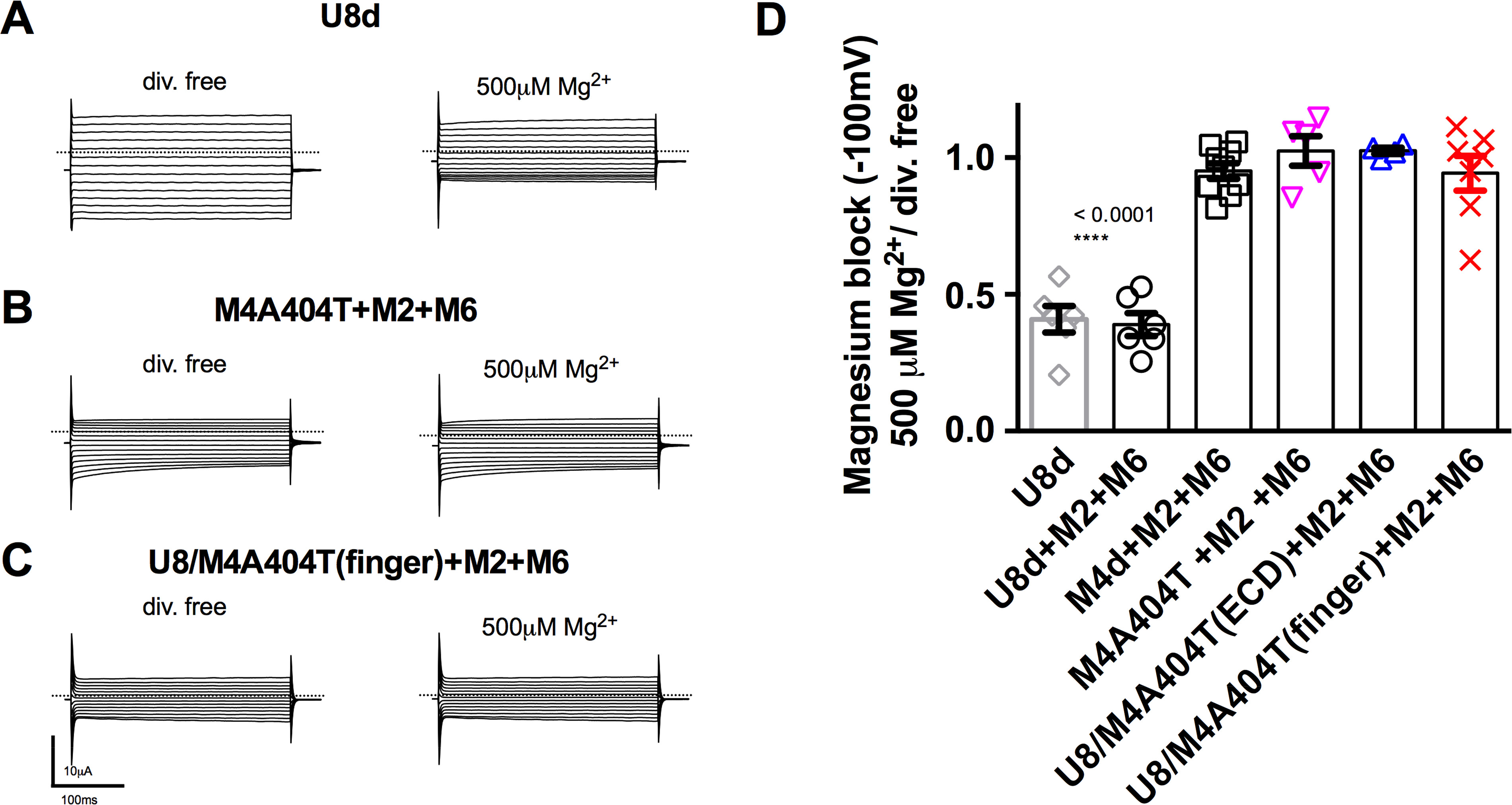

Fig. 5.
Block of UNC-8(d) by Mg2+ conferred by the extracellular domain (ECD). A: representative whole cell currents recorded from an oocyte expressing UNC-8(d) perfused with a divalent cation-free NaCl solution. Right column currents represent same oocyte perfused with 500 µM Mg2+. B and C: Same as in A for an oocyte expressing MEC-4(A404T) +MEC-2 +MEC-6 and one expressing UNC-8/MEC-4(A404T) (finger) chimera +MEC-2 +MEC-6. Next column represents same oocytes perfused with 500 µM Mg2+. D: average current remaining at â100 mV after perfusion with 500 µM Mg2+ for UNC-8(d) (n = 6), UNC-8(d) + MEC-2 + MEC-6 (n = 6), MEC-4(d)+MEC-2+MEC-6 (n = 9), MEC-4 (A404T) + MEC-2 + MEC-6 (n = 5), UNC-8/MEC-4 A404T (ECD) chimera + MEC-2 + MEC-6 (n = 4), and UNC-8/MEC-4(A404T) (finger) chimera + MEC-2 + MEC-6 (n = 7). Data are expressed as mean ± SE. Statistical significance (one-way ANOVA with Bonferroni multiple comparison test) between UNC-8(d) or UNC-8(d) + MEC-2 + MEC-6, and all the other experimental groups is indicated by the asterisk. P values are shown above the columns.
|
