???displayArticle.abstract???
Site-specific 2'-O-ribose methylation is an abundant post-transcriptional modification mediated by small non-coding nuclear RNAs known as box C/D modification guide RNAs. The minimal structural requirements for these guide RNAs to function in higher eukaryotes are still unclear. To address this question, we generated a series of mutant variants of Drosophila box C/D scaRNA:MeU2-C28 and tested their modification guide activities in the Xenopus oocyte system. Our data suggest that box C/D guide RNA function requires either a terminal or an internal consensus kink-turn structure. We identified the minimal functional box C/D guide RNA. It consists of a single-domain molecule with (i) a terminal stem with a consensus kink-turn domain, (ii) one box C and box D connected by a 14-nucleotide antisense element and (iii) a one-nucleotide spacer between the box C and the antisense element. In this single domain RNA, the sequence of the spacer is more important than its length. We suggest that the secondary structure of box C/D RNAs, essential for guide RNA function, is more complex than generally supposed. At the same time, the expression of functional extremely short single-domain box C/D RNAs is possible in higher eukaryotes.

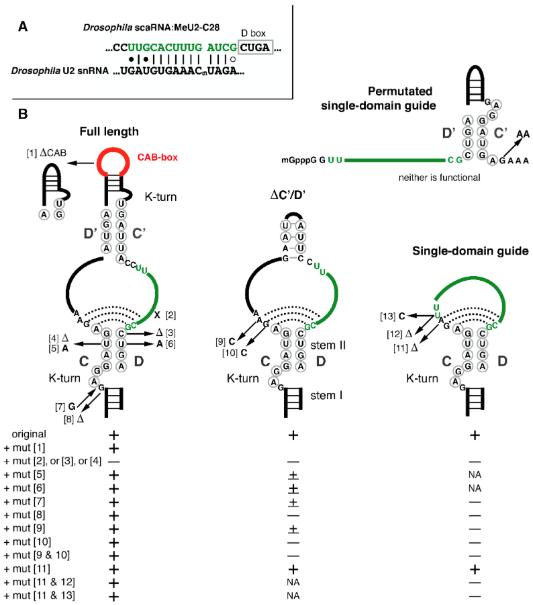

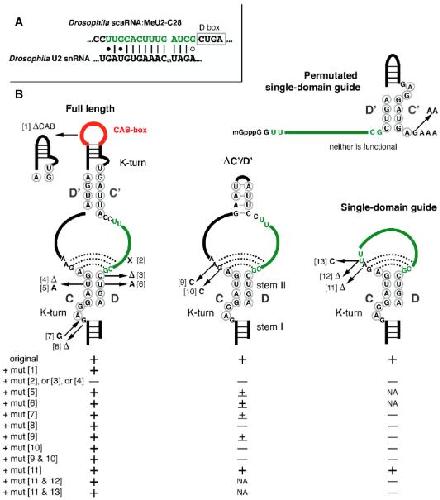

Figure 1. 2’-O-methylation guide activity of Drosophila scaRNA:MeU2-C28 and mutants thereof, detected in injected Xenopus oocytes. (A) Postulated base-pairing of scaRNA:MeU2-C28 with U2 snRNA. (B) Schematic representation of tested MeU2-C28 variants. Experimentally verified guide activity or lack thereof are indicated with a plus or minus sign for each variant. Mutants that lacked the CAB box behaved like the corresponding full-length variants, thus confirming that the CAB box is dispensable for modification guide activity.

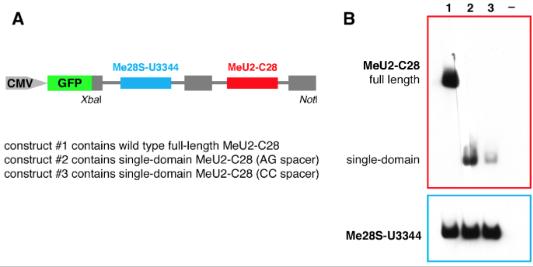

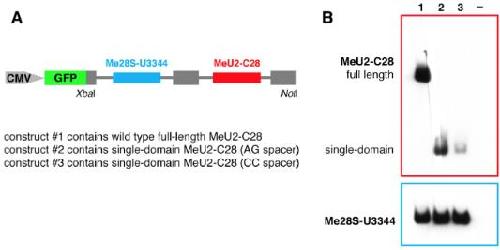

Figure 2. Expression of Drosophila snoRNA:Me28S-U3344 and scaRNA:MeU2-C28 (wild-type and single-domain mutant variants) in transfected HeLa cells. (A) Diagram of the snoRNA expression construct used for transfection. (B) Northern blot analysis of MeU2-C28 expression; Me28S-U3344 served as an internal control. Note fully processed guide RNA molecules in all samples. The expression level of the functional single-domain MeU2-C28 guide RNA is similar to that of full-length wild-type. A non-functional, single-domain mutant (extreme mutant with additional mutations 9 and 10) accumulated to a much lower level, yet was still normally processed.

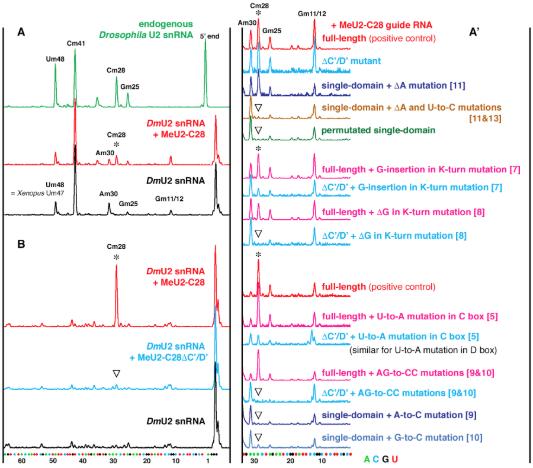

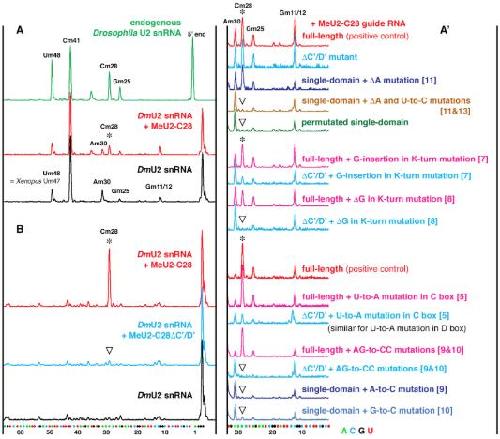

Figure 3. Mapping 2â-O-methylation of Drosophila U2 snRNA in in vitro modification assays. When dNTPs are used at low concentration, reverse transcriptase pauses at 2â-O-methylated positions and short fragments accumulate. The fluorescently labeled fragments appear as peaks above the baseline. The relative height of the peaks is significant only when oocytes from the same frog were used and modification assays were run at the same time (grouped traces). (A) 2â-O-methylation of endogenous Drosophila U2 snRNA (green trace) and in vitro-transcribed Drosophila U2 injected into Xenopus oocytes, either alone (black trace) or with in vitro-transcribed Drosophila MeU2-C28 guide RNA (red trace). Endogenous Drosophila U2 snRNA is modified at positions 48, 41, 28 and 25. When injected into Xenopus oocytes, Drosophila U2 snRNA becomes modified by the endogenous Xenopus modification machinery at position 30, specific to vertebrate U2 snRNA, but not at Drosophila-specific position 28. Vertebrate-specific 2â-O-methylation at positions 11 and 12 is also detected in Drosophila U2 snRNA injected into Xenopus oocytes (black trace). For more details on U2 snRNA modification patterns in vertebrates and Drosophila, see Supplementary Figure S1. Co-injection of MeU2-C28 induces 2â-O-methylation at position 28 (red trace, star). (Aâ) Zoom-in on the region of MeU2-C28-inducible modification. Traces show modification activity of representative mutants of MeU2-C28 guide RNA. Induced 2â-O-methylation at C28 is indicated with a star; unmodified C28 is indicated with an open arrowhead. (B) MeU2-C28 modification activity in RNA-depleted nuclear extract. Wild-type MeU2-C28 (top red trace) is functional in this assay, but the ÎCâ/Dâ mutant (blue trace) and other shorter mutants are not. As previously shown, the ÎCAB mutant is also functional in this assay [13].
Bachellerie,
The expanding snoRNA world.
2002, Pubmed
Bachellerie,
The expanding snoRNA world.
2002,
Pubmed
Bleichert,
Dissecting the role of conserved box C/D sRNA sequences in di-sRNP assembly and function.
2010,
Pubmed
Cahill,
Site-specific cross-linking analyses reveal an asymmetric protein distribution for a box C/D snoRNP.
2002,
Pubmed
,
Xenbase
Cavaillé,
Processing of fibrillarin-associated snoRNAs from pre-mRNA introns: an exonucleolytic process exclusively directed by the common stem-box terminal structure.
1996,
Pubmed
Deryusheva,
Novel small Cajal-body-specific RNAs identified in Drosophila: probing guide RNA function.
2013,
Pubmed
,
Xenbase
Deryusheva,
Small Cajal body-specific RNAs of Drosophila function in the absence of Cajal bodies.
2009,
Pubmed
,
Xenbase
Deryusheva,
Orchestrated positioning of post-transcriptional modifications at the branch point recognition region of U2 snRNA.
2018,
Pubmed
,
Xenbase
Deryusheva,
Post-transcriptional modification of spliceosomal RNAs is normal in SMN-deficient cells.
2012,
Pubmed
Gall,
Lampbrush chromosomes.
1991,
Pubmed
,
Xenbase
Ghalei,
A novel Nop5-sRNA interaction that is required for efficient archaeal box C/D sRNP formation.
2010,
Pubmed
Karijolich,
Spliceosomal snRNA modifications and their function.
2010,
Pubmed
Kiss-László,
Site-specific ribose methylation of preribosomal RNA: a novel function for small nucleolar RNAs.
1996,
Pubmed
Kiss-László,
Sequence and structural elements of methylation guide snoRNAs essential for site-specific ribose methylation of pre-rRNA.
1998,
Pubmed
Krogh,
Substoichiometric ribose methylations in spliceosomal snRNAs.
2017,
Pubmed
Nicoloso,
Intron-encoded, antisense small nucleolar RNAs: the characterization of nine novel species points to their direct role as guides for the 2'-O-ribose methylation of rRNAs.
1996,
Pubmed
Qu,
The spatial-functional coupling of box C/D and C'/D' RNPs is an evolutionarily conserved feature of the eukaryotic box C/D snoRNP nucleotide modification complex.
2011,
Pubmed
Szewczak,
Molecular basis for RNA kink-turn recognition by the h15.5K small RNP protein.
2005,
Pubmed
,
Xenbase
Tran,
Efficient RNA 2'-O-methylation requires juxtaposed and symmetrically assembled archaeal box C/D and C'/D' RNPs.
2003,
Pubmed
Tycowski,
Guide RNAs with 5' caps and novel box C/D snoRNA-like domains for modification of snRNAs in metazoa.
2004,
Pubmed
Tycowski,
A small nucleolar RNA requirement for site-specific ribose methylation of rRNA in Xenopus.
1996,
Pubmed
,
Xenbase
van Nues,
Unusual C΄/D΄ motifs enable box C/D snoRNPs to modify multiple sites in the same rRNA target region.
2017,
Pubmed
Wallace,
Protein incorporation by isolated amphibian oocytes. 3. Optimum incubation conditions.
1973,
Pubmed
,
Xenbase
Watkins,
A common core RNP structure shared between the small nucleoar box C/D RNPs and the spliceosomal U4 snRNP.
2000,
Pubmed
Watkins,
Conserved stem II of the box C/D motif is essential for nucleolar localization and is required, along with the 15.5K protein, for the hierarchical assembly of the box C/D snoRNP.
2002,
Pubmed
Watkins,
The box C/D and H/ACA snoRNPs: key players in the modification, processing and the dynamic folding of ribosomal RNA.
2012,
Pubmed
Xue,
Structural basis for substrate placement by an archaeal box C/D ribonucleoprotein particle.
2010,
Pubmed
Zhao,
An H/ACA guide RNA directs U2 pseudouridylation at two different sites in the branchpoint recognition region in Xenopus oocytes.
2002,
Pubmed
,
Xenbase
