Nakajima K , Tanizaki Y , Luu N , Zhang H .

ZIA HD001901-23 Intramural NIH HHS

             nucleosome assembly
             antibacterial humoral response

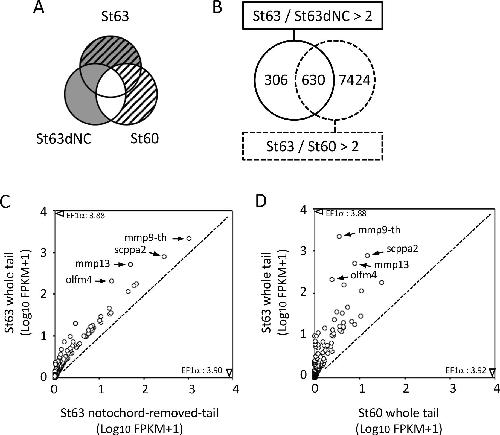

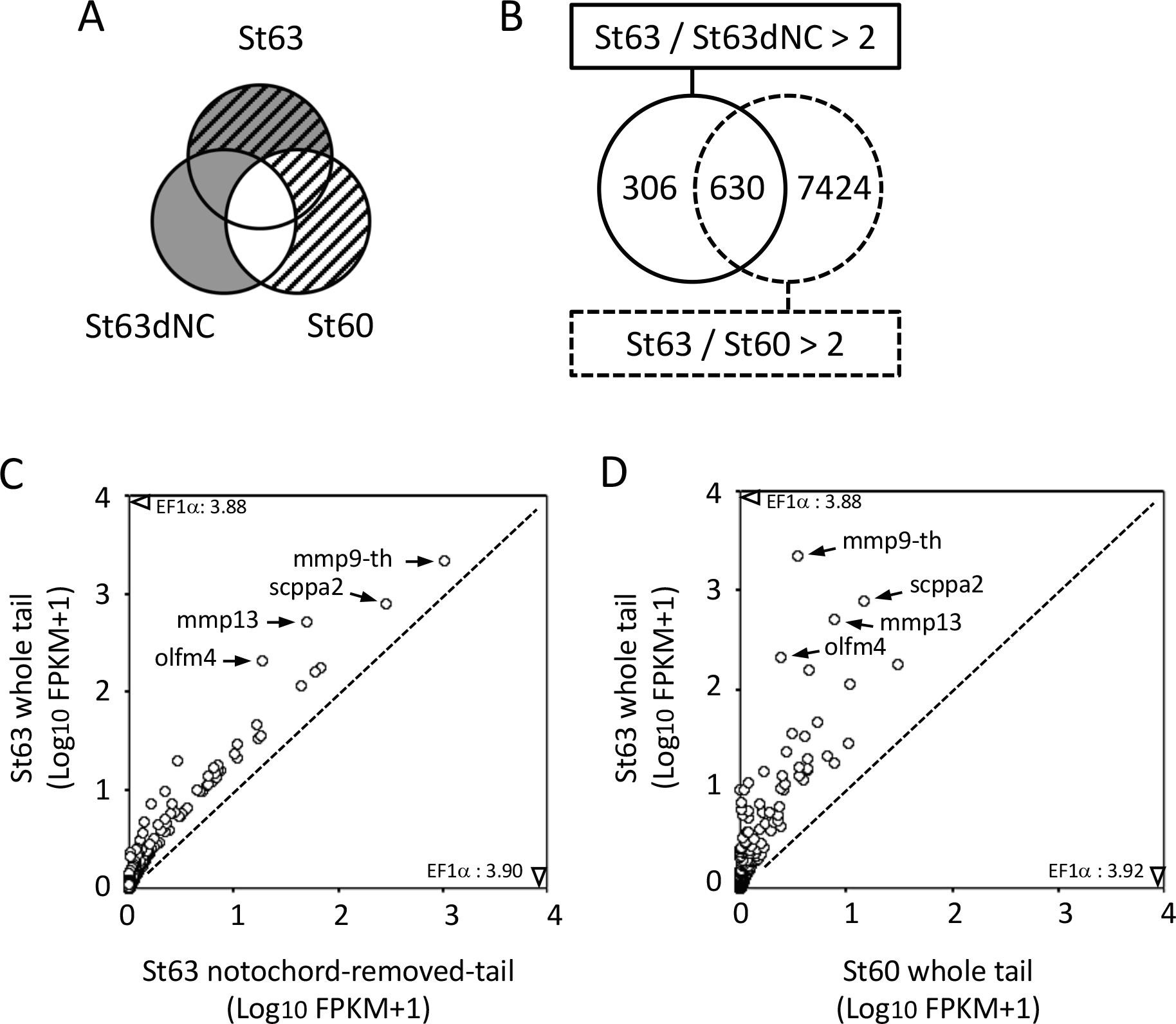

	Fig. 1. Identification of notochord-enriched, metamorphosis-induced genes (A) The Venn diagram representation of the RNA-Seq analyses. The mRNAs from stage-60-tail (St60), stage-63-tail (St63) and stage-63-notochord-removed-tail (St63dNC, i.e., the remaining tail after removing the notochord) are sequenced by RNA-Seq and compared among each other. The lined areas represent the expression of notochord-enriched genes. The shaded areas represent the expression of metamorphosis-induced genes. The lined and shaded area represents that of notochord-enriched, metamorphosis-induced genes. (B) The Venn diagram showing the result of the comparisons between St63 and St63dNC (solid line) and between St63 and St60 (dashed line) RNA-Seq data. Each sample was prepared from the mixture of 5 (St60), 5 (St63) and 8 (St63dNC) tails, respectively. The numbers of genes with a more than two-fold increase in St63, were indicated. (C, D) Expression profiles of the 630 notochord-enriched, metamorphosis-induced genes. Each gene is represented by a circle in the graph, as determined by the relative expression levels in the St63 (vertical axis) and St60 (C) or St63dNC (D). The names of the most highly expressed four genes in St63 (arrows) and expression levels of elongation factor 1 alpha 1 (EF1α; [ENSXETG00000001182], white arrowhead) are also showed in figure. The dashed line indicates equal expression level between two samples. mmp9-th; matrix metalloproteinase 9-th [ENSXETG00000033145], scppa2; secretory calcium-binding phosphoprotein acidic 2 [ENSXETG00000000337], mmp13; matrix metalloproteinase 13 [ENSXETG00000022190], olfm4; olfactomedin 4 [ENSXETG00000018715]. Data were the average of three technical replications. FPKM: fragments per kilobase of exon per million reads mapped.

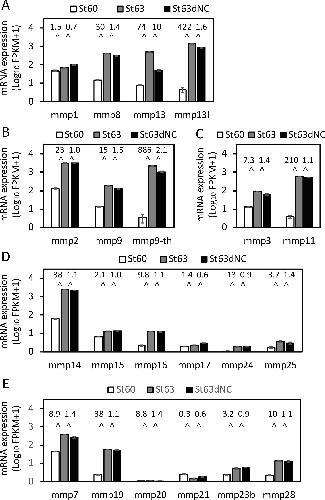

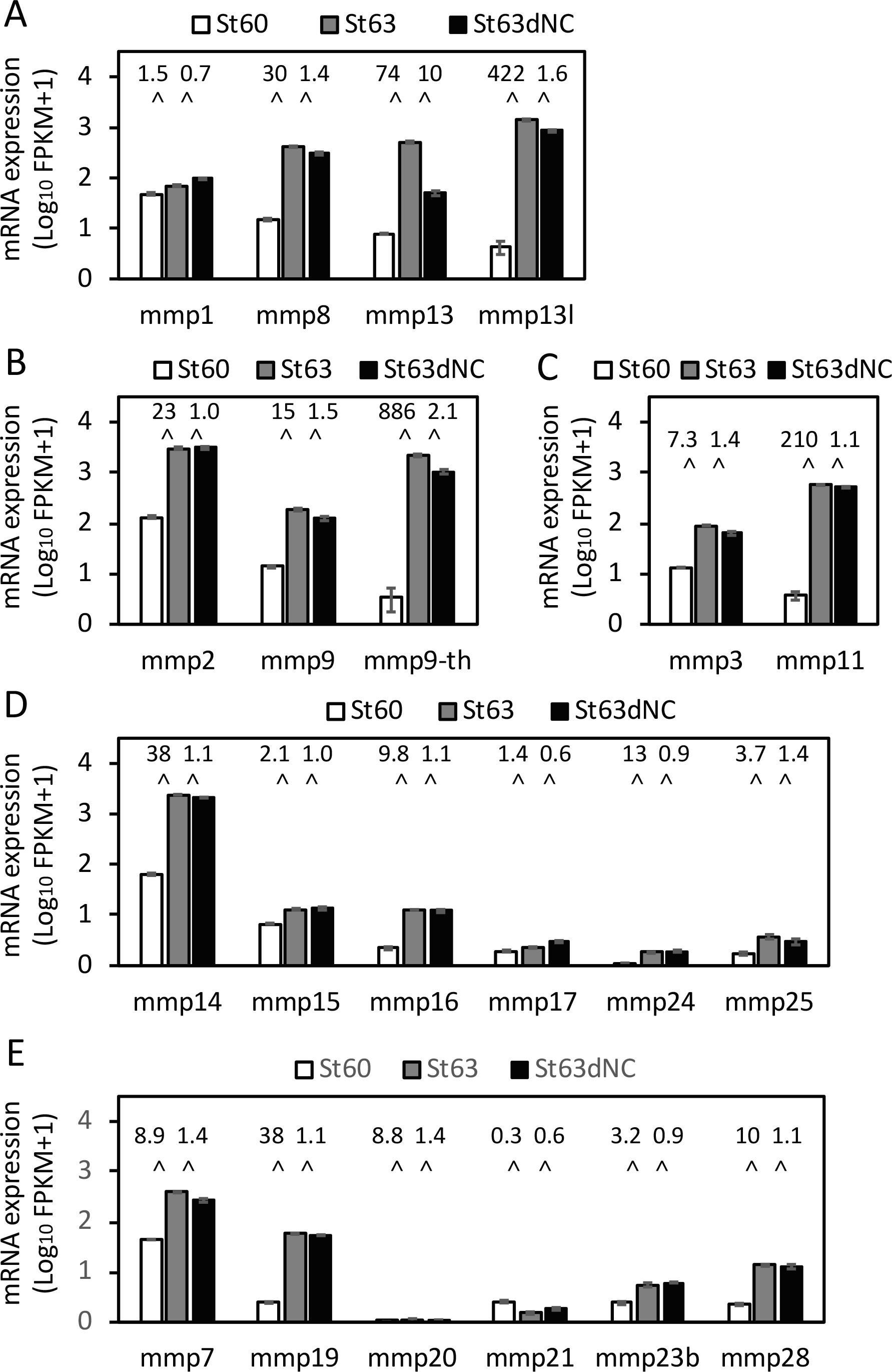

	Fig. 2. The expression profiles of matrix metalloproteinases (MMPs). The expression levels of collagenases (A), gelatinases (B), stromelysins (C), membrane-type MMPs (D), and other MMPs (E) in stage-60-tail (St60), stage-63-tail (St63) and stage-63-notochord-removed-tail (St63dNC) were obtained from RNA-Seq data by using ENSEMBL database except for mmp7. The data for mmp7 was obtained from the same RNA-Seq data by using NCBI database because there is no accession number for mmp7 in ENSEMBL. The fold differences between St63 and St60 or St63dNC were indicated in figures. Samples were same as Fig. 1. Data were mean ± SD of three technical replications.

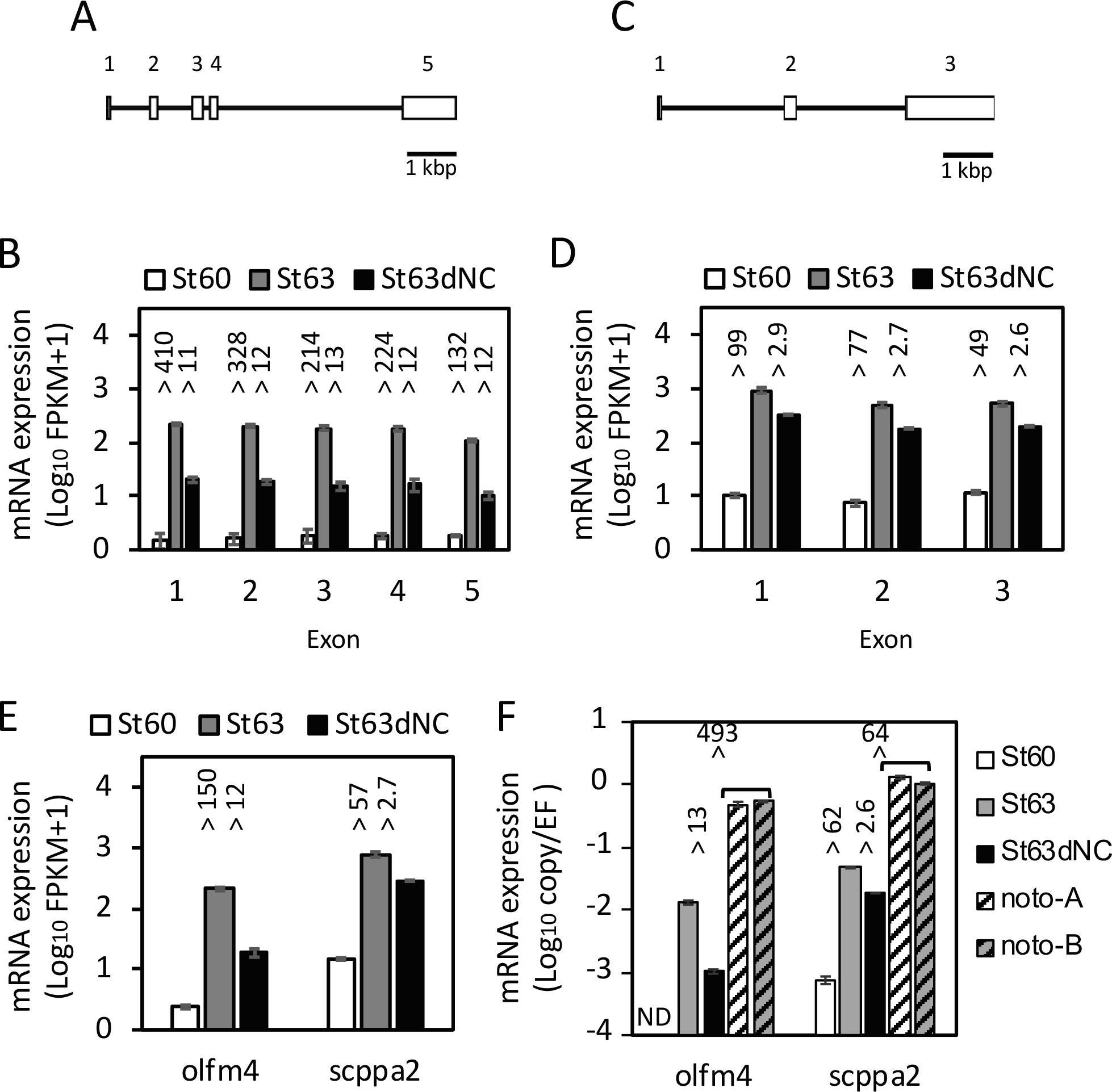

	Fig. 3. The expression profiles of olfm4 and scppa2 (A) The schematic representations of olfm4 gene structure with exons shown as boxes. (B) The expression levels of each exon of olfm4 from RNA-Seq as analyzed in Fig. 2. (C) The schematic representations of scppa2 gene structure with exons shown as boxes. (D) The expression levels of each exon of scppa2 from RNA-Seq as analyzed in Fig. 2. (E) The expression levels of olfm4 and scppa2 from RNA-Seq as analyzed in Fig. 2.(F) RT-PCR analysis of the expression levels of olfm4 and scppa2 in St60, St63, St63dNC and notochord (noto-A and noto-B) samples. The expression levels were shown as the copy number normalized against that of EF1α in each sample. The notochord samples were prepared from a mixture of 38 and 15 tadpoles, respectively, by using two different methods as described in previously (Nakajima et al. 2019). The fold changes between St63 and St60 or St63dNC (B and D-F), and between St63dNC and the average of the two notochord samples (F) were indicated. The samples of St60, St63 and St63dNC were the same as in Fig. 1. Data were mean ± SD of three technical replications.
	Fig. 4. Distinct localizations of olfm4 and scppa2 expression in the tail at the climax of metamorphosis. Cross sections of the tail at stage 62 were hybridized with sense olfm4 or scppa2 probes (A, A’, C, C’) or their antisense probes (B, B’, D, D’). Dark purple deposits indicate the sites of probe binding. Black pigments in some areas, e.g., spinal cord (SC), are melanin (see A, A’, C, C’). Note that olfm4 mRNA is expressed in the outer sheath cells (OS), but not in the connective tissue sheath (CT). Scppa2 mRNA is expressed in the OS and in the CT surrounding the notochord (NC). These same expression patterns were observed in three individual animals (not shown). Scale bars, 0.5 mm in A-D, 0.1 mm in A’-D’.

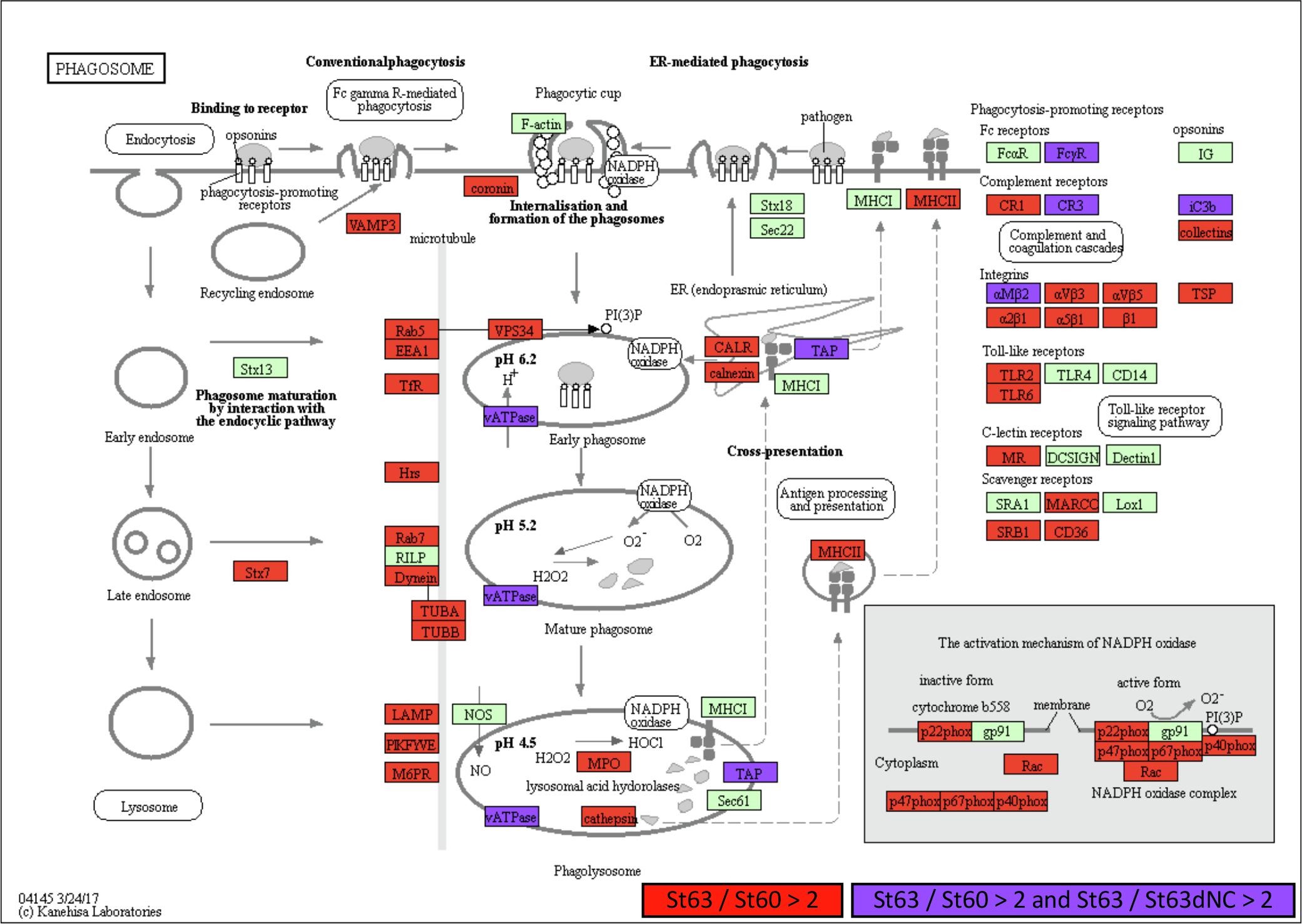

	Fig. 5. The up-regulated genes in the phagosome pathway. The metamorphosis-induced genes were showed in red and the genes induced specifically in notochord during metamorphosis were showed in purple. There were no genes which were expressed at 2 fold or higher level in the whole tail compared to the notochord-removed tail at stage 63 but not upregulated between stage 60 and 63, i.e., all notochord-enriched genes in this pathway were upregulated during metamorphosis. The genes whose expression was not changed were shown in light green.

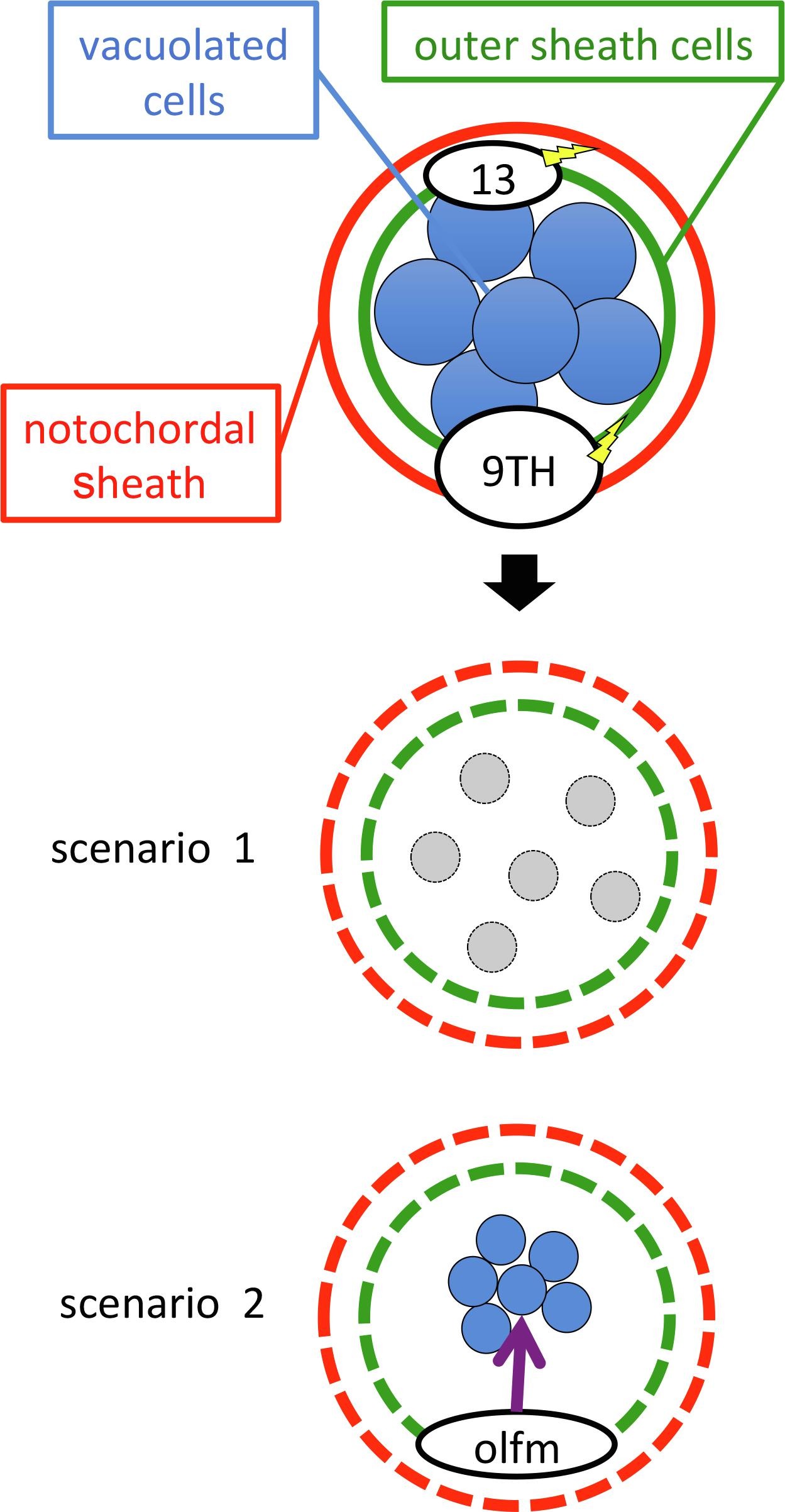

	Fig. 6. Two potential models for notochord regression. MMP13 (13) expressed by outer sheath cells (solid green line) digests the notochordal sheath (solid red line). MMP9-TH (9TH) expressed by outer sheath cells digest the peri-notochordal basement membrane, thereby leading to the detachment of outer sheath cells from notochordal sheath, which in turn causes their apoptosis (dashed green lines). The ECM digestions by MMPs are indicated as yellow marks. Subsequently, two possible scenarios may occur. Scenario 1: The inner vacuolated cells are induced to undergo apoptosis (dashed gray circles) due to the loss of outer sheath cells. The notochord regression is mainly driven by the apoptosis of inner vacuolated cells. Scenario 2: Expression of olfm4 (olfm) as an extracellular matrix glycoprotein by the outer sheath cells facilitates the cell adhesion among inner vacuolated cells (purple arrow). The major driving force of notochord regression is the shrinkage of inner vacuolated cells.

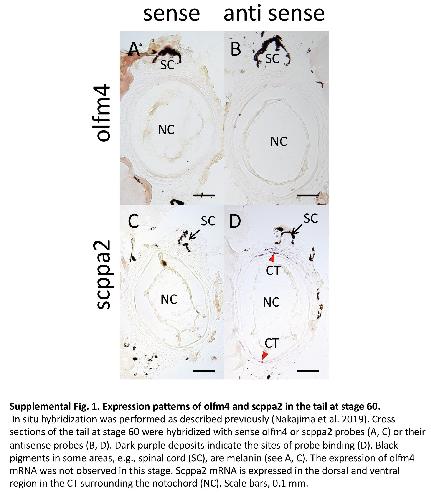

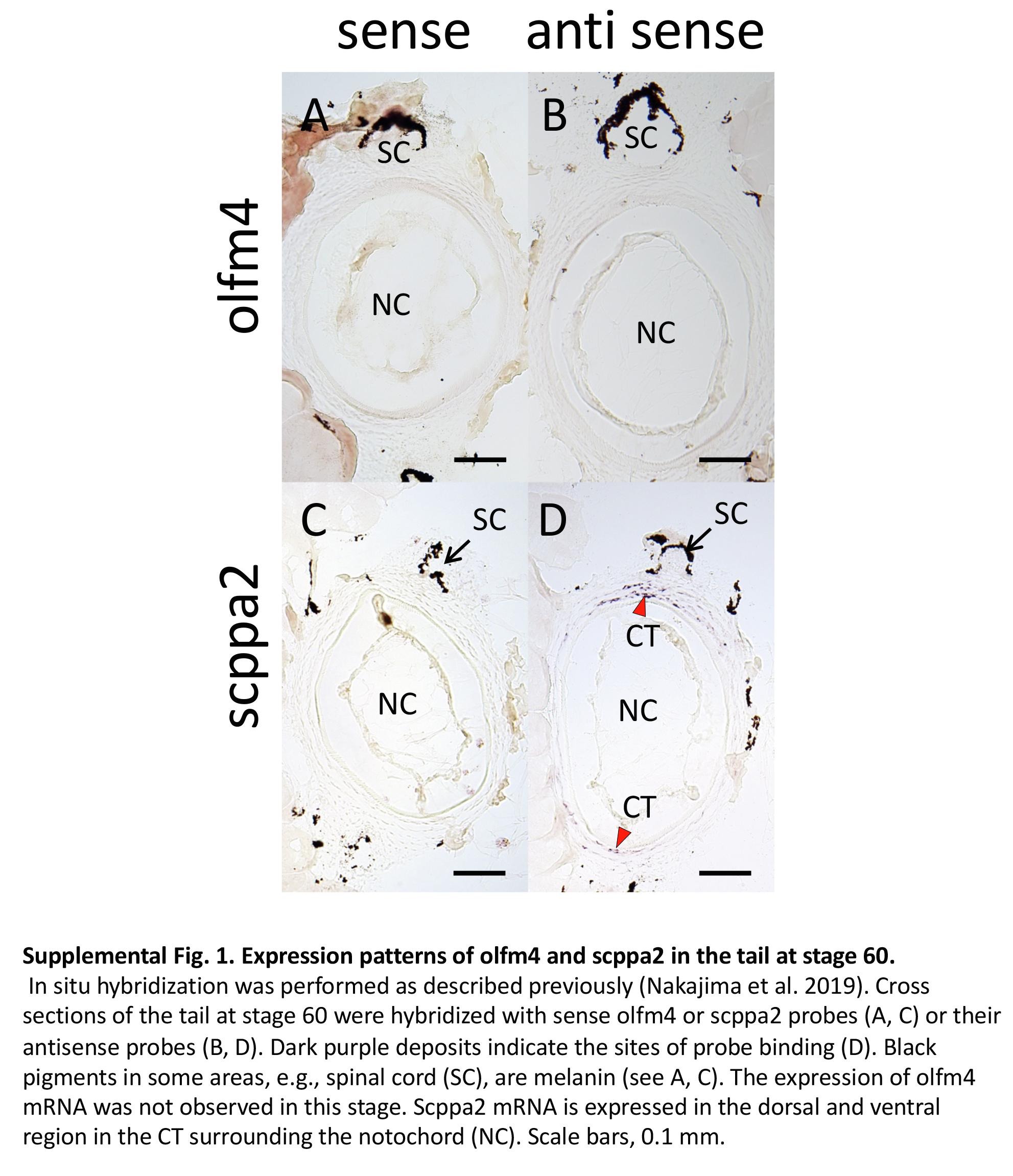

	Caption in image.

Amano, Spatio-temporal regulation and cleavage by matrix metalloproteinase stromelysin-3 implicate a role for laminin receptor in intestinal remodeling during Xenopus laevis metamorphosis. 2005, Pubmed, Xenbase

Amano, Spatio-temporal regulation and cleavage by matrix metalloproteinase stromelysin-3 implicate a role for laminin receptor in intestinal remodeling during Xenopus laevis metamorphosis. 2005, Pubmed , Xenbase
Amano, The matrix metalloproteinase stromelysin-3 cleaves laminin receptor at two distinct sites between the transmembrane domain and laminin binding sequence within the extracellular domain. 2005, Pubmed , Xenbase
Aszódi, Collagen II is essential for the removal of the notochord and the formation of intervertebral discs. 1998, Pubmed
Berry, The expression pattern of thyroid hormone response genes in the tadpole tail identifies multiple resorption programs. 1998, Pubmed , Xenbase
Buchholz, Dual function model revised by thyroid hormone receptor alpha knockout frogs. 2018, Pubmed , Xenbase
Choi, Growth, Development, and Intestinal Remodeling Occurs in the Absence of Thyroid Hormone Receptor α in Tadpoles of Xenopus tropicalis. 2017, Pubmed , Xenbase
Choi, Unliganded thyroid hormone receptor α regulates developmental timing via gene repression in Xenopus tropicalis. 2015, Pubmed , Xenbase
Corallo, The notochord: structure and functions. 2015, Pubmed
Damjanovski, Overexpression of matrix metalloproteinases leads to lethality in transgenic Xenopus laevis: implications for tissue-dependent functions of matrix metalloproteinases during late embryonic development. 2001, Pubmed , Xenbase
Ellis, Notochord vacuoles are lysosome-related organelles that function in axis and spine morphogenesis. 2013, Pubmed
Fu, Transcriptional regulation of the Xenopus laevis Stromelysin-3 gene by thyroid hormone is mediated by a DNA element in the first intron. 2006, Pubmed , Xenbase
Fu, A causative role of stromelysin-3 in extracellular matrix remodeling and epithelial apoptosis during intestinal metamorphosis in Xenopus laevis. 2005, Pubmed , Xenbase
Fu, Genome-wide identification of Xenopus matrix metalloproteinases: conservation and unique duplications in amphibians. 2009, Pubmed , Xenbase
Fujimoto, Expression of matrix metalloproteinase genes in regressing or remodeling organs during amphibian metamorphosis. 2007, Pubmed , Xenbase
Fujimoto, One of the duplicated matrix metalloproteinase-9 genes is expressed in regressing tail during anuran metamorphosis. 2006, Pubmed , Xenbase
Grimaldi, Mechanisms of thyroid hormone receptor action during development: lessons from amphibian studies. 2013, Pubmed , Xenbase
Hasebe, Spatial and temporal expression profiles suggest the involvement of gelatinase A and membrane type 1 matrix metalloproteinase in amphibian metamorphosis. 2006, Pubmed , Xenbase
Hasebe, Evidence for a cooperative role of gelatinase A and membrane type-1 matrix metalloproteinase during Xenopus laevis development. 2007, Pubmed , Xenbase
Hasebe, Expression profiles of the duplicated matrix metalloproteinase-9 genes suggest their different roles in apoptosis of larval intestinal epithelial cells during Xenopus laevis metamorphosis. 2007, Pubmed , Xenbase
Ishizuya-Oka, Requirement for matrix metalloproteinase stromelysin-3 in cell migration and apoptosis during tissue remodeling in Xenopus laevis. 2000, Pubmed , Xenbase
Ishizuya-Oka, Transient expression of stromelysin-3 mRNA in the amphibian small intestine during metamorphosis. 1996, Pubmed , Xenbase
Kawasaki, The SCPP gene repertoire in bony vertebrates and graded differences in mineralized tissues. 2009, Pubmed , Xenbase
Liu, The glycoprotein hGC-1 binds to cadherin and lectins. 2006, Pubmed
Mathew, Differential regulation of cell type-specific apoptosis by stromelysin-3: a potential mechanism via the cleavage of the laminin receptor during tail resorption in Xenopus laevis. 2009, Pubmed , Xenbase
Nagasawa, Significant modulation of the hepatic proteome induced by exposure to low temperature in Xenopus laevis. 2013, Pubmed , Xenbase
Nakajima, Thyroid Hormone Receptor α- and β-Knockout Xenopus tropicalis Tadpoles Reveal Subtype-Specific Roles During Development. 2018, Pubmed , Xenbase
Nakajima, Programmed cell death during amphibian metamorphosis. 2005, Pubmed , Xenbase
Nakajima, A unique role of thyroid hormone receptor β in regulating notochord resorption during Xenopus metamorphosis. 2019, Pubmed , Xenbase
Patterton, Transcriptional activation of the matrix metalloproteinase gene stromelysin-3 coincides with thyroid hormone-induced cell death during frog metamorphosis. 1995, Pubmed , Xenbase
Podinovskaia, Leishmania and the macrophage: a multifaceted interaction. 2015, Pubmed
Sachs, Unliganded thyroid hormone receptor function: amphibian metamorphosis got TALENs. 2015, Pubmed , Xenbase
Sakane, Functional analysis of thyroid hormone receptor beta in Xenopus tropicalis founders using CRISPR-Cas. 2018, Pubmed , Xenbase
Shi, Dual functions of thyroid hormone receptors in vertebrate development: the roles of histone-modifying cofactor complexes. 2009, Pubmed , Xenbase
Shi, Regulation of apoptosis during development: input from the extracellular matrix (review). 1998, Pubmed , Xenbase
Stemple, Structure and function of the notochord: an essential organ for chordate development. 2005, Pubmed
Stolow, Identification and characterization of a novel collagenase in Xenopus laevis: possible roles during frog development. 1996, Pubmed , Xenbase
Su, Thyroid hormone induces apoptosis in primary cell cultures of tadpole intestine: cell type specificity and effects of extracellular matrix. 1997, Pubmed , Xenbase
Tata, Gene expression during metamorphosis: an ideal model for post-embryonic development. 1993, Pubmed
Tata, Prolactin inhibits both thyroid hormone-induced morphogenesis and cell death in cultured amphibian larval tissues. 1991, Pubmed , Xenbase
van der Flier, OLFM4 is a robust marker for stem cells in human intestine and marks a subset of colorectal cancer cells. 2009, Pubmed
Wang, Gene Expression Program Underlying Tail Resorption During Thyroid Hormone-Dependent Metamorphosis of the Ornamented Pygmy Frog Microhyla fissipes. 2019, Pubmed , Xenbase
Wang, Thyroid hormone-induced gene expression program for amphibian tail resorption. 1993, Pubmed , Xenbase
Watanabe, Ultrastructural changes in the tail muscles of anuran tadpoles during metamorphosis. 1974, Pubmed
Wei, Matrix metalloproteinase stromelysin-3 in development and pathogenesis. 2005, Pubmed , Xenbase
Wen, Regulation of growth rate and developmental timing by Xenopus thyroid hormone receptor α. 2016, Pubmed , Xenbase
Wen, Thyroid Hormone Receptor α Controls Developmental Timing and Regulates the Rate and Coordination of Tissue-Specific Metamorphosis in Xenopus tropicalis. 2017, Pubmed , Xenbase
Wen, Unliganded thyroid hormone receptor α controls developmental timing in Xenopus tropicalis. 2015, Pubmed , Xenbase
Yen, Unliganded TRs regulate growth and developmental timing during early embryogenesis: evidence for a dual function mechanism of TR action. 2015, Pubmed , Xenbase
Zhang, Identification and characterization of a novel member of olfactomedin-related protein family, hGC-1, expressed during myeloid lineage development. 2002, Pubmed
Zhang, GW112, a novel antiapoptotic protein that promotes tumor growth. 2004, Pubmed
