F1000Res
2020 Jan 01;9. doi: 10.12688/f1000research.21670.1.
Show Gene links
Show Anatomy links
Diversity of left-right symmetry breaking strategy in animals.
Hamada H
,
Tam P
.
???displayArticle.abstract??? Left-right (L-R) asymmetry of visceral organs in animals is established during embryonic development via a stepwise process. While some steps are conserved, different strategies are employed among animals for initiating the breaking of body symmetry. In zebrafish (teleost), Xenopus (amphibian), and mice (mammal), symmetry breaking is elicited by directional fluid flow at the L-R organizer, which is generated by motile cilia and sensed by mechanoresponsive cells. In contrast, birds and reptiles do not rely on the cilia-driven fluid flow. Invertebrates such as Drosophila and snails employ another distinct mechanism, where the symmetry breaking process is underpinned by cellular chirality acquired downstream of the molecular interaction of myosin and actin. Here, we highlight the convergent entry point of actomyosin interaction and planar cell polarity to the diverse L-R symmetry breaking mechanisms among animals.

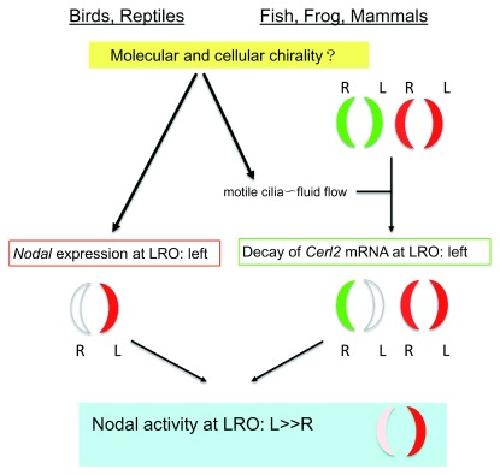

Figure 1. . The molecular cascade of cilia dependent and non-dependent mechanisms leading to the asymmetric Nodal activity in the left-rightorganizer (LRO) of the vertebrate embryos.Nodal activity (red), Cerl2 activity (green). Note that both mechanisms result in asymmetric (L>R) Nodal activity at the LRO.

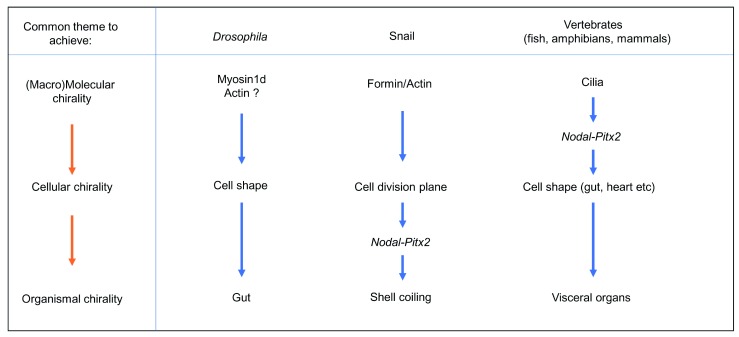

Figure 2. . Distinct mechanism of the specification of left-right asymmetry of organs and whole organism in
Drosophila, snails, and vertebrates.Note that different animal species use variations of the common theme (in the left-hand box) to establish L-R asymmetry. See the text for details.
Abe,
The development of CRISPR for a mollusc establishes the formin Lsdia1 as the long-sought gene for snail dextral/sinistral coiling.
2019, Pubmed
Abe,
The development of CRISPR for a mollusc establishes the formin Lsdia1 as the long-sought gene for snail dextral/sinistral coiling.
2019,
Pubmed
Adám,
The retinoic-like juvenile hormone controls the looping of left-right asymmetric organs in Drosophila.
2003,
Pubmed
Bertocchini,
A little winning streak: the reptilian-eye view of gastrulation in birds.
2013,
Pubmed
Blum,
The evolution and conservation of left-right patterning mechanisms.
2014,
Pubmed
,
Xenbase
Chang,
The cellular and molecular etiology of the craniofacial defects in the avian ciliopathic mutant talpid2.
2014,
Pubmed
Collignon,
Relationship between asymmetric nodal expression and the direction of embryonic turning.
1996,
Pubmed
Coolen,
Molecular characterization of the gastrula in the turtle Emys orbicularis: an evolutionary perspective on gastrulation.
2008,
Pubmed
Dasgupta,
Cilia in vertebrate left-right patterning.
2016,
Pubmed
Davison,
Formin Is Associated with Left-Right Asymmetry in the Pond Snail and the Frog.
2016,
Pubmed
,
Xenbase
Davison,
Flipping Shells! Unwinding LR Asymmetry in Mirror-Image Molluscs.
2020,
Pubmed
Ferreira,
Physical limits of flow sensing in the left-right organizer.
2017,
Pubmed
Franklin,
Regionalisation of the endoderm progenitors and morphogenesis of the gut portals of the mouse embryo.
2008,
Pubmed
González-Morales,
The Atypical Cadherin Dachsous Controls Left-Right Asymmetry in Drosophila.
2015,
Pubmed
Grande,
Nodal signalling is involved in left-right asymmetry in snails.
2009,
Pubmed
Grimes,
Left-Right Patterning: Breaking Symmetry to Asymmetric Morphogenesis.
2017,
Pubmed
Grimes,
Genetic Analysis Reveals a Hierarchy of Interactions between Polycystin-Encoding Genes and Genes Controlling Cilia Function during Left-Right Determination.
2016,
Pubmed
Gros,
Cell movements at Hensen's node establish left/right asymmetric gene expression in the chick.
2009,
Pubmed
,
Xenbase
Hegan,
Myosin Id is required for planar cell polarity in ciliated tracheal and ependymal epithelial cells.
2015,
Pubmed
Hosoiri,
Construction of a backcross progeny collection of dextral and sinistral individuals of a freshwater gastropod, Lymnaea stagnalis.
2003,
Pubmed
Hozumi,
An unconventional myosin in Drosophila reverses the default handedness in visceral organs.
2006,
Pubmed
Inaki,
Chiral cell sliding drives left-right asymmetric organ twisting.
2018,
Pubmed
Juan,
Myosin1D is an evolutionarily conserved regulator of animal left-right asymmetry.
2018,
Pubmed
Kajikawa,
Nodal paralogues underlie distinct mechanisms for visceral left-right asymmetry in reptiles and mammals.
2020,
Pubmed
Kuroda,
Chiral blastomere arrangement dictates zygotic left-right asymmetry pathway in snails.
2009,
Pubmed
Lebreton,
Molecular to organismal chirality is induced by the conserved myosin 1D.
2018,
Pubmed
Marques,
The activity of the Nodal antagonist Cerl-2 in the mouse node is required for correct L/R body axis.
2004,
Pubmed
Meshcheryakov,
Asymmetrical rotations of blastomeres in early cleavage of gastropoda.
1975,
Pubmed
Mizuno,
Rotational movement of the formin mDia1 along the double helical strand of an actin filament.
2011,
Pubmed
Nakamura,
Fluid flow and interlinked feedback loops establish left-right asymmetric decay of Cerl2 mRNA.
2012,
Pubmed
Nakamura,
Left-right patterning: conserved and divergent mechanisms.
2012,
Pubmed
Omori,
Nodal cilia-driven flow: Development of a computational model of the nodal cilia axoneme.
2017,
Pubmed
Pennekamp,
The ion channel polycystin-2 is required for left-right axis determination in mice.
2002,
Pubmed
Petzoldt,
DE-Cadherin regulates unconventional Myosin ID and Myosin IC in Drosophila left-right asymmetry establishment.
2012,
Pubmed
Ray,
Intrinsic cellular chirality regulates left-right symmetry breaking during cardiac looping.
2018,
Pubmed
Saijoh,
Left-right patterning of the mouse lateral plate requires nodal produced in the node.
2003,
Pubmed
Sato,
Left-right asymmetric cell intercalation drives directional collective cell movement in epithelial morphogenesis.
2015,
Pubmed
Saydmohammed,
Vertebrate myosin 1d regulates left-right organizer morphogenesis and laterality.
2018,
Pubmed
Schröder,
Paraxial Nodal Expression Reveals a Novel Conserved Structure of the Left-Right Organizer in Four Mammalian Species.
2016,
Pubmed
Schweickert,
The nodal inhibitor Coco is a critical target of leftward flow in Xenopus.
2010,
Pubmed
,
Xenbase
Shibazaki,
Body handedness is directed by genetically determined cytoskeletal dynamics in the early embryo.
2004,
Pubmed
Shiratori,
The left-right axis in the mouse: from origin to morphology.
2006,
Pubmed
Spéder,
Type ID unconventional myosin controls left-right asymmetry in Drosophila.
2006,
Pubmed
Sturtevant,
INHERITANCE OF DIRECTION OF COILLING IN LIMNAEA.
1923,
Pubmed
Taniguchi,
Chirality in planar cell shape contributes to left-right asymmetric epithelial morphogenesis.
2011,
Pubmed
Tee,
Cellular chirality arising from the self-organization of the actin cytoskeleton.
2015,
Pubmed
Tingler,
A Conserved Role of the Unconventional Myosin 1d in Laterality Determination.
2018,
Pubmed
,
Xenbase
Wan,
Micropatterned mammalian cells exhibit phenotype-specific left-right asymmetry.
2011,
Pubmed
Yamanaka,
Rotating pigment cells exhibit an intrinsic chirality.
2015,
Pubmed
Yoshiba,
Cilia at the node of mouse embryos sense fluid flow for left-right determination via Pkd2.
2012,
Pubmed
Yoshida,
Conserved and divergent expression patterns of markers of axial development in reptilian embryos: Chinese soft-shell turtle and Madagascar ground gecko.
2016,
Pubmed
