Barro-Soria R .

K01 NS096778 NINDS NIH HHS , R24 NS104617 NINDS NIH HHS , R01 NS110847 NINDS NIH HHS

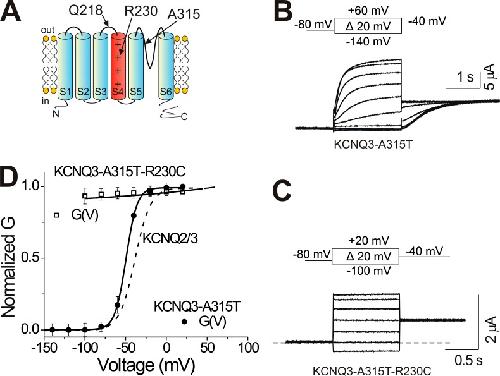

	Figure 1. R230C alters the voltage dependence and kinetics of KCNQ3 channels. (A) Cartoon of KCNQ3 channel representing residues mutated in this study. (B and C) Representative current traces from KCNQ3-A315T (B) and KCNQ3-A315T-R230C (C) channels for the indicated voltage protocols. Dashed line represents zero current. (D) Extrapolated tail conductances from B and C were normalized (G(V), see Materials and methods) and plotted versus test voltages (WT: KCNQ3-A315T circles; KCNQ3-A315T-R230C squares; means ± SEM, n = 7–13). For comparison, the tail conductance (dashed line) fit of heteromeric KCNQ2/KCNQ3 channel is shown. Lines represent the fitted theoretical voltage dependencies (Eqs. 1 and 2).

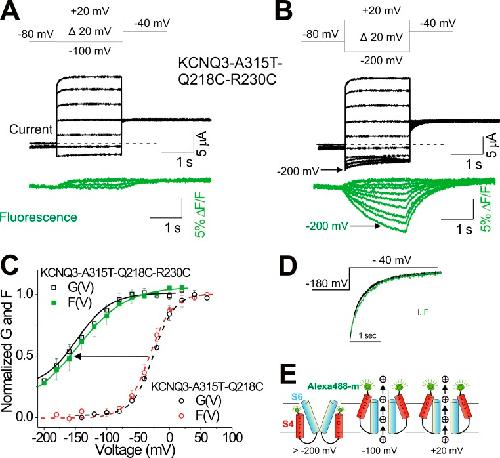

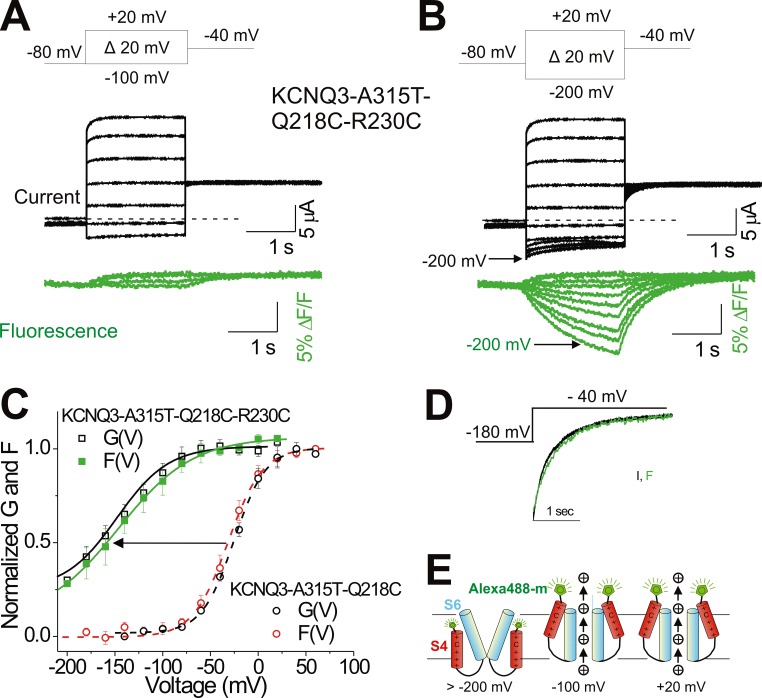

	Figure 2. R230C shifts the voltage sensor movement and gate closing of KCNQ3 channels to very negative voltages. (A and B) Representative current (black) and fluorescence (green) traces from labeled KCNQ3-A315T-Q218C bearing R230C mutation for the indicated voltage protocols. In response to voltage steps more negative than −100 mV, R230C channels started to close and reopen when stepped back to −40 mV. Dashed lines represent zero current. (C) Extrapolated tail conductance (black) and fluorescence (green) from B were normalized (see Materials and methods) and plotted versus test voltages (G(V) and F(V) of KCNQ3-A315T-Q218C-R230C, black and green squares, respectively; means ± SEM, n = 9). The tail conductance (black) and fluorescence (red) of KCNQ3-A315T-Q218C are shown for comparison. Lines represent the fitted theoretical voltage dependencies (see Materials and methods, Eqs. 1 and 2). (D) Comparison of activation kinetics of current (black) and fluorescence (green) signals from KCNQ3-A315T-Q218C-R230C in response to the voltage protocol shown. (E) Cartoon representing a model of KCNQ3-A315T-Q218C-R230C channel gating where the equilibrium of the S4 movement is shifted to very negative voltages so that at −100 mV, S4 is in the activated position, allowing channel opening. S4 (red), S6 (blue), and Alexa Fluor 488 (green). For simplicity, only two of the four subunits in the tetrameric channel are shown.

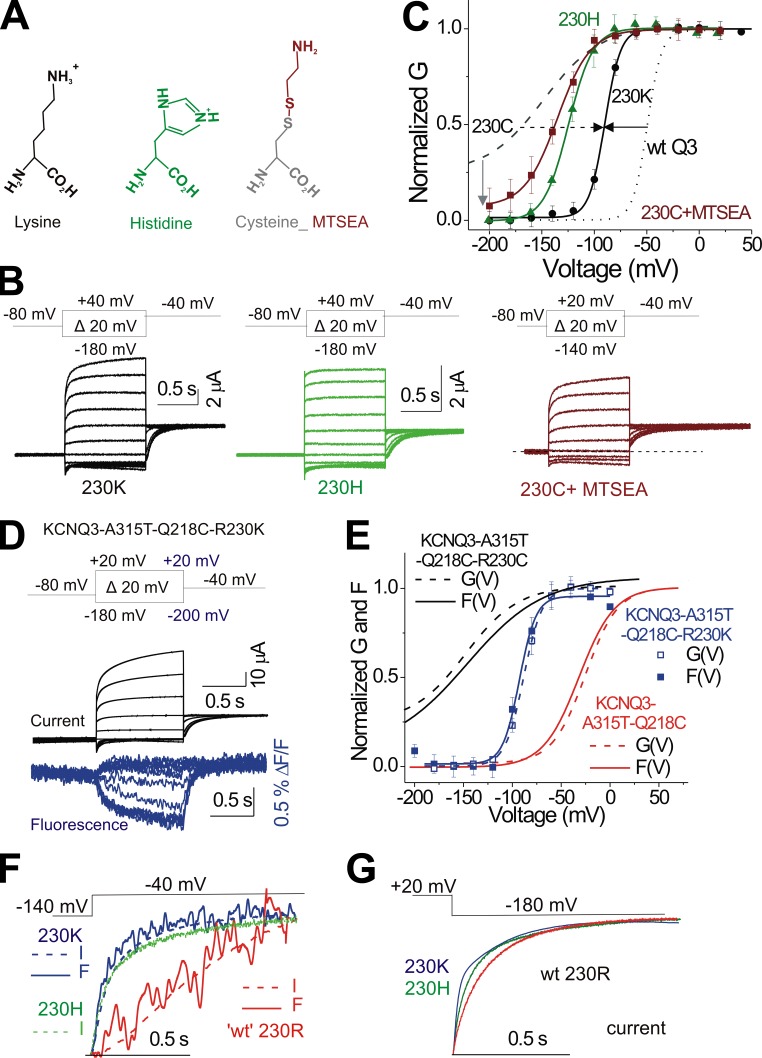

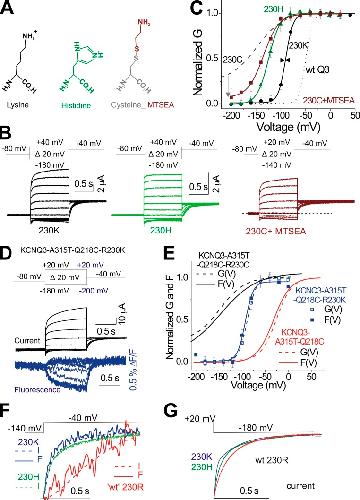

	Figure 3. The loss of the positive charge of R230 accounts for most of the leftward shift in the G(V). (A) Structure of lysine, histidine, and a modified cysteine by the thiol reagent MTSEA. (B) Representative current traces from KCNQ3-A315T-R230K (black), KCNQ3-A315T-R230H (green), and KCNQ3-A315T-R230C after application of MTSEA (1 mM; maroon) for the indicated voltage protocols. External MTSEA was applied by stepping 15 times to +20 mV for 5 s from a holding voltage of −80 mV and then washed away for 15 s before the indicated voltage protocol was applied. Dotted line represents zero current. (C) Extrapolated tail conductances from B were normalized (G(V), see Materials and methods) and plotted versus test voltages (means ± SEM; n = 8–9). Normalized G(V) of KCNQ3-A315T (WT Q3, dotted line) and KCNQ3-A315T-R230C (dashed line) are shown for comparison. (D) Representative current (black) and fluorescence (blue) traces from labeled KCNQ3-A315T-Q218C-R230K for the indicated voltage protocol. (E) Extrapolated tail conductance and fluorescence from D were normalized (see Materials and methods) and plotted versus test voltages (G(V), open squares), and F(V), filled blue squares) of KCNQ3-A315T-Q218C-R230K (means ± SEM, n = 10). For comparison, the tail conductance (dashed lines) and fluorescence (solid lines) fits of KCNQ3-A315T-Q218C-R230C (black) and WT KCNQ3-A315T-Q218C (red), respectively, are shown. Lines represent the fitted theoretical voltage dependencies (see Materials and methods, Eqs. 1 and 2). (F) Comparison of the kinetics of ionic current (dashed lines) and fluorescence (solid lines) signals from KCNQ3-A315T-Q218C-R230K (blue) and WT KCNQ3-A315T-Q218C (red), respectively, in response to the voltage protocol. The time course of ionic current of KCNQ3-A315T-R230H (green) is also shown for comparison. (G) Comparison of deactivation kinetics of ionic current from KCNQ3-A315T-Q218C-R230K (blue), KCNQ3-A315T-Q218C-R230H (green), and WT KCNQ3-A315T-Q218C (red), respectively, in response to the voltage protocol. The same color code for the different KCNQ3 bearing R230x amino acid substitutions is shown throughout the figure.

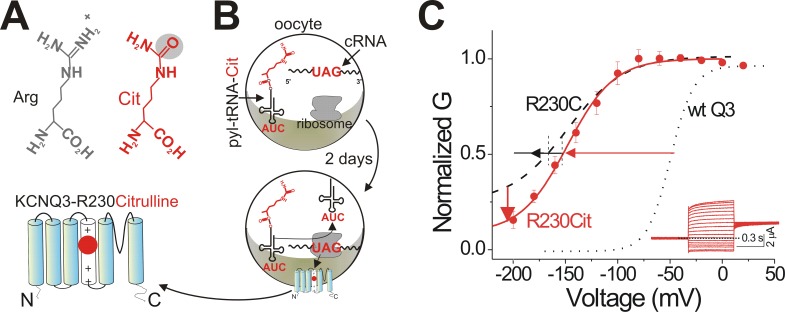

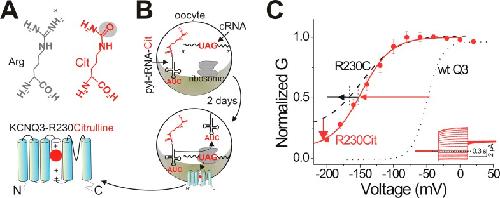

	Figure 4. Encoding of the noncanonical amino acid citrulline quantifies the importance of a positive charge in an otherwise minimally modified side chain at position 230. (A) Structure of arginine and citrulline. (B) Cartoon representing encoding of citrulline into KCNQ3-R230 channels. Co-injection of pyrrolysine tRNA-citrulline with KCNQ3 cRNA containing the site-directed stop codon UAG (nonsense codon) at 230 into Xenopus oocytes (top panel). After 2 d of expression, citrulline (red) was incorporated into KCNQ3 channels at position 230 (bottom panel and left zoom in cartoon). (C) Extrapolated tail conductance from KCNQ3-A315T-R230Citrulline (red inset) was normalized (see Materials and methods) and plotted versus test voltages (G(V), red solid line; means ± SEM; n = 7). Normalized G(V) of KCNQ3-A315T (WT Q3, dotted black line) and KCNQ3-A315T-R230C (R230C, solid black line) are shown for comparison. Lines represent the fitted theoretical voltage dependencies (see Materials and methods, Eqs. 1 and 2). Inset shows a representative current trace from KCNQ3-R230Citrulline (red). Dotted line represents zero current. Cells were held at −80 mV and stepped to potentials between −160 mV and +60 mV in 10-mV intervals for 0.5 s, followed by a step to −40 mV to record tail currents.

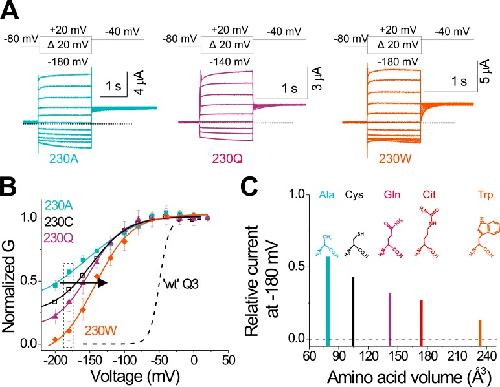

	Figure 5. The reduction of the side chain size at position 230 contributes to the leftward shift in the G(V). (A) Representative current traces from KCNQ3-A315T-R230A (light blue), KCNQ3-A315T-R230Q (magenta), and KCNQ3-A315T-R230W (orange) for the indicated voltage protocol. (B) Extrapolated tail conductances from R230x mutations from A were normalized (G(V), see Materials and methods) and plotted versus test voltages (means ± SEM; n = 8–11). Lines represent the fitted theoretical voltage dependencies (see Materials and methods, Eqs. 1 and 2). Dashed line represents the G(V) curve of KCNQ3-A315T (WT Q3) for comparison. Dotted lines represent zero current. (C) Relative current at −180 mV from R230x mutations taken from dashed rectangle in B, plotted against amino acid volume in aqueous solution (Zamyatnin, 1972). Dashed line represents the current of WT KCNQ3-A315T-R230R at −180 mV. Structure of the natural amino acids (A, C, Q, and W) and the unnatural amino acid citrulline (Cit), the uncharged close structural analogue of arginine, are shown for comparison. Citrulline volume is estimated from that of arginine. The same color code for the different KCNQ3 bearing R230x amino acid substitutions is shown throughout the figure.

Aggarwal, Contribution of the S4 segment to gating charge in the Shaker K+ channel. 1996, Pubmed, Xenbase

Aggarwal, Contribution of the S4 segment to gating charge in the Shaker K+ channel. 1996, Pubmed , Xenbase
Allen, De novo mutations in epileptic encephalopathies. 2013, Pubmed
Barro-Soria, KCNE1 divides the voltage sensor movement in KCNQ1/KCNE1 channels into two steps. 2014, Pubmed
Bartos, R231C mutation in KCNQ1 causes long QT syndrome type 1 and familial atrial fibrillation. 2011, Pubmed
Bezanilla, The voltage sensor and the gate in ion channels. 2003, Pubmed
Biervert, A potassium channel mutation in neonatal human epilepsy. 1998, Pubmed , Xenbase
Borders, A structural role for arginine in proteins: multiple hydrogen bonds to backbone carbonyl oxygens. 1994, Pubmed
Brown, Muscarinic suppression of a novel voltage-sensitive K+ current in a vertebrate neurone. 1980, Pubmed
Charlier, A pore mutation in a novel KQT-like potassium channel gene in an idiopathic epilepsy family. 1998, Pubmed
Chowdhury, Estimating the voltage-dependent free energy change of ion channels using the median voltage for activation. 2012, Pubmed , Xenbase
DeCaen, Disulfide locking a sodium channel voltage sensor reveals ion pair formation during activation. 2008, Pubmed
del Camino, Tight steric closure at the intracellular activation gate of a voltage-gated K(+) channel. 2001, Pubmed
Etxeberria, Three mechanisms underlie KCNQ2/3 heteromeric potassium M-channel potentiation. 2004, Pubmed , Xenbase
Gómez-Posada, A pore residue of the KCNQ3 potassium M-channel subunit controls surface expression. 2010, Pubmed , Xenbase
György, Citrullination: a posttranslational modification in health and disease. 2006, Pubmed
Halliwell, Voltage-clamp analysis of muscarinic excitation in hippocampal neurons. 1982, Pubmed
Infield, Orthogonality of Pyrrolysine tRNA in the Xenopus oocyte. 2018, Pubmed , Xenbase
Infield, Replacing voltage sensor arginines with citrulline provides mechanistic insight into charge versus shape. 2018, Pubmed , Xenbase
Itoh, Latent genetic backgrounds and molecular pathogenesis in drug-induced long-QT syndrome. 2009, Pubmed
Jentsch, Neuronal KCNQ potassium channels: physiology and role in disease. 2000, Pubmed
Kato, Clinical spectrum of early onset epileptic encephalopathies caused by KCNQ2 mutation. 2013, Pubmed
Kim, PIP2 mediates functional coupling and pharmacology of neuronal KCNQ channels. 2017, Pubmed , Xenbase
Labro, The S4-S5 linker of KCNQ1 channels forms a structural scaffold with the S6 segment controlling gate closure. 2011, Pubmed
Larsson, Transmembrane movement of the shaker K+ channel S4. 1996, Pubmed , Xenbase
Li-Smerin, Helical structure of the COOH terminus of S3 and its contribution to the gating modifier toxin receptor in voltage-gated ion channels. 2001, Pubmed
Long, Crystal structure of a mammalian voltage-dependent Shaker family K+ channel. 2005, Pubmed
Maljevic, Potassium channel genes and benign familial neonatal epilepsy. 2014, Pubmed
Mannuzzu, Direct physical measure of conformational rearrangement underlying potassium channel gating. 1996, Pubmed , Xenbase
Miceli, Gating currents from Kv7 channels carrying neuronal hyperexcitability mutations in the voltage-sensing domain. 2012, Pubmed , Xenbase
Miceli, Early-onset epileptic encephalopathy caused by gain-of-function mutations in the voltage sensor of Kv7.2 and Kv7.3 potassium channel subunits. 2015, Pubmed
Miceli, Genotype-phenotype correlations in neonatal epilepsies caused by mutations in the voltage sensor of K(v)7.2 potassium channel subunits. 2013, Pubmed
Miceli, Gating consequences of charge neutralization of arginine residues in the S4 segment of K(v)7.2, an epilepsy-linked K+ channel subunit. 2008, Pubmed
Millichap, KCNQ2 encephalopathy: Features, mutational hot spots, and ezogabine treatment of 11 patients. 2016, Pubmed
Millichap, Infantile spasms and encephalopathy without preceding neonatal seizures caused by KCNQ2 R198Q, a gain-of-function variant. 2017, Pubmed
Monks, Helical structure and packing orientation of the S2 segment in the Shaker K+ channel. 1999, Pubmed , Xenbase
Niday, Potassium Channel Gain of Function in Epilepsy: An Unresolved Paradox. 2018, Pubmed
Orhan, Dominant-negative effects of KCNQ2 mutations are associated with epileptic encephalopathy. 2014, Pubmed , Xenbase
Osteen, Allosteric gating mechanism underlies the flexible gating of KCNQ1 potassium channels. 2012, Pubmed , Xenbase
Osteen, KCNE1 alters the voltage sensor movements necessary to open the KCNQ1 channel gate. 2010, Pubmed , Xenbase
Panaghie, The role of S4 charges in voltage-dependent and voltage-independent KCNQ1 potassium channel complexes. 2007, Pubmed , Xenbase
Rauch, Range of genetic mutations associated with severe non-syndromic sporadic intellectual disability: an exome sequencing study. 2012, Pubmed
Riordan, Arginyl residues: anion recognition sites in enzymes. 1977, Pubmed
Saitsu, Whole exome sequencing identifies KCNQ2 mutations in Ohtahara syndrome. 2012, Pubmed
Seoh, Voltage-sensing residues in the S2 and S4 segments of the Shaker K+ channel. 1996, Pubmed , Xenbase
Singh, A novel potassium channel gene, KCNQ2, is mutated in an inherited epilepsy of newborns. 1998, Pubmed
Sun, Cryo-EM Structure of a KCNQ1/CaM Complex Reveals Insights into Congenital Long QT Syndrome. 2017, Pubmed , Xenbase
Wang, KCNQ2 and KCNQ3 potassium channel subunits: molecular correlates of the M-channel. 1998, Pubmed , Xenbase
Weckhuysen, KCNQ2 encephalopathy: emerging phenotype of a neonatal epileptic encephalopathy. 2012, Pubmed
Weckhuysen, Extending the KCNQ2 encephalopathy spectrum: clinical and neuroimaging findings in 17 patients. 2013, Pubmed
Wu, KCNE1 remodels the voltage sensor of Kv7.1 to modulate channel function. 2010, Pubmed , Xenbase
Yang, Molecular basis of charge movement in voltage-gated sodium channels. 1996, Pubmed
Zaika, Determinants within the turret and pore-loop domains of KCNQ3 K+ channels governing functional activity. 2008, Pubmed
Zamyatnin, Protein volume in solution. 1972, Pubmed
Zemankovics, Differences in subthreshold resonance of hippocampal pyramidal cells and interneurons: the role of h-current and passive membrane characteristics. 2010, Pubmed
