???displayArticle.abstract???
The Xenopus laevis experimental system has provided significant insight into the development and plasticity of neural circuits. Xenopus neuroscience research would be enhanced by additional tools to study neural circuit structure and function. Rabies viruses are powerful tools to label and manipulate neural circuits and have been widely used to study mesoscale connectomics. Whether rabies virus can be used to transduce neurons and express transgenes in Xenopus has not been systematically investigated. Glycoprotein-deleted rabies virus transduces neurons at the axon terminal and retrogradely labels their cell bodies. We show that glycoprotein-deleted rabies virus infects local and projection neurons in the Xenopus tadpole when directly injected into braintissue. Pseudotyping glycoprotein-deleted rabies with EnvA restricts infection to cells with exogenous expression of the EnvA receptor, TVA. EnvA pseudotyped virus specifically infects tadpole neurons with promoter-driven expression of TVA, demonstrating its utility to label targeted neuronal populations. Neuronal cell types are defined by a combination of features including anatomical location, expression of genetic markers, axonprojection sites, morphology, and physiological properties. We show that driving TVA expression in one hemisphere and injecting EnvA pseudotyped virus into the contralateral hemisphere, retrogradely labels neurons defined by cell body location and axonprojection site. Using this approach, rabies can be used to identify cell types in Xenopus brain and simultaneously to express transgenes which enable monitoring or manipulation of neuronal activity. This makes rabies a valuable tool to study the structure and function of neural circuits in Xenopus.Significance StatementStudies in Xenopus have contributed a great deal to our understanding of brain circuit development and plasticity, regeneration, and hormonal regulation of behavior and metamorphosis. Here, we show that recombinant rabies virus transduces neurons in the Xenopus tadpole, enlarging the toolbox that can be applied to studying Xenopus brain. Rabies can be used for retrograde labeling and expression of a broad range of transgenes including fluorescent proteins for anatomical tracing and studying neuronal morphology, voltage or calcium indicators to visualize neuronal activity, and photo- or chemosensitive channels to control neuronal activity. The versatility of these tools enables diverse experiments to analyze and manipulate Xenopus brain structure and function, including mesoscale connectivity.

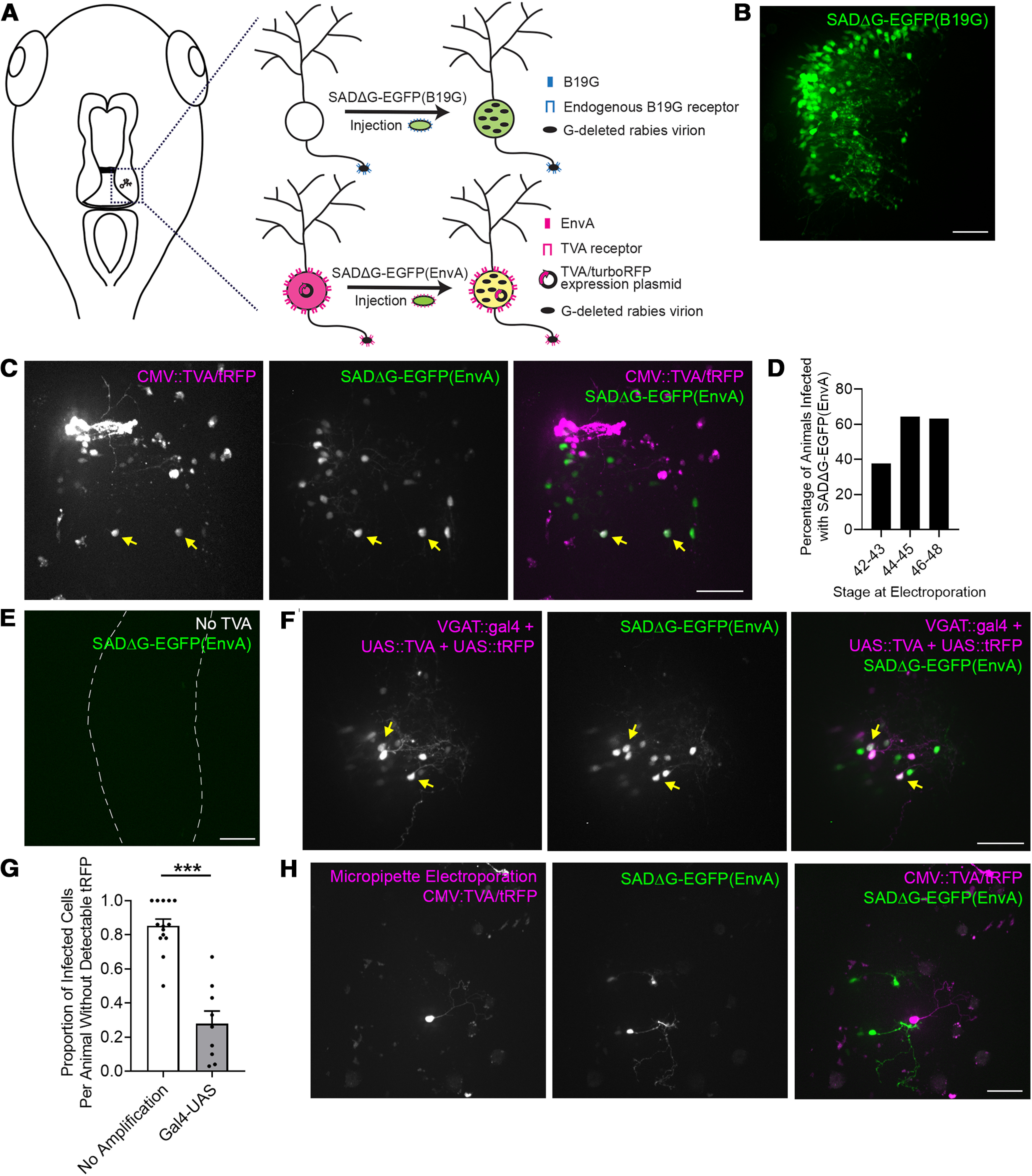

Figure 1. Pseudotyped recombinant rabies virus infects tectal neurons in the Xenopus tadpole. A, Schematic of the labeling strategies using recombinant SAD B19 rabies virus which has the glycoprotein deleted and replaced by EGFP (SADΔG-EGFP), rendering it incapable of transneuronal spread. Infection with B19G phenotypically complemented virus (top) relies on endogenous expression of the B19G receptor. Infection with EnvA pseudotyped virus (bottom) requires exogenous expression of its receptor, TVA, before viral injection. Co-labeling TVA-transfected neurons with tRFP allows them to be identified. Viral injections were made in the optic tectum, which is marked by a dashed box in the drawing to the left. B, SADΔG-EGFP(B19G) virus infects tectal neurons. Confocal Z-projection collected in vivo through the injected optic tectal lobe shows widespread virally-mediated expression of EGFP in infected neurons. C, SADΔG-EGFP(EnvA) virus infects tectal neurons transfected with TVA. The right optic tectal lobe was transfected with CMV::TVA/tRFP by whole-brain electroporation and injected with SADΔG-EGFP(EnvA) virus 4 d later. Confocal Z-projections collected in vivo through the optic tectal lobe electroporated with CMV::TVA/tRFP (magenta) and injected with SADΔG-EGFP(EnvA) virus (green). Neurons which co-express TVA/tRFP and viral EGFP are marked by yellow arrows. The remaining EGFP-expressing neurons lack detectable tRFP expression and are presumably invisible TVA-expressing neurons. D, Viral infection efficiency varies with developmental stage. Tadpoles at stages 42–43 (n = 16 tadpoles), 44–45 (n = 28 tadpoles), or 46–48 (n = 65 tadpoles) were electroporated with CMV::TVA/tRFP using whole-brain electroporation. Four days later, the transfected tectal lobe was injected with SADΔG-EGFP(EnvA) virus. The percentage of animals with EGFP-expressing neurons was highest between stages 44 and 48. E, Infection with SADΔG-EGFP(EnvA) virus requires TVA. Confocal Z-projection collected in vivo through an optic tectal lobe injected with SADΔG-EGFP(EnvA) shows no infected neurons in the absence of TVA electroporation. F, SADΔG-EGFP(EnvA) infects tectal neurons transfected with TVA driven by the VGAT promoter. The right optic tectal lobe was transfected with VGAT::gal4, UAS::TVA, and UAS::tRFP by whole-brain electroporation and injected with SADΔG-EGFP(EnvA) virus 4 d later. Confocal Z-projections collected in vivo through the optic tectal lobe showing electroporated (magenta) and infected (green) tectal neurons. Neurons which co-express TVA/tRFP and viral EGFP are marked by yellow arrows. The remaining EGFP-expressing neurons lack detectable tRFP expression and are invisible TVA-expressing neurons. G, Quantification of the proportion of invisible TVA cells per animal with and without amplification. Amplifying tRFP expression using the gal4-UAS system decreases the proportion of infected, EGFP+ cells that lack detectable tRFP compared with tRFP driven by the CMV promoter without amplification. Data are presented as mean ± SEM overlaid with individual data points (***p < 0.0001, Mann–Whitney test). H, Targeted electroporation of TVA/tRFP does not eliminate invisible TVA-expressing neurons. Micropipette-mediated electroporation was used to limit transfection with TVA/tRFP to one or few neurons in the right optic tectal lobe. Four days later, the electroporated tectal lobe was injected with SADΔG-EGFP(EnvA) virus. Confocal Z-projection collected in vivo through the optic tectal lobe shows that EGFP-expressing infected neurons which lack detectable tRFP are still present. Scale bars: 50 μm.

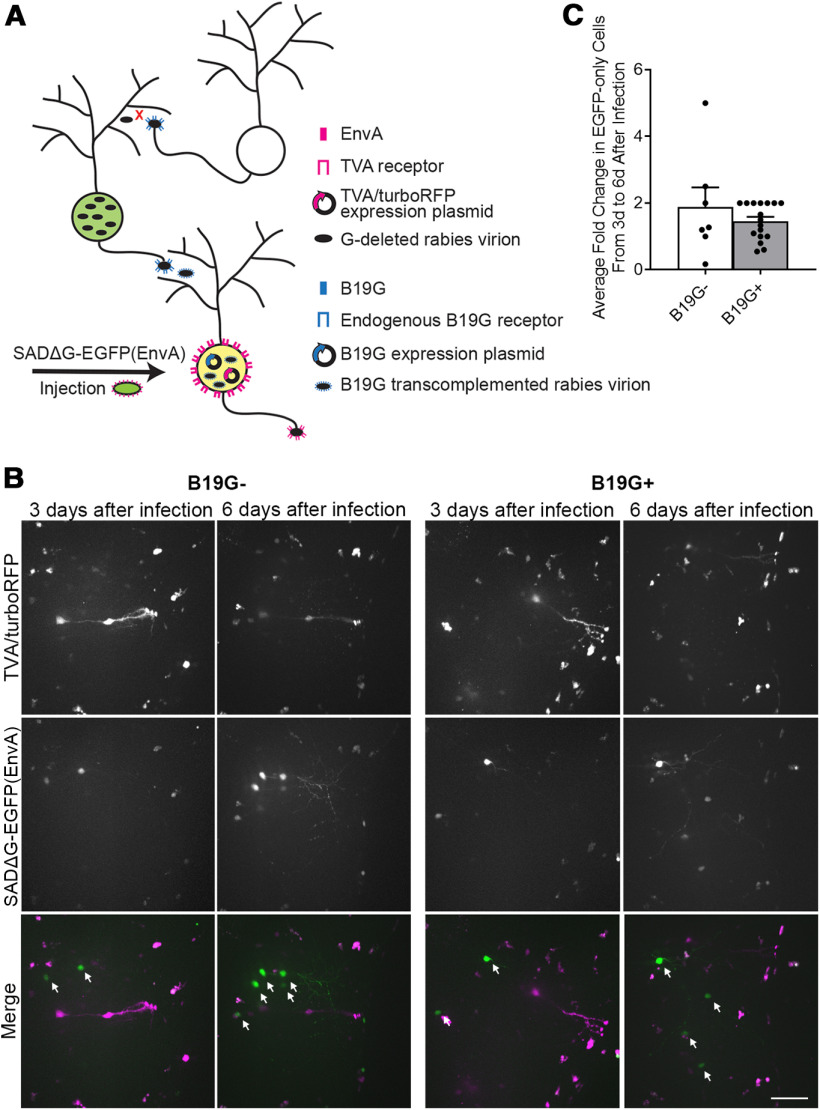

Figure 2. Transcomplementation with rabies glycoprotein does not result in transneuronal spread of recombinant rabies in tadpoles. A, Schematic of the monosynaptic tracing strategy using SADΔG-EGFP(EnvA) virus with transcomplementation of rabies glycoprotein, B19G. Neurons co-transfected with TVA/tRFP and B19G can be directly infected by EnvA pseudotyped virus through the TVA receptor. Viral particles which bud from directly infected neurons will have B19G on their surface because B19G is provided in trans. In mammals, those viral particles can infect presynaptic neurons through the endogenous B19G receptor. Because presynaptically infected neurons lack B19G expression, viral particles generated in those neurons lack the glycoprotein and are not infectious, thereby prohibiting further spread. B, In vivo time-lapse imaging of infected tectal neurons from 3–6 d following injection of SADΔG-EGFP(EnvA) virus in the presence or absence of B19G. One tectal lobe was transfected with TVA/tRFP (magenta) alone (left) or with TVA/tRFP and B19G (right) and then injected with SADΔG-EGFP(EnvA) virus 4 d later. At 3 and 6 d after viral injection, confocal Z-stacks through the tectal lobe were collected. Z-projections show an increase in the number of EGFP+ neurons without detectable tRFP (white arrows) from 3 to 6 d after viral injection in both the presence and absence of B19G. Scale bar: 50 μm. C, Quantification of the average fold-change in the number of EGFP-only cells from 3 to 6 d after injection. There is a similar increase in the average number of EGFP-only cells over time in the presence (n = 17 tadpoles) and absence (n = 7 tadpoles) of B19G, suggesting a lack of local presynaptic spread of rabies virus. Data are presented as mean ± SEM overlaid with individual data points (p = 0.74, Mann–Whitney U test).

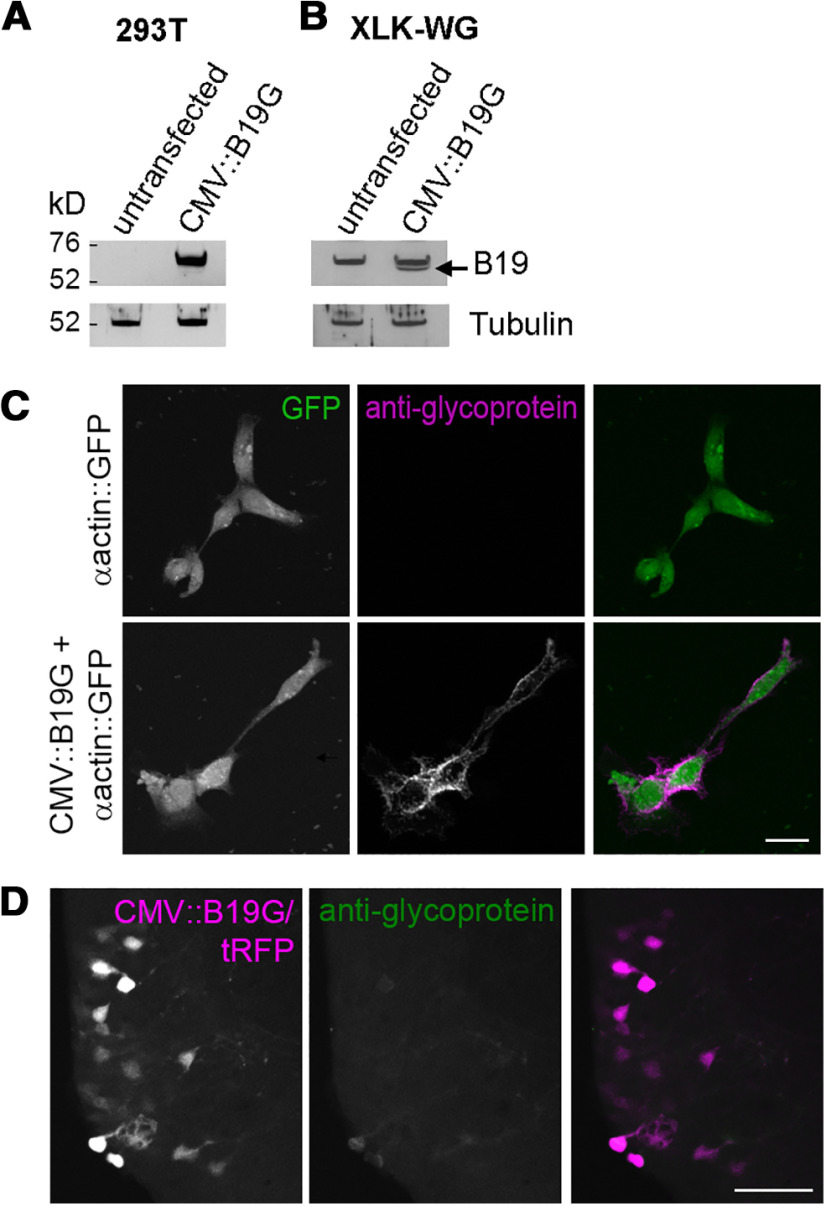

Figure 3. Weak expression of B19G in vivo may explain the lack of transneuronal spread of rabies virus. A, B, Rabies glycoprotein is detected in the membrane fraction of transfected mammalian and Xenopus cell cultures by Western blotting. 293T (A) and XLK-WG Xenopus kidney cells (B) were transfected with B19G and proteins were extracted 24 h later. Membrane fractions were probed for B19G expression with anti-rabies glycoprotein antibody and β-tubulin acted as a loading control. Compared with untransfected cells, specific bands of ∼70 kDa were visible in transfected cells. Specific band in transfected XLK-WG cells is denoted by an arrow (B). C, Rabies glycoprotein is detected on the surface of Xenopus cells in vitro by immunocytochemistry. XLK-WG cells were transfected with GFP alone (top) or B19G and GFP (bottom). Confocal Z-projections of cells transfected with both B19G and GFP show surface expression of B19G by anti-rabies glycoprotein immunocytochemistry (magenta) without permeabilization. In contrast, no anti-rabies glycoprotein immunoreactivity is observed in cells transfected with GFP alone. Scale bar: 20 μm. D, Expression of B19G is very weak in vivo in tectal neurons. Tectal neurons were electroporated with CMV::B19G/tRFP, fixed 3–4 d later, and then immunohistochemistry with anti-rabies glycoprotein was performed. Confocal Z-projection of a 40-μm tissue slice shows very weak immunoreactivity for rabies glycoprotein (green) in B19G/tRFP expressing neurons (magenta). Scale bar: 50 μm.

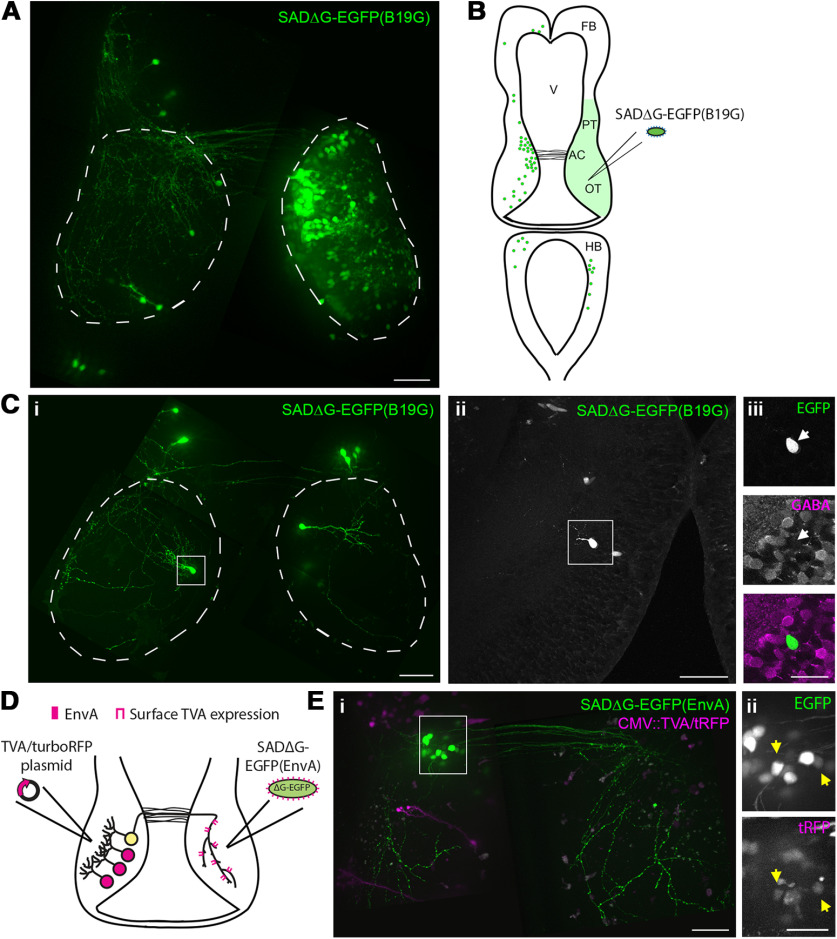

Figure 4. Retrograde neuronal tracing using recombinant rabies virus. A, SADΔG-EGFP(B19G) virus retrogradely labels afferents to the injected target region. A montage of confocal Z-projections collected in vivo shows neurons infected by injection of SADΔG-EGFP(B19G) virus into the right tectal lobe. In addition to a large number of neurons expressing EGFP in the injected tectal lobe, retrogradely infected projection neurons are visible in the contralateral tectum, pretectum, and hindbrain. Tectal lobes are marked with dashed lines. Scale bar: 50 μm. B, A schematic which maps neurons labeled by unilateral tectal injection of SADΔG-EGFP(B19G) virus. Neurons in several regions known to project to the optic tectum are labeled. We also observed a large number of neurons in the injected tectal lobe and ipsilateral pretectum (green shading). AC, anterior commissure; FB, forebrain; HB, hindbrain; OT, optic tectum; PT, pretectum; V, ventricle. C, Retrograde viral tracing paired with immunohistochemistry reveals the cell types which project between the two tectal lobes. A montage of confocal Z-projections collected in vivo following injection of SADΔG-EGFP(B19G) virus into the right tectal lobe shows retrograde tracing of one intertectal neuron (boxed in left tectal lobe; i). Following fixation and tissue sectioning, immunohistochemistry was performed with an anti-GABA antibody to label inhibitory neurons. The EGFP+ neuron imaged in vivo (i) could be identified in fixed tissue slice (ii) and was GABA-negative (iii, magenta), suggesting that it is excitatory. Scale bars: 50 μm (i, ii) and 25 μm (iii). D, Schematic showing retrograde tracing strategy used in E. The left tectal lobe is electroporated with TVA/tRFP and 4 d later, SADΔG-EGFP(EnvA) virus is injected into the right tectal lobe. Expression of TVA on the surface of intertectal axons mediates viral infection of intertectal neurons in the left hemisphere. E, SADΔG-EGFP(EnvA) virus can be used to retrogradely trace neurons defined by anatomic location and axonal projections using promoter-driven expression of TVA. A montage of confocal Z-projections collected in vivo (i) demonstrate retrograde tracing of TVA-expressing neurons in the left tectal lobe (magenta) following injection of SADΔG-EGFP(EnvA) virus into the right tectal lobe. Retrogradely infected neurons (boxed in i) are shown at higher magnification (ii) and cells co-expressing EGFP and tRFP are marked by yellow arrows. Scale bars: 50 μm (i) and 25 μm (ii).
Aizenman,
Enhanced visual activity in vivo forms nascent synapses in the developing retinotectal projection.
2007, Pubmed,
Xenbase
Aizenman,
Enhanced visual activity in vivo forms nascent synapses in the developing retinotectal projection.
2007,
Pubmed
,
Xenbase
Astic,
The CVS strain of rabies virus as transneuronal tracer in the olfactory system of mice.
1993,
Pubmed
Beier,
Topological Organization of Ventral Tegmental Area Connectivity Revealed by Viral-Genetic Dissection of Input-Output Relations.
2019,
Pubmed
Bestman,
In vivo single-cell electroporation for transfer of DNA and macromolecules.
2006,
Pubmed
,
Xenbase
Bestman,
In vivo time-lapse imaging of cell proliferation and differentiation in the optic tectum of Xenopus laevis tadpoles.
2012,
Pubmed
,
Xenbase
Borodinsky,
Activity-dependent homeostatic specification of transmitter expression in embryonic neurons.
2004,
Pubmed
,
Xenbase
Callaway,
Transneuronal circuit tracing with neurotropic viruses.
2008,
Pubmed
Callaway,
Monosynaptic Circuit Tracing with Glycoprotein-Deleted Rabies Viruses.
2015,
Pubmed
Chae,
Inducible control of tissue-specific transgene expression in Xenopus tropicalis transgenic lines.
2002,
Pubmed
,
Xenbase
Choi,
Selective viral vector transduction of ErbB4 expressing cortical interneurons in vivo with a viral receptor-ligand bridge protein.
2010,
Pubmed
Conzelmann,
Molecular cloning and complete nucleotide sequence of the attenuated rabies virus SAD B19.
1990,
Pubmed
Dietzschold,
Oligosaccharides of the glycoprotein of rabies virus.
1977,
Pubmed
Dietzschold,
Concepts in the pathogenesis of rabies.
2008,
Pubmed
Dohaku,
Tracing of Afferent Connections in the Zebrafish Cerebellum Using Recombinant Rabies Virus.
2019,
Pubmed
Dulcis,
Neurotransmitter switching in the adult brain regulates behavior.
2013,
Pubmed
Dutton,
Use of adenovirus for ectopic gene expression in Xenopus.
2009,
Pubmed
,
Xenbase
Ecker,
The BRAIN Initiative Cell Census Consortium: Lessons Learned toward Generating a Comprehensive Brain Cell Atlas.
2017,
Pubmed
Etessami,
Spread and pathogenic characteristics of a G-deficient rabies virus recombinant: an in vitro and in vivo study.
2000,
Pubmed
Federspiel,
A system for tissue-specific gene targeting: transgenic mice susceptible to subgroup A avian leukosis virus-based retroviral vectors.
1994,
Pubmed
Gambrill,
Experience-dependent plasticity of excitatory and inhibitory intertectal inputs in Xenopus tadpoles.
2016,
Pubmed
,
Xenbase
Gambrill,
Direct intertectal inputs are an integral component of the bilateral sensorimotor circuit for behavior in Xenopus tadpoles.
2018,
Pubmed
,
Xenbase
Haas,
Targeted electroporation in Xenopus tadpoles in vivo--from single cells to the entire brain.
2002,
Pubmed
,
Xenbase
Haery,
Adeno-Associated Virus Technologies and Methods for Targeted Neuronal Manipulation.
2019,
Pubmed
Hafner,
Mapping Brain-Wide Afferent Inputs of Parvalbumin-Expressing GABAergic Neurons in Barrel Cortex Reveals Local and Long-Range Circuit Motifs.
2019,
Pubmed
He,
Experience-Dependent Bimodal Plasticity of Inhibitory Neurons in Early Development.
2016,
Pubmed
,
Xenbase
Hiramoto,
Convergence of multisensory inputs in Xenopus tadpole tectum.
2009,
Pubmed
,
Xenbase
Hirsch,
Xenopus, the next generation: X. tropicalis genetics and genomics.
2002,
Pubmed
,
Xenbase
Kawakami,
Wnt/beta-catenin signaling regulates vertebrate limb regeneration.
2006,
Pubmed
,
Xenbase
Kelly,
Rabies as a transneuronal tracer of circuits in the central nervous system.
2000,
Pubmed
Kim,
Improved Monosynaptic Neural Circuit Tracing Using Engineered Rabies Virus Glycoproteins.
2016,
Pubmed
Lavin,
Monosynaptic Tracing Success Depends Critically on Helper Virus Concentrations.
2020,
Pubmed
Li,
Decoding Neurotransmitter Switching: The Road Forward.
2020,
Pubmed
Luo,
Genetic Dissection of Neural Circuits: A Decade of Progress.
2018,
Pubmed
Ma,
Structural Neural Connectivity Analysis in Zebrafish With Restricted Anterograde Transneuronal Viral Labeling and Quantitative Brain Mapping.
2019,
Pubmed
Marshel,
Targeting single neuronal networks for gene expression and cell labeling in vivo.
2010,
Pubmed
Mebatsion,
Budding of rabies virus particles in the absence of the spike glycoprotein.
1996,
Pubmed
Mebatsion,
Highly stable expression of a foreign gene from rabies virus vectors.
1996,
Pubmed
Miraucourt,
GABA expression and regulation by sensory experience in the developing visual system.
2012,
Pubmed
,
Xenbase
Miyamichi,
Dissecting local circuits: parvalbumin interneurons underlie broad feedback control of olfactory bulb output.
2013,
Pubmed
Mundell,
Vesicular stomatitis virus enables gene transfer and transsynaptic tracing in a wide range of organisms.
2015,
Pubmed
,
Xenbase
Nassi,
Neuroanatomy goes viral!
2015,
Pubmed
Osakada,
New rabies virus variants for monitoring and manipulating activity and gene expression in defined neural circuits.
2011,
Pubmed
Parr-Brownlie,
Lentiviral vectors as tools to understand central nervous system biology in mammalian model organisms.
2015,
Pubmed
Reardon,
Rabies Virus CVS-N2c(ΔG) Strain Enhances Retrograde Synaptic Transfer and Neuronal Viability.
2016,
Pubmed
Ruthazer,
Stabilization of axon branch dynamics by synaptic maturation.
2006,
Pubmed
,
Xenbase
Schnell,
The cell biology of rabies virus: using stealth to reach the brain.
2010,
Pubmed
Session,
Genome evolution in the allotetraploid frog Xenopus laevis.
2016,
Pubmed
,
Xenbase
Shakin-Eshleman,
N-linked glycosylation of rabies virus glycoprotein. Individual sequons differ in their glycosylation efficiencies and influence on cell surface expression.
1992,
Pubmed
Shen,
Acute synthesis of CPEB is required for plasticity of visual avoidance behavior in Xenopus.
2014,
Pubmed
,
Xenbase
Sin,
Dendrite growth increased by visual activity requires NMDA receptor and Rho GTPases.
2002,
Pubmed
,
Xenbase
Stepien,
Monosynaptic rabies virus reveals premotor network organization and synaptic specificity of cholinergic partition cells.
2010,
Pubmed
Suzuki,
Multiplex Neural Circuit Tracing With G-Deleted Rabies Viral Vectors.
2019,
Pubmed
Thoulouze,
The neural cell adhesion molecule is a receptor for rabies virus.
1998,
Pubmed
Tuffereau,
Low-affinity nerve-growth factor receptor (P75NTR) can serve as a receptor for rabies virus.
1998,
Pubmed
Tuffereau,
The rabies virus glycoprotein receptor p75NTR is not essential for rabies virus infection.
2007,
Pubmed
Ugolini,
Specificity of rabies virus as a transneuronal tracer of motor networks: transfer from hypoglossal motoneurons to connected second-order and higher order central nervous system cell groups.
1995,
Pubmed
Ugolini,
Advances in viral transneuronal tracing.
2010,
Pubmed
Vercelli,
Recent techniques for tracing pathways in the central nervous system of developing and adult mammals.
2000,
Pubmed
Wall,
Monosynaptic circuit tracing in vivo through Cre-dependent targeting and complementation of modified rabies virus.
2010,
Pubmed
Wang,
Metabotropic glutamate receptor subtype 2 is a cellular receptor for rabies virus.
2018,
Pubmed
Wickersham,
Retrograde neuronal tracing with a deletion-mutant rabies virus.
2007,
Pubmed
Wickersham,
Monosynaptic restriction of transsynaptic tracing from single, genetically targeted neurons.
2007,
Pubmed
Wickersham,
Production of glycoprotein-deleted rabies viruses for monosynaptic tracing and high-level gene expression in neurons.
2010,
Pubmed
Wickersham,
Axonal and subcellular labelling using modified rabies viral vectors.
2013,
Pubmed
Wirblich,
Rabies virus (RV) glycoprotein expression levels are not critical for pathogenicity of RV.
2011,
Pubmed
Wu,
Infection of frog neurons with vaccinia virus permits in vivo expression of foreign proteins.
1995,
Pubmed
,
Xenbase
Wunner,
Rabies mRNA translation in Xenopus laevis oocytes.
1980,
Pubmed
,
Xenbase
Yamaguchi,
Development of an Acute Method to Deliver Transgenes Into the Brains of Adult Xenopus laevis.
2018,
Pubmed
,
Xenbase
Yan,
The rabies virus glycoprotein determines the distribution of different rabies virus strains in the brain.
2002,
Pubmed
Young,
Isolation of a chicken gene that confers susceptibility to infection by subgroup A avian leukosis and sarcoma viruses.
1993,
Pubmed
Zeng,
Mesoscale connectomics.
2018,
Pubmed
Zhu,
Optogenetic Dissection of Neuronal Circuits in Zebrafish using Viral Gene Transfer and the Tet System.
2009,
Pubmed
Zhu,
Rabies Virus Pseudotyped with CVS-N2C Glycoprotein as a Powerful Tool for Retrograde Neuronal Network Tracing.
2020,
Pubmed
