Transl Vis Sci Technol
2022 Apr 01;114:4. doi: 10.1167/tvst.11.4.4.
Show Gene links
Show Anatomy links
Derivation and Characterization of Murine and Amphibian Müller Glia Cell Lines.
Gallo RA
,
Qureshi F
,
Strong TA
,
Lang SH
,
Pino KA
,
Dvoriantchikova G
,
Pelaez D
.
???displayArticle.abstract???
Purpose: Müller glia (MG) in the retina of Xenopus laevis (African clawed frog) reprogram to a transiently amplifying retinal progenitor state after an injury. These progenitors then give rise to new retinal neurons. In contrast, mammalian MG have a restricted neurogenic capacity and undergo reactive gliosis after injury. This study sought to establish MG cell lines from the regeneration-competent frog and the regeneration-deficient mouse.
Methods: MG were isolated from postnatal day 5 GLAST-CreERT; Rbfl/fl mice and from adult (3-5 years post-metamorphic) X laevis. Serial adherent subculture resulted in spontaneously immortalized cells and the establishment of two MG cell lines: murine retinal glia 17 (RG17) and Xenopus glia 69 (XG69). They were characterized for MG gene and protein expression by qPCR, immunostaining, and Western blot. Purinergic signaling was assessed with calcium imaging. Pharmacological perturbations with 2'-3'-O-(4-benzoylbenzoyl) adenosine 5'-triphosphate (BzATP) and KN-62 were performed on RG17 cells.
Results: RG17 and XG69 cells express several MG markers and retain purinergic signaling. Pharmacological perturbations of intracellular calcium responses with BzATP and KN-62 suggest that the ionotropic purinergic receptor P2X7 is present and functional in RG17 cells. Stimulation of XG69 cells with adenosine triphosphate-induced calcium responses in a dose-dependent manner.
Conclusions: We report the characterization of RG17 and XG69, two novel MG cell lines from species with significantly disparate retinal regenerative capabilities.
Translational Relevance: RG17 and XG69 cell line models will aid comparative studies between species endowed with varied regenerative capacity and will facilitate the development of new cell-based strategies for treating retinal degenerative diseases.

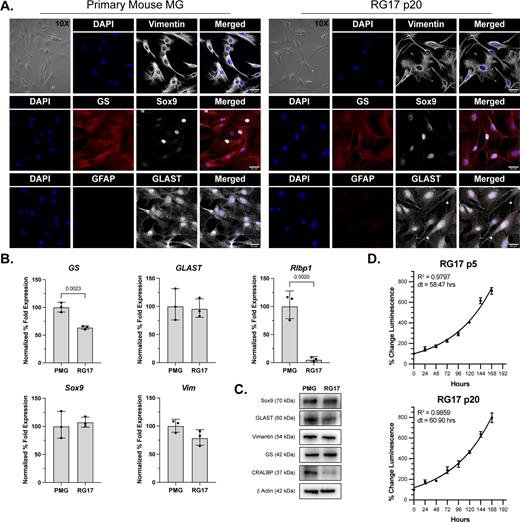

Figure 1. Immunophenotypic characterization of mouse MG cell line RG17. (A) Phase contrast images and immunofluorescence staining of primary MG cells and passage 20 RG17 cells. RG17 demonstrate typical MG morphology in culture and express many well-characterized MG markers. Scale bar, 50 µm and applies to all immunofluorescence images. (B) Expression of characteristic MG genes in primary MG and RG17 cells (passages 20–25). The geometric means and geometric standard deviations (N = 3 independent cultures) are graphed. An unpaired t-test was applied with a P value of ≤0.05 considered statistically significant. (C) Western blot detection of MG markers from primary MG and passage 20 RG17 cells. (D) The doubling rate of RG17 cells does not vary significantly between passages 5 and 20. Data points are mean ± standard deviation.

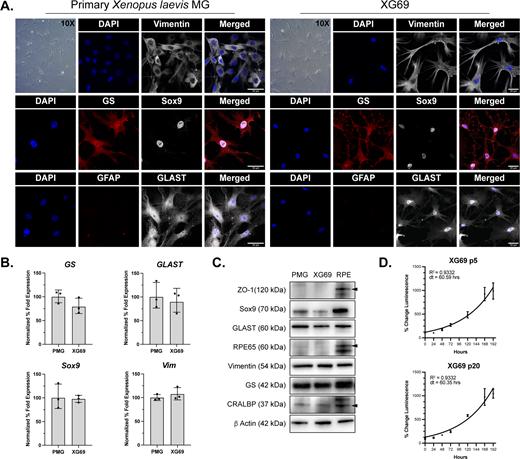

Figure 2. Immunophenotypic characterization of X laevis MG cell line XG69. (A) Phase contrast images and immunofluorescence staining of primary MG and XG69 cell line at passage 20. (B) Expression of MG genes in primary MG and XG69 cells (passages 20–25). The geometric means and geometric standard deviations (N = 3 independent cultures) are graphed. An unpaired t-test was applied with a P value of ≤0.05 considered statistically significant. (C) Western blot detection of MG markers from primary MG and passage 20 XG69 cells. Frog MG do not express RPE markers ZO-1 and RPE65 unlike primary Xenopus RPE cells. (D) The doubling rate of XG69 cells does not vary significantly through 20 passages. Data points are mean ± standard deviation.

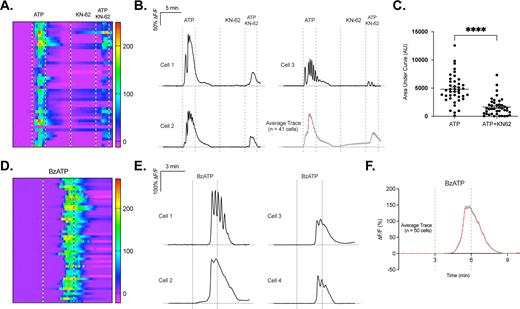

Figure 3. Calcium responses elicited by P2X7 activation in RG17 cells. (A) Heat map shows calcium responses of RG17 cells to 50 µM of ATP and the combination of 50 µM of ATP and 1 µM of P2X7 noncompetitive antagonist P2X7 (n = 41 cells). Each row is a single cell, the x axis is time, and the change of the fluorescent intensity over baseline (ΔF/F) is indicated by the color scale, where fluorescence intensity increases from purple to red. (B) Confocal images of the RG17 intracellular calcium responses. Scale bar, 100 µm. (C) Representative traces of calcium responses of individual RG17 cells as well as the average trace to ATP and KN-62. (D) KN-62 mitigated the ATP-induced calcium response in RG17 cells (unpaired t-test of the area under the curve; **** P < 0.0001). (E) Heat map shows calcium responses of RG17 cells to 50 µM of BzATP (n = 50 cells). Each row is a single cell, the x axis is time, and ΔF/F is indicated by the color scale, where fluorescence intensity increases from purple to red. (F) Representative traces of calcium responses of individual RG17 cells to BzATP. (G) Average trace of the RG17 calcium response to BzATP (n = 50 cells).

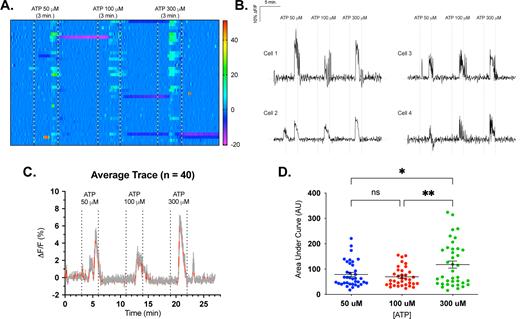

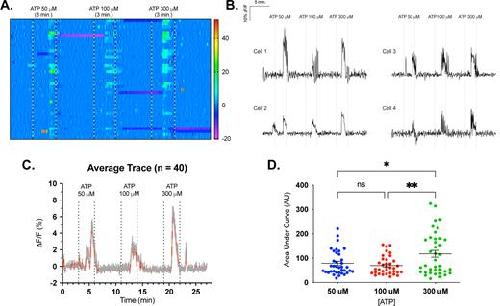

Figure 4. ATP elicits calcium responses in XG69 cells. (A) Heat map of calcium responses from all recorded XG69 cells to 50, 100, and 300 µM of ATP (n = 40 cells). Each row is a single cell, the x axis is time, and ΔF/F is indicated by the color scale, where fluorescence intensity increases from purple to red. (B) Representative calcium response traces from individual XG69 cells. (C) Average trace of calcium responses (n = 40 cells). (D) XG69 cells exhibit intracellular calcium increases with a dose–response to ATP stimulation (ordinary one-way analysis of variance of the area under the curve, *P < 0.05, **P < 0.01).
