Regul Toxicol Pharmacol
2022 Oct 01;134:105241. doi: 10.1016/j.yrtph.2022.105241.
Show Gene links
Show Anatomy links
Amphibian Metamorphosis Assay: Investigation of the potential effects of five chemicals on the hypothalamic-pituitarythyroid axis of Xenopus laevis.
Kamel A
,
Matten SR
,
Lynn SG
,
Wolf JC
,
Fort DJ
.
???displayArticle.abstract???
2-Ethylhexyl 4-hydroxybenzoate (2-EHHB), 4-tert-octylphenol (4-OP), 4-nonylphenol-branched (4-NP), benzyl butyl phthalate (BBP) and dibutyl phthalate (DBP) were evaluated using a 21-day Amphibian Metamorphosis Assay (AMA). Xenopus laevis larvae were exposed nominally to each chemical at 3.6, 10.9, 33.0, and 100 μg/L, except 4-NP concentrations were 1.8, 5.5, 16.5 and 50 μg/L. Endpoints included mortality, developmental stage, hind limb length (HLL), snout-vent length (SVL), body weight (BW), and thyroid histopathology. BBP and 4-OP accelerated development compared to controls at the mean measured concentration of 3.5 and 39.8 μg/L, respectively. An increase in developmental stage frequency distribution was observed for 4-OP at 39.8 and 103 µg/L, BBP at all concentrations and DBP at 143 µg/L. Normalized HLL was increased on study day (SD) 21 for all tested substances except 4-NP. Histopathology revealed accelerated development and mild thyroid follicular cell hypertrophy at all BBP concentrations, but moderate severity at 105 μg/L. Increased BW occurred for all chemicals except 4-OP. Increased SVL was observed for 4-NP, BBP and DBP on SD 21. There was insufficient evidence that 4-NP and 2-EHHB affected the hypothalamic-pituitarythyroid axis, however, BBP, DBP and 4-OP showed potential effects on amphibian metamorphosis and thyroid activity, albeit through different lines of evidence.

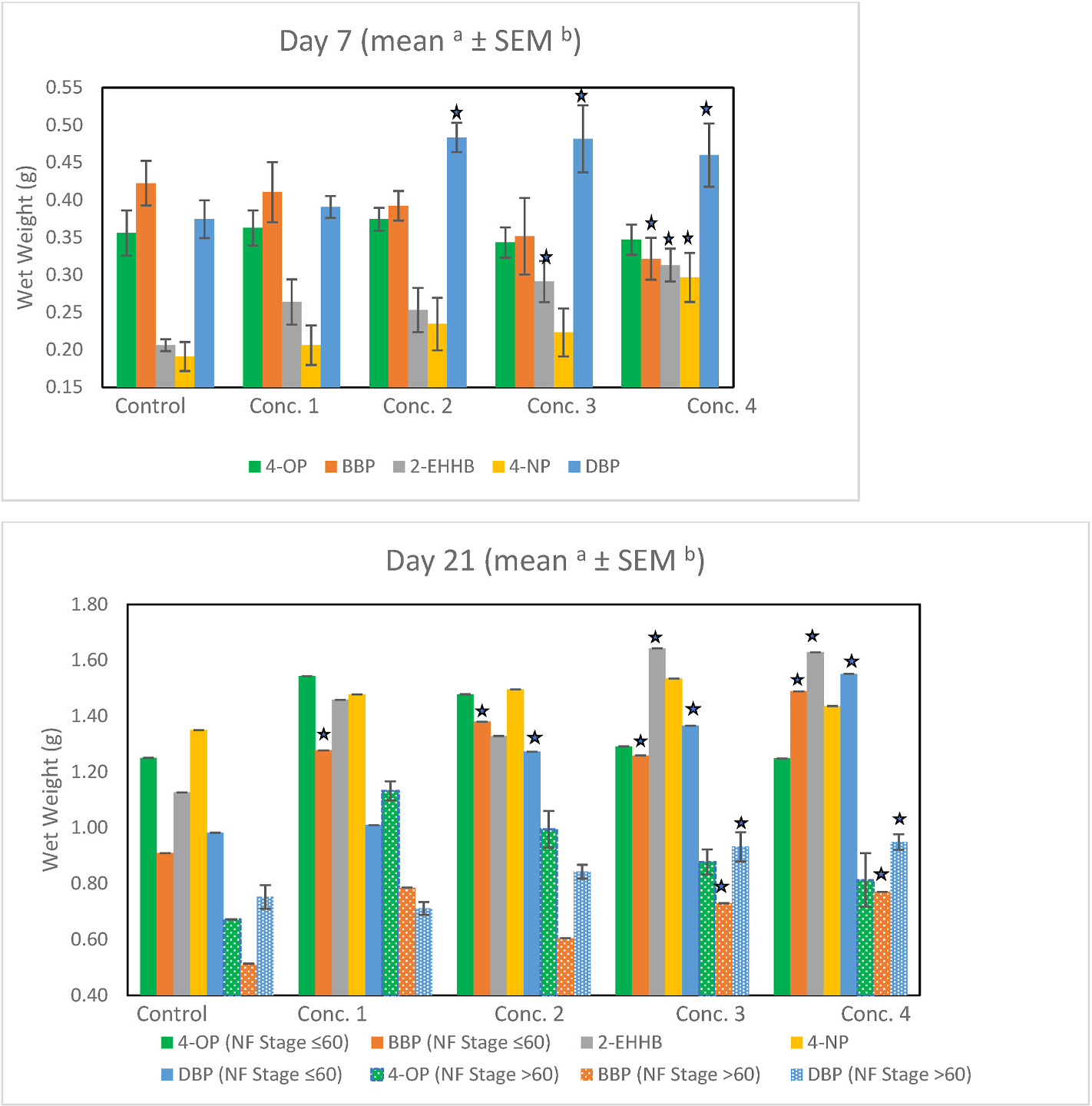

Fig. 2. Effect of exposure to the tested chemicals on Body Weight (BW) at Study Days 7 and 21.*Significantly different from control (Jonckheere-Terpstra p<0.5).aMean measured concentrations for the tested chemicals are listed in Table 1.bSEM: Standard error of the mean.
Fig. 3. Photomicrographs of transverse sections through the head/neck region of frogs exposed to BBP A) Cross section of head from a control frog. Internal gills and thyroid glands (arrows) are located at the level of the eyes and telencephalon brain region. B) Higher magnification of a thyroid gland from a control frog. Note that follicles are lined by cuboidal cells. C) High magnification of a thyroid gland from a frog exposed to 105 μg/L BBP. This was diagnosed as moderate follicular cell hypertrophy, which is characterized by the lining of most follicles by medium-height columnar cells. D) Cross section of head from a frog exposed to 105 μg/L BBP. The thyroid glands (arrows) are located at the level of the diencephalon and inner ears (caudal migration), the internal gills are in the process of resorption, and there is no laryngeal development as yet. E) Cross section of head from a frog exposed to 3.6 μg/L BBP, obtained at approximately the same axial level as in D. In this instance, caudal migration of the thyroids (arrows) is apparent, but in this case the internal gills have been completely resorbed, and there is accelerated laryngeal development relative to controls. F) Cross section of head from a frog exposed to 105 μg/L BBP. Note the single small cluster of thyroid follicles (arrow). Recorded diagnoses for the thyroids in this animal included caudal migration (here located at the level of the myelencephalon), hypoplasia/atrophy, and bilateral fusion. Key: di = diencephalon, ie = inner ears, ig = internal gills, te = telencephalon, la = larynx, my = melencephalon. Bar sizes: A, E, D, F = 500 mm; B, C = 50 mm.
Breous,
The promoter of the human sodium/iodide symporter responds to certain phthalate plasticisers.
2005, Pubmed
Breous,
The promoter of the human sodium/iodide symporter responds to certain phthalate plasticisers.
2005,
Pubmed
Byford,
Oestrogenic activity of parabens in MCF7 human breast cancer cells.
2002,
Pubmed
Coady,
Challenges and approaches to conducting and interpreting the amphibian metamorphosis assay and the fish short-term reproduction assay.
2014,
Pubmed
,
Xenbase
Denver,
The molecular basis of thyroid hormone-dependent central nervous system remodeling during amphibian metamorphosis.
1998,
Pubmed
Fort,
The hypothalamic-pituitary-thyroid (HPT) axis in frogs and its role in frog development and reproduction.
2007,
Pubmed
,
Xenbase
Fort,
Triclosan and anuran metamorphosis: no effect on thyroid-mediated metamorphosis in Xenopus laevis.
2010,
Pubmed
,
Xenbase
Ghisari,
Effects of plasticizers and their mixtures on estrogen receptor and thyroid hormone functions.
2009,
Pubmed
Green,
Statistical analysis of histopathological endpoints.
2014,
Pubmed
Grim,
Thyroid histopathology assessments for the amphibian metamorphosis assay to detect thyroid-active substances.
2009,
Pubmed
,
Xenbase
Judson,
Integrated Model of Chemical Perturbations of a Biological Pathway Using 18 In Vitro High-Throughput Screening Assays for the Estrogen Receptor.
2015,
Pubmed
Kleinstreuer,
Development and Validation of a Computational Model for Androgen Receptor Activity.
2017,
Pubmed
LeBlanc,
Embryotoxicity of the alkylphenol degradation product 4-nonylphenol to the crustacean Daphnia magna.
2000,
Pubmed
Mayasich,
Xenopus laevis and human type 3 iodothyronine deiodinase enzyme cross-species sensitivity to inhibition by ToxCast chemicals.
2021,
Pubmed
,
Xenbase
Noyes,
Evaluating Chemicals for Thyroid Disruption: Opportunities and Challenges with in Vitro Testing and Adverse Outcome Pathway Approaches.
2019,
Pubmed
Olker,
Screening the ToxCast Phase 1, Phase 2, and e1k Chemical Libraries for Inhibitors of Iodothyronine Deiodinases.
2019,
Pubmed
Olker,
In vitro screening for chemical inhibition of the iodide recycling enzyme, iodotyrosine deiodinase.
2021,
Pubmed
Paul-Friedman,
Limited Chemical Structural Diversity Found to Modulate Thyroid Hormone Receptor in the Tox21 Chemical Library.
2019,
Pubmed
Pawlowski,
Is normalized hindlimb length measurement in assessment of thyroid disruption in the amphibian metamorphosis assay relevant?
2019,
Pubmed
,
Xenbase
Ran,
Estimation of aqueous solubility of organic compounds by using the general solubility equation.
2002,
Pubmed
Shen,
Thyroid disruption by Di-n-butyl phthalate (DBP) and mono-n-butyl phthalate (MBP) in Xenopus laevis.
2011,
Pubmed
,
Xenbase
Tata,
Amphibian metamorphosis as a model for the developmental actions of thyroid hormone.
2006,
Pubmed
,
Xenbase
Tayama,
Genotoxic effects of environmental estrogen-like compounds in CHO-K1 cells.
2008,
Pubmed
Tietge,
Early temporal effects of three thyroid hormone synthesis inhibitors in Xenopus laevis.
2010,
Pubmed
,
Xenbase
Wang,
High-throughput screening and chemotype-enrichment analysis of ToxCast phase II chemicals evaluated for human sodium-iodide symporter (NIS) inhibition.
2019,
Pubmed
Wang,
Expanded high-throughput screening and chemotype-enrichment analysis of the phase II: e1k ToxCast library for human sodium-iodide symporter (NIS) inhibition.
2021,
Pubmed
Williams,
The CompTox Chemistry Dashboard: a community data resource for environmental chemistry.
2017,
Pubmed
Wolf,
An examination of historical control histopathology metadata from 51 Amphibian Metamorphosis Assays.
2021,
Pubmed
,
Xenbase
Yi,
Association between Endocrine Disrupting Phenols in Colostrums and Maternal and Infant Health.
2013,
Pubmed
Zoeller,
General background on the hypothalamic-pituitary-thyroid (HPT) axis.
2007,
Pubmed
