Methods Mol Biol
2023 Jan 01;2636:343-366. doi: 10.1007/978-1-0716-3012-9_19.
Show Gene links
Show Anatomy links
Quantitative Proteomics of Nervous System Regeneration: From Sample Preparation to Functional Data Analyses.
Lee-Liu D
,
Sun L
.
???displayArticle.abstract???
Mammals have a limited regenerative capacity, especially of the central nervous system. Consequently, any traumatic injury or neurodegenerative disease results in irreversible damage. An important approach to finding strategies to promote regeneration in mammals has been the study of regenerative organisms like Xenopus, the axolotl, and teleost fish. High-throughput technologies like RNA-Seq and quantitative proteomics are starting to provide valuable insight into the molecular mechanisms that drive nervous system regeneration in these organisms. In this chapter, we present a detailed protocol for performing iTRAQ proteomics that can be applied to the analysis of nervous system samples, using Xenopus laevis as an example. The quantitative proteomics protocol and directions for performing functional enrichment data analyses of gene lists (e.g., differentially abundant proteins from a proteomic study, or any type of high-throughput analysis) are aimed at the general bench biologist and do not require previous programming knowledge.

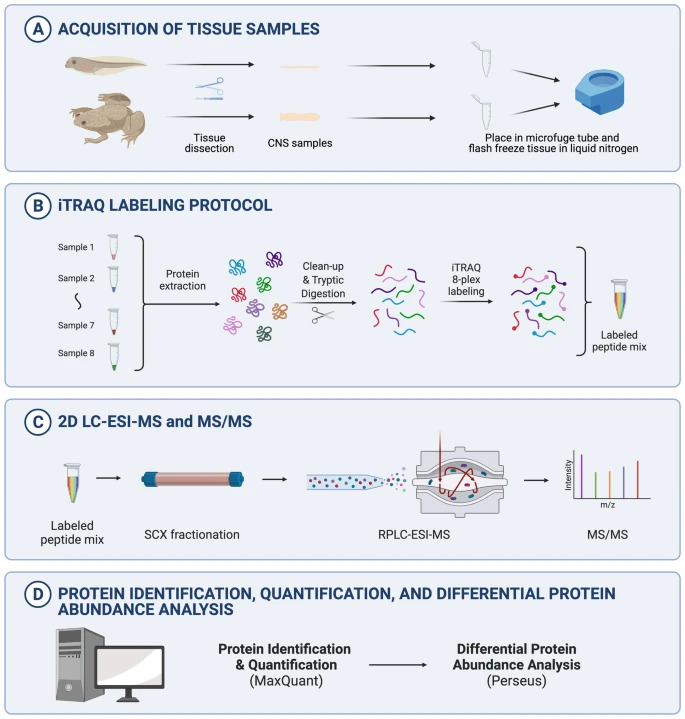

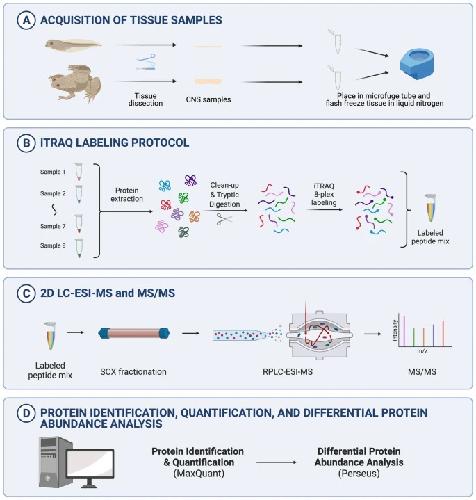

Fig. 1
Workflow summary of the protocol (part I). (a) Summary of acquisition of tissue samples, from tissue dissection to flash freezing them in liquid nitrogen. (b) iTRAQ labeling protocol of peptides, from protein extraction to iTRAQ 8-plex labeling. (c) Schematic design of the SCX–RPLC–ESI–MS/MS (strong cation exchange–reversed-phase liquid chromatography–electrospray ionization–tandem mass spectrometry). (d) Protein identification and quantification and differential protein abundance analysis, performed using MaxQuant and Perseus

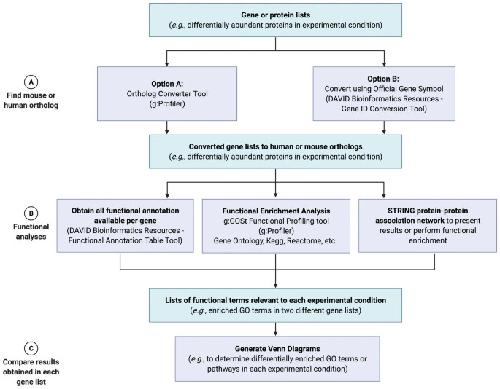

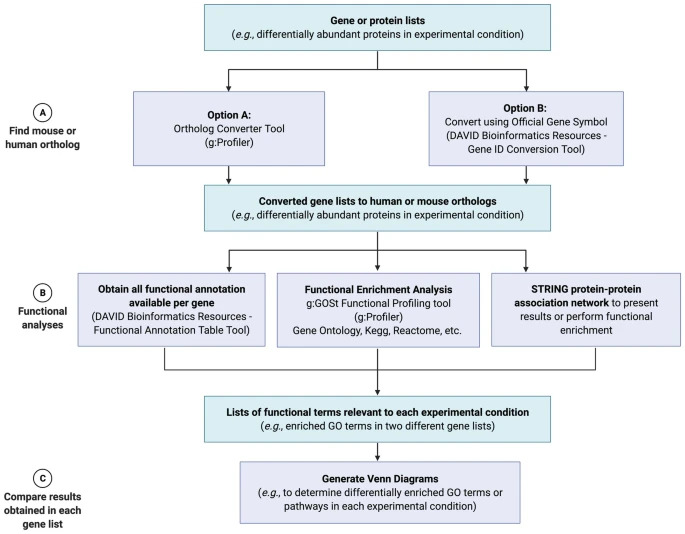

Fig. 2
Workflow summary of the protocol (part II). Schematic workflow of the functional analyses that can be performed once differential abundance gene or protein lists are obtained. These include, if needed, finding the human or mouse ortholog for better functional annotation (a), different types of functional analyses, including obtaining all functional annotation available per gene, functional enrichment analysis, and STRING protein–protein association network representation of results (b). Resulting functional analysis terms may be further compared among samples using Venn diagrams (c)
Ashburner,
Gene ontology: tool for the unification of biology. The Gene Ontology Consortium.
2000, Pubmed
Ashburner,
Gene ontology: tool for the unification of biology. The Gene Ontology Consortium.
2000,
Pubmed
Doncheva,
Cytoscape StringApp: Network Analysis and Visualization of Proteomics Data.
2019,
Pubmed
Edwards-Faret,
Spinal cord regeneration in Xenopus laevis.
2017,
Pubmed
,
Xenbase
Giurgiu,
CORUM: the comprehensive resource of mammalian protein complexes-2019.
2019,
Pubmed
Hosp,
A Primer on Concepts and Applications of Proteomics in Neuroscience.
2017,
Pubmed
Hsu,
miRTarBase: a database curates experimentally validated microRNA-target interactions.
2011,
Pubmed
Huang,
DAVID Bioinformatics Resources: expanded annotation database and novel algorithms to better extract biology from large gene lists.
2007,
Pubmed
Huang,
Systematic and integrative analysis of large gene lists using DAVID bioinformatics resources.
2009,
Pubmed
Hulsen,
BioVenn - a web application for the comparison and visualization of biological lists using area-proportional Venn diagrams.
2008,
Pubmed
Jassal,
The reactome pathway knowledgebase.
2020,
Pubmed
Kanehisa,
KEGG: kyoto encyclopedia of genes and genomes.
2000,
Pubmed
Kanehisa,
Toward understanding the origin and evolution of cellular organisms.
2019,
Pubmed
Karpinka,
Xenbase, the Xenopus model organism database; new virtualized system, data types and genomes.
2015,
Pubmed
,
Xenbase
Lee-Liu,
Spinal cord regeneration: lessons for mammals from non-mammalian vertebrates.
2013,
Pubmed
Lee-Liu,
The African clawed frog Xenopus laevis: A model organism to study regeneration of the central nervous system.
2017,
Pubmed
,
Xenbase
Lee-Liu,
Quantitative Proteomics After Spinal Cord Injury (SCI) in a Regenerative and a Nonregenerative Stage in the Frog Xenopus laevis.
2018,
Pubmed
,
Xenbase
Martens,
WikiPathways: connecting communities.
2021,
Pubmed
Matys,
TRANSFAC: transcriptional regulation, from patterns to profiles.
2003,
Pubmed
Raudvere,
g:Profiler: a web server for functional enrichment analysis and conversions of gene lists (2019 update).
2019,
Pubmed
Reimand,
g:Profiler--a web-based toolset for functional profiling of gene lists from large-scale experiments.
2007,
Pubmed
Robinson,
The Human Phenotype Ontology: a tool for annotating and analyzing human hereditary disease.
2008,
Pubmed
Shannon,
Cytoscape: a software environment for integrated models of biomolecular interaction networks.
2003,
Pubmed
Szklarczyk,
The STRING database in 2017: quality-controlled protein-protein association networks, made broadly accessible.
2017,
Pubmed
Tyanova,
The Perseus computational platform for comprehensive analysis of (prote)omics data.
2016,
Pubmed
Tyanova,
The MaxQuant computational platform for mass spectrometry-based shotgun proteomics.
2016,
Pubmed
