Chen L , Ganguly DR , Shafik SH , Danila F , Grof CPL , Sharwood RE , Furbank RT .

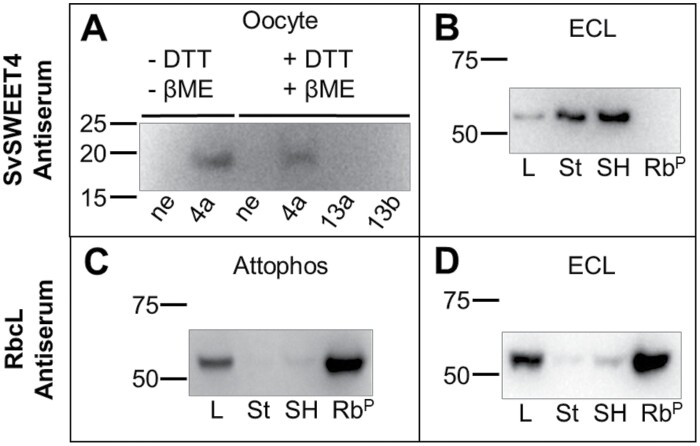

	Fig. 1. Validation of SvSWEET4 antiserum using immunoblotting. Commercially generated affinity-purified antiserum was raised against peptides derived from the SvSWEET4a protein isoform (see Supplementary Figs S4 and S5). This was tested for specificity for SvSWEET4 against total protein extracts from Xenopus oocytes expressing SvSWEET4a, SvSWEETT13a, or SvSWEET13b (A) and total plant protein extracts from Setaria (B–D). In (A) the exclusion or addition (–/+) of reducing agents dithiothreitol (DTT) and β-mercaptoethanol (βME) is indicated above the blot. The lysates from non-expressing (ne), SvSWEET13a-, and SvSWEET13b-expressing oocytes were used as negative controls. Recombinant protein was isolated and loaded from 20 Xenopus oocytes. Total plant extracts from the leaf (L), stem (St), and seed head (SH) were pooled from 12 Setaria plants harvested at 50% seed head emergence stage and 10 µg of protein was loaded. Purified Rubisco large subunit (RbP) from rice was used as a control and 4 µg was loaded. (A), (B), and (D) used electrochemiluminescence (ECL) to detect the horseradish peroxidase (HRP) secondary antibody conjugate. (C) The membrane from (B) probed for the Rubisco large subunit (RbcL) using antiserum derived from tobacco RbcL peptides and the use of the AttoPhos substrate system to detect alkaline phosphatase (AP) secondary antibody conjugate. RbcL was probed for using a separate membrane in (D) using the same method as in (B). Molecular weight standards (kDa) are indicated to the left of each blot. Uncropped immunoblots are shown in Supplementary Fig. S6.
	Fig. 2. Immunolocalisation of SvSWEET4 within mature Setaria viridis (A.10) seed. Immunodetection of SvSWEET4a (A) is contrasted with the pre-immune serum (B) and secondary antibody-only- (C) treated seed sections. Micrographs (D–I) are magnified regions of (A). Arrows and coloured boxes indicate micrographs that are magnified. Autofluorescence of the pedicel (PED), pericarp (PC), and inner pericarp (IPC) is indicated by white arrowheads in (A–E). Immunolabelling (yellow arrowheads) is observed on the vascular bundle (VB) in (D) and (G); the transfer aleurone (TAL) and placental vascular bundle (PVB) in (E), (F), and (I); and the endosperm adjacent to scutellum (EAS) layer in (H). Some weak immunolabelling is observed in the nucellus (NC) in (D) and (E), scutellar epithelium (SCE) in (H), and aleurone (AL) cells in (I). The crushed cells of the placental pad (PP) are indicated by blue arrowheads in (F) and (I). Endosperm (ES); embryo (EM); scutellum (SCU); sclerenchyma (SL); and starch granules (SG). Micrographs are representative of multiple sections. Fluorescence signals are pseudo-coloured: green—protein of interest labelled with secondary antibodies conjugated with Alexa Fluor 488 (excitation, 493 nm; emission, 517 nm); magenta—cell walls (excitation, 254 nm; emission, 432 nm). Scale bars represent µm.
	Fig. 3. Immunlocalization of SvSWEET4 within developing Setaria viridis (A.10) stem. Immunodetection of SvSWEET4 (A–E) is contrasted with the pre-immune serum (F–H) in stem sections. Micrographs (D) and (E) are magnified regions of (C). Autofluorescence of some cells in the vascular bundle (VB) and highly lignified hypodermis is indicated by white arrowheads in (B) and (G). Immunolabelling (yellow arrowheads) is observed in the plasma membrane and possibly the web-like endoplasmic reticulum of xylem parenchyma (XP) adjacent to the protoxylem (PX) and metaxylem (MX) within the VB as indicated by yellow arrowheads in (C–E). The phloem is indicated by the broken line, made up of companion cells (CC) and sieve elements (SE). The sclerenchyma surrounds the VB. Micrographs are representative of multiple sections. Fluorescence signals are pseudo-coloured: green—protein of interest labelled with secondary antibodies conjugated with Alexa Fluor 488 (excitation, 493 nm; emission, 517 nm); magenta—cell walls (excitation, 254 nm; emission, 432 nm). Scale bars represent µm.

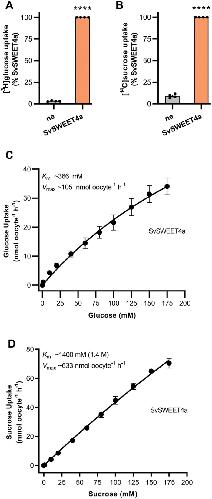

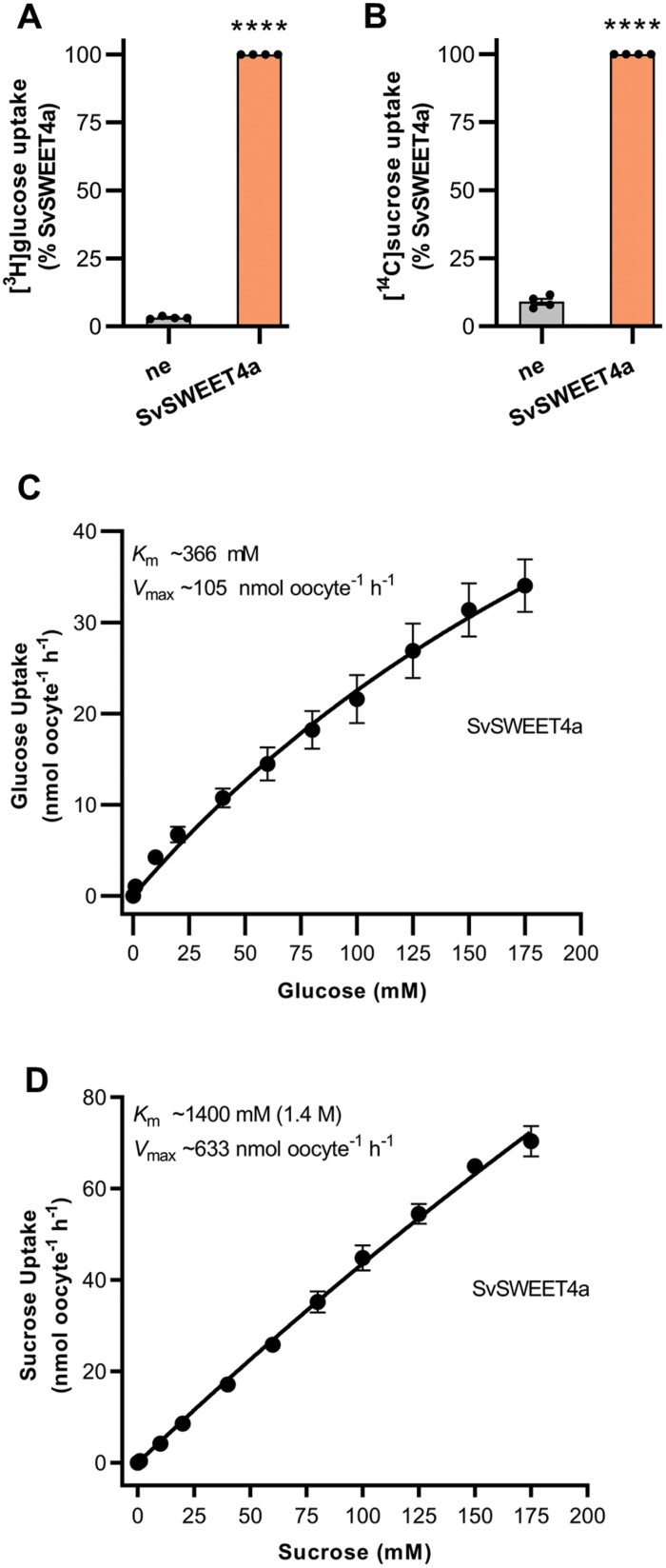

	Fig. 4. Functional characterization of SvSWEET4a using Xenopus oocytes. The SvSWEET4a-mediated transport of [3H]glucose (A) and [14C]sucrose (B). The concentration dependence of SvSWEET4a-mediated transport of [3H]glucose (C) and [14C]sucrose (D). The estimated app Km and app Vmax values of sugar transport via SvSWEET4a are indicated in (C) and (D). The data are the mean of at least three independent experiments (each yielding similar results and overlaid as individual data points in A and B) and the error is the SEM. Where not visible, the error bars fall within the symbols. The asterisks denote a significant difference from non-expressing oocytes; ****P<0.0001 (unpaired Student’s t-test). Non-expressing oocytes (ne) were used as a negative control.

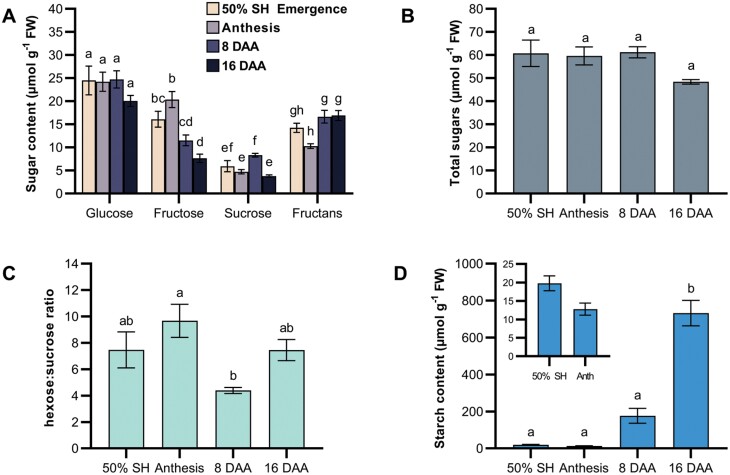

	Fig. 5. Major carbohydrates of Setaria viridis A.10 seed heads at different developmental stages. Plants harvested at 50% seed head emergence (50% SH), anthesis, 8 DAA, and 16 DAA for carbohydrate analysis (A–D). Soluble sugars (A), total sugars (B), hexose:sucrose ratio (C), and starch (D) are displayed. For (D) the inset shows starch values at 50% SH emergence and anthesis that are not distinguishable. Bars represent the mean of four biological replicates, where each replicate was pooled from four plants. Error bars denote SEM. Letters denote significance (adjusted P<0.05) between developmental stages for each carbohydrate as determined using a one-way ANOVA with Tukey’s post-hoc test for multiple comparisons.

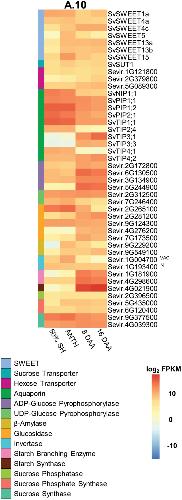

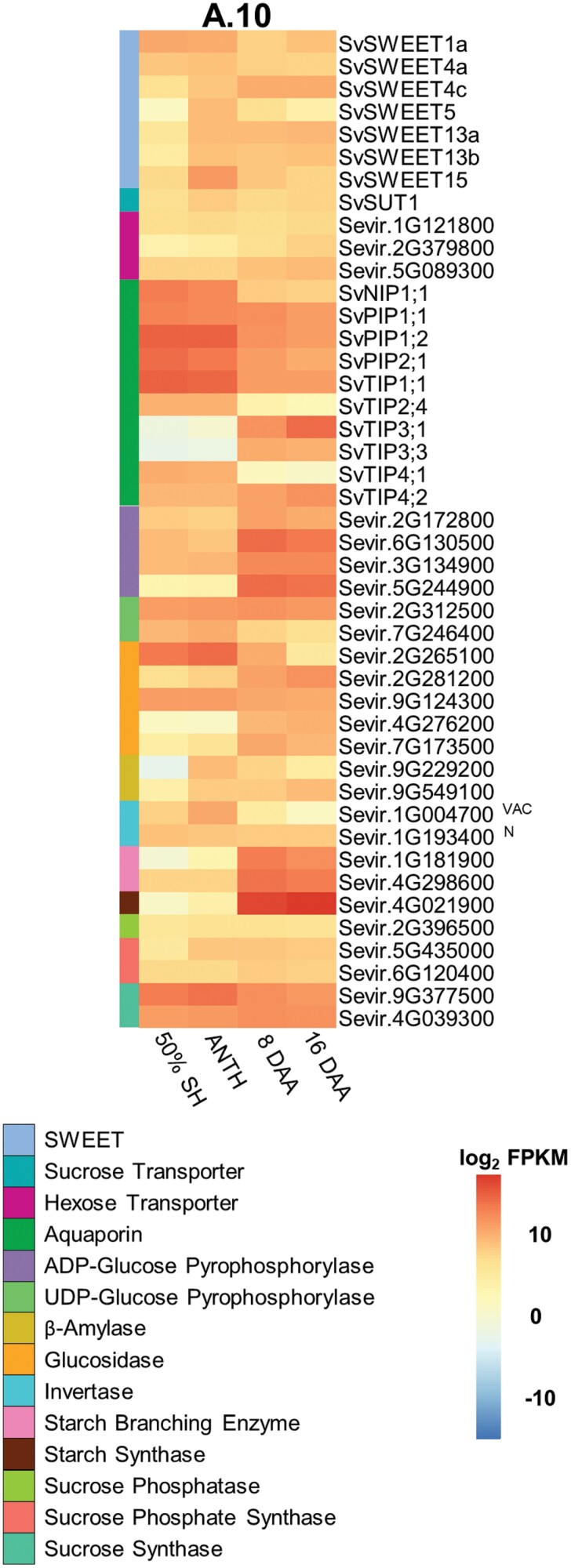

	Fig. 6. Expression of genes encoding sugar transporters and enzymes involved in sugar metabolism within Setaria viridis seed heads. Heatmaps displaying log2 FPKM values of select genes encoding proteins involved in sugar transport or metabolism in seed heads of Setaria viridis A.10. Whole seed heads were harvested at four stages of development: 50% seed head emergence (50% SH), anthesis (ANTH), 8 DAA, and 16 DAA. Values represent the mean from four biological replicates where each replicate is pooled from four plants. Row colours denote gene families. The different types of invertases are indicated beside their gene IDs: neutral (N), and vacuolar (VAC).

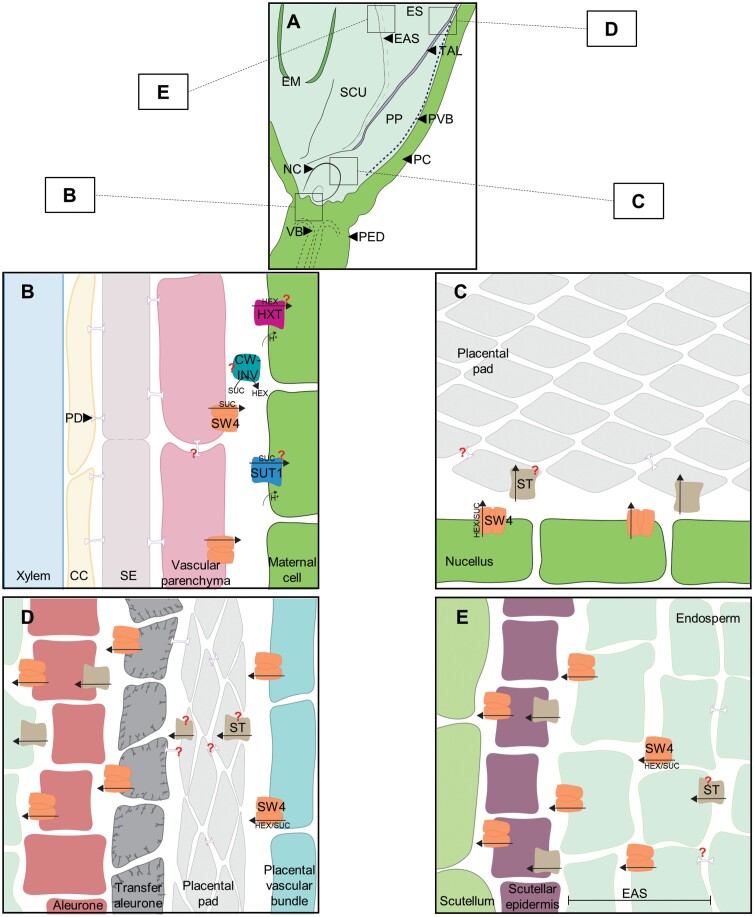

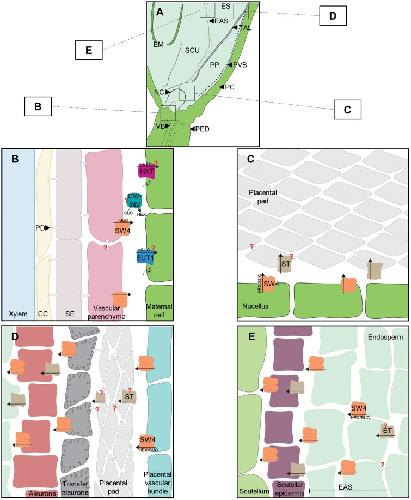

	Fig. 7. Hypothetical model for the movement of photoassimilates within the Setaria seed. A simplified longitudinal section of the mature Setaria seed (A). Symplastic phloem unloading of sucrose (SUC) via plasmodesmata (PD) from the sieve element–companion cell (SE–CC) complex can be moved into the vascular parenchyma (VP) where SvSWEET4 (SW4; orange) exports it into the apoplast within the vascular bundle (VB) (B). Once in the apoplast, cell wall invertase (CW-INV; teal) may hydrolyse SUC into hexoses (HEX) for import by hexose transporters (HXT; magenta) into other maternal cells (MCs) such as the adjacent sclerenchyma cells or nucellus (NC). Alternatively, if SUC is not broken down, it is imported by SUT1 into the MCs. Photoassimilates that reach the nucellus are exported by SvSWEET4 and could be imported by a sugar transporter (e.g. HXT, SUT, or possibly a SWEET) (ST; beige) into the placental pad (PP) (C). Sugars that have reached the placental vascular bundle (PVB) are exported by SvSWEET4 into the apoplast and possibly taken up into the adjacent PP cells by an ST (D). Sugars move either sympastically or apoplastically into the highly invaginated transfer aleurone cells (TAL), exported by SvSWEET4, and then imported into the cuboidal aleurone cells (AL) to be again exported by SvSWEET4. As sugars cross the endosperm (ES) they reach the endosperm adjacent to scutellum (EAS) layer, exported by SvSWEET4, and imported into the scutellar epithelium (SCE) lining the scutellum (SCU) and ES interface where they are exported by SvSWEET4 again (E). PD connections between filial and maternal cells are not well understood in cereal seeds. Pedicel (PED); pericarp (PC).
