Genes Environ
2023 Sep 01;451:23. doi: 10.1186/s41021-023-00279-0.
Show Gene links
Show Anatomy links
M6A transcriptome-wide map of circRNAs identified in the testis of normal and AZ-treated Xenopus laevis.
Zhang X
,
Sai L
,
Zhang W
,
Kan X
,
Jia Q
,
Bo C
,
Yin W
,
Shao H
,
Han M
,
Peng C
.
???displayArticle.abstract???
BACKGROUND: Evidence showed that N6-methyladenosine (m6A) is strongly associated with male germline development. However, the role of m6A methylation on circRNAs in amphibians remains unknown. In this study, we conducted m6A sequencing analysis to explore the m6A transcriptome-wide profile of circRNAs in testis tissues of Xenopus laevis (X. laevis) with and without treatment with 100 µg/L atrazine (AZ).
RESULTS: The analysis showed that m6A modification of circRNAs enriched in sense overlapping in testes of X. laevis. We identified the differential m6A modification sites within circRNAs in testes of AZ-exposed X. laevis and compared that with animals from control group. The results showed that a total of 1507 methylated m6A sites was induced by AZ (760 up-methylated and 747 down-methylated). The cross-analysis exhibited a negative correlation of differentially methylated m6A peaks and circRNAs expression level. The Kyoto Encyclopedia of Genes and Genomes (KEGG) analysis indicated that 20 key pathways may be involved in the mechanism of testis damage of AZ-exposed X. laevis.
CONCLUSIONS: These findings indicated that differentially m6A-methylated circRNAs may play important roles in abnormal testis development of AZ-exposed X. laevis. This study is the first report about a map of m6A modification of circRNAs in male X. laevis and provides a basis for further studying on the function and mechanism of m6A methylation of circRNAs in the testis development of amphibian.
???displayArticle.pubmedLink???
37658417
???displayArticle.pmcLink???PMC10472591 ???displayArticle.link???Genes Environ ???displayArticle.grants???[+]
202012010629; 202112010222; M-20222055 Health Commission of Shandong Province, 202019108; 202019109 Ji'nan Science and Technology Bureau, 81573198; 30901214 National Natural Science Foundation of China, 2019QL001 the Innovation Project of Shandong Academy of Medical Sciences, Academic Promotion Programme of Shandong First Medical University, 2018ZX09711001-011 Ministry of Science and Technology of PRC

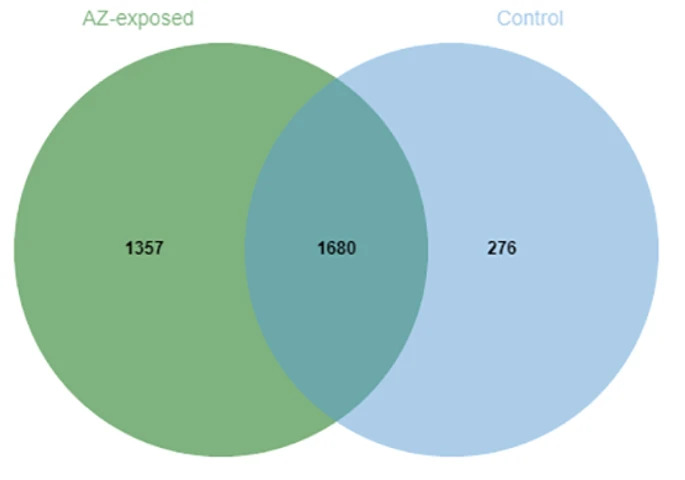

Fig. 1
Venn diagram showing the overlap of m6A peaks within circRNAs in the testes of control and AZ-exposed X. laevis

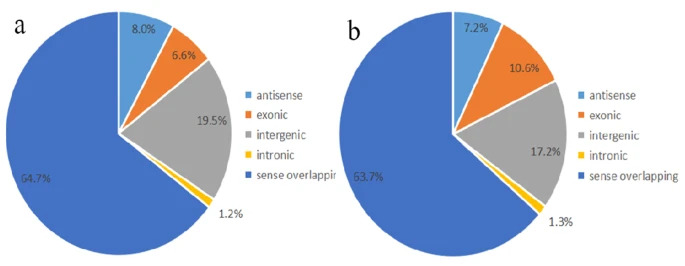

Fig. 2
Distribution of m6A-methylated circRNAs in the testes of control and AZ-exposed X. laevis a: Pie charts showing the percentage of the distribution positions of m6A-methylated circRNAs in control group. b: Pie charts showing the percentage of the distribution positions of m6A-methylated circRNAs in AZ-exposed group

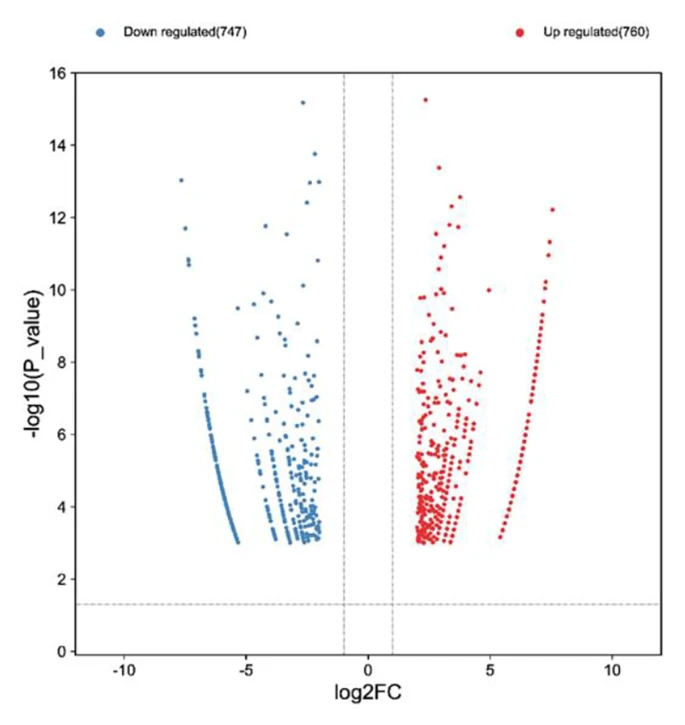

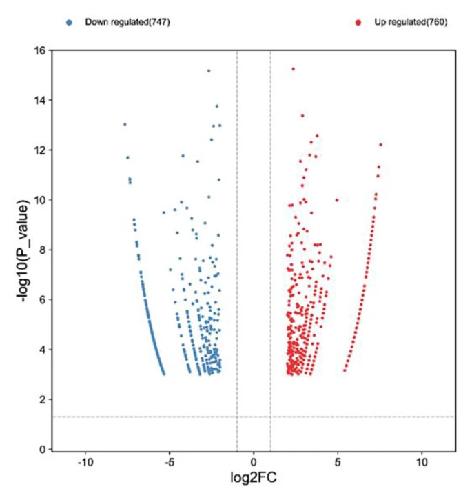

Fig. 3
Volcano plots showing –log10 (P_value) versus log2FC in m6A methylated sites on circRNAs in the testes of control and AZ-exposed X. laevis. Red circles denote significantly up-regulated m6A methylated sites, whereas blue circles denote significantly down-regulated m6A methylated sites (p < 0.05 and fold change ≥ 4)

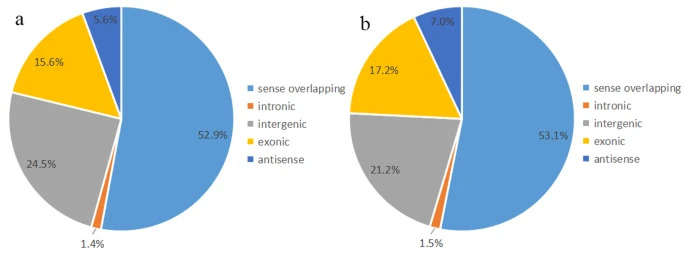

Fig. 4
Overview the distribution of differentially m6A modification sites of circRNAs. a: Pie charts showing the percentage of up-methylated m6A in five segments. b: Pie charts showing the percentage of down-methylated m6A peaks in five segments

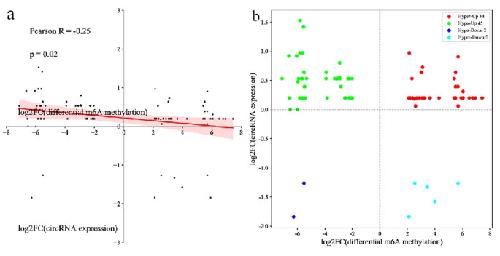

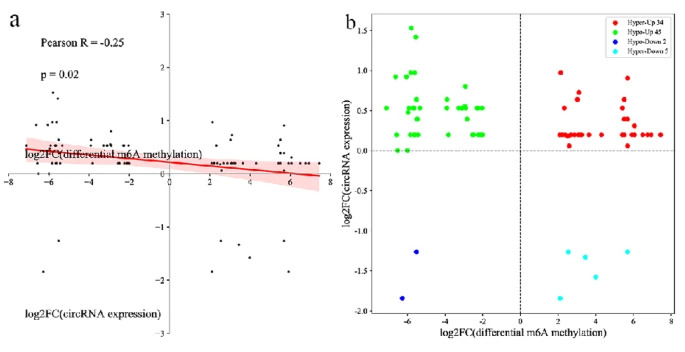

Fig. 5
a: Dot plot of log2FC (circRNAs expression) against log2FC (differential m6A methylation) showing a negative correlation between overall m6A methylation and mRNA expression level (P = 0.02; Pearson R = -0.25). b: Four quadrant plots showing gene expression with differentially methylated m6A peaks

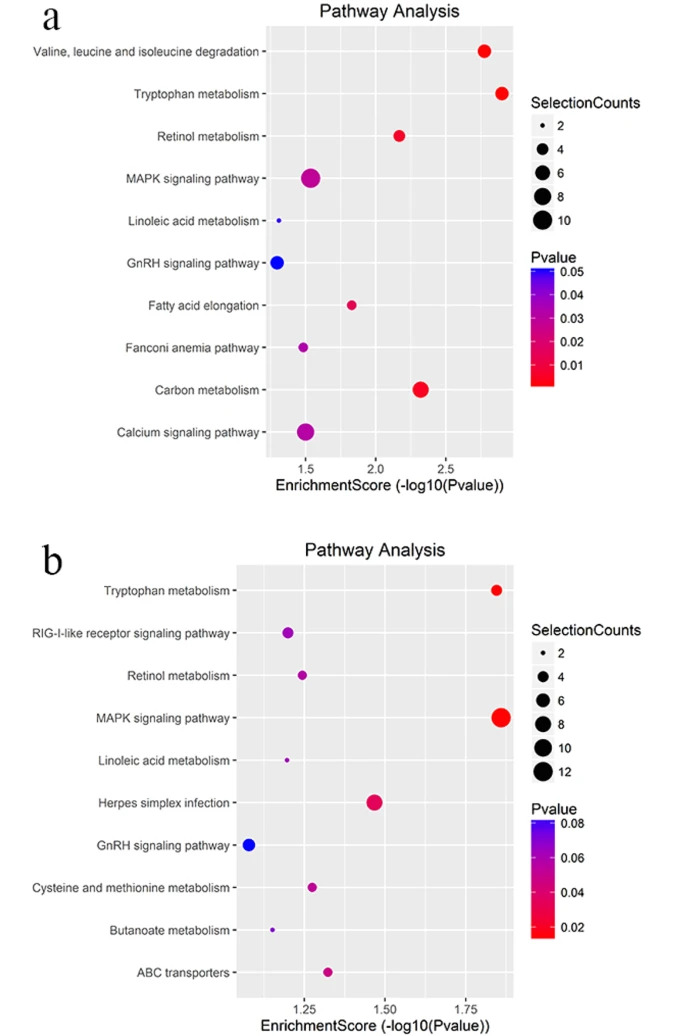

Fig. 6
The annotated significant pathways targeted by the enrichment score of the differentially m6A-methylated circRNAs-related genes including up-methylated (a) and down-methylated (b) in testis of X. laevis exposed to 100 µg/L AZ. The horizontal axis is the -log10 (P-value) for the pathway and the vertical axis is the pathway category
Abdou,
The calcium signaling pathway regulates leydig cell steroidogenesis through a transcriptional cascade involving the nuclear receptor NR4A1 and the steroidogenic acute regulatory protein.
2013, Pubmed
Abdou,
The calcium signaling pathway regulates leydig cell steroidogenesis through a transcriptional cascade involving the nuclear receptor NR4A1 and the steroidogenic acute regulatory protein.
2013,
Pubmed
Adams,
Using gonadotropin-releasing hormone (GnRH) and GnRH analogs to modulate testis function and enhance the productivity of domestic animals.
2005,
Pubmed
Berridge,
The Inositol Trisphosphate/Calcium Signaling Pathway in Health and Disease.
2016,
Pubmed
Brodeur,
Environmentally-relevant concentrations of atrazine induce non-monotonic acceleration of developmental rate and increased size at metamorphosis in Rhinella arenarum tadpoles.
2013,
Pubmed
Cai,
RNA N6-methyladenosine modification, spermatogenesis, and human male infertility.
2021,
Pubmed
Chen,
Paraquat-induced oxidative stress regulates N6-methyladenosine (m6A) modification of circular RNAs.
2021,
Pubmed
Chianese,
Anandamide regulates the expression of GnRH1, GnRH2, and GnRH-Rs in frog testis.
2012,
Pubmed
Collodel,
Fatty Acid Profile and Metabolism Are Related to Human Sperm Parameters and Are Relevant in Idiopathic Infertility and Varicocele.
2020,
Pubmed
Crisóstomo,
Molecular Mechanisms and Signaling Pathways Involved in the Nutritional Support of Spermatogenesis by Sertoli Cells.
2018,
Pubmed
de Albuquerque,
An overview of the potential impacts of atrazine in aquatic environments: Perspectives for tailored solutions based on nanotechnology.
2020,
Pubmed
Dominissini,
Transcriptome-Wide Mapping of N⁶-Methyladenosine by m⁶A-Seq.
2015,
Pubmed
Gao,
Identification and characterization of circular RNAs in Qinchuan cattle testis.
2018,
Pubmed
Glažar,
circBase: a database for circular RNAs.
2014,
Pubmed
Hayes,
Hermaphroditic, demasculinized frogs after exposure to the herbicide atrazine at low ecologically relevant doses.
2002,
Pubmed
,
Xenbase
Hayes,
Atrazine induces complete feminization and chemical castration in male African clawed frogs (Xenopus laevis).
2010,
Pubmed
,
Xenbase
Hayes,
Atrazine-induced hermaphroditism at 0.1 ppb in American leopard frogs (Rana pipiens): laboratory and field evidence.
2003,
Pubmed
,
Xenbase
Kaur,
Sertoli cells--immunological sentinels of spermatogenesis.
2014,
Pubmed
Kim,
HISAT: a fast spliced aligner with low memory requirements.
2015,
Pubmed
LaFiandra,
Effects of atrazine on anuran development are altered by the presence of a nonlethal predator.
2008,
Pubmed
Langmead,
Fast gapped-read alignment with Bowtie 2.
2012,
Pubmed
Li,
CircMETTL3, upregulated in a m6A-dependent manner, promotes breast cancer progression.
2021,
Pubmed
Li,
Novel circGFRα1 Promotes Self-Renewal of Female Germline Stem Cells Mediated by m6A Writer METTL14.
2021,
Pubmed
Lu,
Effect of Nano-Titanium Dioxide on Blood-Testis Barrier and MAPK Signaling Pathway in Male Mice.
2021,
Pubmed
Ma,
The interplay between m6A RNA methylation and noncoding RNA in cancer.
2019,
Pubmed
Memczak,
Circular RNAs are a large class of animal RNAs with regulatory potency.
2013,
Pubmed
Ni,
Multiple signaling pathways in Sertoli cells: recent findings in spermatogenesis.
2019,
Pubmed
Niu,
N6-methyl-adenosine (m6A) in RNA: an old modification with a novel epigenetic function.
2013,
Pubmed
Orton,
Exposure to an anti-androgenic herbicide negatively impacts reproductive physiology and fertility in Xenopus tropicalis.
2018,
Pubmed
,
Xenbase
Orton,
Effects of nitrate and atrazine on larval development and sexual differentiation in the northern leopard frog Rana pipiens.
2006,
Pubmed
Park,
Endoribonucleolytic Cleavage of m6A-Containing RNAs by RNase P/MRP Complex.
2019,
Pubmed
Qi,
Comprehensive analysis of differences of N6-methyladenosine of lncRNAs between atrazine-induced and normal Xenopus laevis testis.
2021,
Pubmed
,
Xenbase
Sai,
Gene expression profiles in testis of developing male Xenopus laevis damaged by chronic exposure of atrazine.
2016,
Pubmed
,
Xenbase
Sai,
Distinct m6A methylome profiles in poly(A) RNA from Xenopus laevis testis and that treated with atrazine.
2020,
Pubmed
,
Xenbase
Sai,
Identification of circular RNAs and their alterations involved in developing male Xenopus laevis chronically exposed to atrazine.
2018,
Pubmed
,
Xenbase
Shen,
diffReps: detecting differential chromatin modification sites from ChIP-seq data with biological replicates.
2013,
Pubmed
Solomon,
Ecological risk assessment of atrazine in North American surface waters.
2013,
Pubmed
Stroud,
Disruption of FADS2 gene in mice impairs male reproduction and causes dermal and intestinal ulceration.
2009,
Pubmed
Sun,
Comprehensive profiling analysis of the N6-methyladenosine-modified circular RNA transcriptome in cultured cells infected with Marek's disease virus.
2021,
Pubmed
Sun,
FADS1-FADS2 and ELOVL2 gene polymorphisms in susceptibility to autism spectrum disorders in Chinese children.
2018,
Pubmed
Svanholm,
Developmental reproductive toxicity and endocrine activity of propiconazole in the Xenopus tropicalis model.
2021,
Pubmed
,
Xenbase
Tang,
m6A-dependent biogenesis of circular RNAs in male germ cells.
2020,
Pubmed
Wang,
Altered protein prenylation in Sertoli cells is associated with adult infertility resulting from childhood mumps infection.
2013,
Pubmed
Wu,
N6-methyladenosine modification of circCUX1 confers radioresistance of hypopharyngeal squamous cell carcinoma through caspase1 pathway.
2021,
Pubmed
Wu,
Effect of the plastic pollutant bisphenol A on the biology of aquatic organisms: A meta-analysis.
2020,
Pubmed
Wu,
Genome-wide map of N6-methyladenosine circular RNAs identified in mice model of severe acute pancreatitis.
2021,
Pubmed
Xu,
N6-methyladenosine-modified CircRNA-SORE sustains sorafenib resistance in hepatocellular carcinoma by regulating β-catenin signaling.
2020,
Pubmed
Xu,
Novel insights into the interaction between N6-methyladenosine modification and circular RNA.
2022,
Pubmed
Yan,
Circular RNAs in Immune Response and Viral Infection.
2020,
Pubmed
Yang,
Extensive translation of circular RNAs driven by N6-methyladenosine.
2017,
Pubmed
Yin,
Regulatory effects of autophagy on spermatogenesis.
2017,
Pubmed
Yu,
Gene expression profiles in different stages of mouse spermatogenic cells during spermatogenesis.
2003,
Pubmed
Zadravec,
ELOVL2 controls the level of n-6 28:5 and 30:5 fatty acids in testis, a prerequisite for male fertility and sperm maturation in mice.
2011,
Pubmed
Zhang,
The role of N6-methyladenosine (m6A) modification in the regulation of circRNAs.
2020,
Pubmed
Zhang,
Circular RNA expression profile and m6A modification analysis in poorly differentiated adenocarcinoma of the stomach.
2020,
Pubmed
Zhang,
Model-based analysis of ChIP-Seq (MACS).
2008,
Pubmed
Zhao,
Increased m6A RNA modification is related to the inhibition of the Nrf2-mediated antioxidant response in di-(2-ethylhexyl) phthalate-induced prepubertal testicular injury.
2020,
Pubmed
Zhao,
Decreased angiotensin receptor 1 expression in ± AT1 Knockout mice testis results in male infertility and GnRH reduction.
2021,
Pubmed
Zhong,
circRNA-miRNA-mRNA network analysis to explore the pathogenesis of abnormal spermatogenesis due to aberrant m6A methylation.
2023,
Pubmed
Zhu,
Meta-analysis and experimental validation identified atrazine as a toxicant in the male reproductive system.
2021,
Pubmed
Zhu,
Function and evolution of RNA N6-methyladenosine modification.
2020,
Pubmed
