Shin M et al. (2023), Deup1 Expression Interferes with Multiciliated ...

XB-ART-60445

Mol Cells 2023 Dec 31;4612:746-756. doi: 10.14348/molcells.2023.0149.

Show Gene links Show Anatomy links

Deup1 Expression Interferes with Multiciliated Differentiation.

Shin M , Lee J , Lee H , Kumar V , Kim J , Park S .

???displayArticle.abstract???
A recent study revealed that the loss of Deup1 expression does not affect either centriole amplification or multicilia formation. Therefore, the deuterosome per se is not a platform for amplification of centrioles. In this study, we examine whether gain-of-function of Deup1 affects the development of multiciliated ependymal cells. Our time-lapse study reveals that deuterosomes with an average diameter of 300 nm have two different fates during ependymal differentiation. In the first instance, deuterosomes are scattered and gradually disappear as cells become multiciliated. In the second instance, deuterosomes self-organize into a larger aggregate, called a deuterosome cluster (DC). Unlike scattered deuterosomes, DCs possess centriole components primarily within their large structure. A characteristic of DC-containing cells is that they tend to become primary ciliated rather than multiciliated. Our in utero electroporation study shows that DCs in ependymal tissue are mostly observed at early postnatal stages, but are scarce at late postnatal stages, suggesting the presence of DC antagonists within the differentiating cells. Importantly, from our bead flow assay, ectopic expression of Deup1 significantly impairs cerebrospinal fluid flow. Furthermore, we show that expression of mouse Deup1 in Xenopus embryos has an inhibitory effect on differentiation of multiciliated cells in the epidermis. Taken together, we conclude that the DC formation of Deup1 in multiciliated cells inhibits production of multiple centrioles.

???displayArticle.pubmedLink??? 38052490
???displayArticle.pmcLink??? PMC10701303
???displayArticle.link??? Mol Cells

Genes referenced: deup1

???attribute.lit??? ???displayArticles.show???

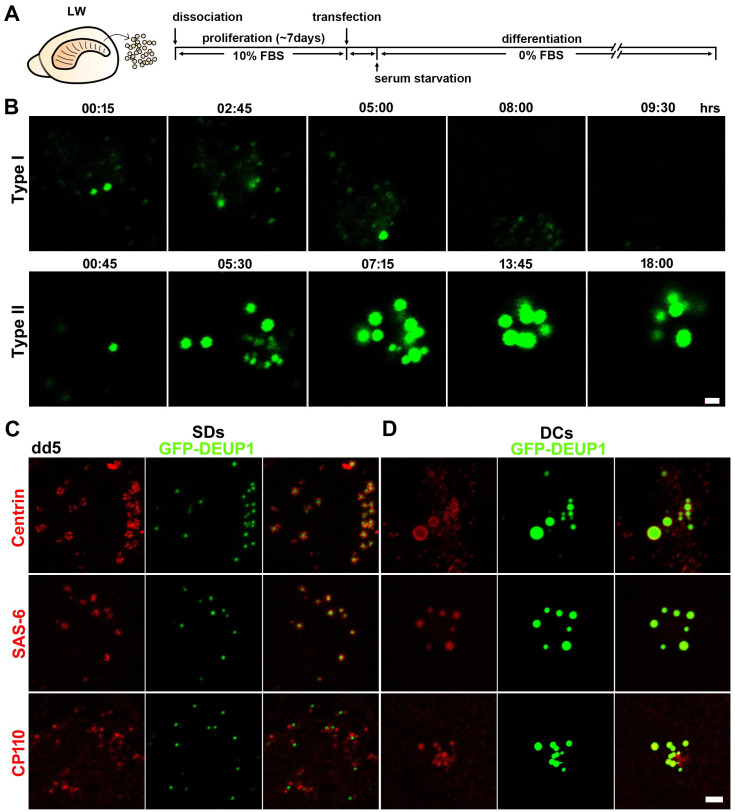

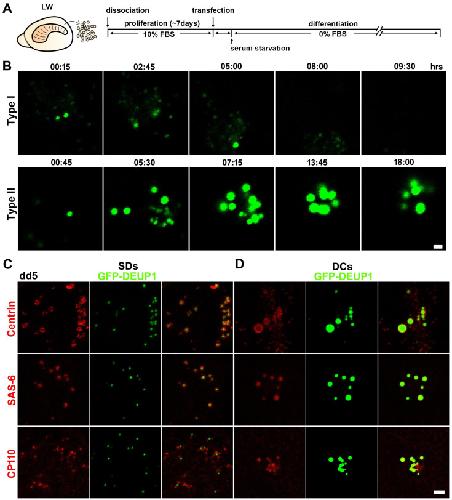

	Fig. 1. Two different patterns of Deup1 protein form and aggregate in primary ependymal cells.(A) Schematic diagram illustrating the culture of primary ependymal cells using mouse brain LW at P1 or P2. LW, lateral wall; FBS, fetal bovine serum. (B) Live imaging analysis of cells expressing Deup1. The time-lapse confocal microscope was used to capture images every 15 min of cells with GFP-positive deuterosome-like structures. Scale bar = 1 µm. (C and D) Analysis of the colocalization of GFP-Deup1 puncta with other centriole markers, Centrin, SAS-6, and CP110. The Deup1 puncta are distributed as deuterosome-like structures (SDs) or clustered as much larger aggregates (DCs). The images were taken using a confocal microscope at differentiation day 5 (dd5). Scale bar = 2 µm. SDs, scattered deuterosomes; DCs, deuterosome clusters.

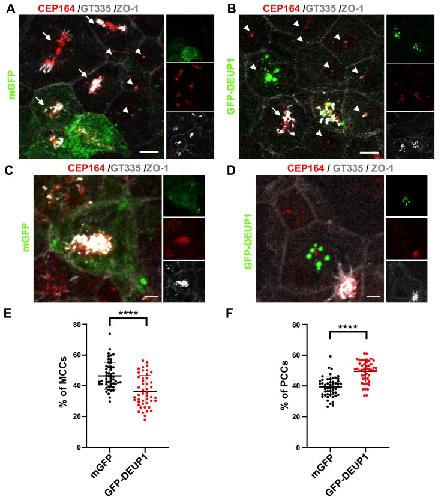

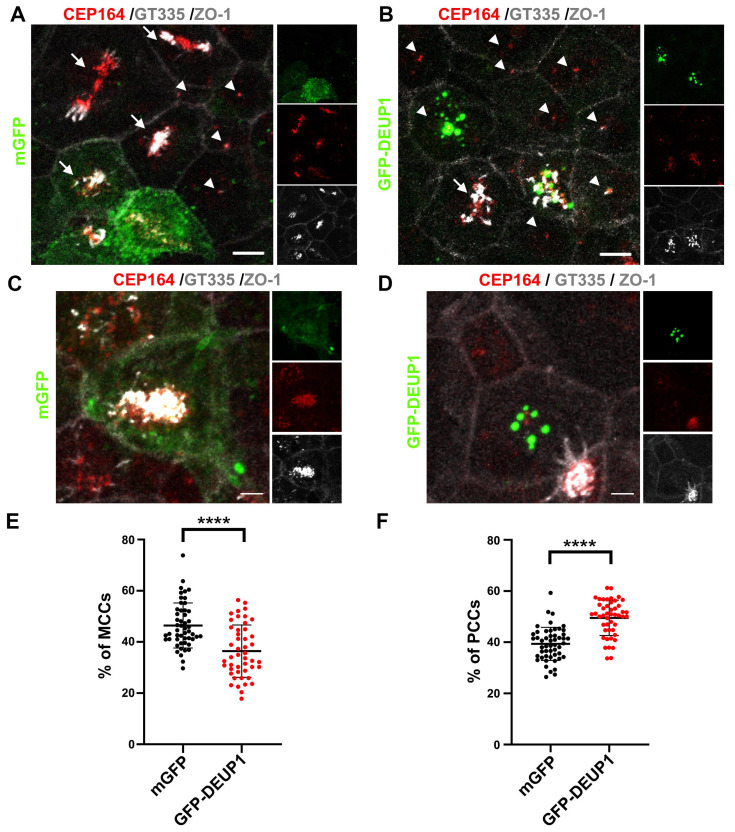

	Fig. 2. Gain-of-function of Deup1 inhibits the differentiation of ependymal precursor cells into multiciliated cells in vitro.(A and B) Confocal microscopy analysis of ependymal cells at differentiation day (dd) 14. Transfected cells with mGFP or GFP-Deup1 were analyzed with GFP signals in green, BBs with CEP164 in red, cilia with GT335 in gray, and cell boundaries with ZO-1 in gray. The right panel shows each fluorescence at a low magnification. Scale bars = 10 µm. (C and D) Representative images of transfected cells showing BBs (red, CEP164) and cilia (gray, GT335). It is noteworthy that most of the Deup1 transfected cells had GFP-positive DCs at this stage of differentiation. Scale bars = 5 µm. (E and F) MCCs and PCCs were quantified in each field regardless of GFP signal. The data are presented as mean ± SD. For the mGFP control arm, n = 51 fields were collected from 12 plates; for the GFP-Deup1 group, n = 47 fields were collected from 11 plates. The data were compared using a two-tailed t-test. ****P < 0.0001. BBs, basal bodies; DCs, deuterosome clusters; MCCs, multiciliated cells; PCCs, primary ciliated cells.

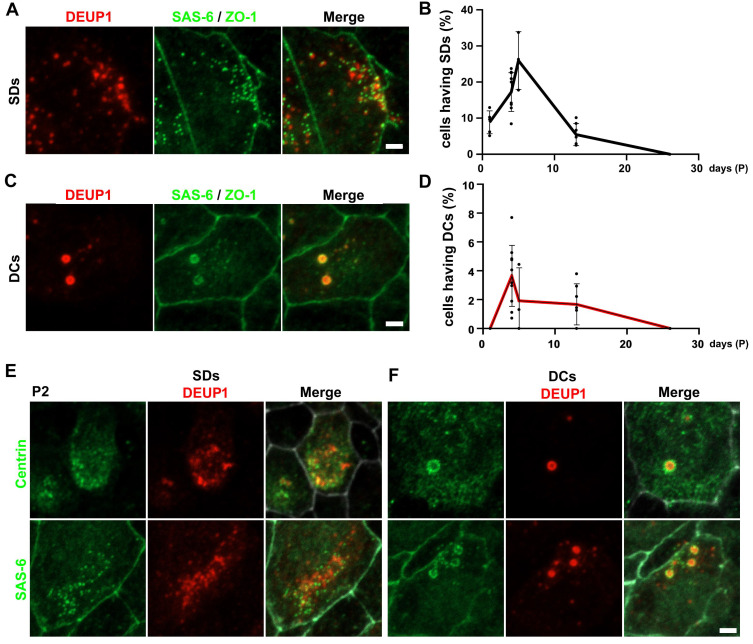

	Fig. 3. Deuterosomes are transiently present in differentiated ependymal cells in vivo.(A and C) Whole mount staining of LWs using Deup1, SAS6, and ZO-1 antibodies at P2. Scale bars = 2 µm. (B and D) LW associated SDs and DCs were quantified in each field from mice at P1, P4, P5, P13, and P26. SD-positive cells increased up to 25.95% at P5 and no longer existed for the P26 samples. A very small number of DC-positive cells were observed at P4, reaching 3.65% in the counted. The data are presented as mean ± SD. (E and F) Whole mount staining of LWs for Deup1 and Centrin (top panels) or Deup1 and SAS6 (bottom panels). To mark the boundary of each cell, staining with ZO-1 antibody (green) was performed. Scale bar = 2 µm. LW, lateral wall; SDs, scattered deuterosomes; DCs, deuterosome clusters.

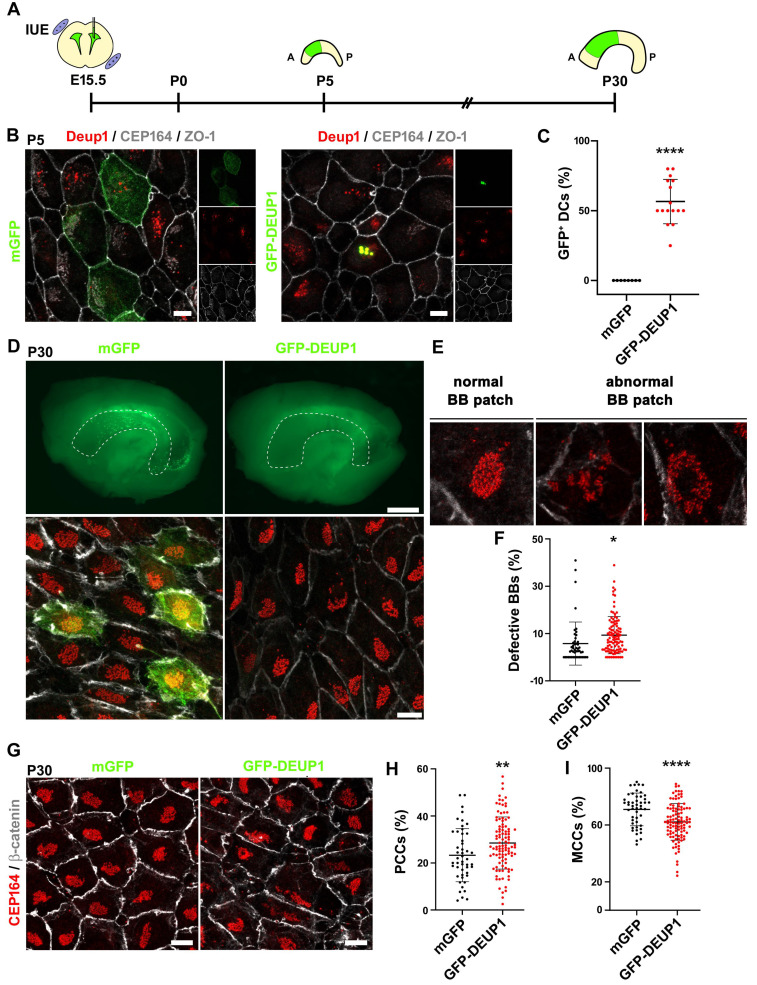

	Fig. 4. Deup1 expression in ependymal tissue disrupts ependymal differentiation to multiciliated cells (MCCs).(A) Schematic illustration of an in utero electroporation (IUE) experiment. In the lateral wall (LW) region marked with green color, GFP is abundantly observed in the region analyzed. A, anterior; P, posterior. (B) Whole mount staining of electroporated LWs using Deup1, CEP164, and ZO-1 antibodies at P5. mGFP-transfected cells showed a broad pattern of green signal within each cell, while GFP-Deup1 transfected cells showed distinct GFP-positive deuterosome clusters (DCs). Scale bars = 5 µm. (C) The data presented in B were used to calculate the percentage of cells with GFP-positive DCs in each microscopic field. In the mGFP group, 35 GFP-positive cells from two injected mice were analyzed; in the GFP-Deup1 group, 80 GFP-positive cells from three injected mice were analyzed. The data are presented as mean ± SD. ***P < 0.0001. (D) Fluorescent images of the electroporated LWs at P30 at low magnification. In contrast to the mGFP signals in control cells, GFP signals were barely visible in the LWs electroporated with GFP-Deup1 (top panel). Scale bar = 1 mm. Furthermore, whole mount staining of LWs using CEP164 (red) and β-catenin (gray) antibodies also revealed an identical result (bottom panel). Scale bar = 10 µm. (E) Images of normal or abnormal basal body (BB) patches in LWs electroporated with GFP-Deup1. (F) A quantitative analysis was performed on the percentage of cells with abnormal BB patches. The GFP control group had 5.76% of cells with defective BB patches, while the GFP-DEUP1 group had 9.33% of cells. The data are presented as mean ± SD. P < 0.05. (G) Confocal microscopic image of CEP164 and β-catenin staining. Scale bars = 10 µm. (H and I) The numbers of primary ciliated cells (PCCs) and MCCs were determined based on their CEP164 staining and normalized by the total number of cells in each field. Note that cells with an abnormal BB patch were not included for PCC or MCC counts. The data are presented as mean ± SD. P < 0.01, **P < 0.0001. For the mGFP group, n = 48 fields from 5 mice, and for the GFP-DEUP1 group, n = 105 fields from 11 mice were examined.

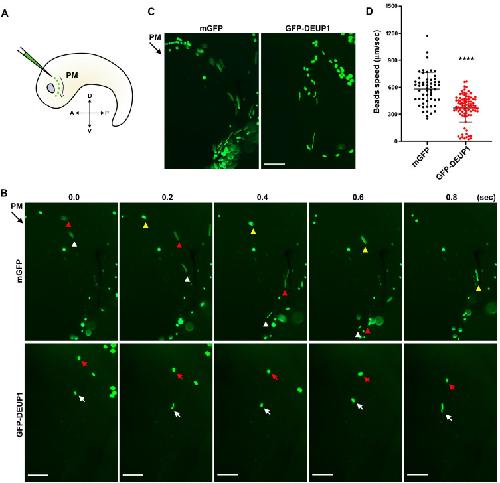

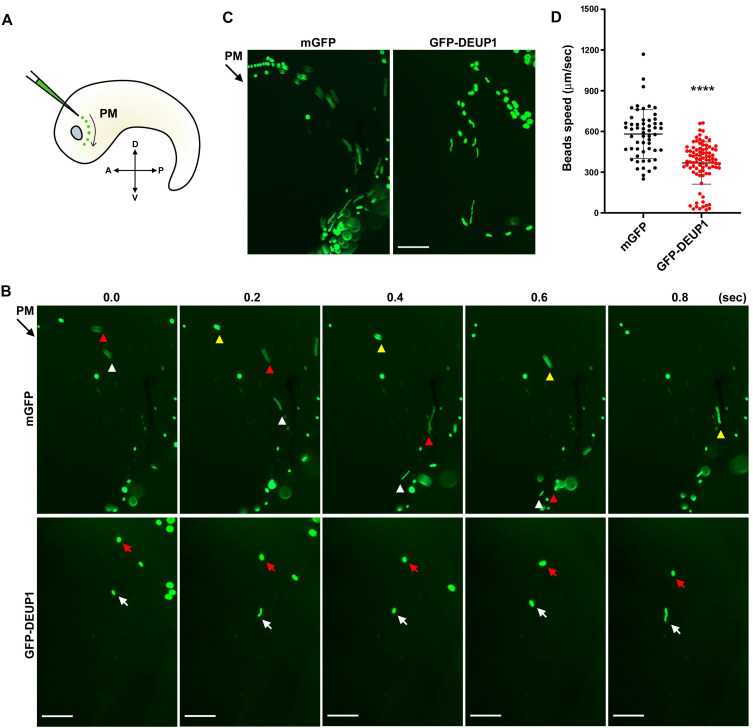

	Fig. 5. Ectopic expression of Deup1 impairs the normal flow of cerebrospinal fluid in the ependymal tissue.(A) Diagram depicts the movement of fluorescent beads (green). In this illustration, the flow of beads is in the posterior-medial (PM) direction, right behind the adhesion area (shown in gray). A, anterior; P, posterior; D, dorsal; V, ventral. (B) A high-speed video imaging analysis of each fluorescent bead at different time points. In the mGFP group, each bead is represented by an arrowhead of a different color; similarly, in the GFP-DEUP1 group, each bead is marked with an arrow of a different color. (C) A single image was generated by merging 17 consecutive frames taken at 200 ms intervals. Scale bars = 100 µm (B and C). (D) The speed of each microbead was calculated. The data are presented as mean ± SD. ****P < 0.0001. For the mGFP group, n = 56 beads from 6 mice; for the GFP-DEUP1 group, n = 88 beads from 8 mice.

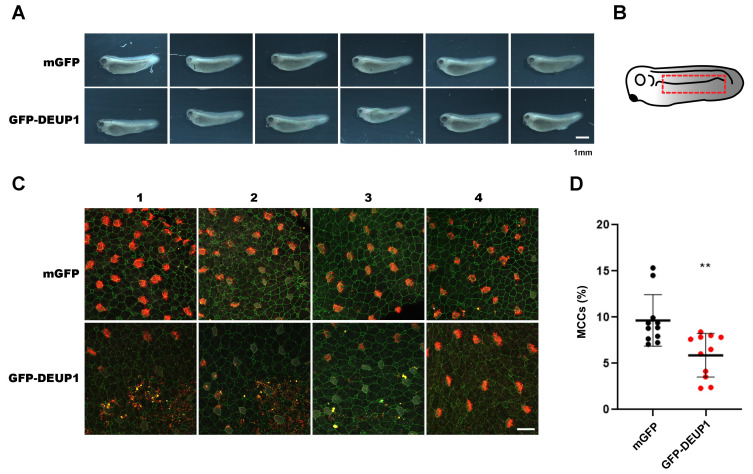

	Fig. 6. Ectopic expression of Deup1 in Xenopus laevis disrupts the differentiation of multiciliated cells (MCCs) in the epidermis.(A) The diagram shows the overall morphology of various Xenopus embryos at stage 32 after injection of the indicated RNAs. Embryos that were morphologically normal were selected for further immunostaining in this study. Scale bar = 1 mm. (B) This diagram illustrates the region in which differentiated MCCs were analyzed. (C) Whole embryos were immunostained for acetylated tubulin and ZO-1, which serve as markers of multicilia and cell boundaries, respectively. The number on top of each panel represents an independent embryo for each group injected. Scale bar = 50 µm. (D) The number of MCCs in each field was calculated and then expressed as a percentage after dividing by the total number of cells. The data are presented as mean ± SD. **P < 0.01. The total number of embryos analyzed for each injection group was 11.

References [+] :

Al Jord, Centriole amplification by mother and daughter centrioles differs in multiciliated cells. 2014, Pubmed
