Fu L , Wang S , Liu L , Shibata Y , Okada M , Luu N .

Intramural Research Program of NICHD NIH HHS

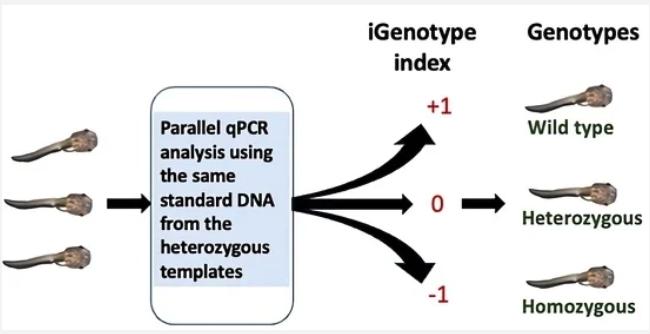

	Graphical Abstract

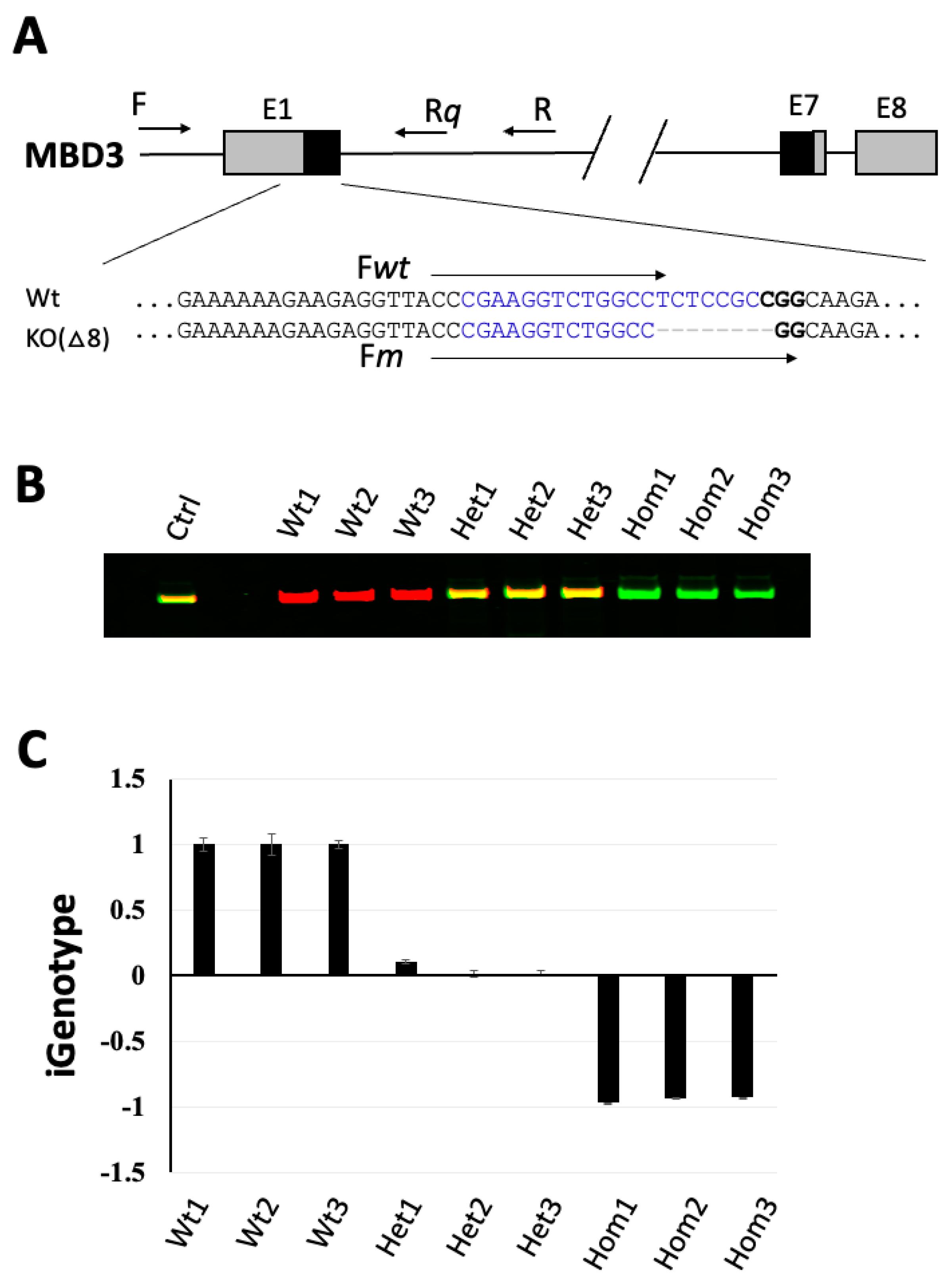

	Figure 1. Comparison of qPCR-based iGenotype indexes for genotyping with the competitive PCR assay with dual fluorescent primers. Schematic illustration (A) showing wild-type and mutant X. tropicalis MBD3 gene with an 8-nucleotide deletion (MBD3-KO(∆8)) and primers used in the parallel qPCR analysis to determine iGenotype indexes (Table 1). Genomic DNA from three animals of each genotype, i.e., the wild-type (Wt), heterozygous (Het), and homozygous (Hom) mutants, respectively, was subjected to the competitive PCR assay with dual fluorescent primers [28] (B) or qPCR-based iGenotype index analyses (C) for genotyping. Parallel qPCR reactions were performed in triplets, and the iGenotype indexes were plotted with mean ± standard deviations. Note that iGenotype indexes were converged to approximately +1, 0, and −1, respectively, for the wild-type, heterozygous, and homozygous mutants, respectively. E: exons; Ctrl: heterozygous control; F, Rq, R, Fwt and Fm: primers (Table 1). Wt: wild type; Het: heterozygous mutant; Hom: homozygous mutant.

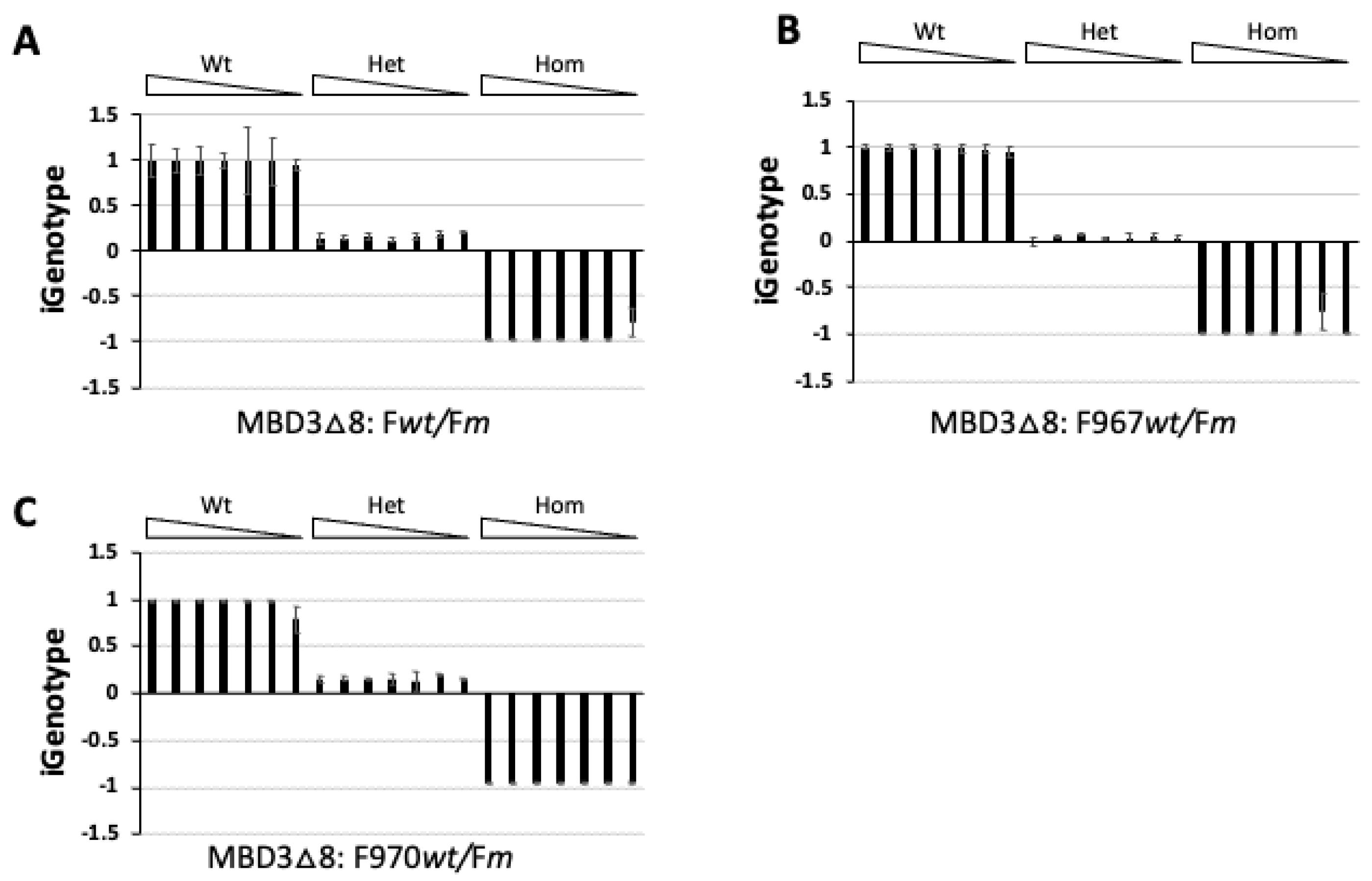

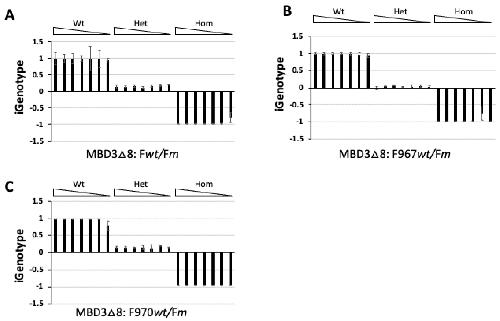

	Figure 2. iGenotype indexes are highly reproducible and reliable for genotyping different allele-specific primer sets in parallel qPCR in a wide range of genomic DNA concentrations of MBD3-KO(∆8) tadpoles. The target regions of MBD3-KO(∆8) tadpoles were amplified by PCR with primers F and R (Figure 1A), purified and serially diluted at 1:5 to serve as templates in parallel qPCR analyses to determine the iGenotype indexes. The parallel qPCR reactions were performed in triplets with reverse primer Rq paired with either the MBD3-KO(∆8)-specific primer Fm for the mutant allele or in parallel with different wild-type-specific primer Fwt (A), F967wt (B), and F970wt (C) for the wild-type allele, respectively. The iGenotype indexes were plotted as mean ± standard deviation. Wt: wild type; Het: heterozygous mutant; Hom: homozygous mutant, Cells 13 00247 i001: DNA concentration gradient.

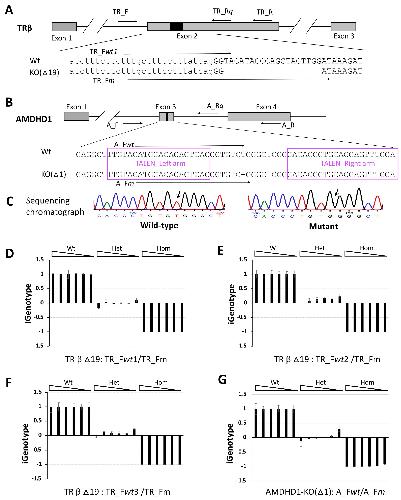

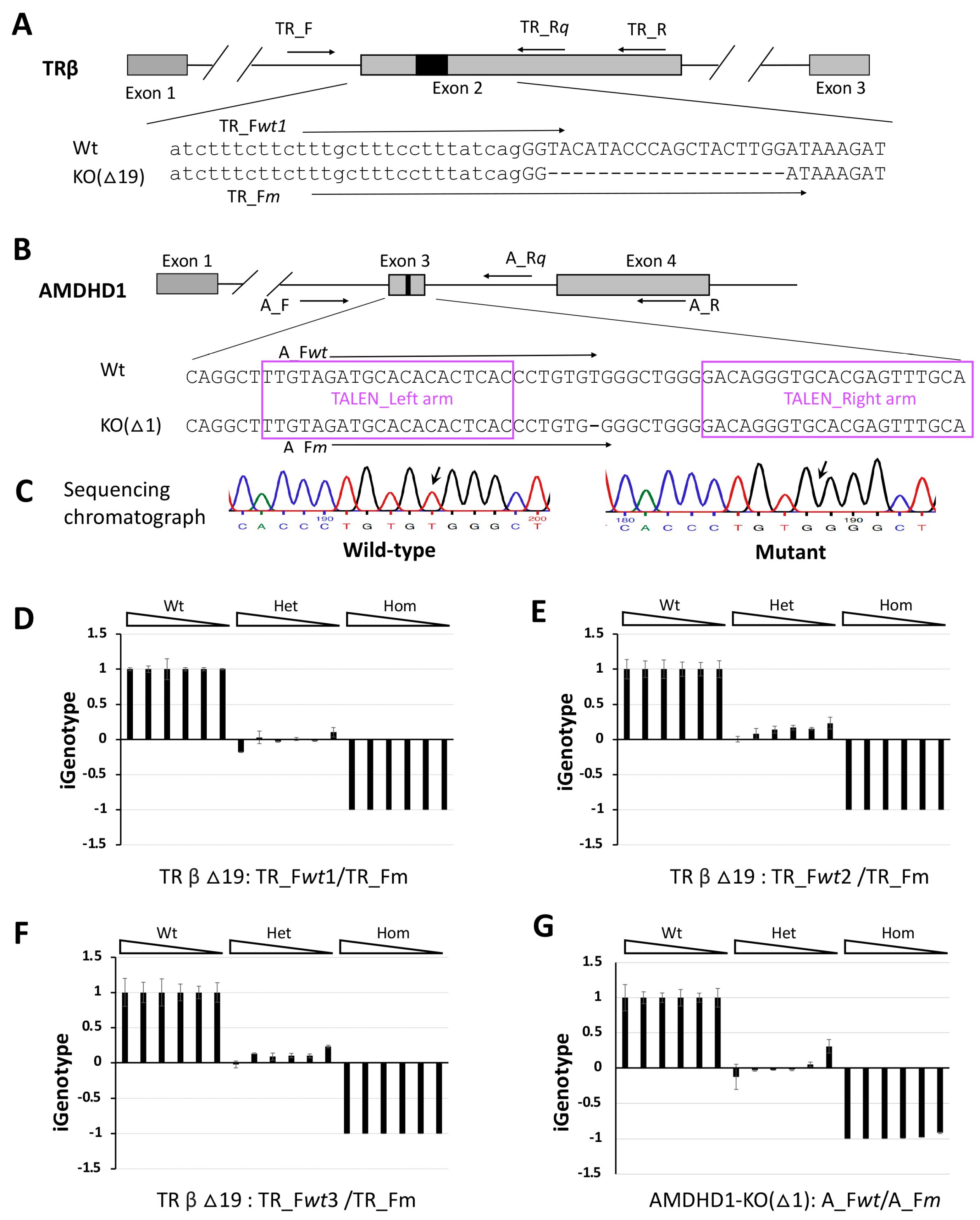

	Figure 3. iGenotype indexes are highly reproducible and reliable for genotyping with different mutation targets in a wide range of genomic DNA concentrations. (A): Schematic diagram showing wild-type (Wt) X. tropicalis TRβ or a mutant with a 19-nucleotide deletion (TRβ∆19) and primers (TR_F, TR_Rq, TR_R, TR_Fwt1, and TR_Fm) used in the parallel qPCR analysis to determine iGenotype indexes. (B): Schematic diagram showing wild-type (Wt) X. tropicalis AMDHD1 or a mutant with a single-nucleotide deletion (AMDHD1-KO(∆1)), which was generated through TALEN-mediated genome editing, and primers (A_F, A_Rq, A_R, A_Fwt, and A_Fm) used in the parallel qPCR analysis to determine iGenotype indexes. The TALEN-targeted regions were boxed and marked with TALEN_Left arm or TALEN_Right arm. (C): Sequencing chromatographs showing the wild-type (Wild-type) and AMDHD1-KO(∆1) mutant (Mutant) sequences around the single-nucleotide deletion (indicated by arrows). (D–F): The target regions of TRβ∆19 tadpoles were amplified by PCR with primers TR_F and TR_R, purified and serially diluted at 1:5 to serve as templates in the parallel qPCR analyses to determine the iGenotype indexes. The parallel qPCR reactions were performed in triplets with reverse primer TR_Rq paired with either TRβ∆19-specific primer TR_Fm for the mutant allele or in parallel with different wild-type-specific primer TR_Fwt1 (D), TR_Fwt2 (E), and TR_Fwt3 (F) for the wild-type allele, respectively. (G) The target regions of AMDHD1 targets were amplified by PCR with primers A_F and A_R, purified and serially diluted at 1:5 to serve as templates in the parallel qPCR analyses, which were performed in triplets with reverse primer A_Rq paired with either AMDHD1-KO(∆1)-specific primer A_Fm for the mutant allele or in parallel with the wild-type-specific primer A_Fwt, to determine the iGenotype indexes. The iGenotype indexes were plotted as mean ± standard deviation. E: exon; -: deletion; Wt: wild type; Het: heterozygous mutant; Hom: homozygous mutant; Cells 13 00247 i001: DNA concentration gradient.

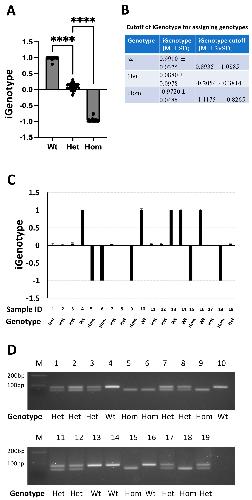

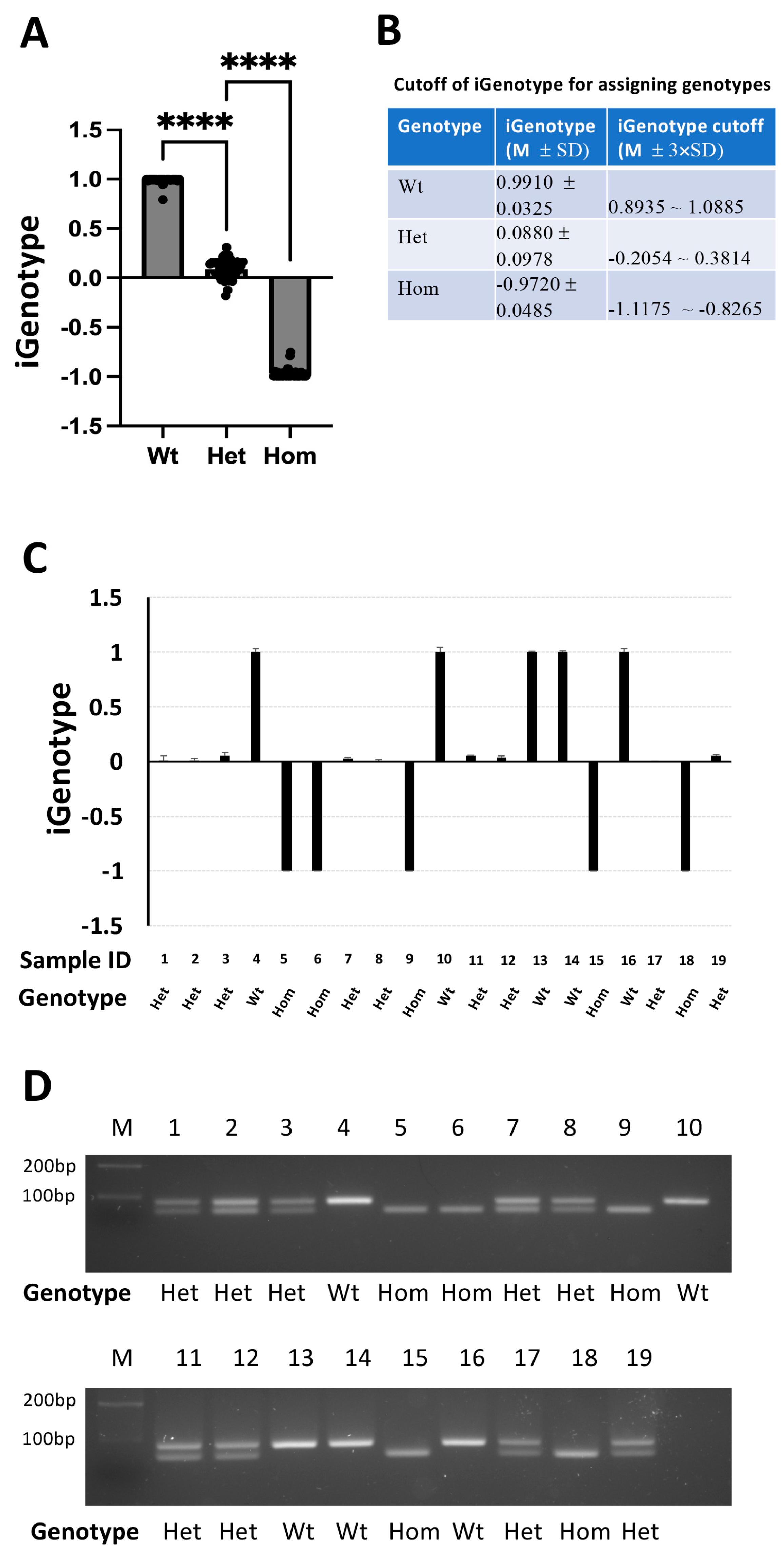

	Figure 4. Genotyping animals with iGenotype indexes. The genotype-associated iGenotype indexes obtained from different combinations of primer sets in parallel qPCR reactions on different concentrations of MBD3-KO(∆8), TRβ∆19, and AMDHD1-KO(∆1) targets (Supplemental Data S1), respectively, were pooled together for statistical analysis with one-way ANOVA analysis (A) and used to establish the iGenotype index cutoff ranges for determining genotypes of unknown animals (B). To test the utilization of iGenotype index cutoff ranges for genotyping unknown animals, we mated heterozygous animals carrying the TRβ∆19 mutation. Genomic DNA was isolated from individual tadpoles for parallel qPCR reactions with TR-Rq paired with TRβ∆19-specific primer TR_Fm for the mutant allele and wild-type-specific TR_Fwt1, respectively, on 19 individual samples (C). The DNA was also used for genotyping with regular PCR with TR_Fa and TR_Ra (Table 1) for comparison (D), where the PCR products were resolved on a 3.5% agarose gel and photographed. The wild-type and mutant alleles had different sizes of PCR products and thus can be easily identified on the gene. Note that the genotypes identified based on iGenotype index cutoffs were all consistent with that from regular PCR genotyping. Wt: wild type; Het: heterozygous mutant; Hom: homozygous mutant; M: DNA marker. **** p < 0.001.
