Int J Mol Sci
2024 Feb 19;254:. doi: 10.3390/ijms25042412.
Show Gene links
Show Anatomy links
The Molecular Mechanism of Body Axis Induction in Lampreys May Differ from That in Amphibians.
Ermakova GV
,
Kucheryavyy AV
,
Zaraisky AG
,
Bayramov AV
.
???displayArticle.abstract???
Lamprey homologues of the classic embryonic inducer Noggin are similar in expression pattern and functional properties to Noggin homologues of jawed vertebrates. All noggin genes of vertebrates apparently originated from a single ancestral gene as a result of genome duplications. nogginA, nogginB and nogginC of lampreys, like noggin1 and noggin2 of gnathostomes, demonstrate the ability to induce complete secondary axes with forebrain and eye structures when overexpressed in Xenopus laevis embryos. According to current views, this finding indicates the ability of lamprey Noggin proteins to suppress the activity of the BMP, Nodal/Activin and Wnt/beta-catenin signaling pathways, as shown for Noggin proteins of gnathostomes. In this work, by analogy with experiments in Xenopus embryos, we attempted to induce secondary axes in the European river lamprey Lampetra fluviatilis by injecting noggin mRNAs into lamprey eggs in vivo. Surprisingly, unlike what occurs in amphibians, secondary axis induction in the lampreys either by noggin mRNAs or by chordin and cerberus mRNAs, the inductive properties of which have been described, was not observed. Only wnt8a mRNA demonstrated the ability to induce secondary axes in the lampreys. Such results may indicate that the mechanism of axial specification in lampreys, which represent jawless vertebrates, may differ in detail from that in the jawed clade.
Figure 1. Induction of secondary body axes upon injection of nogginA, nogginB, nogginC and wnt8a mRNAs in X. laevis and L. fluviatilis embryos. (A–F) Injections of lamprey nogginA, nogginB and nogginC mRNAs induce secondary axes in X. laevis. (G,H) Injections of lamprey nogginB mRNA do not induce secondary axes in L. fluviatilis embryos. (I,J) Injections of amphibian wnt8a mRNA induce secondary axes in L. fluviatilis embryos. (K) sonic hedgehog (shh) expression in L. fluviatilis embryos detected by ISH in an uninjected control embryo. (L,M) Detection of secondary axes in L. fluviatilis embryos by sonic hedgehog (shh) ISH. (N) Proteins, translated from injected Xl_noggin1-Myc and Lf_BMPa-Flag mRNAs, are detected in lamprey embryos at stages 17 and 21.

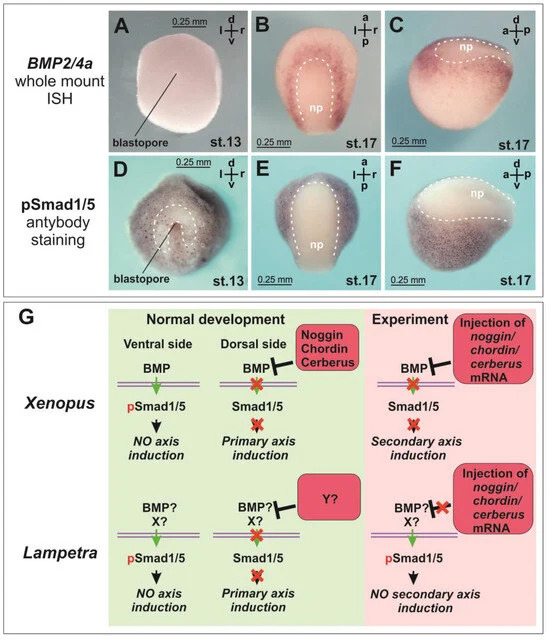

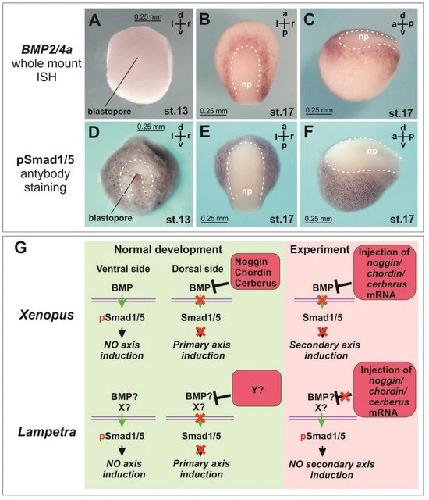

Figure 2. Hypothetical difference in the mechanism of BMP signaling between lamprey and amphibians. BMP2/4a expression by ISH (A–C) and antibody staining of Smad1/5 phosphorylation (D–F) in L. fluviatilis embryos. np—neural plate. (G) Smad1/5 phosphorylation might be modulated by factor(s) other than BMP, as injections of BMP inhibitors do not induce secondary axes in lamprey.
Supplementary Figure S1.
A - B – L. fluviatilis secondary axes diversity after injection of Xenopus wnt8a mRNA.
C - H – L. fluviatilis embryos injected with the indicated synthetic mRNAs showing no secondary axes.
Supplementary Figure S2.

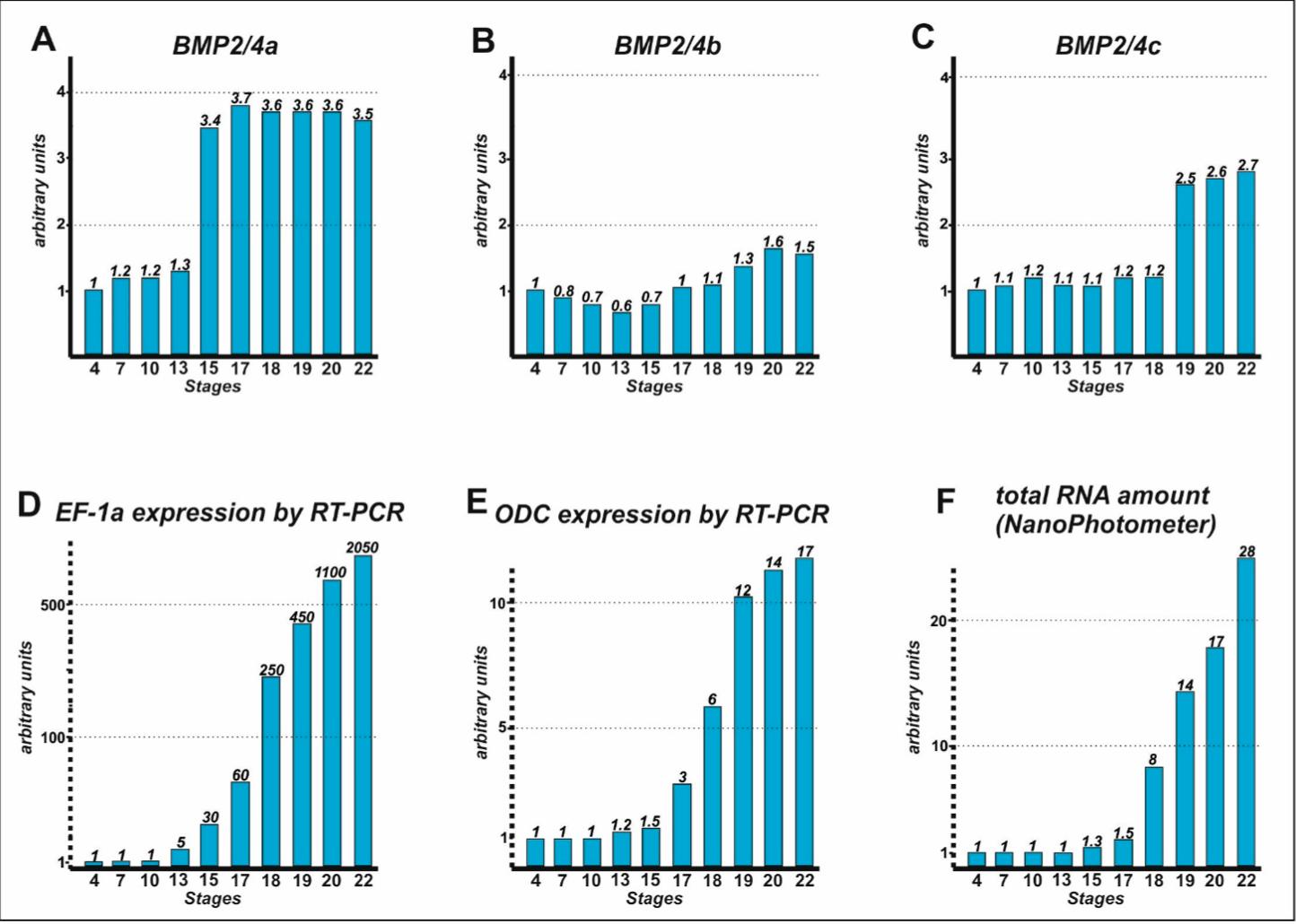

A - C - qRT-PCR analysis of BMP2/4a, BMP2/4b and BMP2/4c expression at early embryonic stages of L. fluviatilis normalized by expression of housekeeping genes EF-1a and ODC.
D - F – approximate estimate of the total amount of RNA in embryos at early embryonic stages made by qRT-PCR of housekeeping genes ef-1a and odc at a series of stages (D, E) and by measuring of the amount of total mRNA isolated from 30 embryos at each stage using Implen NanoPhotometer (F).
Angerer,
The evolution of nervous system patterning: insights from sea urchin development.
2011, Pubmed
Angerer,
The evolution of nervous system patterning: insights from sea urchin development.
2011,
Pubmed
Bayramov,
Novel functions of Noggin proteins: inhibition of Activin/Nodal and Wnt signaling.
2011,
Pubmed
,
Xenbase
Bjornson,
Eomesodermin is a localized maternal determinant required for endoderm induction in zebrafish.
2005,
Pubmed
Bouwmeester,
Cerberus is a head-inducing secreted factor expressed in the anterior endoderm of Spemann's organizer.
1996,
Pubmed
,
Xenbase
Cattell,
A maternally established SoxB1/SoxF axis is a conserved feature of chordate germ layer patterning.
2012,
Pubmed
,
Xenbase
Chandramore,
Cloning of noggin gene from hydra and analysis of its functional conservation using Xenopus laevis embryos.
2010,
Pubmed
,
Xenbase
Correns,
BMP antagonists in tissue development and disease.
2021,
Pubmed
Darken,
Axis induction by wnt signaling: Target promoter responsiveness regulates competence.
2001,
Pubmed
,
Xenbase
Elinson,
Nutritional endoderm: a way to breach the holoblastic-meroblastic barrier in tetrapods.
2009,
Pubmed
Ermakova,
The expression of FoxG1 in the early development of the European river lamprey Lampetra fluviatilis demonstrates significant heterochrony with that in other vertebrates.
2019,
Pubmed
Ermakova,
Discovery of four Noggin genes in lampreys suggests two rounds of ancient genome duplication.
2020,
Pubmed
Eroshkin,
Noggin4 is a long-range inhibitor of Wnt8 signalling that regulates head development in Xenopus laevis.
2016,
Pubmed
,
Xenbase
Fang,
Ectopic expression of Xenopus noggin RNA induces complete secondary body axes in embryos of the direct developing frog Eleutherodactylus coqui.
2000,
Pubmed
,
Xenbase
Glinka,
Head induction by simultaneous repression of Bmp and Wnt signalling in Xenopus.
1997,
Pubmed
,
Xenbase
Glinka,
Dickkopf-1 is a member of a new family of secreted proteins and functions in head induction.
1998,
Pubmed
,
Xenbase
Hemmati-Brivanlou,
Follistatin, an antagonist of activin, is expressed in the Spemann organizer and displays direct neuralizing activity.
1994,
Pubmed
,
Xenbase
Iemura,
Direct binding of follistatin to a complex of bone-morphogenetic protein and its receptor inhibits ventral and epidermal cell fates in early Xenopus embryo.
1998,
Pubmed
,
Xenbase
Itasaki,
Crosstalk between Wnt and bone morphogenic protein signaling: a turbulent relationship.
2010,
Pubmed
Knöchel,
Structure and expression of Xenopus tropicalis BMP-2 and BMP-4 genes.
2001,
Pubmed
,
Xenbase
Kozmikova,
Wnt/β-catenin signaling is an evolutionarily conserved determinant of chordate dorsal organizer.
2020,
Pubmed
Krause,
Noggin.
2011,
Pubmed
Lowe,
Dorsoventral patterning in hemichordates: insights into early chordate evolution.
2006,
Pubmed
Martinez Arias,
On the nature and function of organizers.
2018,
Pubmed
McCauley,
Conservation and divergence of BMP2/4 genes in the lamprey: expression and phylogenetic analysis suggest a single ancestral vertebrate gene.
2004,
Pubmed
Orlov,
Targeted search for scaling genes reveals matrixmetalloproteinase 3 as a scaler of the dorsal-ventral pattern in Xenopus laevis embryos.
2022,
Pubmed
,
Xenbase
Osorio,
Organisation of the lamprey (Lampetra fluviatilis) embryonic brain: insights from LIM-homeodomain, Pax and hedgehog genes.
2005,
Pubmed
Piccolo,
Dorsoventral patterning in Xenopus: inhibition of ventral signals by direct binding of chordin to BMP-4.
1996,
Pubmed
,
Xenbase
Piccolo,
The head inducer Cerberus is a multifunctional antagonist of Nodal, BMP and Wnt signals.
1999,
Pubmed
,
Xenbase
Piccolo,
Cleavage of Chordin by Xolloid metalloprotease suggests a role for proteolytic processing in the regulation of Spemann organizer activity.
1997,
Pubmed
,
Xenbase
Sasai,
Xenopus chordin: a novel dorsalizing factor activated by organizer-specific homeobox genes.
1994,
Pubmed
,
Xenbase
Schmidt,
Drosophila short gastrulation induces an ectopic axis in Xenopus: evidence for conserved mechanisms of dorsal-ventral patterning.
1995,
Pubmed
,
Xenbase
Silva,
Endogenous Cerberus activity is required for anterior head specification in Xenopus.
2003,
Pubmed
,
Xenbase
Smith,
Expression cloning of noggin, a new dorsalizing factor localized to the Spemann organizer in Xenopus embryos.
1992,
Pubmed
,
Xenbase
Smith,
Injected Xwnt-8 RNA acts early in Xenopus embryos to promote formation of a vegetal dorsalizing center.
1991,
Pubmed
,
Xenbase
Sokol,
Injected Wnt RNA induces a complete body axis in Xenopus embryos.
1991,
Pubmed
,
Xenbase
Spemann,
Induction of embryonic primordia by implantation of organizers from a different species. 1923.
2001,
Pubmed
Starck,
Phylogeny and evolutionary history of the amniote egg.
2021,
Pubmed
Stennard,
Differential expression of VegT and Antipodean protein isoforms in Xenopus.
1999,
Pubmed
,
Xenbase
Stern,
Neural induction: old problem, new findings, yet more questions.
2005,
Pubmed
,
Xenbase
Sugahara,
Involvement of Hedgehog and FGF signalling in the lamprey telencephalon: evolution of regionalization and dorsoventral patterning of the vertebrate forebrain.
2011,
Pubmed
Suzuki,
Two-headed mutants of the lamprey, a basal vertebrate.
2016,
Pubmed
Takeuchi,
Germ layer patterning in bichir and lamprey; an insight into its evolution in vertebrates.
2009,
Pubmed
Zimmerman,
The Spemann organizer signal noggin binds and inactivates bone morphogenetic protein 4.
1996,
Pubmed
,
Xenbase
