Wakeling E , McEntagart M , Bruccoleri M , Shaw-Smith C , Stals KL , Wakeling M , Barnicoat A , Beesley C , DDD Study , Hanson-Kahn AK , Kukolich M , Stevenson DA , Campeau PM , Ellard S , Elsea SH , Yang XJ , Caswell RC .

Wellcome Trust

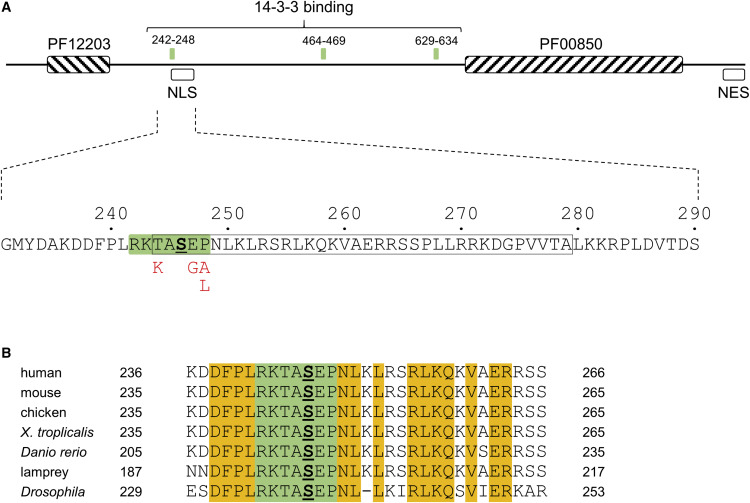

	Figure 1. Schematic organization of HDAC4 and location of variants (A) The upper figure shows the organization of the 1,084-residue HDAC4 protein; hatched boxes show Pfam domains PF12203 (glutamine-rich N-terminal domain of HDAC4; residues 62–152) and PF00850 (histone deacetylase domain; residues 675–992) as indicated; green boxes indicate known sites of 14-3-3 binding; open boxes show positions of the nuclear localization signal (NLS) and nuclear export signal (NES). The region around the first 14-3-3 site is shown expanded in the lower figure; the 14-3-3 site spanning residues 242–248 is shaded green, with the phosphorylated serine, Ser246, underlined in bold font; the NLS (244–279) is boxed; missense variants described in this report (p.Thr244Lys, p.Glu247Gly, p.Pro248Ala, and p.Pro248Leu) are shown below the HDAC4 sequence in red font. (B) Residues 236–266 of HDAC4 are shown aligned to orthologs; the core 14-3-3 site, RKTASEP, is shaded green and is invariant in all sequences; other invariant residues are shaded orange. UniProtKB accession codes for HDAC4 orthologs are as follows: human, UniProtKB: P56524; mouse, UniProtKB: Q6NZM9; chicken, UniProtKB: P83038; Xenopus tropicalis, UniProtKB: F7CSW6; Danio rerio, UniProtKB: Q08BS8; lamprey, UniProtKB: S4RJL9; Drosophila melanogaster, UniProtKB: Q9VYF3.
	Figure 2. Individuals with HDAC4 missense variants (A) Individual 2 at ages 2 (left) and 5 years (right). (B) Individual 4 at ages 4 (left) and 14 years (right). He has distinctive facial features with a full lower lip, widely spaced teeth, large ears, straight eyebrows, a frontal upsweep of hair, and relatively long palpebral fissures. (C) Individual 7 at ages 3 (left) and 10 years (right).

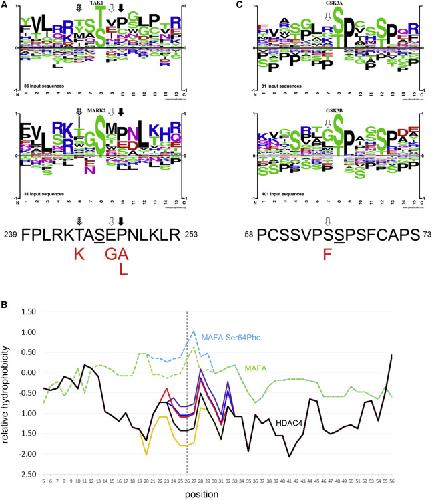

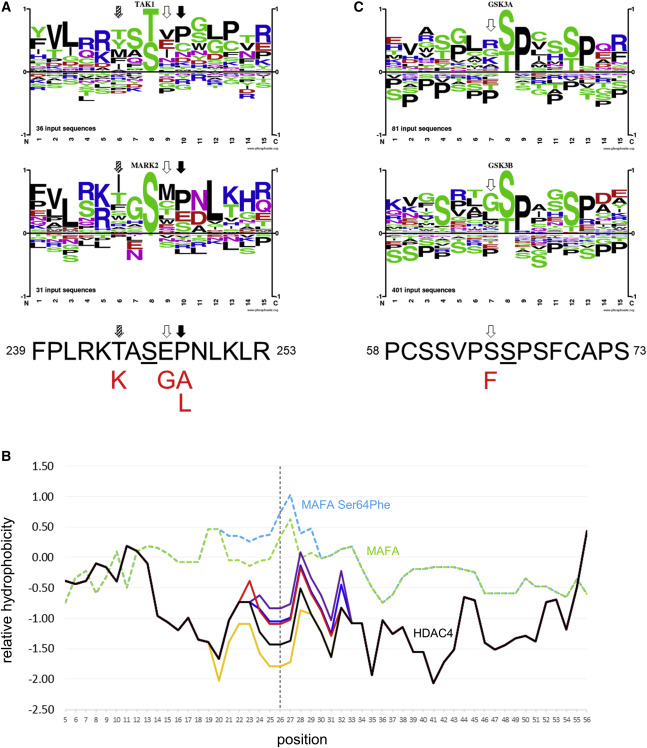

	Figure 3. In silico analysis of HDAC4 variants (A) Upper panels show sequence logos indicating substrate specificity of TAK1 and MARK2 as indicated; color indicates sidechain properties (blue, positive; red, negative; magenta, neutral; green, polar; black, hydrophobic), and all sequences are centered on the phosphorylated serine or threonine residue at position 8 of the logo. Below these is shown the sequence of HDAC4 residues 239–253 (black font; the phosphorylated serine, Ser246, is underlined); residues Glu247 and Pro248 are indicated by open and filled arrows, respectively, and these align to positions 9 and 10 of substrate logos (or +1 and +2 relative to the phosphorylated serine) as marked; residue Thr244 is marked by a hatched arrow and lies at position 6 of the logo (−2 relative to Ser246); variants observed at these positions are shown in red font below the sequence. (B) Relative hydrophobicity is shown for residues 221–280 of HDAC4 (solid black line) and for variants p.Glu247Gly, p.Pro248Ala, p.Pro248Leu, and p.Thr244Lys (solid red, blue, purple, and gold lines, respectively); broken lines show hydrophobicity of residues 20–79 of MAFA (green) and MAFA variant Ser64Phe (light blue); in all cases, traces are aligned to show the phosphorylated residue (HDAC4 Ser246; MAFA Ser65) at position 26 of the analysis, as indicated by the vertical broken line. (C) Similar to (A), showing substrate specificity logos for GSK3A (top) and GSK3B (center); the sequence below shows residues 58–73 of MAFA, with the phosphorylated serine (Ser65) underlined; the position of the p.Ser64Phe variant is shown by an open arrow in all parts.

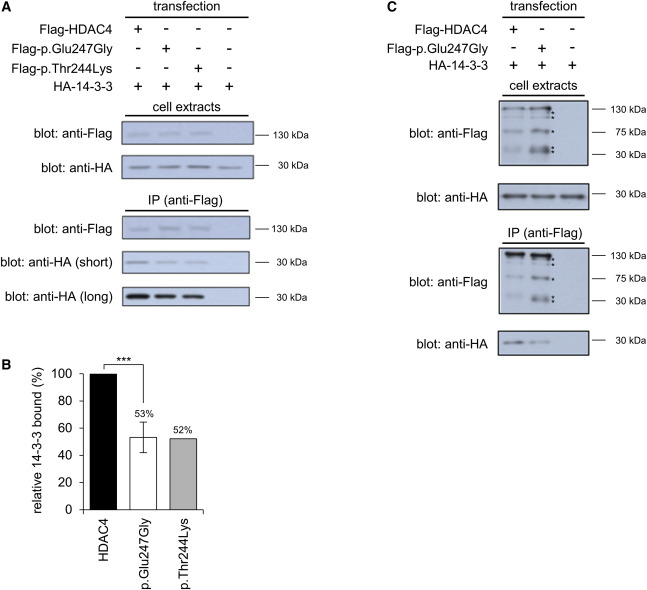

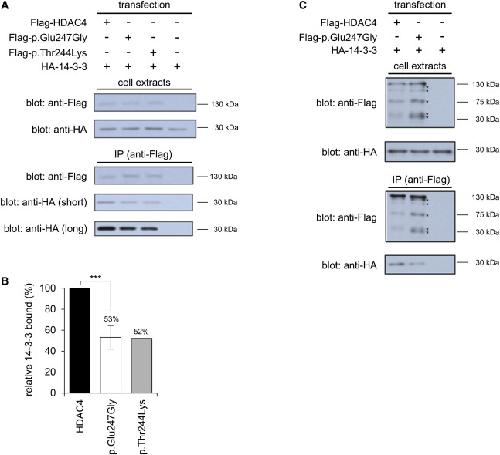

	Figure 4. Variants p.Glu247Gly and p.Thr244Lys have reduced affinity for 14-3-3β (A) HEK293 cells were transfected with expression plasmids for wild-type HDAC4, or the p.Thr244Lys or p.Glu247Gly variants as shown, then extracts subjected to immunoprecipitation (IP) with anti-FLAG antibody. Upper panels show western blots of cell extracts using either anti-FLAG (to detect HDAC4) or anti-HA (to detect 14-3-3β); lower panels show western blots of IP samples using the same antibodies, showing both short and long exposures of the anti-HA blot. Data shown for variant p.Glu247Gly are representative of five independent experiments; the p.Thr244Lys variant was tested in a single experiment, as shown here. (B) Relative binding of 14-3-3β by the p.Glu247Gly variant was quantified from five independent experiments; error bars show standard deviation from the mean value; statistical significance was calculated using Student’s t test, ***p < 0.001; data for p.Thr244Lys were derived from the single experiment shown in (A). (C) As in (A), showing data from an independent experiment after transfection of expression plasmids for wild-type HDAC4 or the p.Glu247Gly variant only; extended regions of the anti-HA blots are shown to demonstrate C-terminal-truncated products of HDAC4 fragmentation, indicated by asterisks (*).
