Joukov V, Chen J, Fox EA, Green JB, Livingston DM.

           BREAST-OVARIAN CANCER, FAMILIAL, SUSCEPTIBILITY TO, 1; BROVCA1
           PANCREATIC CANCER, SUSCEPTIBILITY TO, 4; PNCA4

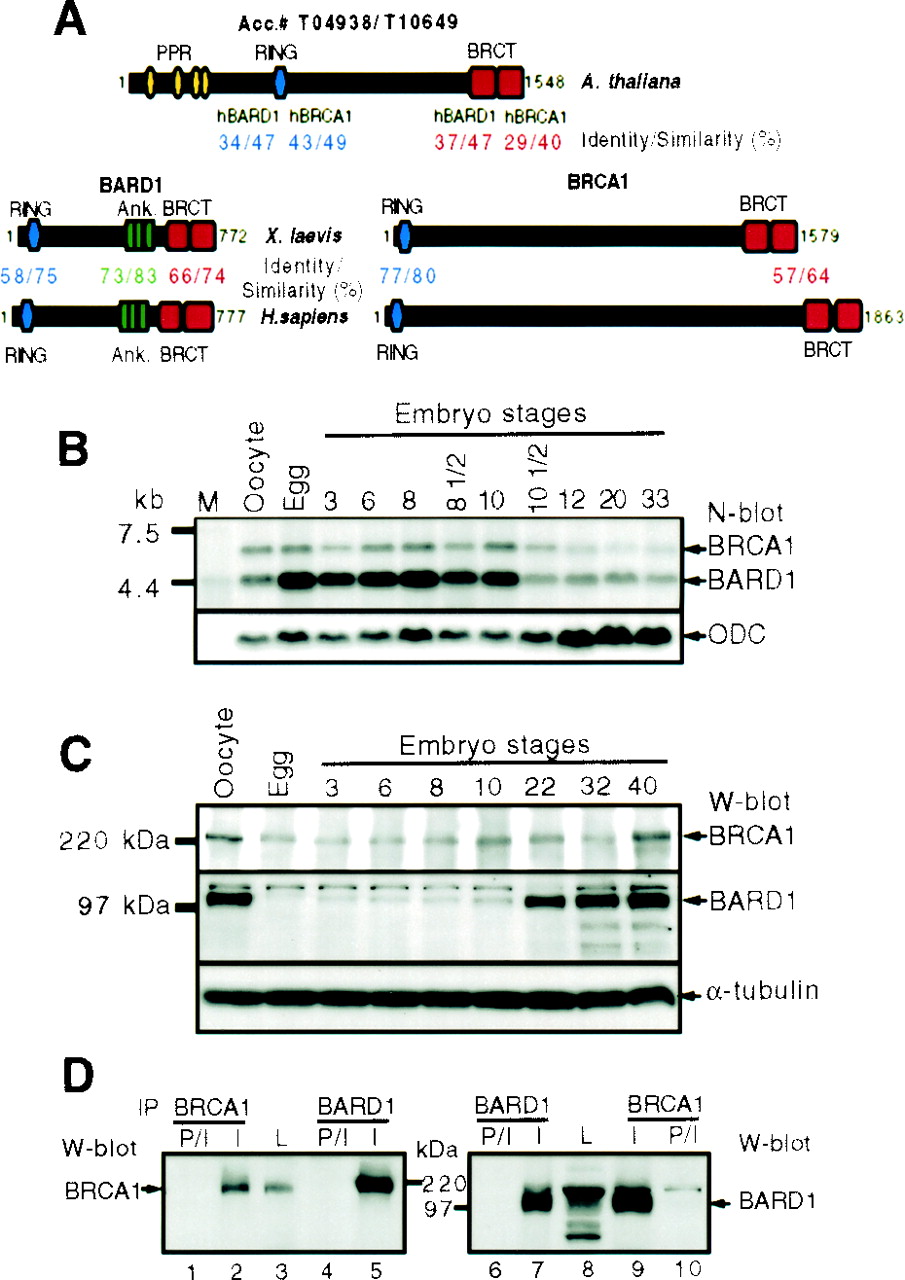

	Figure 1 BRCA1 and BARD1 Orthologs of A. thaliana and X. laevis. (A) Domain structure of frog and human BRCA1 and BARD1, and the putative Arabidopsis BRCA1/BARD1 ortholog. PPR, Pentatrico Peptide Repeat; RING, RING finger domain; Ank, Ankyrin repeat; BRCT, BRCA1 C- terminal motif. The first and the last residues of each protein are noted. The sequence identity/similarity between certain segments of human BRCA1 and BARD1 (the RING, ankyrin repeats, and 2xBRCT motifs) and their frog and Arabidopsis orthologs are indicated. (B) Electophoretically fractionated total RNA from embryos at the indicated stages was hybridized to specific, radioactively labeled xBRCA1-, xBARD1-, and Xenopus ornithine decarboxylase (ODC) probes. Bands were detected by autoradiography. mRNA transcripts and positions of RNA markers [the Radiolabeled RNA Ladder System (GIBCO), lane M] are indicated. (C) Total cell extracts of ten oocytes/eggs/embryos per sample were subjected to IP with xBRCA1- and the xBARD1-specific Abs. Immunoprecipitates were fractionated by SDS/PAGE and gels immunoblotted with xBRCA1- and xBARD1-specific Abs. Lysate from ½ of an embryo was immunoblotted with the α-tubulin Ab as a loading control. (D) BRCA1 and BARD1 complex formation in Xenopus embryos. Lysates of stage-12 embryos were IPd with xBRCA1- or xBARD1-specific immune (I) Ig, or preimmune (P/I) Ig. Lysates (L) and immunoprecipitates were analyzed by Western blotting using xBRCA1 (Left) or xBARD1 (Right) Ab. Combined lysates from two embryos were loaded in lanes 3 and 8. Precipitates from combined lysates of five embryos were loaded in lanes 1, 2, 6, and 7; precipitates from combined lysates of 20 embryos were loaded in lanes 4, 5, 9, and 10, respectively.

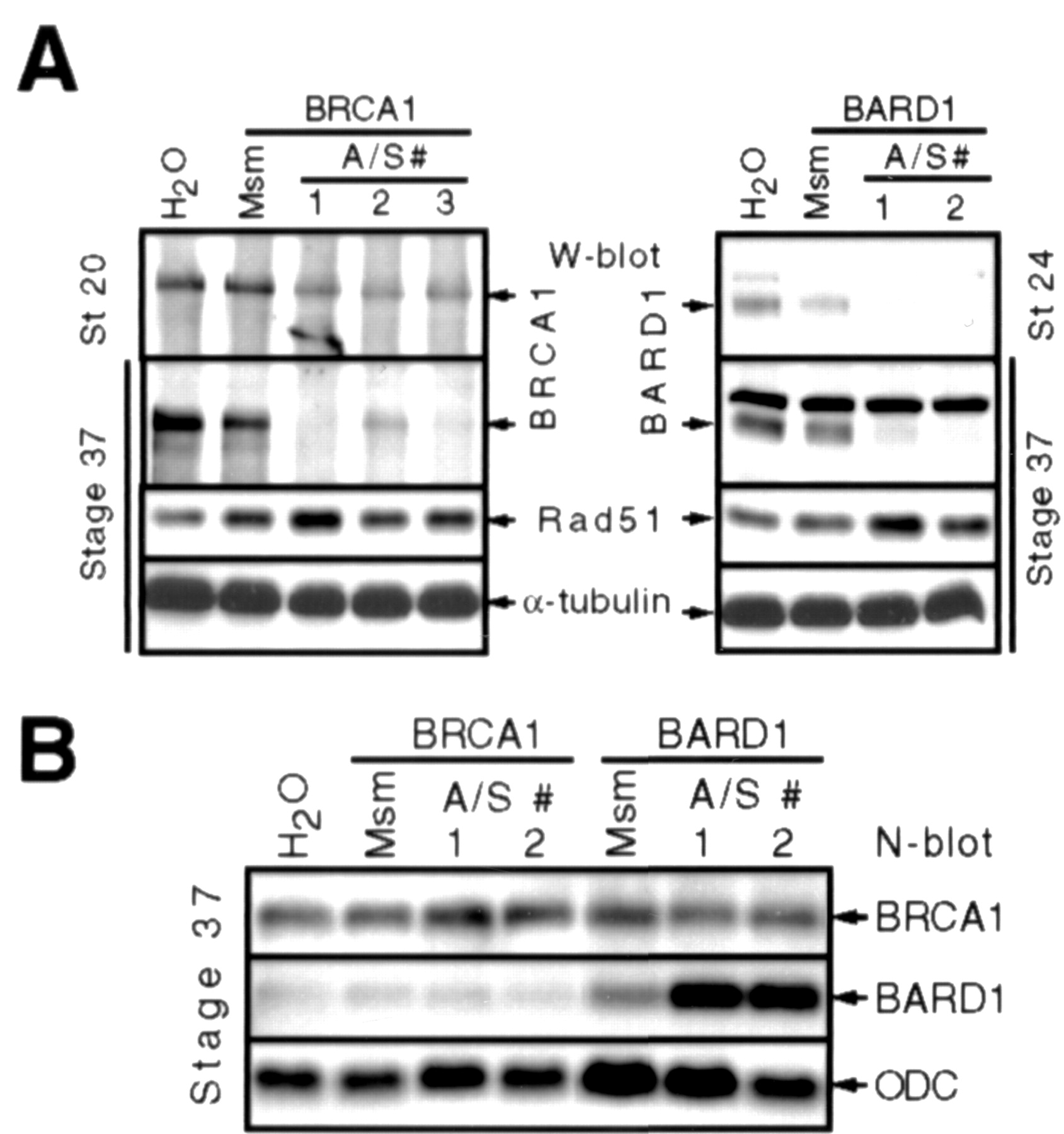

	Figure 2 Depletion of BRCA1 and BARD1 with specific antisense MOs. (A) Embryos were injected with 40 ng of alternative BRCA1-specific (BRCA1A/S #1, #2, and #3) or BARD1- specific (BARD1 A/S #1 and #2) antisense MOs. The control embryos were injected with water (H2O) or with 40 ng of MOs that were each identical to the BRCA1- or BARD1-specific antisense MOs #1 but contained four dispersed nucleotide Msm. Lysates of the indicated embryos were analyzed by Western blotting with Rad51- and α-tubulin-specific Ab or by IP and Western blotting with xBRCA1- and xBARD1-specific Abs. (B) Total RNA from stage-37 embryos, which were treated as in A, was analyzed by Northern blot hybridization, as described for Fig. 1B.
	Figure 3 BRCA1- and BARD1-depleted Xenopus embryos. (A and B) Embryos were either left uninjected (N/I) or injected with MOs: xBRCA1 Msm (30 ng), xBRCA1 AS#1 (30 ng), and xBRCA1 AS#3 (60 ng); (C and D) xBARD1 Msm (30 ng), xBARD1 AS#1 (30 ng), and xBARD1 AS#2 (70 ng) or with the control MO (Contr., 70 ng). Representative embryos at stages 25/26 (Left) and 42/43 (Right) are shown. Note the progressive phenotypic changes in the antisense-treated embryos. (E and F) The ventral view of representative stage-45 embryos, injected with 20 ng of the xBRCA1 Msm (E) or xBRCA1 AS#1 (F). Note the poor segregation of the alimentary canal and impaired coiling of the intestinal tube in the embryo even at this relatively low dose of antisense MO (F). Similar defects were observed in the BARD1-depleted embryos (data not shown). (G–I) The eye of a stage-42 embryo, injected with 25 ng of the BRCA1 Msm (G), xBRCA1 AS#1 (H), or xBARD1 AS#1 (I). Note the lack of retinal layers and the absence of degeneration of nuclei in the central lens fibers in the antisense MO-treated embryos (H and I). Similar defects were observed in embryos injected with xBRCA1 AS#3 and xBARD1 AS#2. The eye structures of the noninjected and the mismatch MO-injected embryos were histologically indistinguishable from one another (data not shown).

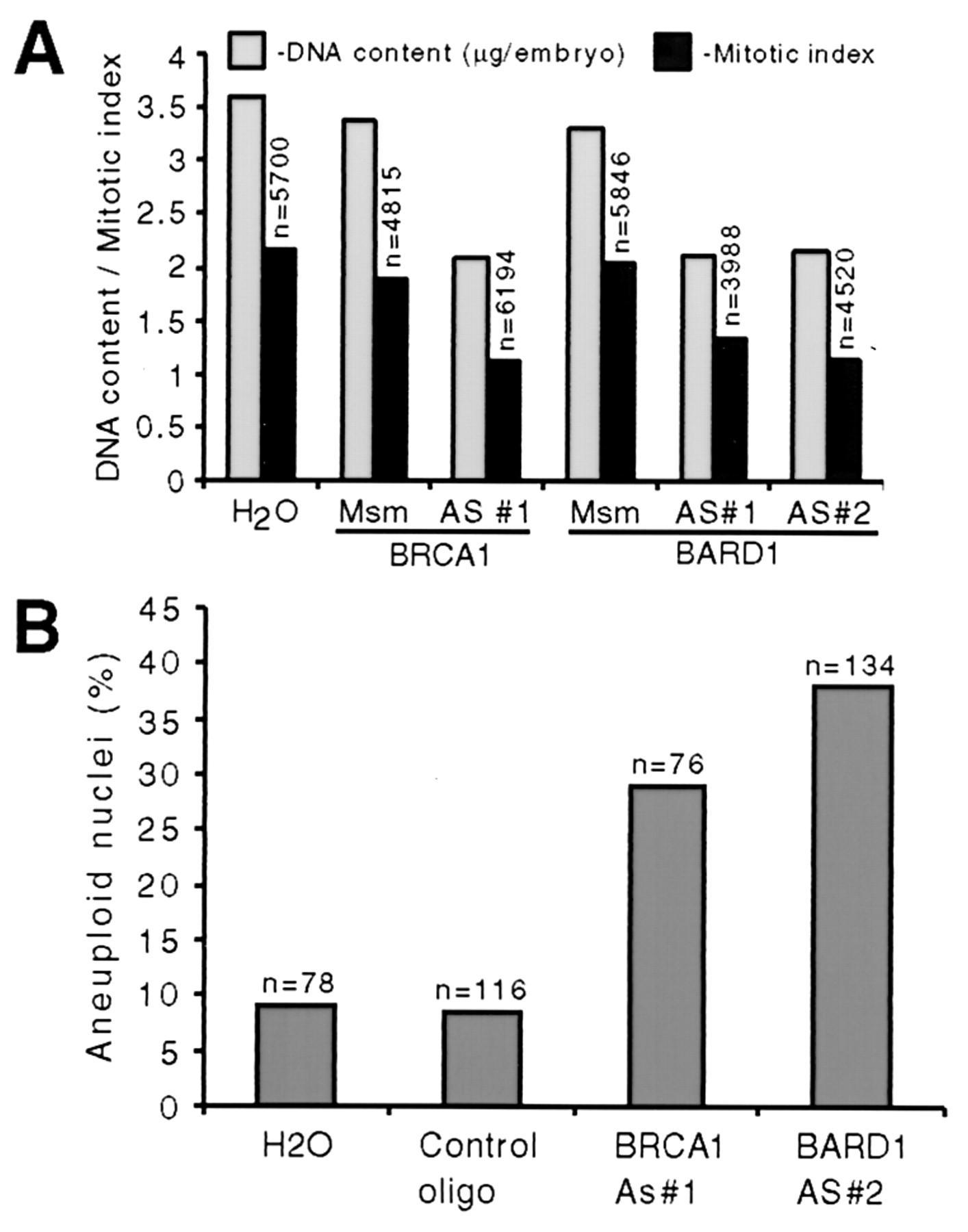

	Figure 4 Deficient proliferation and chromosomal instability in BRCA1- and BARD1-deficient embryos. (A) Embryos were injected with water or with 30 ng each of the MOs: xBRCA1 Msm, xBRCA1 AS#1, xBARD1 Msm, and xBARD1 AS#1, or with 60 ng of xBARD1 AS#2. The DNA content and the mitotic index were analyzed at stage 37. (B) Embryos were injected with xBRCA1 AS#1 (25 ng), xBARD1 AS#2 (60 ng), or a control oligonucleotide (60 ng). The chromosome number was analyzed in the stage-37–40 embryos. Aneuploid chromosome numbers ranged from 32 to 104 per cell in the antisense-treated embryos. A euploid, somatic X. laevis cell contains 36 chromosomes (38).

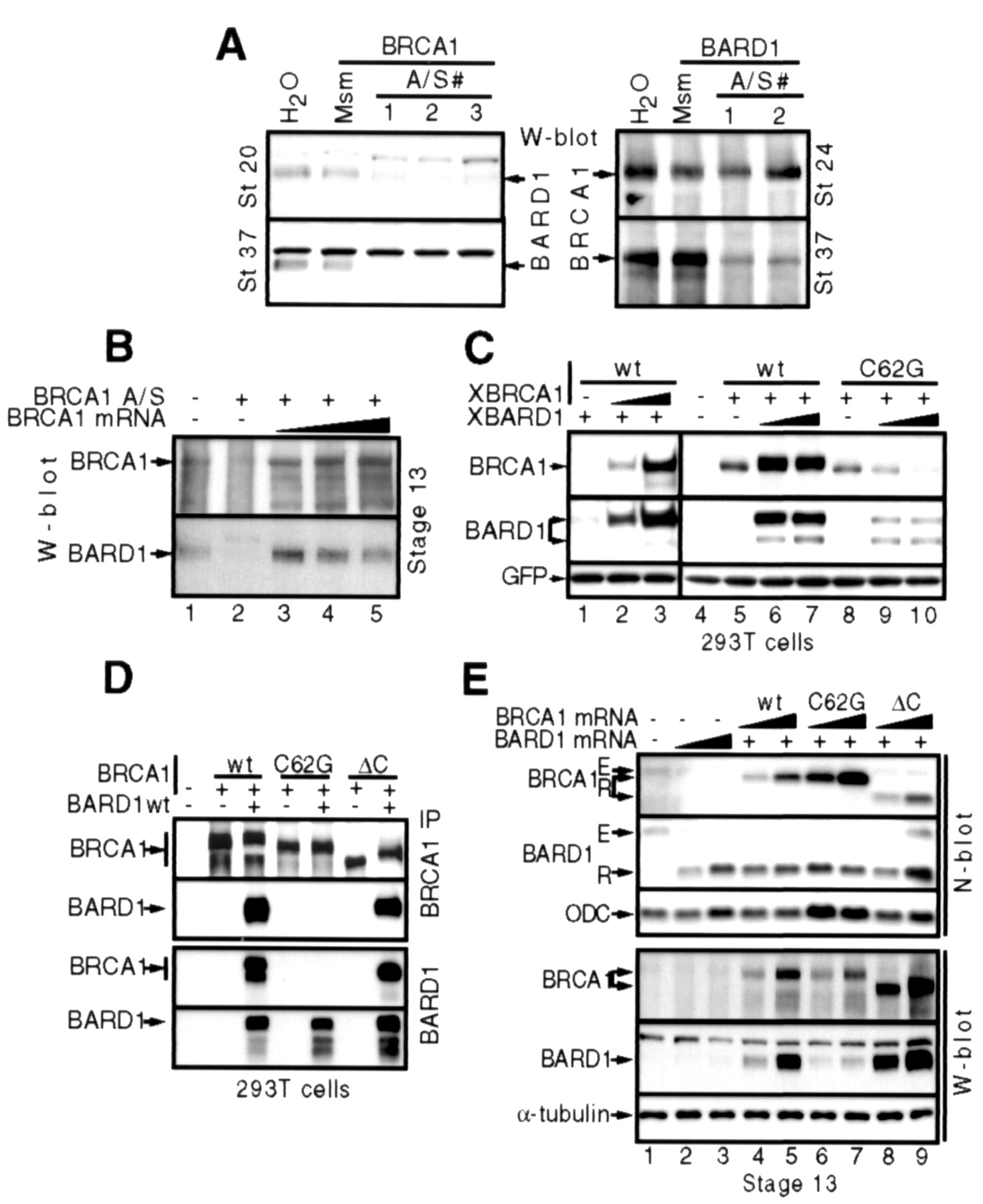

	Figure 5 Reciprocal control of BRCA1 and BARD1 abundance. (A) Cell lysates from the MO-treated embryos were analyzed by standardized Western blotting for BARD1 and BRCA1 abundance, respectively, at the indicated stages. Identical samples of embryo cell lysates were analyzed in this experiment and in the experiment described in Fig. 2A. (B) BRCA1 and BARD1 protein in stage 13 embryos that had been injected with 40 ng of xBRCA1 AS#1 alone (lane 2) or coinjected with this reagent and with 200, 400, or 600 pg of xBRCA1 mRNA (lanes 3, 4, and 5, respectively). (C) 293 T cells were transfected with 3 μg of xBARD1 wt cDNA expression vector, alone (lane 1) or together with 3 μg or 9 μg of xBRCA1 wt cDNA expression vector (lanes 2 and 3, respectively), or with 3 μg of xBRCA1 wt cDNA (lane 5) or xBRCA1 C62G cDNA expression vector (lane 8), alone or together with 3 μg (lanes 6 and 9) or 9 μg (lanes 7 and 10) of xBARD1wt cDNA expression vector. The transfection mixtures each contained 5% of green fluorescent protein (GFP) cDNA, cloned in an expression vector. Each lane was analyzed by Western blotting with the indicated Ab. Anti-GFP Ab was used to detect GFP abundance in each lane. (D) 293 T cells were transfected with the indicated xBRCA1 cDNA expression vector, alone or together with the wt xBARD1 cDNA vector. The cell lysates were subjected to IP with the xBRCA1- or xBARD1-specific Ab (Upper and Lower, respectively), and each immunoprecipitate was immunoblotted with both of these Ab. (E) Xenopus embryos were injected with 300 and 600 pg of xBARD1 mRNA (lanes 2 and 3, respectively) or were coinjected with 300 pg of xBARD1 mRNA and 300 pg (lanes 4, 6, and 8) or 600 pg (lanes 5, 7, and 9) of the indicated xBRCA1 mRNA. At embryo-stage 13, total RNA was isolated from half of each injected embryo set and analyzed by Northern blot hybridization as described for Fig. 1B (Upper). The endogenous (E) and the recombinant (R) forms of the xBRCA1 and xBARD1 mRNAs are indicated by arrows. In extracts of the other half of each experimental embryo set, the abundance of xBRCA1 and xBARD1 were analyzed by IP/Western blotting as in Fig. 2A (Lower). α-tubulin was detected by direct Western blotting.
	Fig. 6. Alignment of the N-terminal (A) and C-terminal (B) regions of the human (H), mouse (M), frog (F), and Arabidopsis (A) BRCA1 and BARD1 orthologs. The RING finger domain (A) and the two BRCT repeats (B) are underlined. The residues conserved between BRCA1 or BARD1 orthologs are shaded in light gray and dark gray tones, respectively. The residues conserved between both BRCA1 and BARD1 orthologs are in black. Certain conserved residues targeted by missense mutations in breast cancer patients are marked with red asterisks. Regions of homology that were used to design degenerate primers for PCR amplification of xBRCA1 and xBARD1 cDNAs are indicated by blue and green arrows, respectively.
	Fig. 7. Retarded development of and selected abnormalities in BRCA1- and BARD1-depleted embryos. Representative stage-43 embryos, which had been injected with 40 ng of xBARD1 Msm (A), 20 ng (B), or 40 ng (C) of xBRCA1 AS#1, or 20 ng (D) or 40 ng (E) of xBARD1 AS#1. Note the ventral edema, axial abnormalities, and eye and gut malformations in B and D, and the multiple dorsal epidermal blisters (cysts) in C. Embryos in C and E appear significantly retarded relative to control embryos.

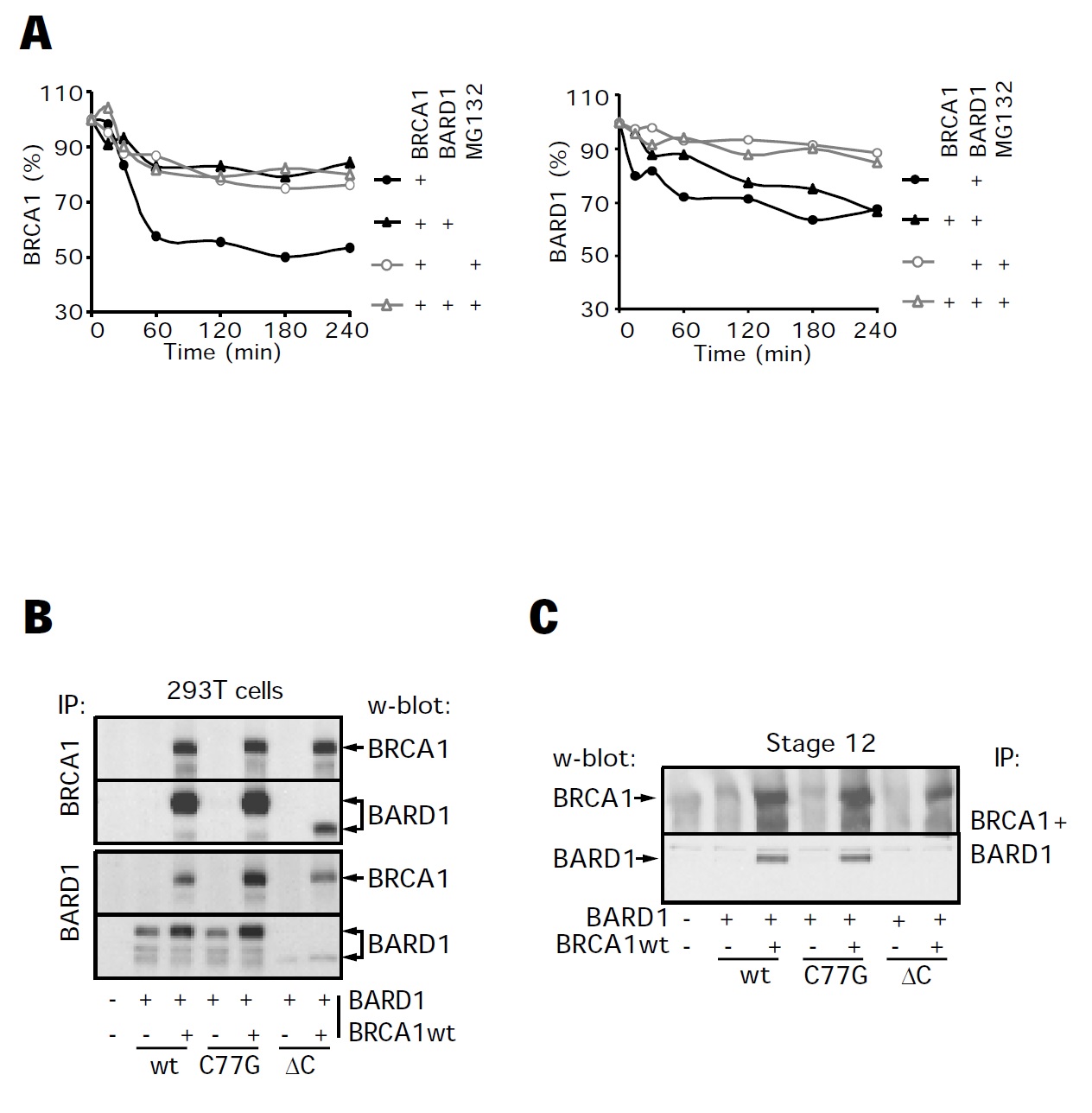

	Fig. 8. (A) BARD1 stabilizes BRCA1 by preventing its proteasome-dependent degradation. 293 T cells were transfected with the indicated combinations of cDNA containing expression plasmids encoding human HA-tagged BRCA1 and Myc- tagged BARD1. 24 h after transfection, cells were treated for 2 h either with the proteasome inhibitor, MG132, or with vehicle (DMSO) alone, and chased for the indicated periods of time after addition of cycloheximide to the culture medium. Cell extracts were western blotted with HA- and the Myc-epitope tag-specific Abs. The relative protein abundances are shown at each time point. The degradation of BRCA1 protein was retarded equally by cotransfection of BARD1 as by addition of MG132. BRCA1 expression had a more limited effect on BARD1 turnover presumably because of the innately greater stability of BARD1 in 293 T cells. (B and C) The xBARD1 C77G RING finger mutant retains heterodimerization and xBRCA1 abundance control properties. (B) For coimmunoprecipitation assays, 293 T cells were transfected with 7.5 mg of the indicated xBARD1 cDNA plasmids, alone or together with 7.5 mg of the wild-type (wt) xBRCA1 cDNA. The relevant cell lysates were subjected to IP with the xBRCA1- or xBARD1-specific Ab (Upper and Lower, respectively), and each immunoprecipitate was immunoblotted with the indicated antibodies. (C) The abundance of both xBARD1 wt and xBARD1 C77G is regulated by BRCA1. Two cell-stage Xenopus embryos were injected with 300 pg of the indicated xBARD1 mRNA, alone or in combination with 300 pg of the xBRCA1 wt mRNA. At embryonic stage 12, the abundance of xBRCA1 and xBARD1 was analyzed by IP (with a mixture of Anti-xBRCA1+Anti-xBARD1) and Western blotting with the indicated Abs. xBARD1 DC is less well expressed and its abundance was regularly much lower than that of the wt protein in such experiments.

Cantor, BACH1, a novel helicase-like protein, interacts directly with BRCA1 and contributes to its DNA repair function. 2001, Pubmed

Cantor, BACH1, a novel helicase-like protein, interacts directly with BRCA1 and contributes to its DNA repair function. 2001, Pubmed
Chen, Stable interaction between the products of the BRCA1 and BRCA2 tumor suppressor genes in mitotic and meiotic cells. 1998, Pubmed
Cooke, Cell number in relation to primary pattern formation in the embryo of Xenopus laevis. I. The cell cycle during new pattern formation in response to implanted organizers. 1979, Pubmed , Xenbase
Evan, Isolation of monoclonal antibodies specific for human c-myc proto-oncogene product. 1985, Pubmed , Xenbase
Gowen, BRCA1 required for transcription-coupled repair of oxidative DNA damage. 1998, Pubmed
Gowen, Brca1 deficiency results in early embryonic lethality characterized by neuroepithelial abnormalities. 1996, Pubmed
Graf, Genetics of Xenopus laevis. 1991, Pubmed , Xenbase
Hakem, The tumor suppressor gene Brca1 is required for embryonic cellular proliferation in the mouse. 1996, Pubmed
Hashizume, The RING heterodimer BRCA1-BARD1 is a ubiquitin ligase inactivated by a breast cancer-derived mutation. 2001, Pubmed
Heasman, Beta-catenin signaling activity dissected in the early Xenopus embryo: a novel antisense approach. 2000, Pubmed , Xenbase
Irminger-Finger, In vitro repression of Brca1-associated RING domain gene, Bard1, induces phenotypic changes in mammary epithelial cells. 1998, Pubmed
Isaacs, Expression of a novel FGF in the Xenopus embryo. A new candidate inducing factor for mesoderm formation and anteroposterior specification. 1992, Pubmed , Xenbase
Kleiman, The BARD1-CstF-50 interaction links mRNA 3' end formation to DNA damage and tumor suppression. 2001, Pubmed
Kleiman, Functional interaction of BRCA1-associated BARD1 with polyadenylation factor CstF-50. 1999, Pubmed
Liu, Inactivation of the mouse Brca1 gene leads to failure in the morphogenesis of the egg cylinder in early postimplantation development. 1996, Pubmed
Lorick, RING fingers mediate ubiquitin-conjugating enzyme (E2)-dependent ubiquitination. 1999, Pubmed
Ludwig, Targeted mutations of breast cancer susceptibility gene homologs in mice: lethal phenotypes of Brca1, Brca2, Brca1/Brca2, Brca1/p53, and Brca2/p53 nullizygous embryos. 1997, Pubmed
Miki, A strong candidate for the breast and ovarian cancer susceptibility gene BRCA1. 1994, Pubmed
Moynahan, Brca1 controls homology-directed DNA repair. 1999, Pubmed
Nasevicius, Effective targeted gene 'knockdown' in zebrafish. 2000, Pubmed
Ruffner, Cancer-predisposing mutations within the RING domain of BRCA1: loss of ubiquitin protein ligase activity and protection from radiation hypersensitivity. 2001, Pubmed
Rupp, Xenopus embryos regulate the nuclear localization of XMyoD. 1994, Pubmed , Xenbase
Scully, Dynamic changes of BRCA1 subnuclear location and phosphorylation state are initiated by DNA damage. 1997, Pubmed
Scully, Association of BRCA1 with Rad51 in mitotic and meiotic cells. 1997, Pubmed
Scully, Genetic analysis of BRCA1 function in a defined tumor cell line. 1999, Pubmed
Sharp, Stabilization of the MDM2 oncoprotein by interaction with the structurally related MDMX protein. 1999, Pubmed
Shen, A targeted disruption of the murine Brca1 gene causes gamma-irradiation hypersensitivity and genetic instability. 1998, Pubmed
Snouwaert, BRCA1 deficient embryonic stem cells display a decreased homologous recombination frequency and an increased frequency of non-homologous recombination that is corrected by expression of a brca1 transgene. 1999, Pubmed
Summerton, Morpholino antisense oligomers: the case for an RNase H-independent structural type. 1999, Pubmed
Tanimura, MDM2 interacts with MDMX through their RING finger domains. 1999, Pubmed
Thai, Mutations in the BRCA1-associated RING domain (BARD1) gene in primary breast, ovarian and uterine cancers. 1998, Pubmed
Wang, BASC, a super complex of BRCA1-associated proteins involved in the recognition and repair of aberrant DNA structures. 2000, Pubmed
Wu, Identification of a RING protein that can interact in vivo with the BRCA1 gene product. 1996, Pubmed
Xu, Centrosome amplification and a defective G2-M cell cycle checkpoint induce genetic instability in BRCA1 exon 11 isoform-deficient cells. 1999, Pubmed
Xu, Conditional mutation of Brca1 in mammary epithelial cells results in blunted ductal morphogenesis and tumour formation. 1999, Pubmed
Zhong, Association of BRCA1 with the hRad50-hMre11-p95 complex and the DNA damage response. 1999, Pubmed
