???displayArticle.abstract???
Apoptosis is controlled by a complex interplay between regulatory proteins. Previous work has shown that Xenopus embryos remove damaged cells by apoptosis when irradiated before, but not after, the midblastula transition (MBT). Here we demonstrate that Akt/protein kinase B is activated and mediates an antiapoptotic signal only in embryos irradiated after the MBT. In addition, an increase in xBcl-2/xBax oligomerization and a decrease in xBax homodimerization promote a protective effect against apoptosis only after the MBT. The post-MBT survival mechanism arrests cells in G(1) phase by increasing expression of the cyclin-dependent kinase inhibitor p27(Xic1). p27(Xic1) associates with cyclin D/Cdk4 and cyclin A/Cdk2 complexes to cause G(1)/S arrest, perhaps allowing more time for DNA repair. Taken together, the results define the DNA damage response as an element of the MBT and indicate that multiple mechanisms prevent apoptosis after the MBT.

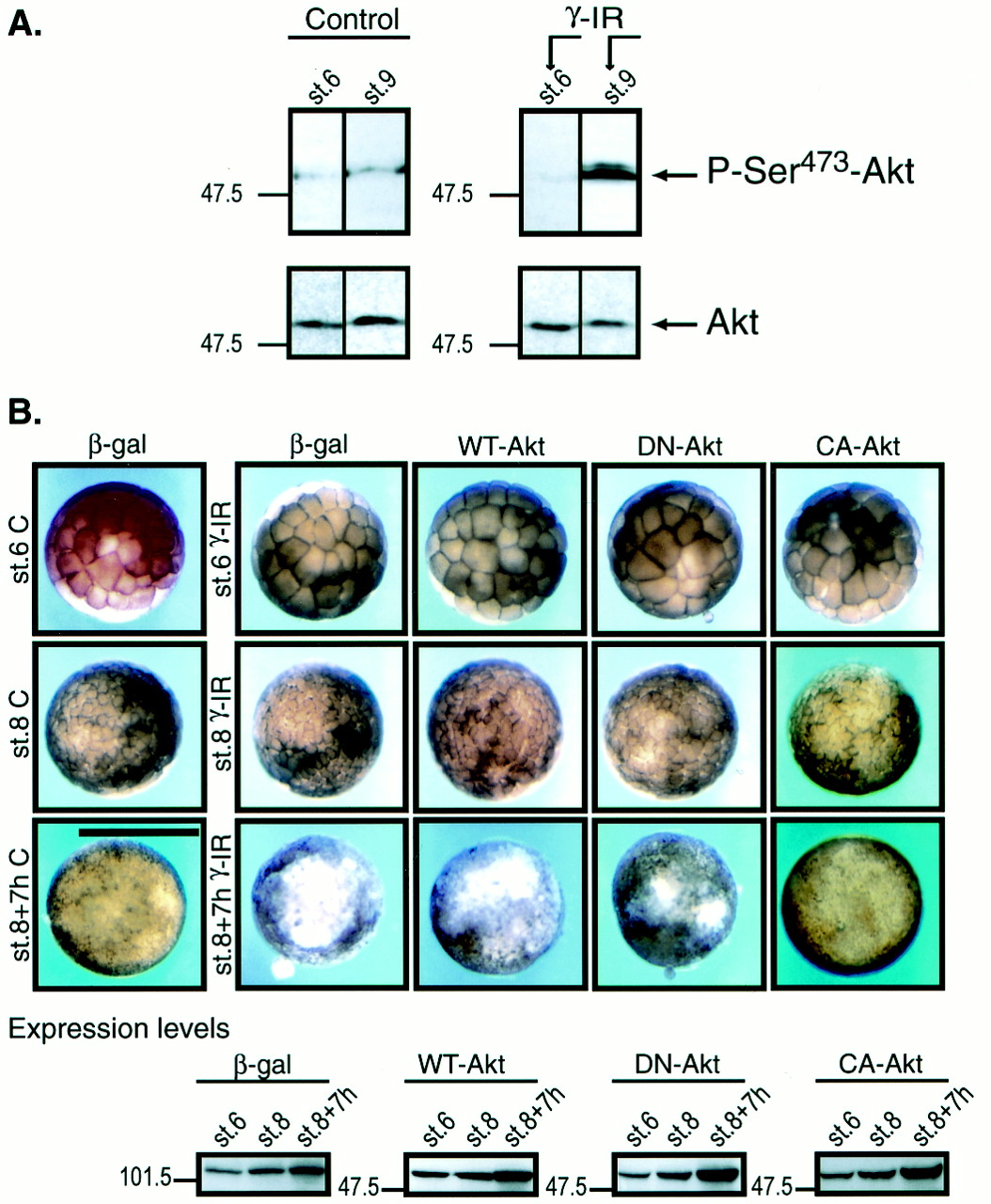

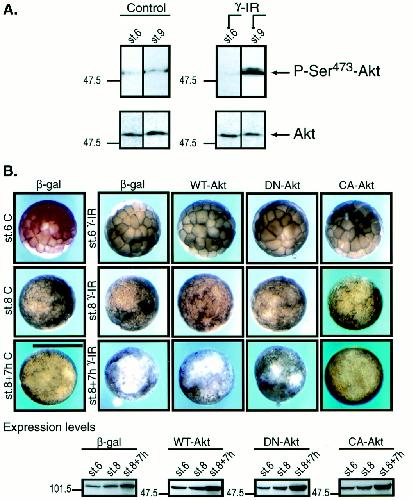

Figure 1
Phosphorylation of Akt in response to ionizing radiation. (A) Embryos were not irradiated (control) or were exposed to γ-IR at either stage 6 or stage 9, collected at different times, and analyzed as described in Materials and Methods. The blots were incubated with anti-P-Ser 473 Akt antibody (Upper) or anti-Akt antibody (Lower) and visualized by enhanced chemiluminescence. The arrows on the right denote the Akt protein and the phosphorylated isoforms. Molecular mass markers (in kDa) are indicated on the left. (B) (Upper) Embryos were injected at the one-cell stage with β-galactosidase, WT-, DN-, or CA-Akt mRNA and allowed to develop until they reached stage 6 (Top row). At that stage, embryos were not irradiated (first column on left) or were treated with ionizing radiation (γ-IR) and allowed to progress through early developmental stages. Embryos were collected and photographed at the time of irradiation (Top row, stage 6), at the MBT (Middle row, stage 8), and 7 h after the MBT (Bottom row), when the morphological changes of apoptosis were conspicuous (scale bar, 1 mm). (Lower) At the indicated stages, levels of the indicated expressed proteins were analyzed by Western blotting.

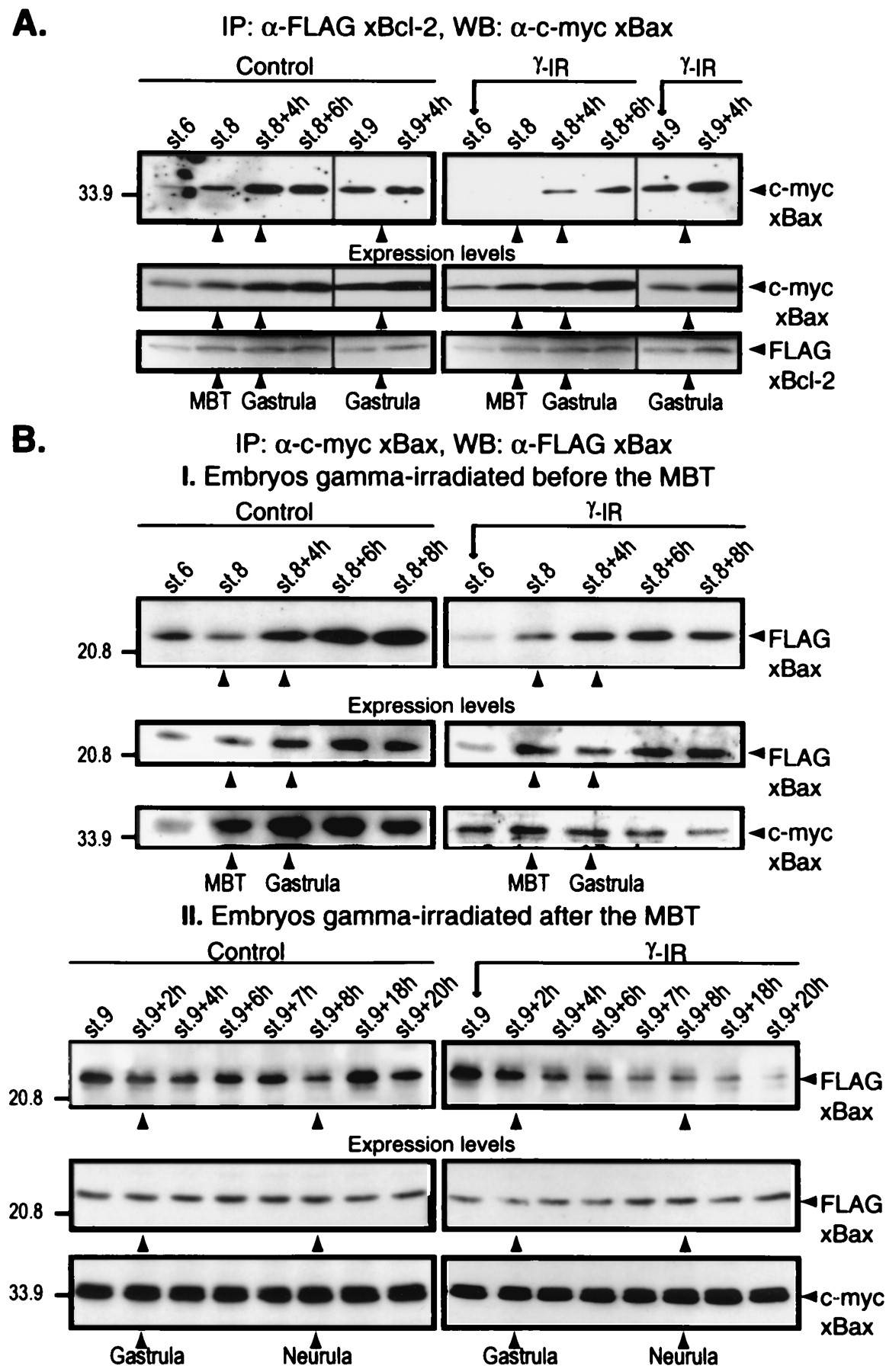

Figure 2

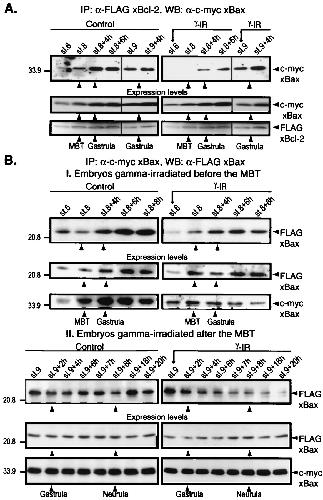

(A) Interaction between xBcl-2 and xBax changes at the MBT. Embryos were injected at the one-cell stage with a mixture of FLAG-tagged xBcl-2 and c-myc-tagged xBax mRNAs. The embryos were not irradiated (control) or were irradiated 3 h (stage 6) or 7 h (stage 9) after fertilization, collected at different times, and frozen. Samples equivalent to five embryos were immunoprecipitated with anti-FLAG M2-agarose beads, and the immunocomplexes were subjected to Western blot analysis with anti-c-myc antibody. (B) Analysis of xBax homodimerization. Embryos were injected at the one-cell stage with FLAG-tagged and c-myc-tagged xBax mRNAs, were not irradiated (control) or were irradiated at either stage 6 (I) or stage 9 (II), and were collected at different times. Samples equivalent to five embryos were immunoprecipitated with anti-c-myc-agarose beads, and the immunocomplexes were blotted with anti-FLAG M2 antibody (I, Top, and II, Top). Total FLAG-xBcl-2, FLAG-xBax, and c-myc-xBax expression levels were assessed at all stages by Western blotting with specific anti-tag antibodies (A and B, I and II, Middle and Bottom). Arrows on the right denote the FLAG-tagged or c-myc-tagged protein.

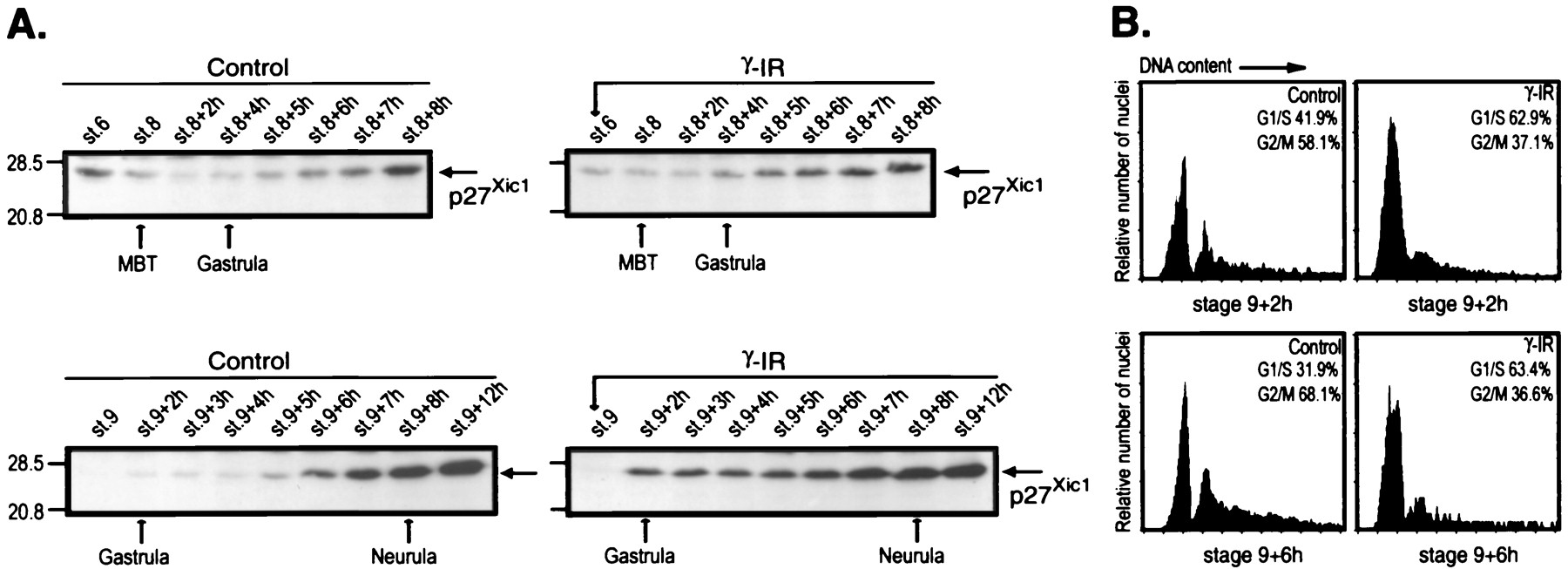

Figure 3

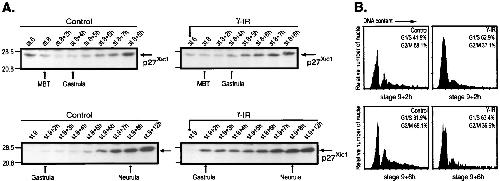

(A) Analysis of the level of p27Xic1 in embryos irradiated either pre- or post-MBT. Embryos were not irradiated (control) or were irradiated (γ-IR) at the indicated stages, and samples were collected at the indicated times and analyzed by Western blotting with anti-p27Xic1 antibody. One embryo equivalent was loaded per lane. (B) Cell cycle profile of irradiated embryos. Embryos were irradiated at stage 9 and collected 2 and 6 h after irradiation. Embryonic nuclei were prepared from a single sibling group and analyzed by flow cytometry as described in Materials and Methods. Stages of the cell cycle are defined by DNA content, as measured by fluorescence intensity.

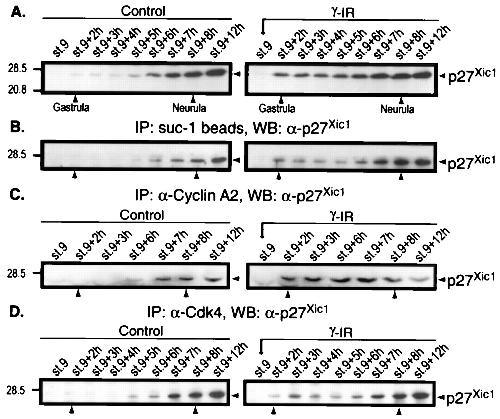

Figure 4

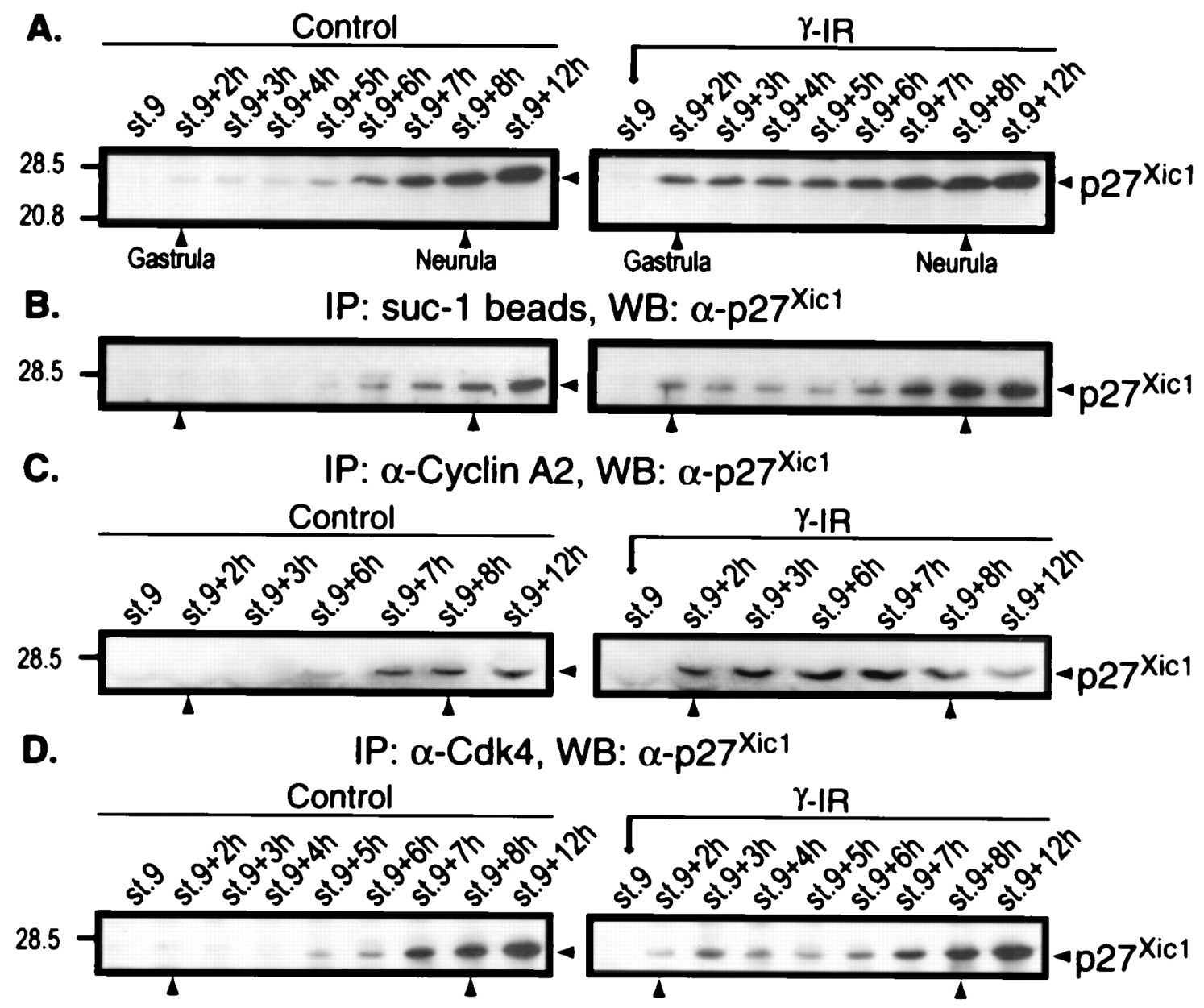

Targets for p27Xic1 in vivo. Embryos were not irradiated (control) or were irradiated after the MBT (stage 9 γ-IR), collected at different times, and frozen. (A) The total level of p27Xic1 at the indicated times. (B) Samples equivalent to five embryos were precipitated with p13suc-1 beads, and the bound proteins were analyzed by Western blotting with anti-p27Xic1 antibody. (C) Association of p27Xic1 with cyclin A2 complexes was detected by immunoprecipitation with cyclin A2 antibody and analysis of the precipitates by Western blotting with anti-p27Xic1 antibody. (D) Samples from embryos irradiated after the MBT were immunoprecipitated with anti-Cdk4 antibody and blotted with anti-p27Xic1 antibody.

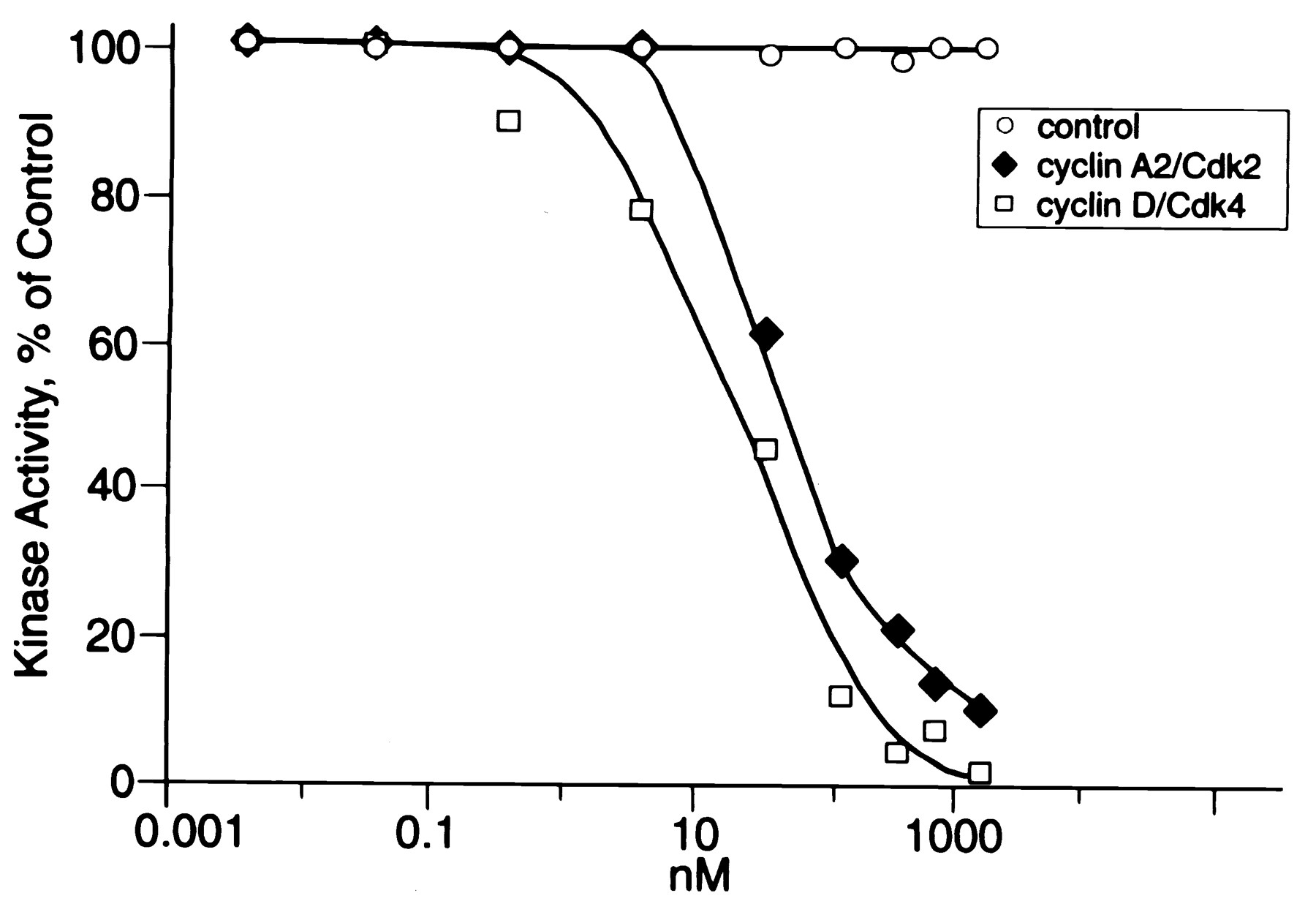

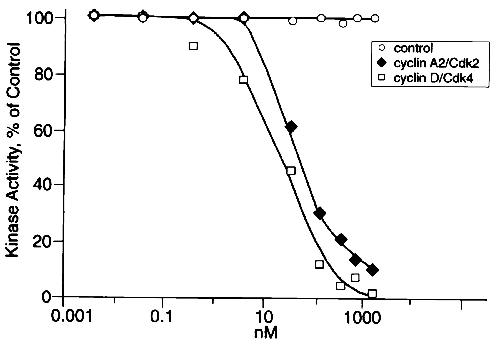

Figure 5
Inhibition of cyclin D/Cdk4 and cyclin A2/Cdk2 activity by p27Xic1. Purified cyclin D/Cdk4 or cyclin A2/Cdk2 complexes were preincubated with the indicated amounts of GST-p27Xic1 or GST alone (control), and the kinase reaction was performed with either the C-terminal half of human retinoblastoma protein (hRb) as substrate for Cdk4 or histone H1 for Cdk2, as described in Materials and Methods.

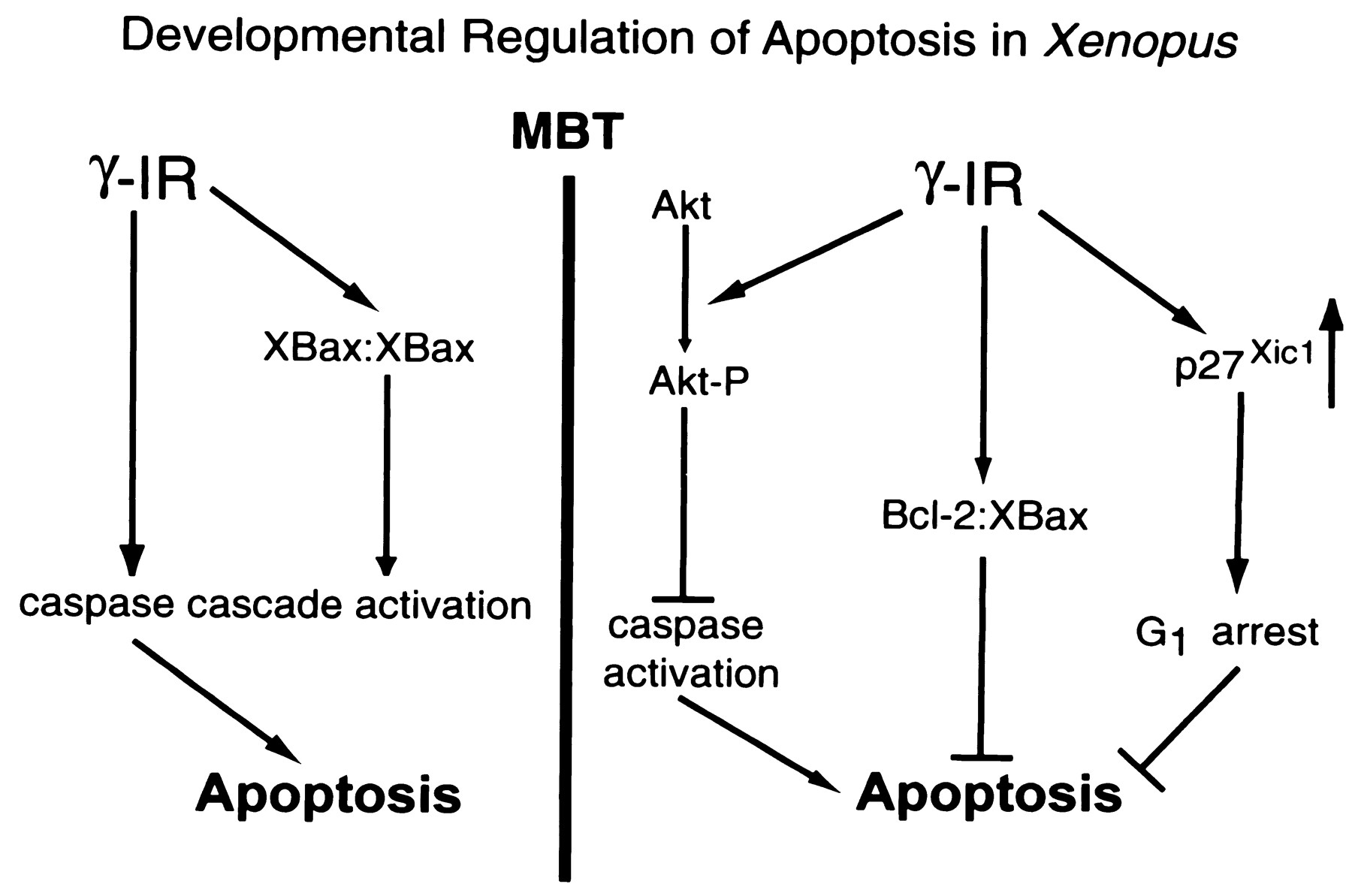

Figure 6
Model of apoptosis regulation in Xenopus embryos. Ionizing radiation promotes apoptosis in embryos irradiated before the MBT by triggering different proapoptotic factors, including the homodimerization of xBax, and caspase cascade activation. Apoptosis is prevented in embryos irradiated after the MBT by the coordinated action of antiapoptotic stimuli. Survival signaling pathways act at at least three levels: by promotion of cell cycle delay by increasing the amount of p27Xic1 and its association with the complexes involved in the G1/S transition, by inactivation of proapoptotic molecules by heterodimerization, and by activation of antiapoptotic pathways like Akt.
Adams,
The Bcl-2 protein family: arbiters of cell survival.
1998, Pubmed
Adams,
The Bcl-2 protein family: arbiters of cell survival.
1998,
Pubmed
Alessi,
Mechanism of activation of protein kinase B by insulin and IGF-1.
1996,
Pubmed
Alessi,
Molecular basis for the substrate specificity of protein kinase B; comparison with MAPKAP kinase-1 and p70 S6 kinase.
1996,
Pubmed
Andersen,
Protein kinase B/Akt induces resumption of meiosis in Xenopus oocytes.
1998,
Pubmed
,
Xenbase
Anderson,
Ionizing radiation induces apoptosis and elevates cyclin A1-Cdk2 activity before but not after the midblastula transition in Xenopus.
1997,
Pubmed
,
Xenbase
Andrews,
Transient activation of oocyte 5S RNA genes in Xenopus embryos by raising the level of the trans-acting factor TFIIIA.
1987,
Pubmed
,
Xenbase
Cardone,
Regulation of cell death protease caspase-9 by phosphorylation.
1998,
Pubmed
Clarke,
Thymocyte apoptosis induced by p53-dependent and independent pathways.
1993,
Pubmed
Datta,
Akt phosphorylation of BAD couples survival signals to the cell-intrinsic death machinery.
1997,
Pubmed
del Peso,
Interleukin-3-induced phosphorylation of BAD through the protein kinase Akt.
1997,
Pubmed
el-Deiry,
WAF1, a potential mediator of p53 tumor suppression.
1993,
Pubmed
Ewen,
Functional interactions of the retinoblastoma protein with mammalian D-type cyclins.
1993,
Pubmed
Franke,
PI3K: downstream AKTion blocks apoptosis.
1997,
Pubmed
Fujita,
Akt phosphorylation site found in human caspase-9 is absent in mouse caspase-9.
1999,
Pubmed
Gabrielli,
A cdc2-related kinase oscillates in the cell cycle independently of cyclins G2/M and cdc2.
1992,
Pubmed
,
Xenbase
Gautier,
Cyclin is a component of maturation-promoting factor from Xenopus.
1990,
Pubmed
,
Xenbase
Gil-Gómez,
A link between cell cycle and cell death: Bax and Bcl-2 modulate Cdk2 activation during thymocyte apoptosis.
1998,
Pubmed
Grafstrom,
Defining the substrate specificity of cdk4 kinase-cyclin D1 complex.
1999,
Pubmed
Hartley,
In vivo regulation of the early embryonic cell cycle in Xenopus.
1996,
Pubmed
,
Xenbase
Hartley,
A role for cyclin E/Cdk2 in the timing of the midblastula transition in Xenopus embryos.
1997,
Pubmed
,
Xenbase
Hensey,
A developmental timer that regulates apoptosis at the onset of gastrulation.
1997,
Pubmed
,
Xenbase
Kandel,
The regulation and activities of the multifunctional serine/threonine kinase Akt/PKB.
1999,
Pubmed
Kennedy,
Akt/Protein kinase B inhibits cell death by preventing the release of cytochrome c from mitochondria.
1999,
Pubmed
Kennedy,
The PI 3-kinase/Akt signaling pathway delivers an anti-apoptotic signal.
1997,
Pubmed
Kozak,
An analysis of 5'-noncoding sequences from 699 vertebrate messenger RNAs.
1987,
Pubmed
Kuerbitz,
Wild-type p53 is a cell cycle checkpoint determinant following irradiation.
1992,
Pubmed
Linette,
Cross talk between cell death and cell cycle progression: BCL-2 regulates NFAT-mediated activation.
1996,
Pubmed
Lowe,
p53 is required for radiation-induced apoptosis in mouse thymocytes.
1993,
Pubmed
Marte,
PKB/Akt: connecting phosphoinositide 3-kinase to cell survival and beyond.
1997,
Pubmed
Meikrantz,
Apoptosis and the cell cycle.
1995,
Pubmed
Nakajima,
Structure, expression, and function of the Xenopus laevis caspase family.
2000,
Pubmed
,
Xenbase
Newport,
A major developmental transition in early Xenopus embryos: I. characterization and timing of cellular changes at the midblastula stage.
1982,
Pubmed
,
Xenbase
Newport,
A major developmental transition in early Xenopus embryos: II. Control of the onset of transcription.
1982,
Pubmed
,
Xenbase
Oltvai,
Bcl-2 heterodimerizes in vivo with a conserved homolog, Bax, that accelerates programmed cell death.
1993,
Pubmed
O'Reilly,
The cell death inhibitor Bcl-2 and its homologues influence control of cell cycle entry.
1996,
Pubmed
Pines,
Cyclins and cyclin-dependent kinases: take your partners.
1993,
Pubmed
Reed,
G1 control in mammalian cells.
1994,
Pubmed
Rempel,
Maternal Xenopus Cdk2-cyclin E complexes function during meiotic and early embryonic cell cycles that lack a G1 phase.
1995,
Pubmed
,
Xenbase
Sherr,
CDK inhibitors: positive and negative regulators of G1-phase progression.
1999,
Pubmed
Sible,
Zygotic transcription is required to block a maternal program of apoptosis in Xenopus embryos.
1997,
Pubmed
,
Xenbase
Su,
Cloning and characterization of the Xenopus cyclin-dependent kinase inhibitor p27XIC1.
1995,
Pubmed
,
Xenbase
Tchang,
Stabilization and expression of high levels of p53 during early development in Xenopus laevis.
1993,
Pubmed
,
Xenbase
Thornberry,
Caspases: enemies within.
1998,
Pubmed
Vaux,
Prevention of programmed cell death in Caenorhabditis elegans by human bcl-2.
1992,
Pubmed
Yew,
Proteolysis and DNA replication: the CDC34 requirement in the Xenopus egg cell cycle.
1997,
Pubmed
,
Xenbase
Zou,
Apaf-1, a human protein homologous to C. elegans CED-4, participates in cytochrome c-dependent activation of caspase-3.
1997,
Pubmed
