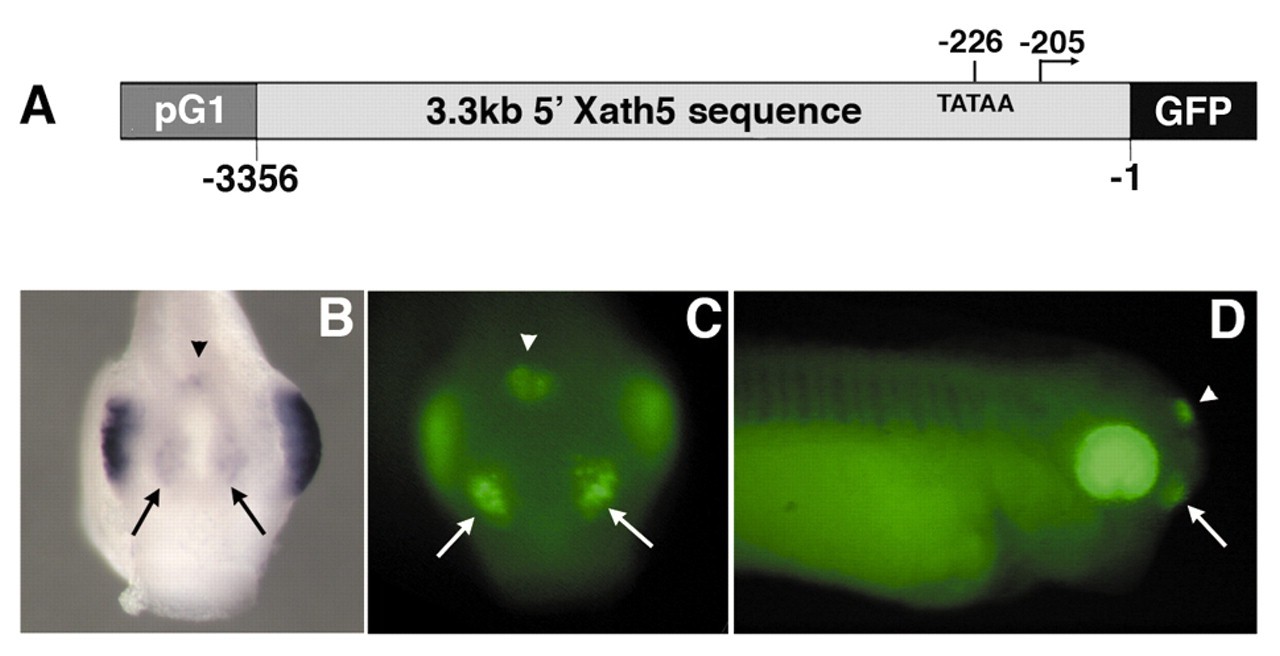

Fig. 1. Identification of a Xath5 regulatory fragment that functions in vivo. (A) The pG1X5 construct contains 3.3 kb of 5′ Xath5a genomic DNA cloned into the promoterless vector pG1 with a GFP reporter. The TATAA element is at –226 bp, the putative transcription start site is at– 205 bp and the translation start site is at +1 bp. (B) In situ hybridization showing that endogenous Xath5 mRNA is expressed in the retina, the pineal gland (arrowhead), and the olfactory placodes (arrows) of a stage 28 embryo (frontal view). (C,D) Frontal and lateral views of a stage 28 transgenic pG1X5 embryo showing expression of the transgene in the same tissues as the endogenous Xath5 mRNA (compare with B).

Image published in: Hutcheson DA et al. (2005)

Copyright © 2005. Image reproduced with permission of the publisher and the copyright holder. This is an Open Access article distributed under the terms of the Creative Commons Attribution License.

atoh7.SXath5b, math5, ath5, Xath5, atoh7-b, atoh7-aX. laevisThroughout NF stage 28retina
pineal gland
olfactory placode
