Lombard-Banek C , Reddy S , Moody SA , Nemes P .

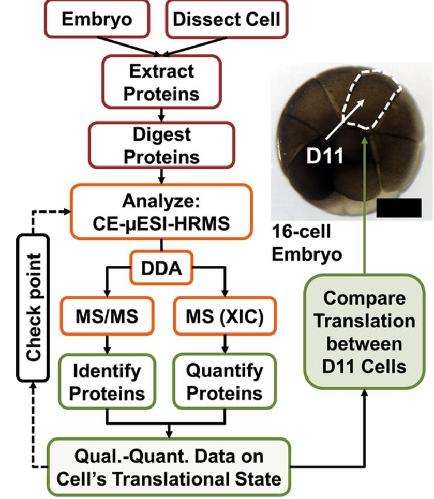

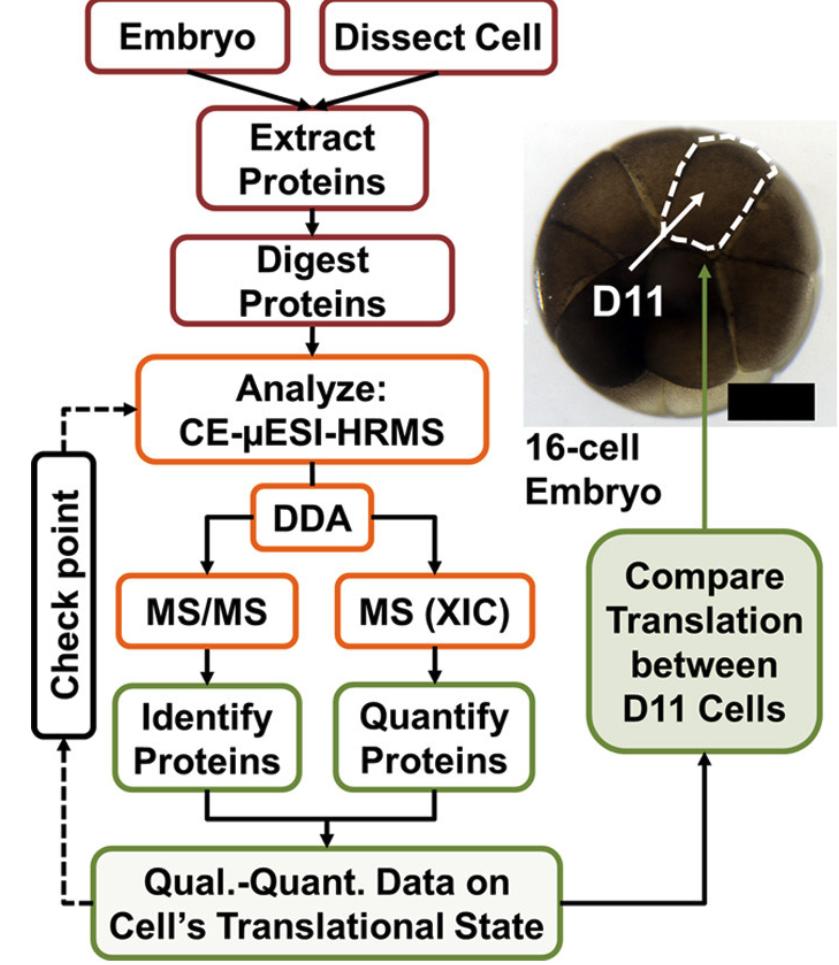

	Fig. 1. Flowchart for enabling label-free quantification (LFQ) on limited amounts of tissues and single embryonic cells in the 16-cell frog Xenopus laevis embryo. Check-points serve as feed-back mechanism to aid LFQ sensitivity. LFQ was performed to quantify protein expression between n = 3 midline dorsal-animal (D11) blastomeres, which reproducibly give rise to the nervous system (41). Scale bar = 100um.

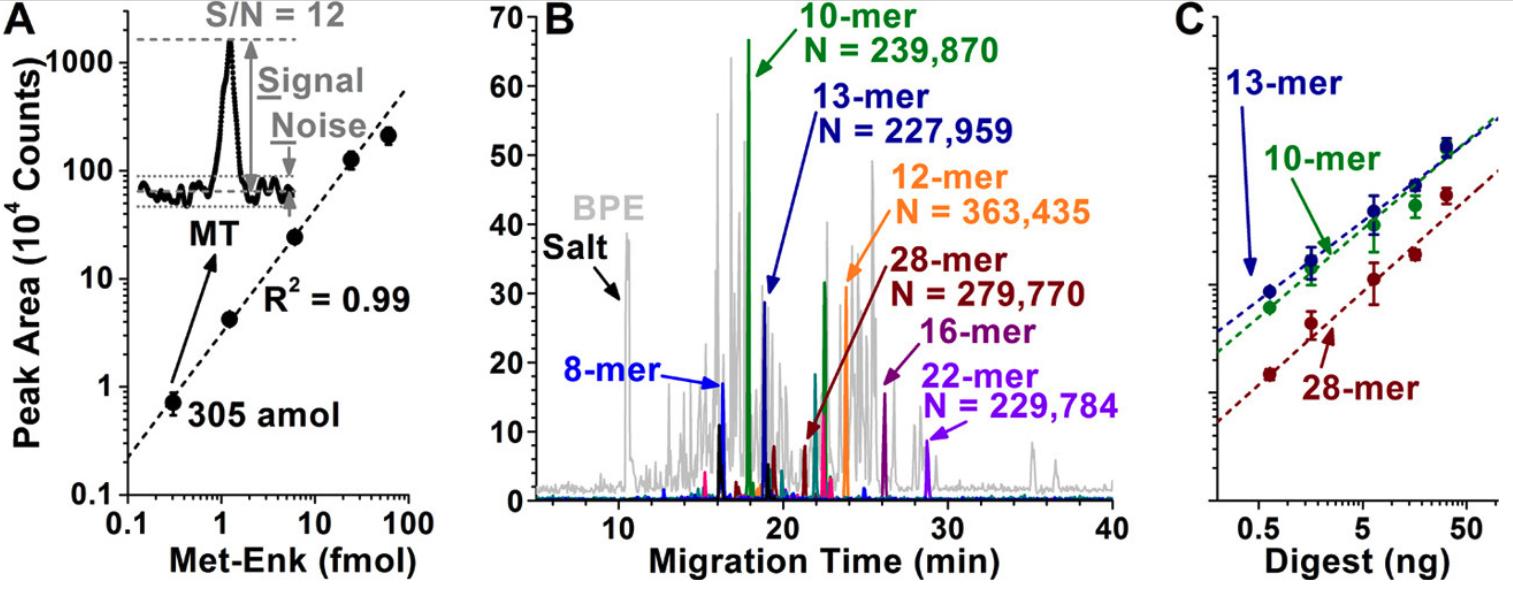

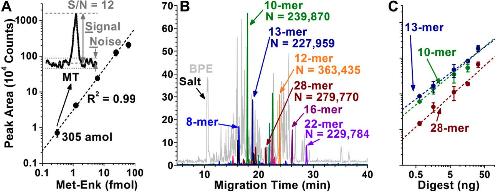

	Fig. 2. Trace-level separation and quantification of peptides using CE-μESI-HRMS.A, Quantification was demonstrated across a 3 log-order dynamic range with a ∼75-amol estimated lower limit of detection for Met-Enk. B, The base-peak electropherogram for a 20 ng digest of a 16-cell Xenopus embryo demonstrated complex molecular composition. The extracted-ion currents monitor 9 different peptides (mers) with ± 50-mDa window that were identified from vitellogenin b1 (vtgb1), an abundant, native protein in the embryo (see peptide sequences in supplemental Table S1A. C, Peptide detection was quantitative also in this complex matrix, as exemplified for the vtgb110-mer2+, vtgb113-mer2+, and vtgb128-mer4+ signals. Error bars show S.E.M. in all panels. Parameters of linear regression (intercept/slope/R2): 4.52/1.07/0.99 for Met-Enk; 4.94/0.815/0.98 for vtgb110-mer2+; 5.07/0.730/0.99 for vtgb113-mer2+; and 4.33/0.861/0.96 for vtgb128-mer4+.

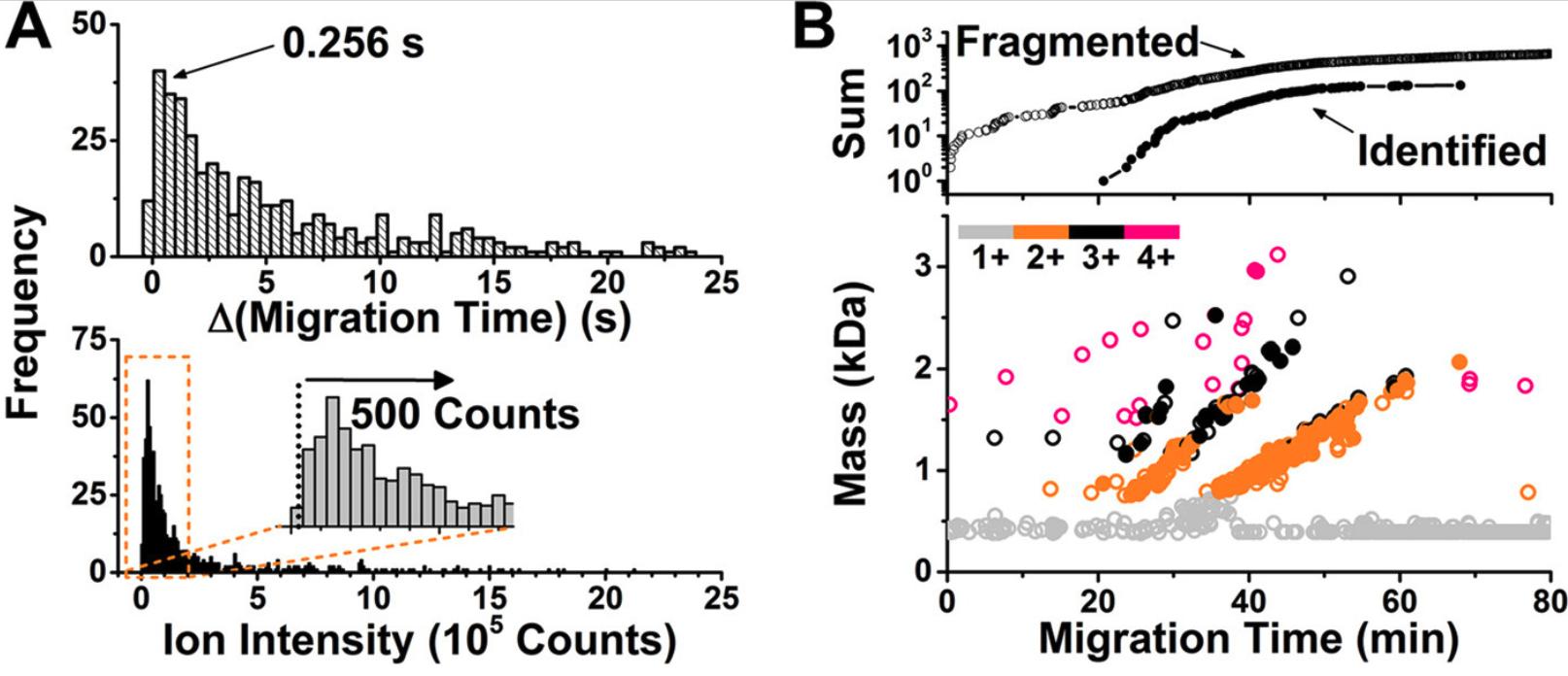

	Fig. 3. Sequencing trace-level peptides by CE-HRMS using Qq time-of-flight HRMS.A, Data-dependent tandem MS was tailored to closely migrating (top panel) and low-abundance peptide signals (bottom panel). Key: Δ, separation time difference between consecutively migrating peptides. B, Rate of fragmented molecular features (data in open circles) and identified peptides (data in filled circles) revealing compact separation and electrophoretic migration trends in the mass versus migration time versus charge state domain. Identified proteins are listed in supplemental Table S1B.

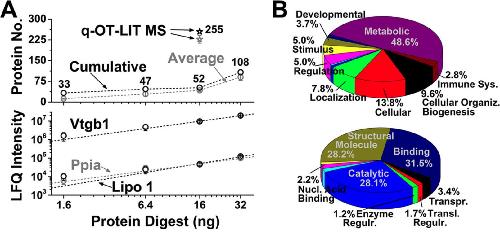

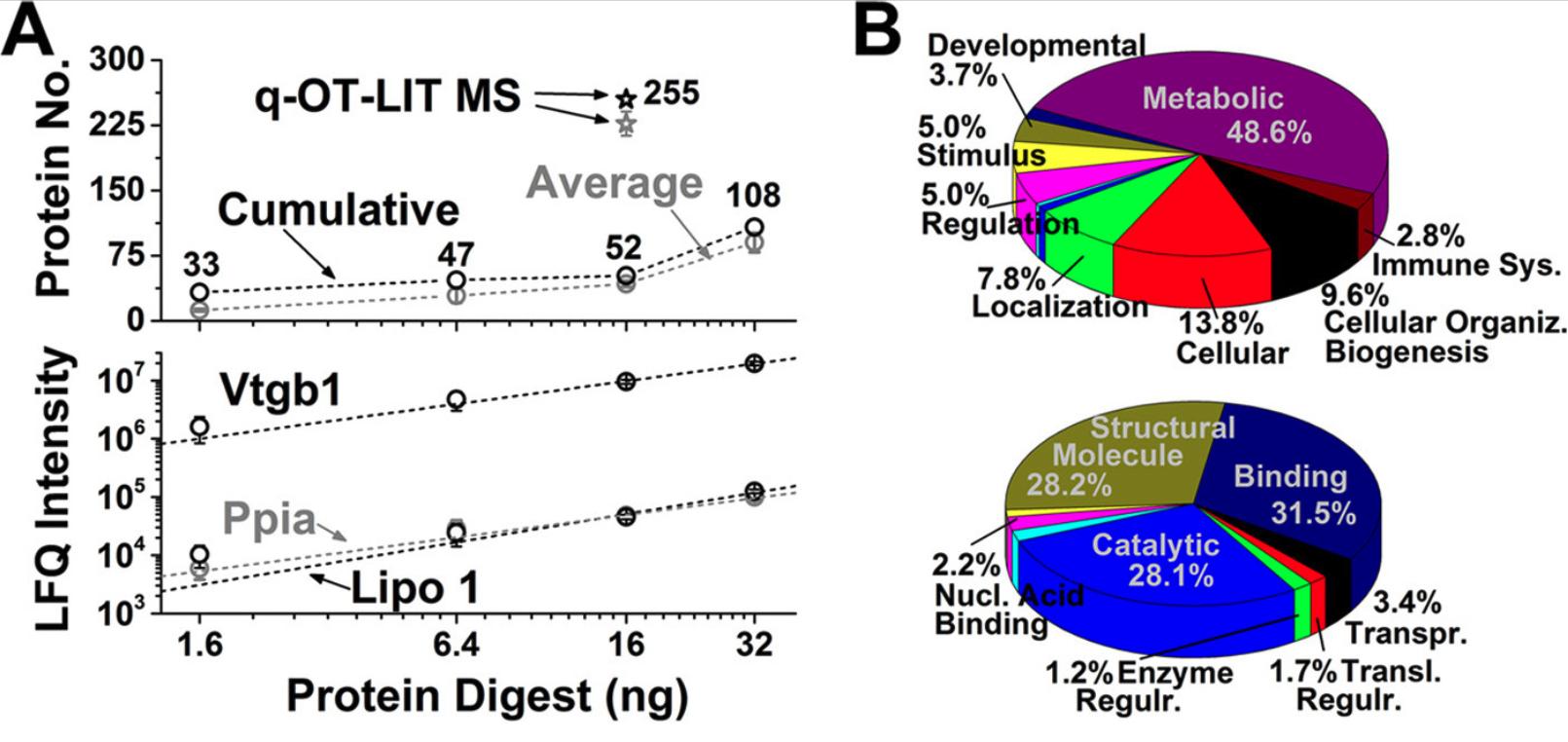

	Fig. 4. Identifying and quantifying protein groups in mass-limited specimens.A, Proteins were measured in progressively smaller amounts of digests from whole 16-cell Xenopus embryos using Qq-TOF-MS/MS (top panel). LFQ-based quantification was linear also at the level of proteins (bottom panel), as shown for Vtgb1 (R2 = 0.99), Ppia (R2 = 0.98), and Lipo 1 (R2 = 0.90). Using an orbitrap-quadrupole-linear ion trap (q-OT-LIT) instrument capable of ion trapping, higher-resolution analysis, and parallelization of MS1-MS/MS events, protein identification was enhanced fivefold. Quantified proteins are listed for the Qq-TOF in supplemental Table S1C and q-OT-LIT in supplemental Table S1D. Error bars show S.E.M. B, Gene ontology annotation of biological processes (top panel) and molecular functions (bottom panel) for proteins identified in the 16-cell embryo.

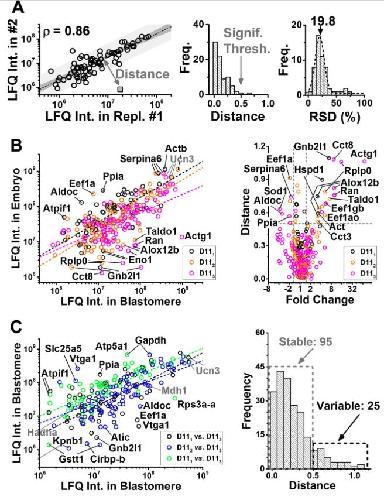

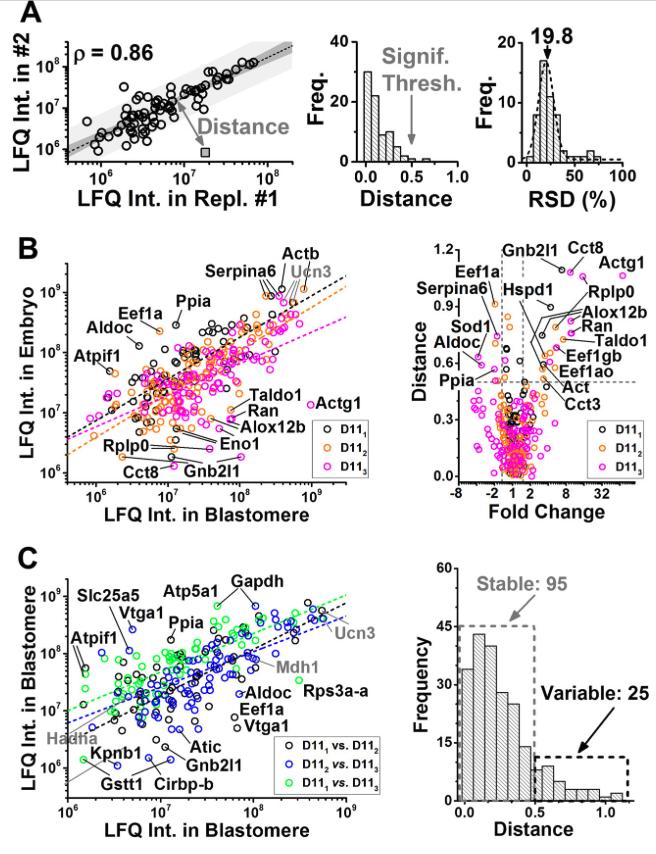

	Fig. 5. Correlation analysis for uncovering translational differences between three D11 blastomeres (D111, D112, D113) and the 16-cell embryo. Each data point represents a different protein group. A, LFQ intensities of proteins were reproducibly quantified between technical replicates (D112 shown, left panel), as indicated by high Pearson correlation coefficients (ρ) between the data sets. Prediction band with 95% confidence is shown in gray surrounding the linear fit. For any given protein (see mock protein in gray square), correlation was calculated as the Euclidean distance (d) from the linear fit. Based on the technical reproducibility, a d > 0.5 was considered to mark significant dysregulation in protein abundance (middle panel). LFQ intensities were repeatable with ∼20% relative standard deviation (RSD); therefore, a fold change of ≥1.5 was chosen to mark biological significance (right panel). B, Comparison of protein expression between the D11 cells and the whole 16-cell embryo revealing accumulation for 17 proteins in the cells and eight proteins in the average embryo (left panel). Using correlation distance and median-normalized fold change to query differentially expressed proteins (right panel). C, Correlation analysis also revealed graded translational differences between the D11 blastomeres (left panel). Categorization of protein expresion as stable and variable (see Table II) based on d values (right panel). Key: ρ = 0.72 for D111versus embryo, 0.76 for D112versus embryo, 0.61 for D112versus embryo, 0.61 for D111versus D112, 0.75 for D111versus D113, and 0.73 for D112versus D113. Vitellogenin proteins (LFQ intensity > ∼1 × 109) were excluded from the analysis and are not shown.

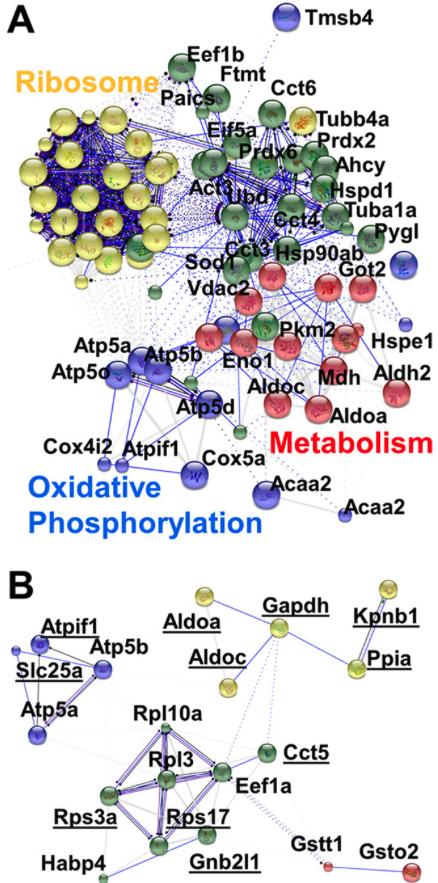

	Fig. 6. Protein interaction networks in single D11 blastomeres. Networks were predicted using STRING 10 based on proteins with (A) stable (d <= 0.5) and (B) variable (d > 0.5) abundance between the blastomeres. KEGG functions are labeled for proteins with associations. Among the differentially quantified proteins were many that are known to express in the neural plate, eye, head, nervous tissue, heart, or tail-bud of the embryo (see underlined proteins). An enlarged network is shown for stable proteins in supplemental Fig. S3. STRING parameters: actions view shown; disconnected nodes removed (Atic, Cirbp-p, and Vtga1 in panel B); k-means clustering = 3.
