	Figure 1: Properties of Noggin4. (a) Alignment of Xenopus laevis Noggins. Positions essential for Noggin1 binding to BMP1 are indicated by red arrows. HSPG binding motifs and cleavage sites are indicated by green and red dashed lines, respectively. (b) Whole-mount in situ hybridization of a midneurula embryo with dig-probe to Noggin4 mRNA. Dorsal view at the top, the right-frontal view at the bottom. (c) Effects of Noggin4 mRNA (80%, n = 120) and MO1 (85%, n = 130) injections on the development of head structures. Cg-cement gland. (d–s) In situ hybridization with dig-probes to FoxG1, Rx, Otx2 and Pax6 mRNA of midneurula embryos injected with GFP mRNA (control) (0%, n = 40; 0%, n = 50; 0%, n = 40; 0%, n = 30, abnormal phenotypes respectively), Noggin4 mRNA (85%, n = 30; 61%, n = 35; 81%, n = 40; 65%, n = 40 abnormal phenotypes respectively), Noggin4 MO1 (90%, n = 50; 86%, n = 40; 60%, n = 40; 60%, n = 40, abnormal phenotypes respectively) and misNoggin4 MO1 (control) (0%, n = 30; 0%, n = 30; 0%, n = 40; 0%, n = 30, abnormal phenotypes respectively). Red dashed line surrounds the presumptive rostral forebrain territory. Anterior view, dorsal to the top.

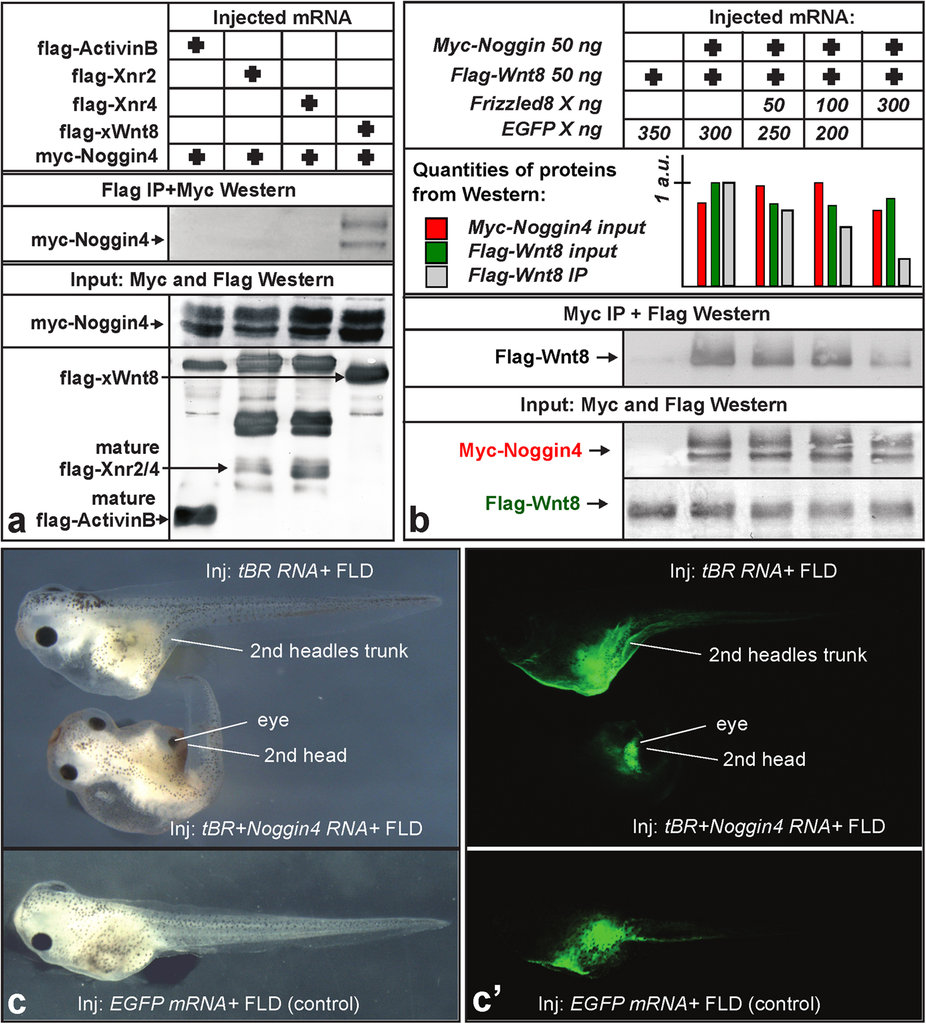

	Figure 2: Noggin4 binds and antagonises Wnt8. (a) Analysis of Noggin4 interactions with ActivinB, Xnr2, Xnr4 and XWnt8 by CoIP assay. (b) Frizzled8 competes with Noggin4 for Wnt8 binding in the CoIP assay. Embryos were injected at the 2-cell stage with Noggin4 and Wnt8 mRNA or with these mRNAs mixed with increasing amounts of Frizzled8 mRNA as indicated. CoIP was conducted using crude extracts of the mid-gastrula embryos as described by52. See Methods section for the method of WB quantification. (c) Induction of a secondary head with a cyclopic eye by co-injection of Noggin4 and tBR mRNA (60%, n = 70). tBR mRNA injected alone induces only a secondary trunk (80%, n = 70). No secondary axes were observed in the control embryos injected by EGFP mRNA (100%, n = 60). (c’) Location of co-injected Fluorescein-Lysin-Dextran (FLD) in tadpoles shown in (c).

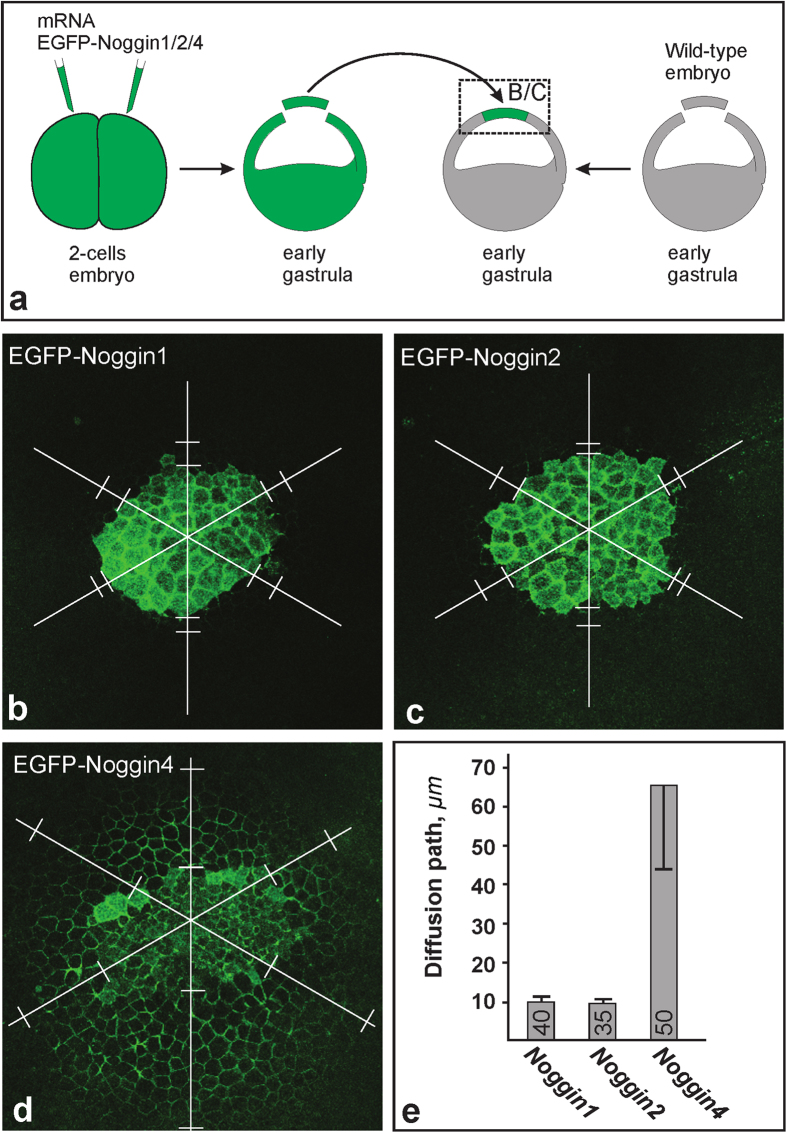

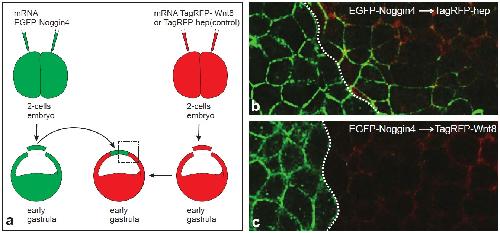

	Figure 3: Diffusion of EGFP-Noggin1/2/4 from the ectodermal grafts. (a) Experimental design. The region that corresponds to images (b–d) is framed by a dashed rectangle. (b–d) Representative examples of the grafts 1 hour after transplantation. Note that in contrast to recipient embryo cells, graft cells contain EGFP-Noggin1/2/4 in the cytoplasm. To compare the diffusibility of the EGFP-Noggin1/24, the diffusion path (DP) was measured for each graft in six directions (white lines radiated under 60 degrees from the approximate centre of the graft), beginning from the graft border until the point at which the EGFP fluorescence level in an IS became equal to the background fluorescence level in the donor IS (pairs of white bars perpendicular to the radial lies). (e) Medium DP and deviation calculated for all grafts per type (number of grafts is indicated within each column).

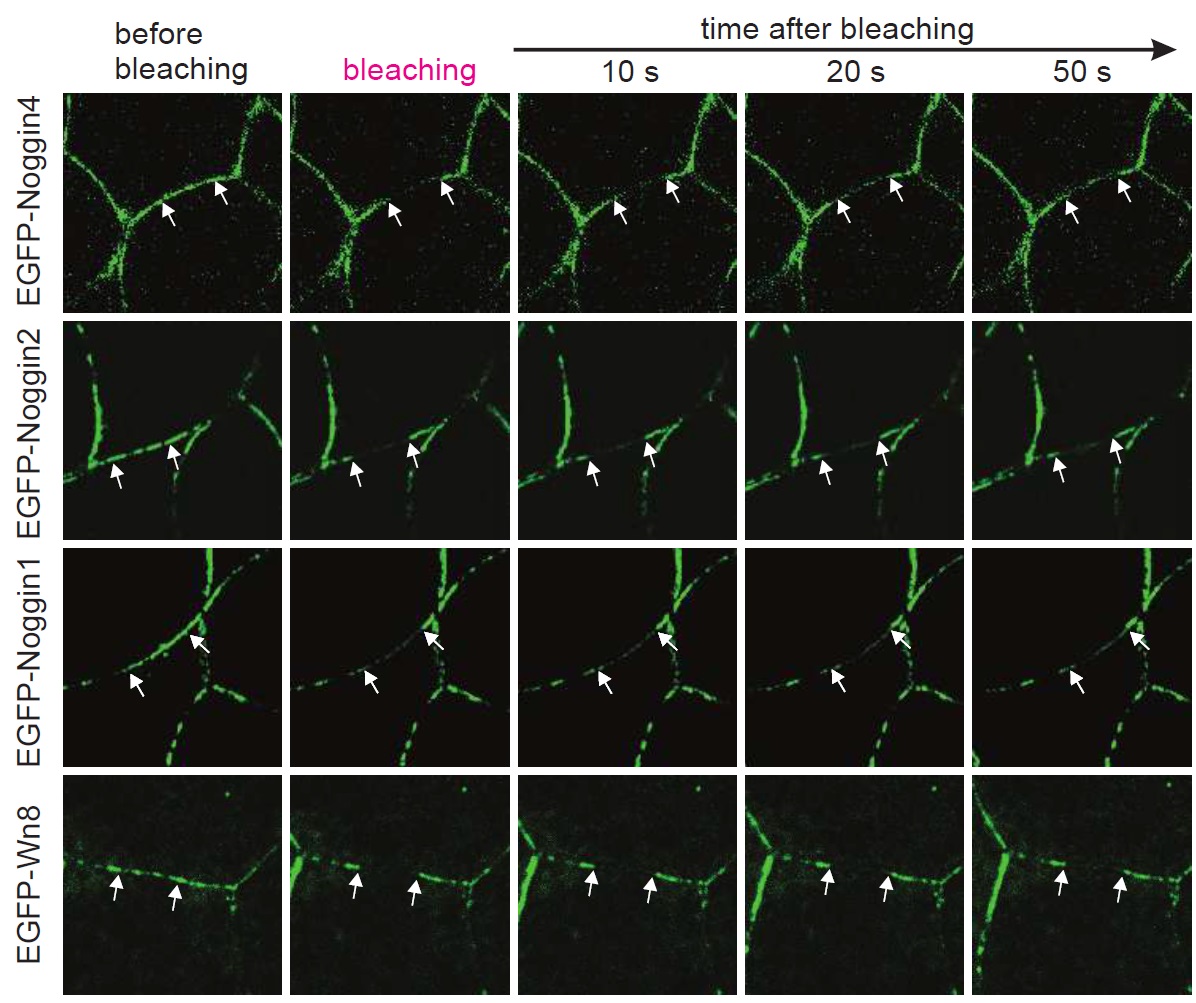

	Figure 4: Analysis of Noggins and Wnt8 diffusivity. (a) Representative snapshot images of the photobleaching procedure of EGFP-Noggin4 in IS. Arrows indicate the margins of the bleached region. Snapshots for other studied proteins are presented at Fig. S9. Representative examples of EGFP-Noggin4 (b) and EGFP-Noggin1 (c) FRAP kinetics in single zones of the ectodermal IS. Equations and curves that fit the obtained data sets are shown under the curves.

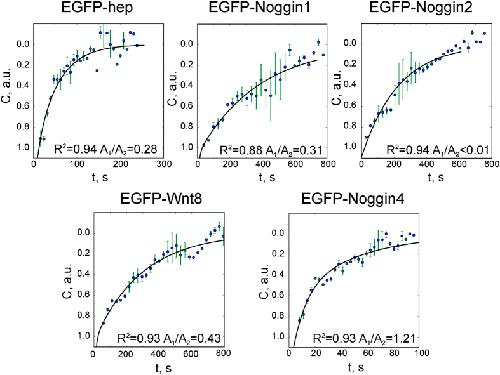

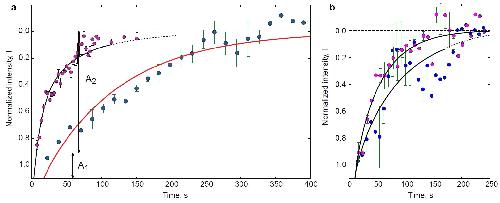

	Figure 5: FRAP data fitted with a two-exponential equation. Averaged normalised data with error bars and approximation curves are plotted for each experiment. The determination coefficient (R2) is presented for each group of observations, as well as the weight of the fast exponent, α = A1/A2 (as shown in Fig. 4); this value reflects the ratio of free-to-adsorbed protein (analysis details are described in Supplementary Materials and Methods, 1.3).

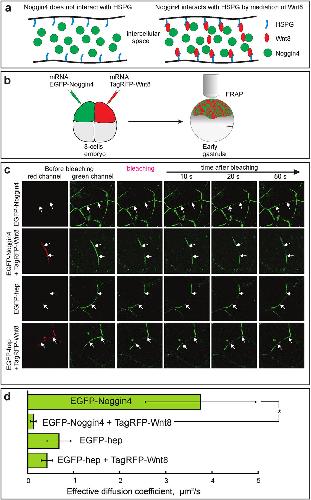

	Figure 6: Investigation of Noggin4 interaction with Wnt8 in living embryos via FRAP assay. (a) The cartoon explains how free diffusion of Noggin4 is retarded by its interaction with Wnt8 adsorbed on HSPG. (b) Schema for obtaining embryos that express EGFP-Noggin4 and TagRFP-Wnt8 in different cells. (c) Representative examples of FRAP in the intracellular space of animal ectoderm in embryos injected, as shown in B, with mRNAs of indicated fluorescently labelled proteins. Arrows mark the borders of the bleached region. (d) Mean values of the effective diffusion coefficients of EGFP-Noggin4 and EGFP-hep measured experimentally and shown in (a–c). Five to 7 series of experiments (10 to 20 individual measurements per experiment) were conducted for each of the four types of injections. Averaged FRAP curves are presented at Fig. S15.

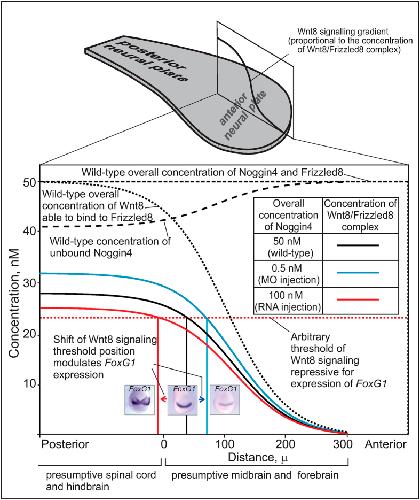

	Figure 7: Mathematical modelling of the Noggin4 influence on the anterior-posterior Wnt8 signalling gradient. During neurulation, Wnt8 diffusing from the posterior regions within the anterior neural plate and interacting there with Frizzled8 forms a gradient of Wnt8 signalling, which is schematically presented by a solid black line within the rectangle standing along the neural plate midline on the schema shown above. Coloured curves within an enlarged version of this rectangle (below) demonstrate the theoretically calculated spatial distribution of the Wnt8/Frizzled8 complex (i.e., Frizzled8 receptor activated by Wnt8 binding) at three concentrations of Noggin4 (wild-type, decreased by Noggin4 MO injections and incresased by Noggin4 mRNA injections) indicated in the inserted table. Three inserted photos illustrate the assumed effects of the corresponding spatial shifts of the Wnt8/Frizzled8 complex arbitrary threshold concentration on the forebrain marker FoxG1 expression. See main text, Supplementary Materials and Methods 4.2 and Fig. 1 for details.

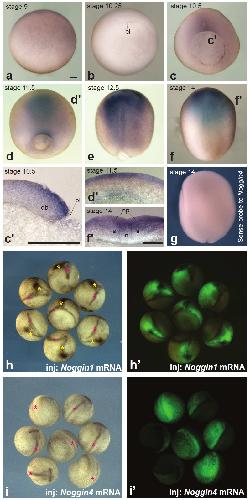

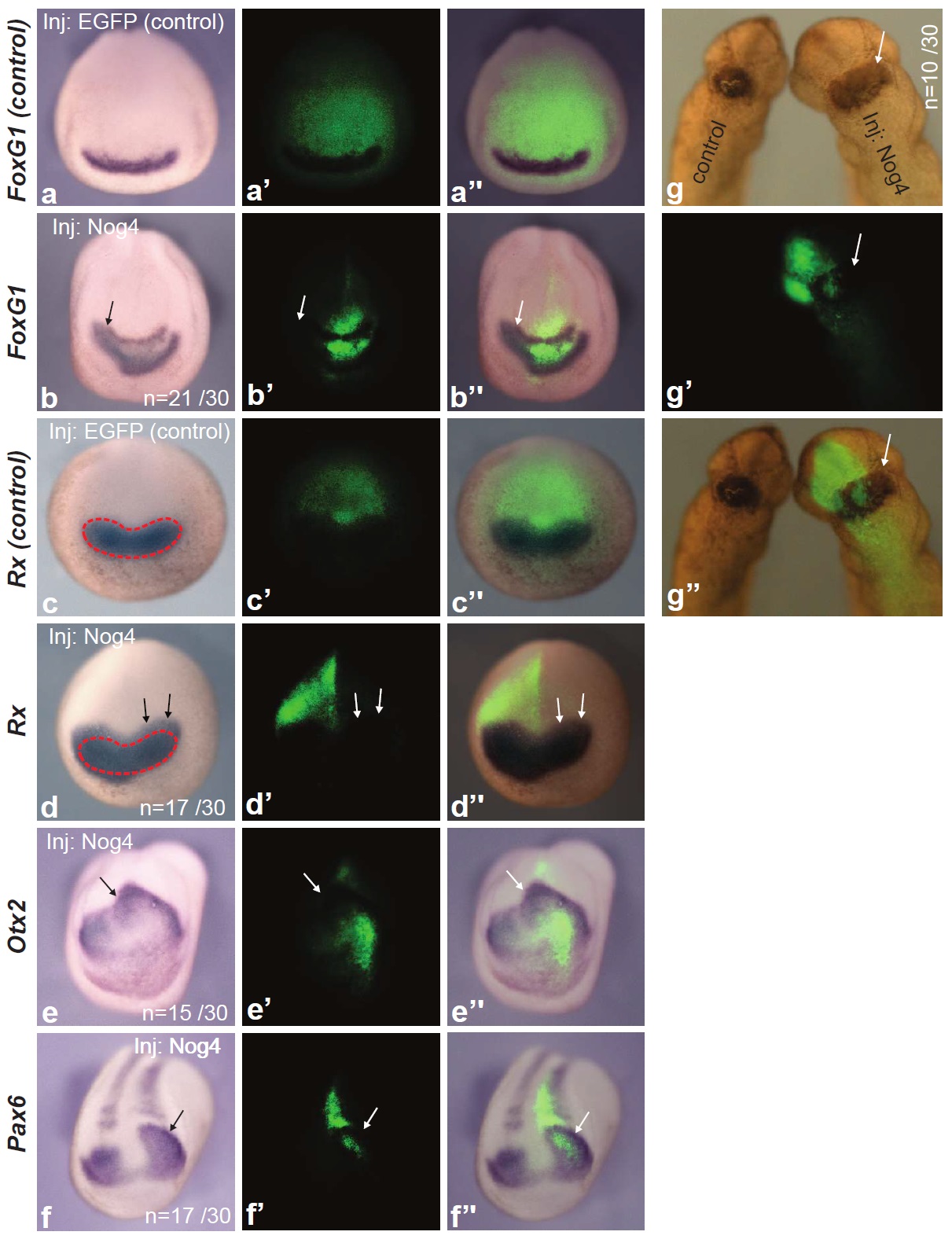

	Figure S1. Analysis of the expression pattern of Noggin4 and its ability to induce secondary axes. (a-f) The expression pattern of Noggin4 on successive stages, from the late blastula (stage 9) till early-midneurulas (stage 14), as revealed by the whole-mount in situ hybridisation. Note, that at all these stages, a maximum of the expression is located within the presumptive anterior neural plate. All embryos are shown from the vegetal pole, anterior to the top. (c’–f’) Vibratom sections of embryos at stage 10.5, 11.5 and 14 made as indicated on (c and e) by dashed lines. (g) Control in situ hybridization with sense probe to Noggin4 mRNA. (h and h’) Injection of 15 ng/blastomere of Noggin1 mRNA mixed with FLD, into the equatorial zone of ventral blastomeres at 4-cell stage induces formation of secondary body axes (98%, n=120; red asterisk— main axis; yellow asterisk— secondary axis). (i and i’) By contrast, injections by the same way of even 150 ng/blastomere of Noggin4 mRNA did not induce secondary axes at all (0%, n=120; asterisk— main axis).Abbreviations: bl — blastopore, dbl — dorsal blastopore lip, n —notochord, np— neural plate, s — somite. Bar everywhere is 100 m.

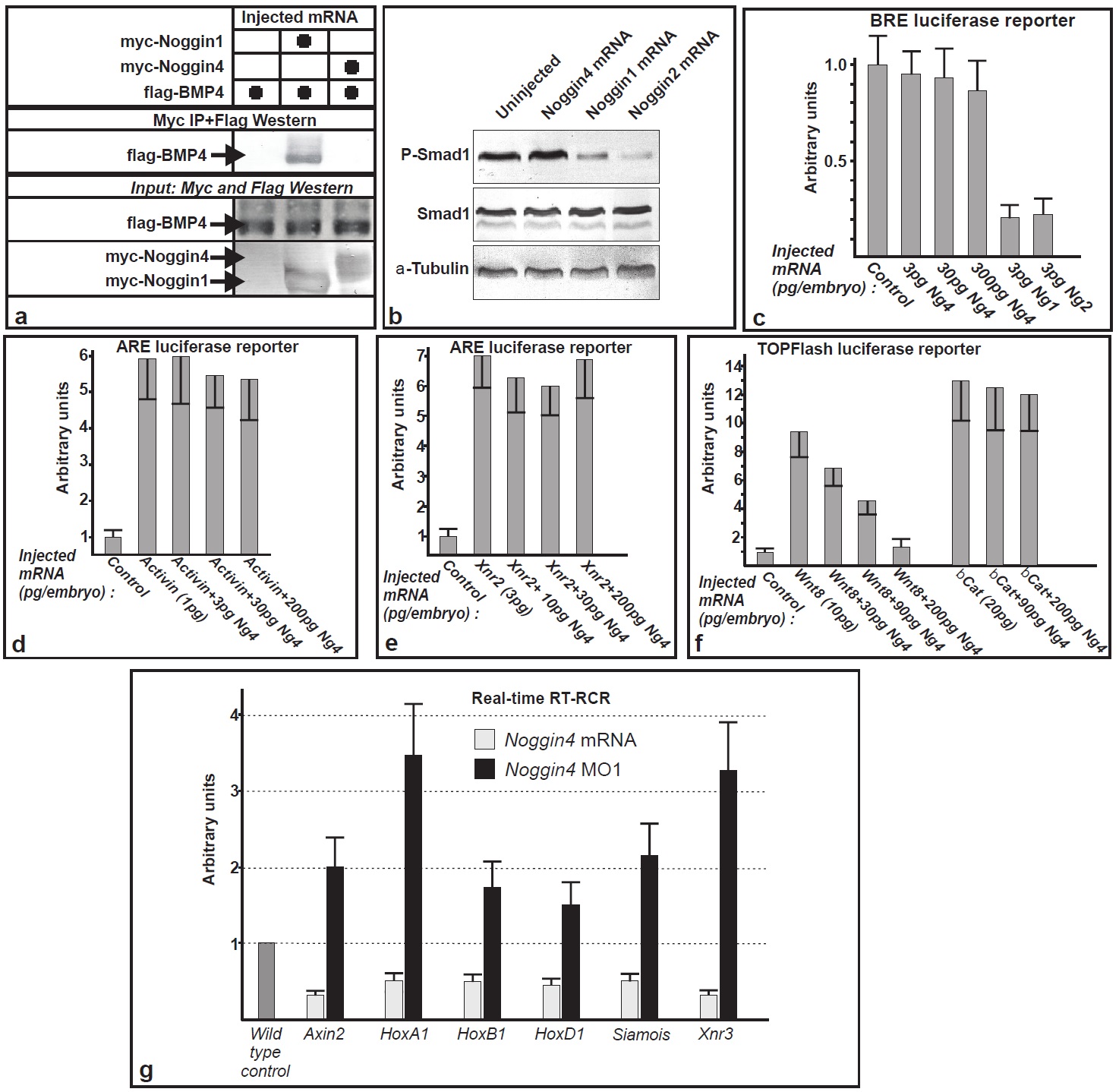

	Figure S2. Noggin4 cannot antagonise BMP and Activin/Nodal signalling but inhibits Wnt/b-Catenin pathway. (a) Comparison of Noggin1 and Noggin4 abilities to bind BMP4, using immunoprecipitation. (b) In contrast to Noggin1 and 2, Noggin4 does not cause reduction of endogenous phosphorylation of Smad1. Embryos were injected with Noggin1/2 or Noggin4 mRNA (100pg/embryo) and phosphoSmad1 was detected on Western-blot by anti-phosphoSmad1 antibody (Cell Signaling Technology, Inc.). Overall level of Smad1 was detected by anti-Smad antibodies (ab66737, Abcam). Alpha-tubulin serving as a loading control was revealed by anti-tubulin antibodies (DM1A, Sigma). In all these cases, Fab fagments of Anti-Rabbit antibodies conjugated to alkaline-phospotase (A3937, Sigma) were used for detection of primary antibodies. (c) Effects of Noggin1, Noggin2 and Noggin4 on expression of the BMP-specific luciferase reporter, BRE. Embryos at two-cell stage were injected with BRE plasmid, either alone (control) or mixed with Noggin1 or Noggin2 mRNAs taken in a fixed concentration, or Noggin4 mRNA taken in increasing concentrations. (d and e) Effects of Noggin4 on expression of the Smad2-specific reporter ARE activated by ActivinB or Xnr2. (f) The effect of Noggin4 on expression of the Wnt/b-Catenin-specific reporter TOPFlash activated by Wnt8 and b-Catenin . (g) qRT-PCR analysis of expression of the direct genetic targets of the canonical Wnt pathway: Axin2, HoxA1, HoxB1, HoxD1, Siamois and Xnr3, in the late gastrula embryos (stage 12) injected at 4-cell stage with Noggin4 mRNA or Noggin4 MO1. For each of the tested genes, the expression level in the wild-type embryos was taken as one unit.

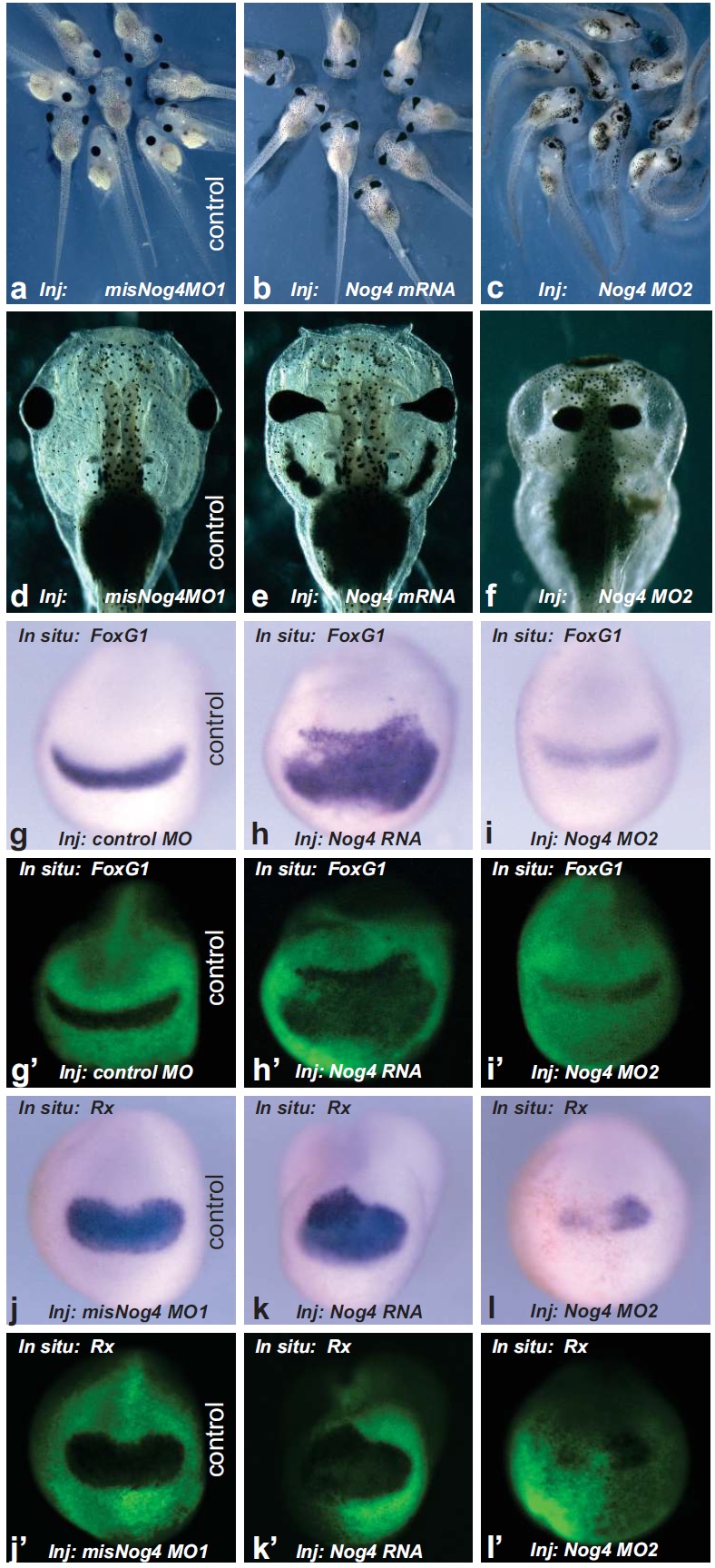

	Figure S3. Effects of Noggin4 mRNA and MO2 injections on tadpole head structures and expression of anterior markers, FoxG1 and Rx, at the midneurula stage. (a–c) 5 days tadpoles injected as indicated. (d–f) Heads of 5 days tadpoles injected as indicated are shown from the dorsal side, anterior to the top. (g-l’) In situ hybridisation with dig-probes to FoxG1 and Rx mRNA of midneurula embryos injected with control MO provided by GeneTools (100%, n=30 (g and g’)), Noggin4 mRNA (85%, n=30 (h and h’) and 61%, n=35 (k and k’)), misNoggin4 MO2 (100%, n=40 (i and i’, l and l’)), and misNoggin4 MO1 (100%, n=40 (f) and 80%, n=40 (i)).

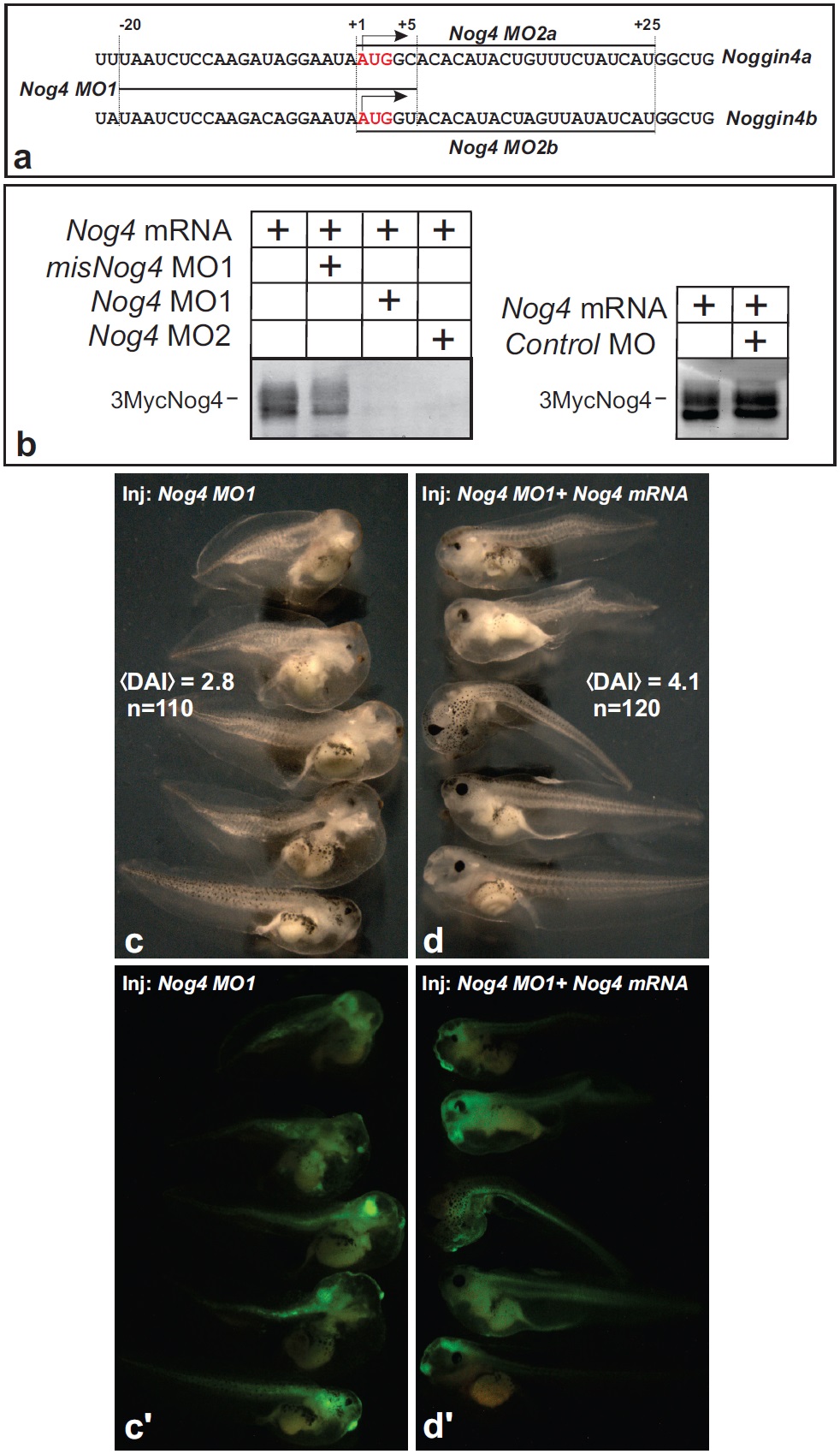

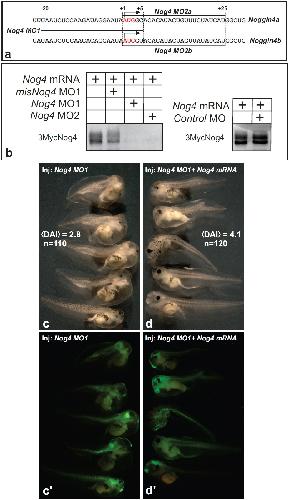

	Figure S4. Testing of MO specificity and efficiency. (a) Schema of the morpholino target sites location on both pseudoalleles of the Xenopus laevis Noggin4 mRNA. (b) 5’-UTR-Myc-Noggin4 mRNA were injected into each blastomere of 2-cell Xenopus laevis embryos (100 pg/blastomere), either alone or in a mixture with control misNoggin4 MO, MO1, MO2 (8 nl of 0.2 mM water solution) or the standard control MO provided by GeneTools (8 nl of 0.5 mM water solution). The injected embryos were collected at the midgastrula stage and analysed for presence of Myc-Noggin4 by Western blotting with anti-Myc antibody (see Materials and Methods for details). (c-d’) The specificity of the MO effects was confirmed by rescue experiments, in which Noggin4 MO1 was injected either alone (c and c’) or with Noggin4 mRNA deprived of the MO1 target site (d and d’). Medial Dorso-Anterior Index (DAI) was calculated for both types of tadpoles developed from the injected embryos.
	Figure S5. Noggin4 acts cell-non-autonomously when promoting the expression of anterior markers. (a) Control embryo injected in dorsal blastomeres with EGFP mRNA mixed with FLD tracer at 8-cell stage and hybridised at the midneurula stage with FoxG1 probe. This embryo is presented for comparison of width of the control FoxG1 expression band with width of FoxG1 expression band in the embryo injected with Noggin4 mRNA and shown on b. (b-f) Midneurula embryos injected with Noggin4 mRNA mixed with FLD tracer unilaterally, in one of the animal dorsal blastomeres, at 8-cell stage and hybridised with probes to the indicated marker genes. Arrows indicate areas in which overexpression of the tested marker genes does not match the localisation of FLD, thereby confirming cell-non-autonomous activity of Noggin4. (a’-f’) Fluorescent images of the same embryos as on a–f. (a”–f”) Superimposed images of a–f and a’–f’. (g–g”). An expanded cement gland on the non-injected side of the tail-bud stage embryo (right embryo), which was injected in the right animal dorsal and ventral blastomeres at 8-cell stage, confirms cell-non-autonomous activity of Noggin4.

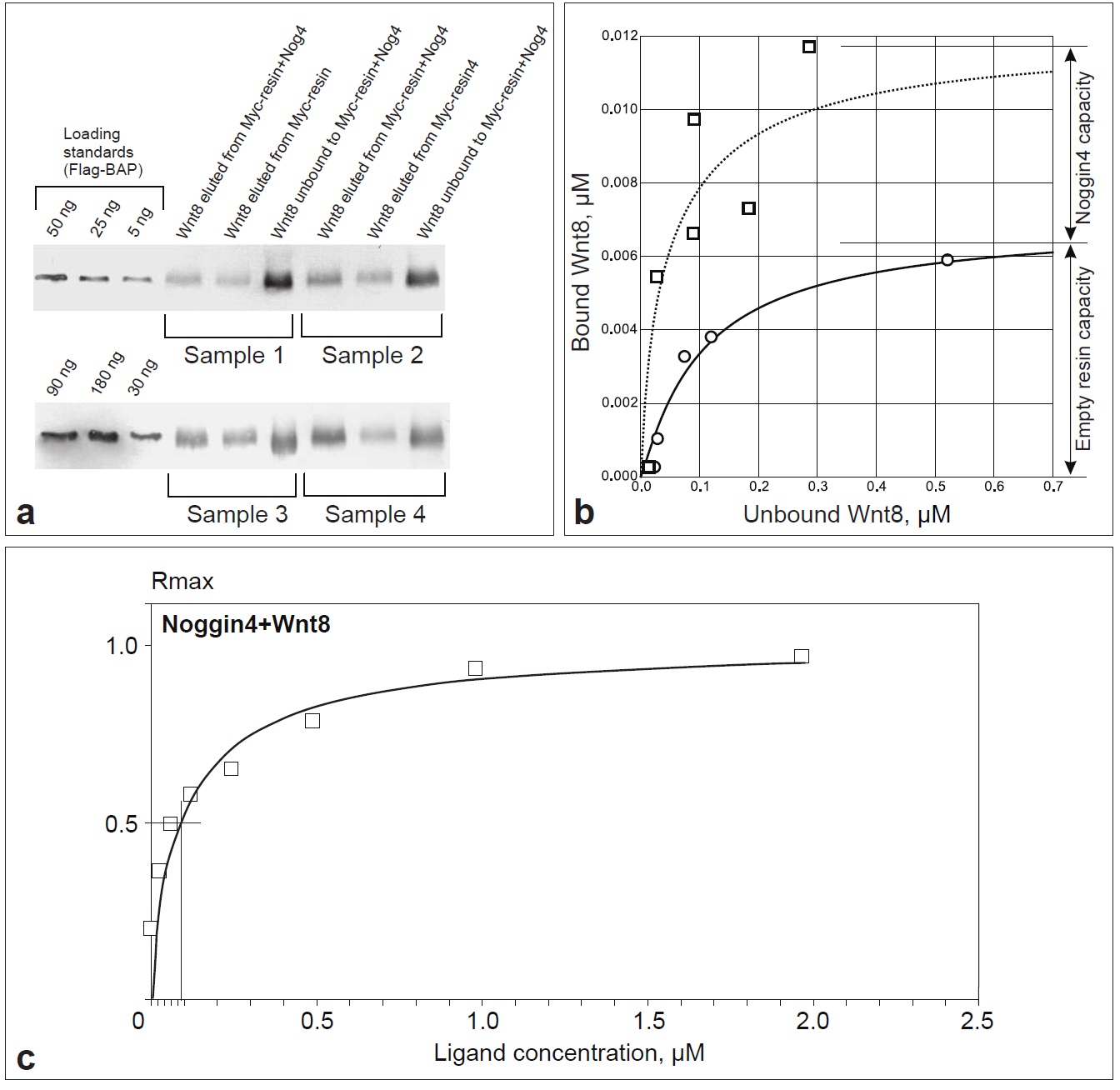

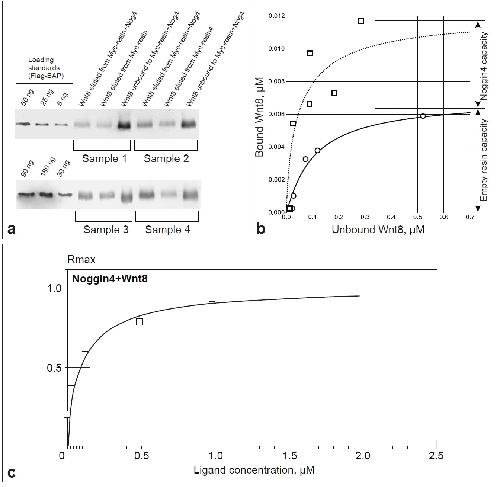

	Figure S6. In vitro analysis of Wnt8 binding to Noggin4 by quantitative co-immunoprecipitation and Surface Plasmon Resonance assay. (a) Representative examples of Western blotting (WB) with antiFlag-antibody of indicated amounts of Flag-BAP (loading standard), Flag-Wnt8 eluted by Myc-peptide after incubation with Myc-Resin+Myc-Noggin4, Flag-Wnt8 eluted by Myc-peptide after incubation with Myc-resin+control samples and unbound Flag-Wnt8 after incubation with Myc-Resin+Myc-Noggin4. Loading standards and experimental samples were put on the same gels. (b) Adsorption isotherms drawn over experimental points (Table S2) obtained from WB images. Theoretical fits based on equations (3) and (4) are depicted with solid and dashed lines, respectively. Parameter values are provided in Materials and Methods. (c) Titration curves obtained from SPR measurements for interaction between immobilised Noggin4 and Wnt8.

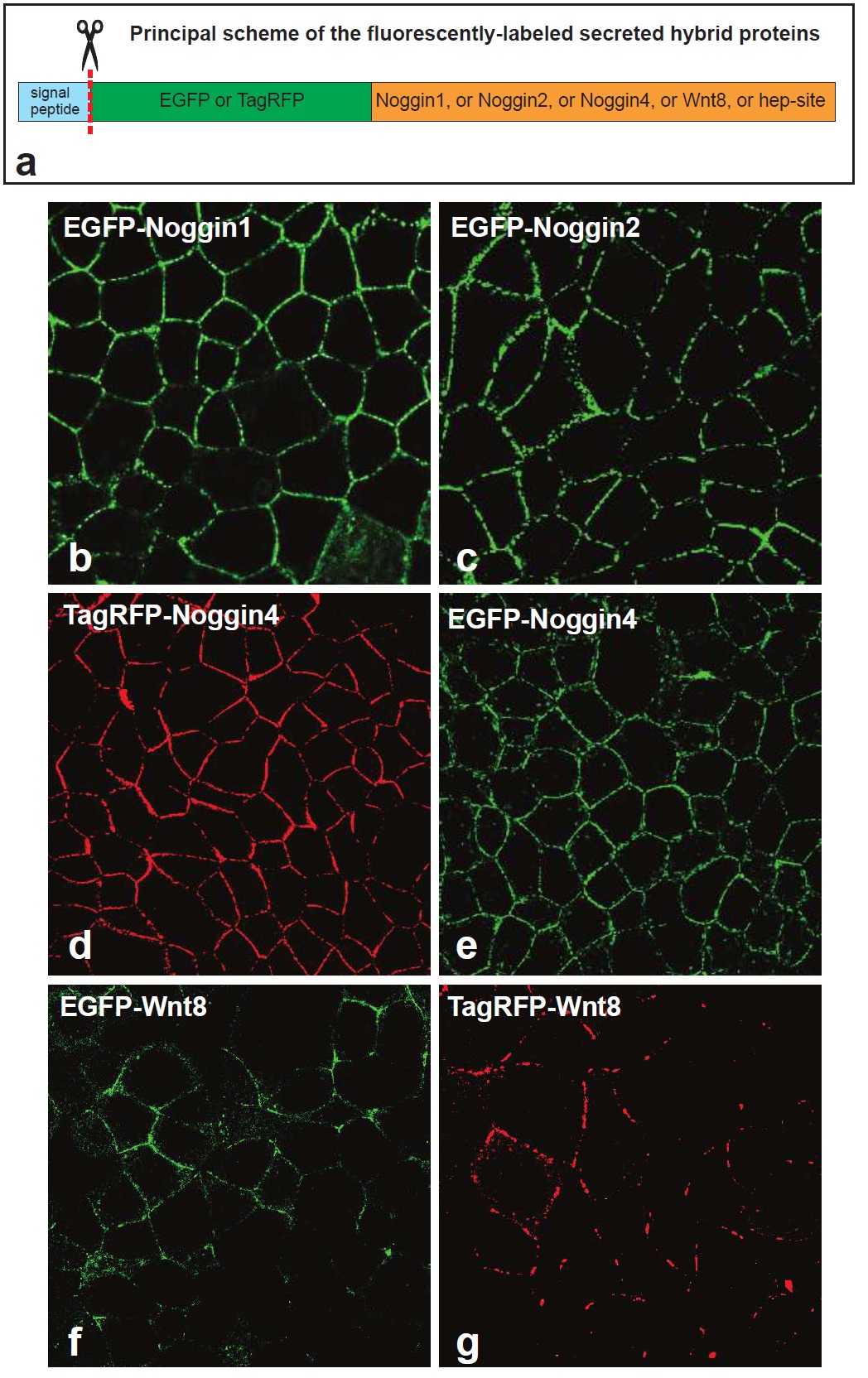

	Figure S7. Noggin1, Noggin2, Noggin4 and Wnt8 fused to EGFP or TagRFP are secreted into the intracellular space of animal ectoderm of the Xenopus laevis embryos. (a) Principal scheme of the fluorescently-labeled secreted proteins. (b-g) Visualisation of the indicated fusion proteins in the intercellular space of the animal ectoderm of living Xenopus laevis embryos. Embryos at 4-cell stage were injected into animal blastomeres with mRNAs encoding indicated fusion proteins. At early-midgastruala stage, the injected embryos were photographed from the animal pole using the confocal microscope.
	Figure S8. Fusions of Noggin1, Noggin2 and Noggin4 with EGFP retain their molecular and physiological activities. (a) EGFP-Noggin1 and EGFP-Noggin2 inhibit expression of the BMP-specific luciferase reporter, BRE, in Xenopus laevis embryos. The embryos were injected with BRE reporter plasmid, either alone (control) or mixed with EGFP-Noggin1 or EGFP-Noggin2 mRNAs. (b) EGFP-Noggin4 inhibits expression of the Wnt/b-Catenin-specific luciferase reporter, TOPFlash, in Xenopus laevis embryos. The embryos were injected either with TOPFlash reporter mixed with XWnt8 mRNA (control) or with TOPFlash reporter plasmid mixed with XWnt8 mRNA and increasing concentrations of EGFP-Noggin4 mRNA. (c and d). EGFP-Noggin4 mRNA co-injected with mRNA of the BMP inhibitor, truncated BMP receptor tBR, induces development of secondary trunk and head structures (better visible on c), including cyclopic eyes, in Xenopus laevis tadpoles (50%, n=70). Two different sets of tadpoles (obtained in the independent experiments) were photographed at stage 39 and 46 respectively. On c two upper tadpoles are shown from the right side and the bottom tadpole is shown from the ventral side. On d two upper tadpoles are shown from the right side and the bottom tadpole from the left side.
	Figure S9. Representative examples of FRAP in the intracellular space (IS) of animal ectoderm of embryos that secrete the hybrid proteins indicated on the left. Arrows indicate the margins of the bleached region.

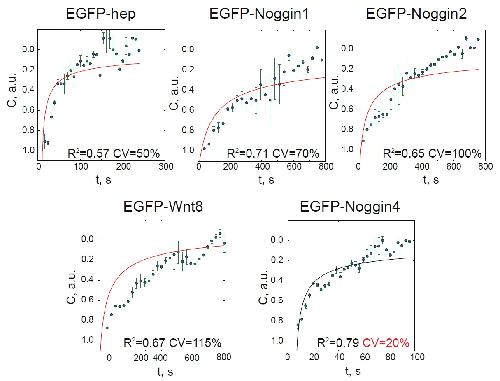

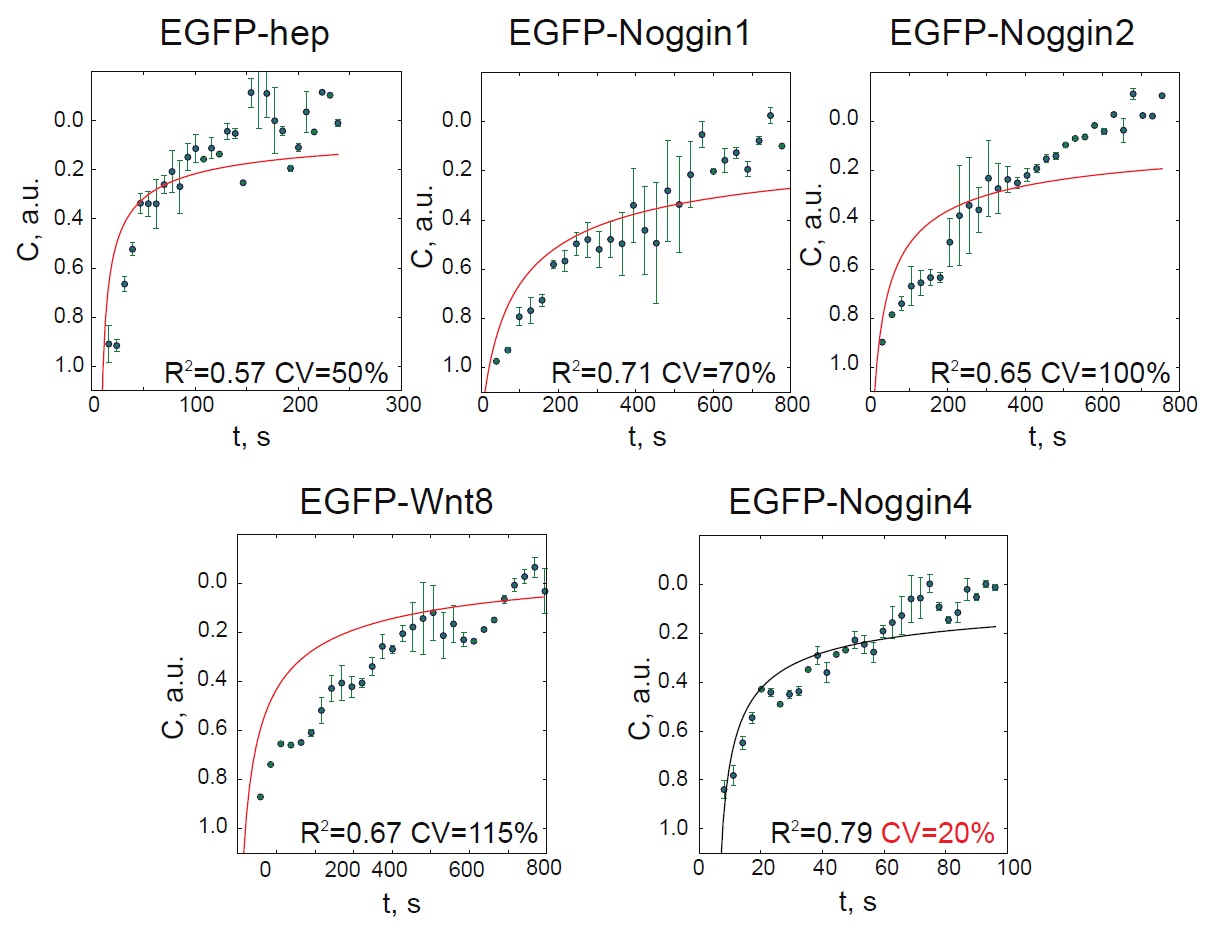

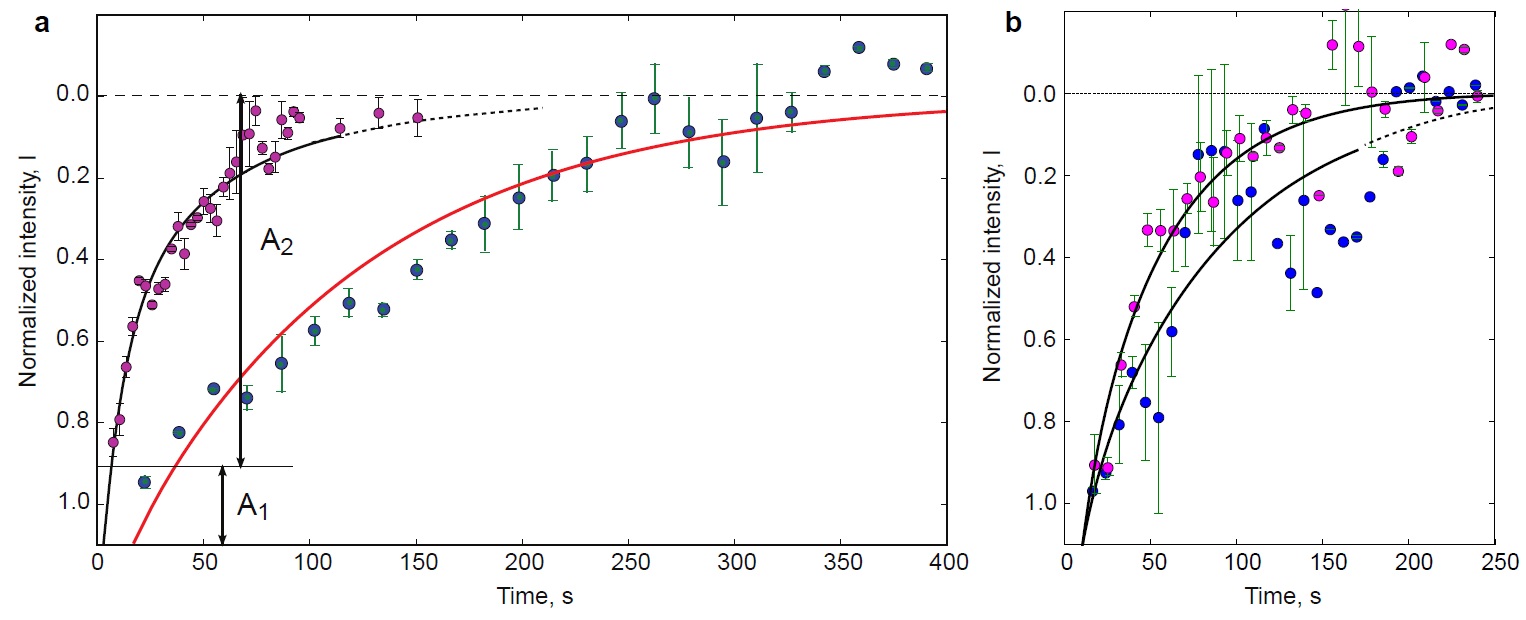

	Figure S10. FRAP data fitted to the equation (S1.2). Averaged normalised data with error bars and approximation curves are plotted for every experiment. The determination coefficient (R2) is presented for every group of observations. The lowest coefficient of variation (CV) of parameter D calculated for every separate measurement was observed for EGFP-Noggin4.

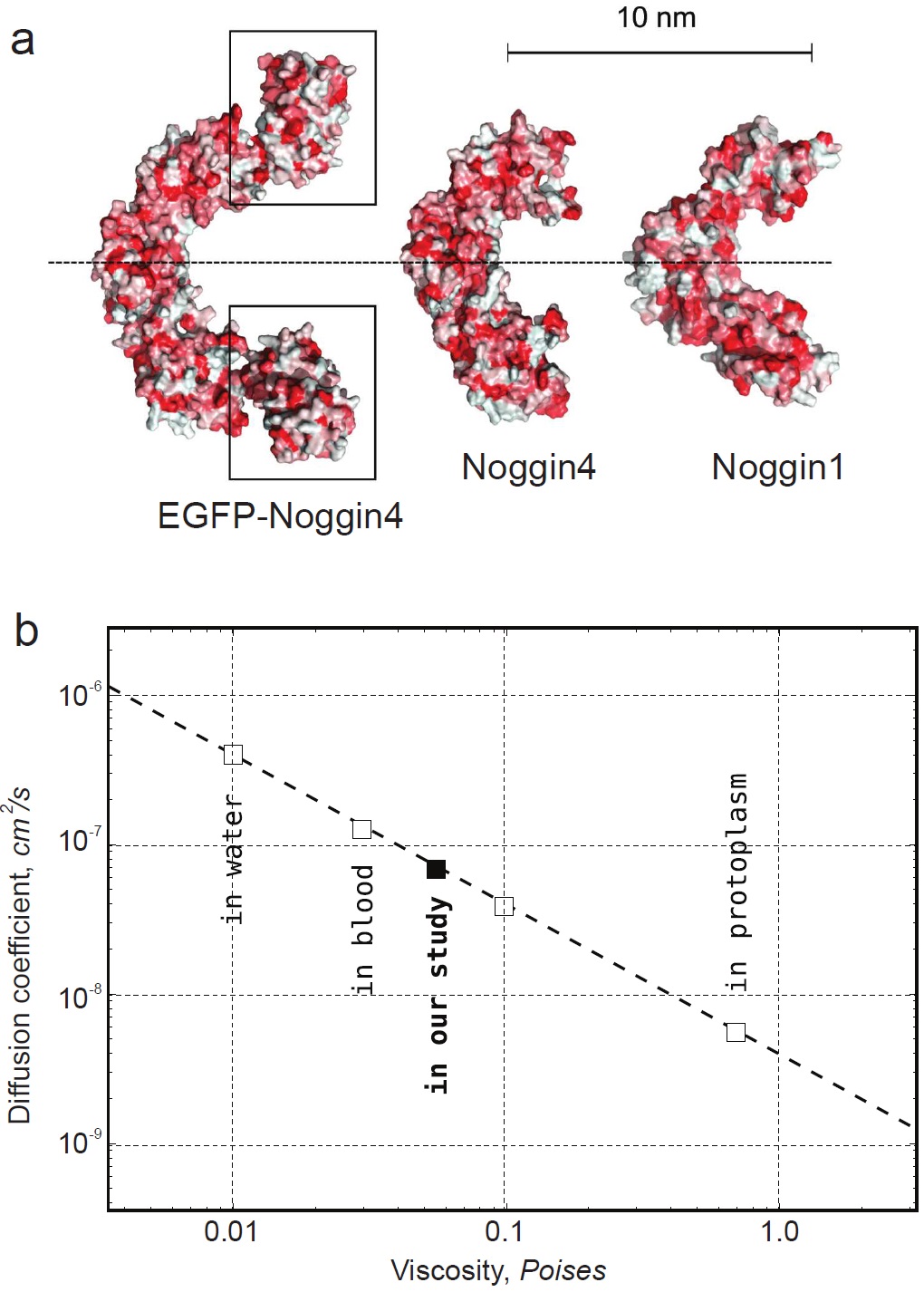

	Figure S11. Hydrodynamic modelling of Noggins diffusivity. (a) Solvent accessible surfaces of Noggin1, Noggin4 and EGFP-Noggin4 molecules were predicted by homological modelling and molecular dynamic equilibration. C2 symmetry axis (dashed line) passes through the interdimeric connection. Fused EGFP molecules are framed by rectangles. (b) Calculated diffusivity of the Noggin4-EGFP dimer in dependence of solvent viscosity. Viscosity values for water (at 300 K), blood3 and protoplasm4 were selected as calibration points.

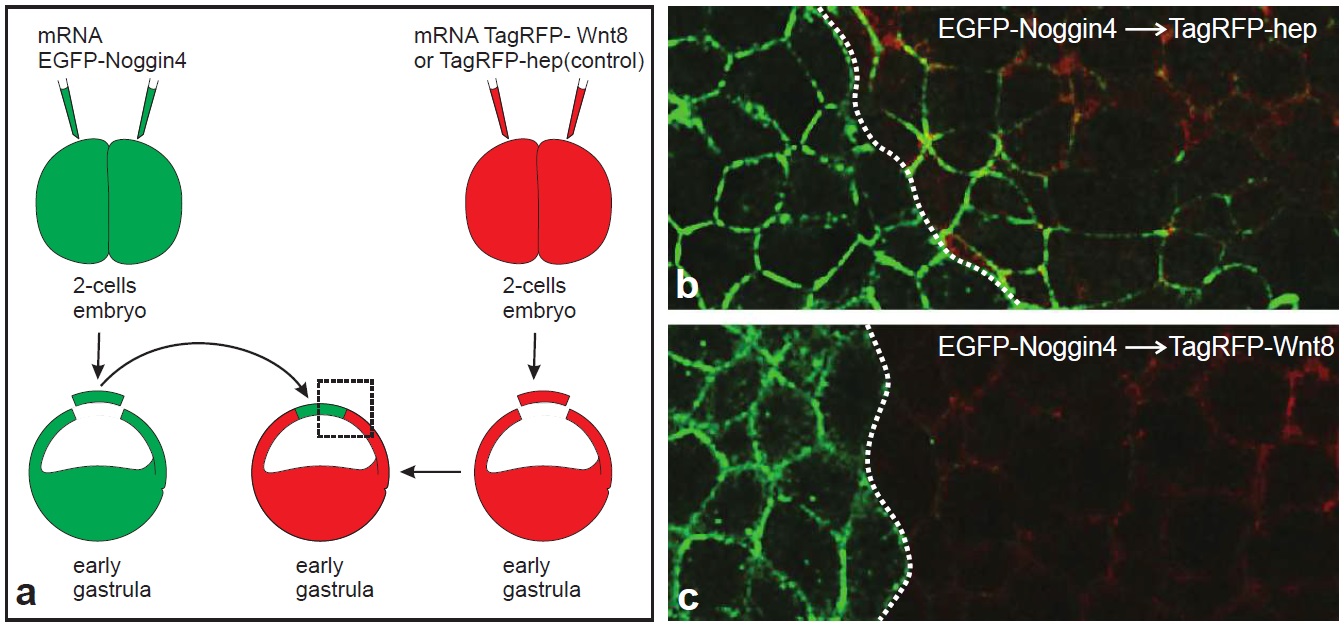

	Figure S12. Investigation of Noggin4 interaction with Wnt8 via the transplantation assay. (a) Schematic of the experiment. The region shown in b and c is framed by a dashed rectangle. (b and c) The diffusion of EGFP-Noggin4 from the transplant spreads substantially faster in the IS of the recipient embryo that secretes TagRFP-hep (c) compared with the recipient embryo that secretes TagRFP-Wnt8 (b). In each case, the border between the transplant and the recipient tissues is marked by a white dotted line. Animal pole view.

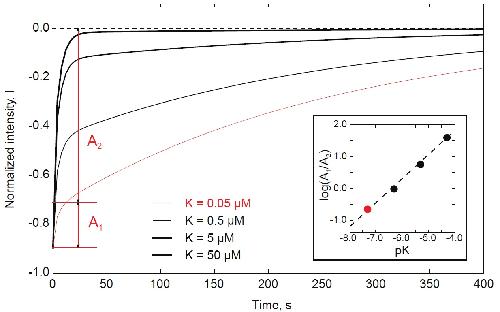

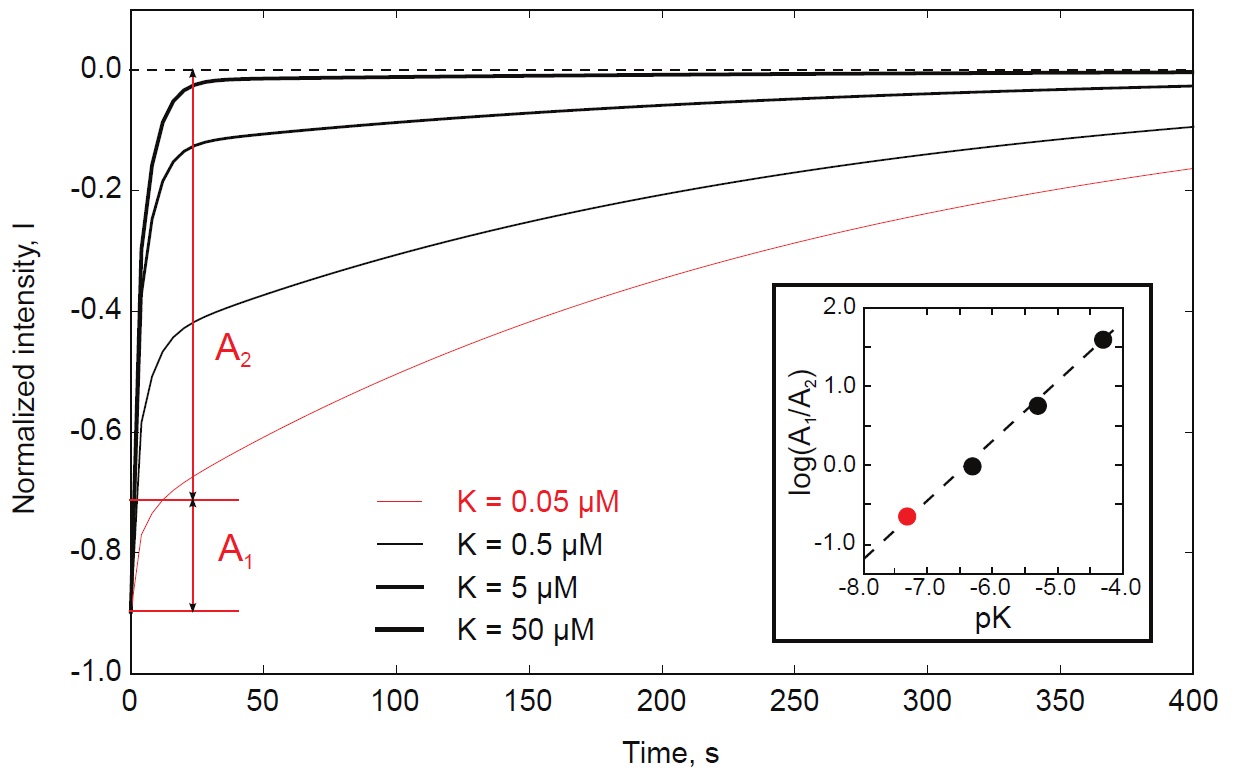

	Figure S13. FRAP kinetics with different dissociation constants formed by numerical solution of the system of equations (S1.5). Parameter values were set as following: ko f f = 1=250sô€€€1; l = 7:5mm; b(0) = a(0) = 1mM; D = 1mm2=s; initially bleached protein was distributed normally with dispersion equal to a half of the reactor length l. The step of the coordinate grid was l/100; integration step was 2 10ô€€€4 s. Every numerical curve was fitted to the two-exponential equation and the ratio of pre-exponential factors A1;2 (S1.11) is shown against the dissociation constant in double-logarithmic coordinates (insert).

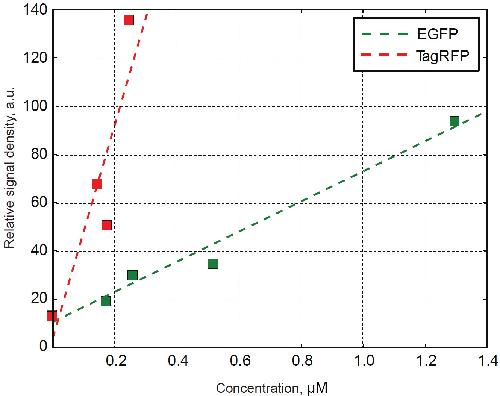

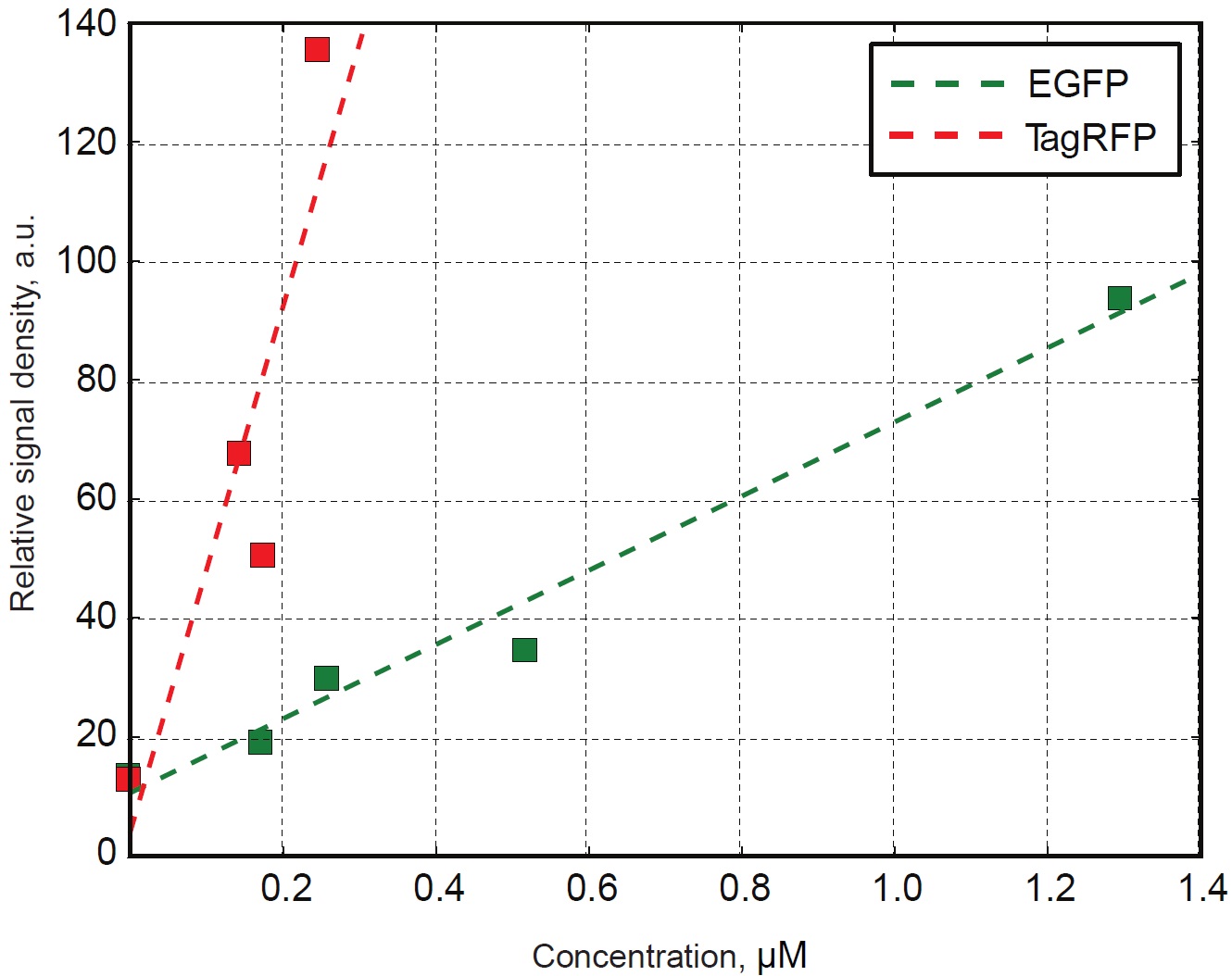

	Figure S14. Calibration of the confocal microscope. Calibration curves for EGFP (green) and TagRFP (red) proteins under the most usable microscopy settings.
	Figure S15. Diffusion retardation of EGFP-Noggin4 in the presence of TagRFP-Wnt8. FRAP curves of EGFP-Noggin4 (a) and EGFP-hep (b) were measured in the area of co-localisation with TagRFP-Wnt8 (blue circles). FRAP kinetics of EGFP-Noggin4 (a) and EGFP-hep (b) in the absence of TagRFP-Wnt8 are depicted by violet circles. Recovery kinetics of EGFP-Noggin4 and EGFP-hep in the presence of TagRFP-Wnt8 was fitted by the model described by the equation (S1.5) (Supplementary Materials and Methods, 1.2). The following parameter values were used: ko f f = 0:01s􀀀1; kon = 105M􀀀1s􀀀1; l = 7:5mm; [B]0 = [A]0 = 1mM; D = 1mm2=s; the initial distribution of both bleachable substances was c(x) = c0 sin(px=l), EGFP-Noggin4 (“A” in (S1.3) notations) or EGFP-Noggin4-Wnt8 complex (“C” in (S1.3) notations). The curves obtained in the absence of TagRFP-Wnt8 were fitted using the two-exponential kinetics (S1.11).

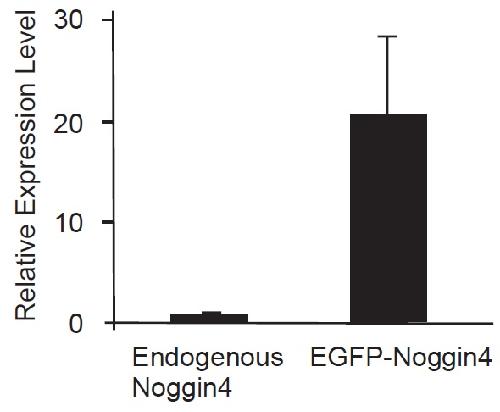

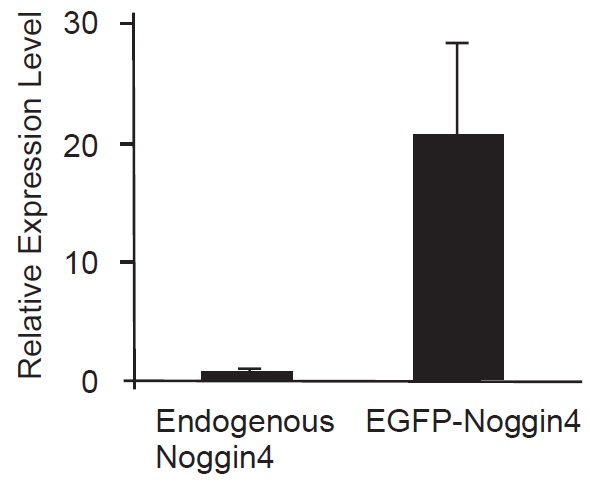

	Figure S16. Relative concentrations of the endogenous Noggin4 and EGFP-Noggin4 mRNAs in the ectodermal explants of the midgastrula stage embryos. 70 pg of EGFP-Noggin4 mRNA was injected into the animal pole cytoplasm of each dorsal blastomere of 4-cell stage embryos. The dorsal ectoderm explants were excised and collected from injected and wild-type, non-injected, sibling embryos at stage 11, followed by RNA extraction. qRT-PCR with primers for Noggin4 and EGFP was performed for samples obtained from non-injected and injected embryos, respectively. The data were normalised relative to expression of two housekeeping genes, ODC and EF1a as described in.5 The expression level of the endogenous Noggin4 in the wild-type samples was used for normalisation and regarded as one unit.
	Figure 1. Properties of Noggin4.(a) Alignment of Xenopus laevis Noggins. Positions essential for Noggin1 binding to BMP1 are indicated by red arrows. HSPG binding motifs and cleavage sites are indicated by green and red dashed lines, respectively. (b) Whole-mount in situ hybridization of a midneurula embryo with dig-probe to Noggin4 mRNA. Dorsal view at the top, the right-frontal view at the bottom. (c) Effects of Noggin4 mRNA (80%, n = 120) and MO1 (85%, n = 130) injections on the development of head structures. Cg-cement gland. (d–s) In situ hybridization with dig-probes to FoxG1, Rx, Otx2 and Pax6 mRNA of midneurula embryos injected with GFP mRNA (control) (0%, n = 40; 0%, n = 50; 0%, n = 40; 0%, n = 30, abnormal phenotypes respectively), Noggin4 mRNA (85%, n = 30; 61%, n = 35; 81%, n = 40; 65%, n = 40 abnormal phenotypes respectively), Noggin4 MO1 (90%, n = 50; 86%, n = 40; 60%, n = 40; 60%, n = 40, abnormal phenotypes respectively) and misNoggin4 MO1 (control) (0%, n = 30; 0%, n = 30; 0%, n = 40; 0%, n = 30, abnormal phenotypes respectively). Red dashed line surrounds the presumptive rostral forebrain territory. Anterior view, dorsal to the top.

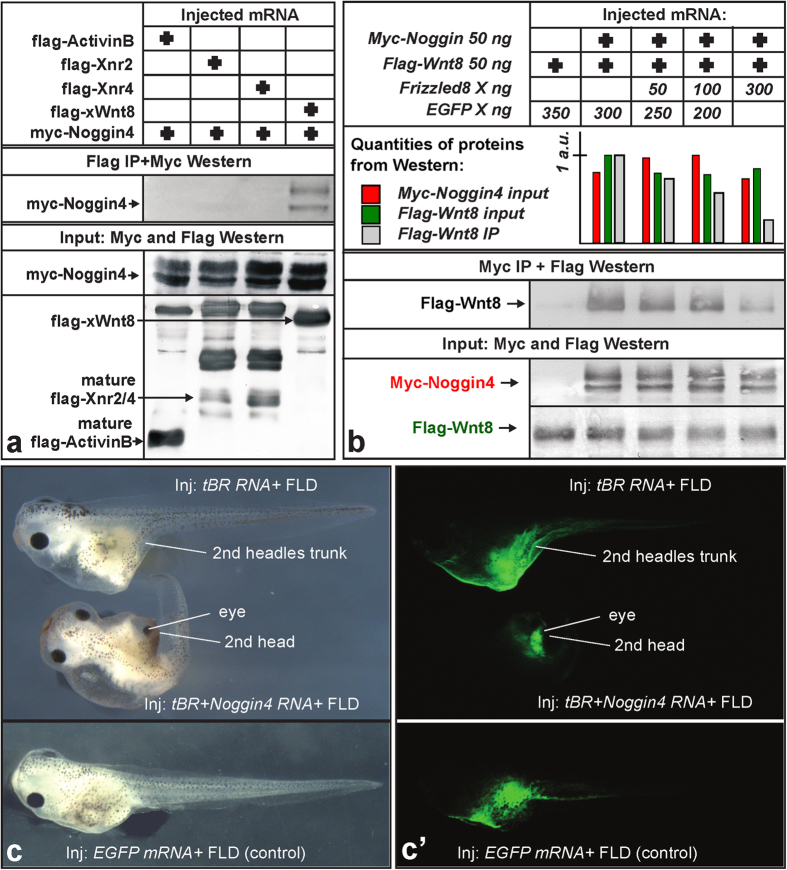

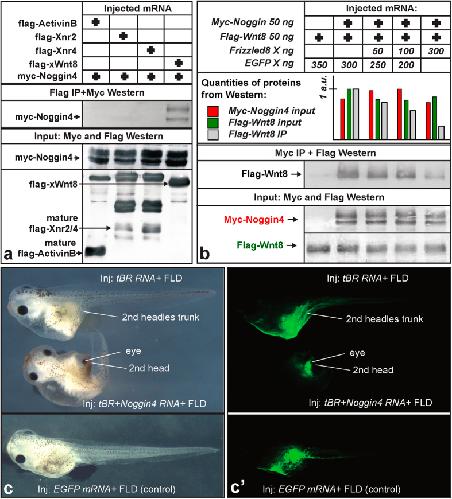

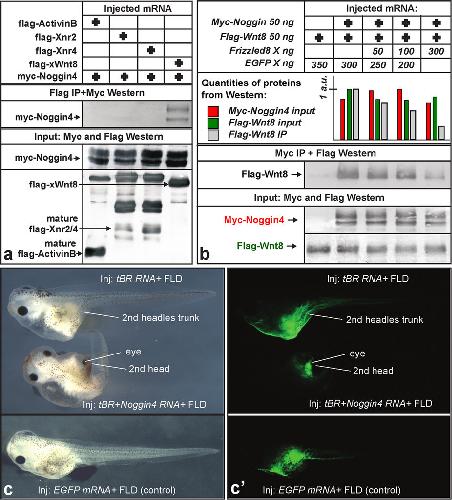

	Figure 2. Noggin4 binds and antagonises Wnt8.(a) Analysis of Noggin4 interactions with ActivinB, Xnr2, Xnr4 and XWnt8 by CoIP assay. (b) Frizzled8 competes with Noggin4 for Wnt8 binding in the CoIP assay. Embryos were injected at the 2-cell stage with Noggin4 and Wnt8 mRNA or with these mRNAs mixed with increasing amounts of Frizzled8 mRNA as indicated. CoIP was conducted using crude extracts of the mid-gastrula embryos as described by52. See Methods section for the method of WB quantification. (c) Induction of a secondary head with a cyclopic eye by co-injection of Noggin4 and tBR mRNA (60%, n = 70). tBR mRNA injected alone induces only a secondary trunk (80%, n = 70). No secondary axes were observed in the control embryos injected by EGFP mRNA (100%, n = 60). (c’) Location of co-injected Fluorescein-Lysin-Dextran (FLD) in tadpoles shown in (c).

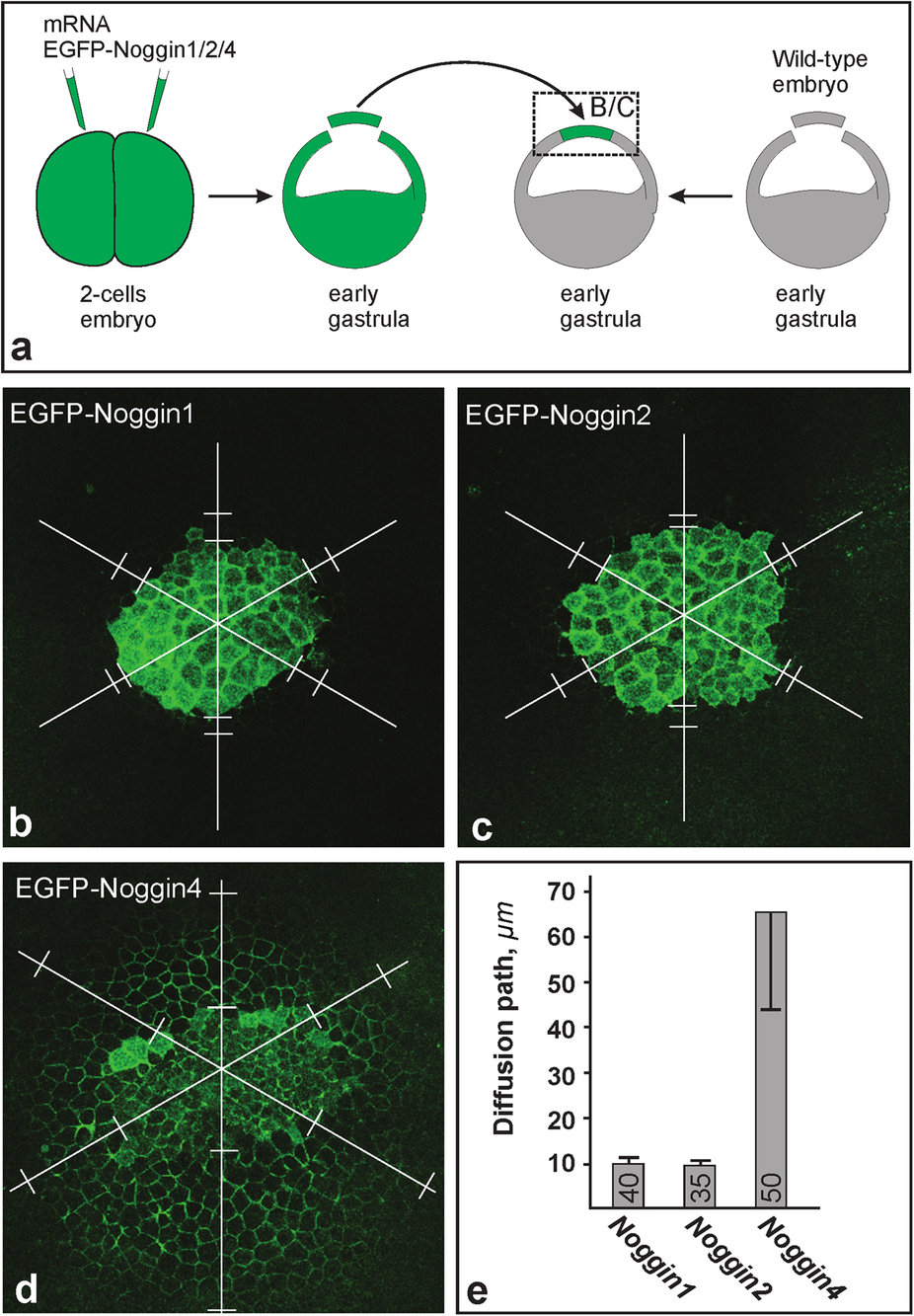

	Figure 3. Diffusion of EGFP-Noggin1/2/4 from the ectodermal grafts.(a) Experimental design. The region that corresponds to images (b–d) is framed by a dashed rectangle. (b–d) Representative examples of the grafts 1 hour after transplantation. Note that in contrast to recipient embryo cells, graft cells contain EGFP-Noggin1/2/4 in the cytoplasm. To compare the diffusibility of the EGFP-Noggin1/24, the diffusion path (DP) was measured for each graft in six directions (white lines radiated under 60 degrees from the approximate centre of the graft), beginning from the graft border until the point at which the EGFP fluorescence level in an IS became equal to the background fluorescence level in the donor IS (pairs of white bars perpendicular to the radial lies). (e) Medium DP and deviation calculated for all grafts per type (number of grafts is indicated within each column).

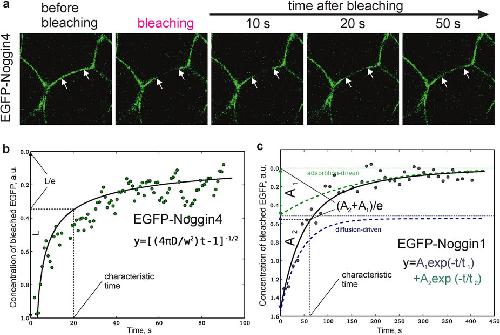

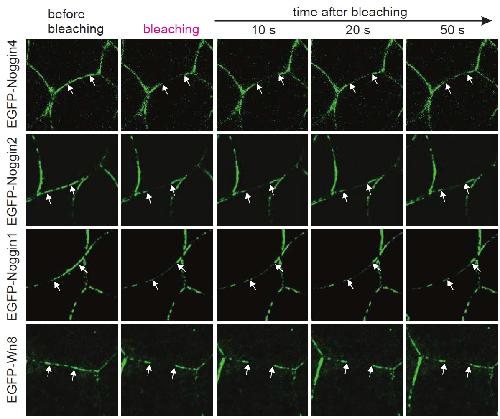

	Figure 4. Analysis of Noggins and Wnt8 diffusivity.(a) Representative snapshot images of the photobleaching procedure of EGFP-Noggin4 in IS. Arrows indicate the margins of the bleached region. Snapshots for other studied proteins are presented at Fig. S9. Representative examples of EGFP-Noggin4 (b) and EGFP-Noggin1 (c) FRAP kinetics in single zones of the ectodermal IS. Equations and curves that fit the obtained data sets are shown under the curves.

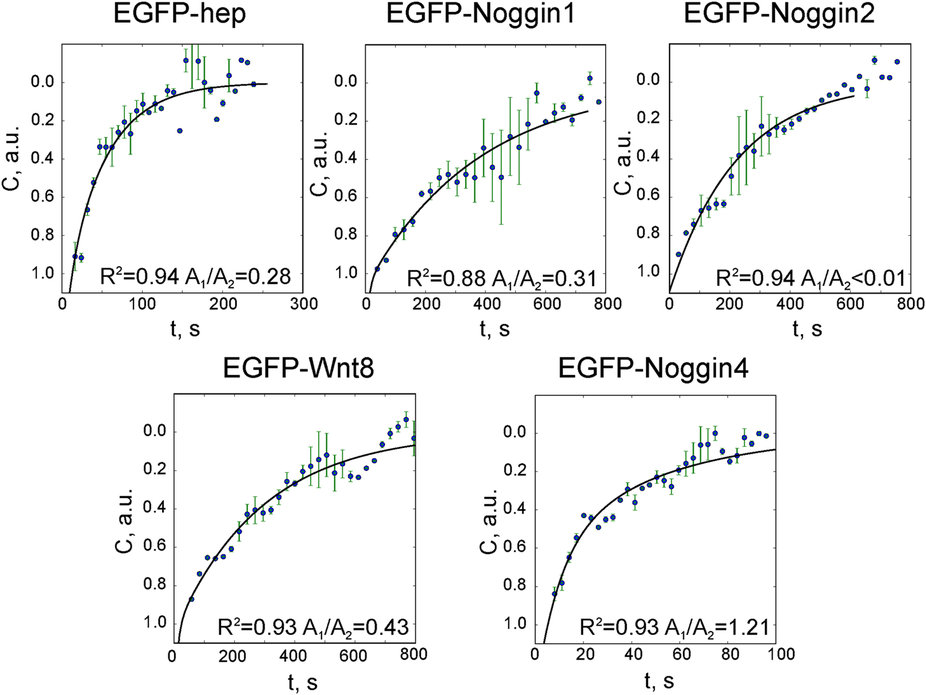

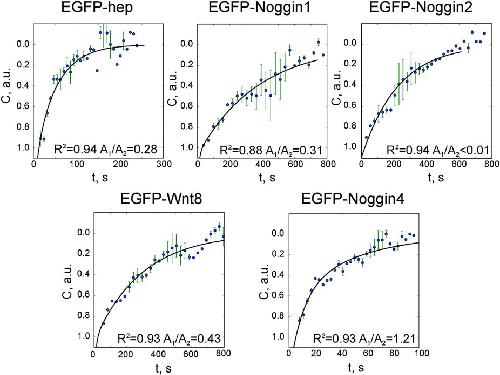

	Figure 5. FRAP data fitted with a two-exponential equation.Averaged normalised data with error bars and approximation curves are plotted for each experiment. The determination coefficient (R2) is presented for each group of observations, as well as the weight of the fast exponent, α = A1/A2 (as shown in Fig. 4); this value reflects the ratio of free-to-adsorbed protein (analysis details are described in Supplementary Materials and Methods, 1.3).

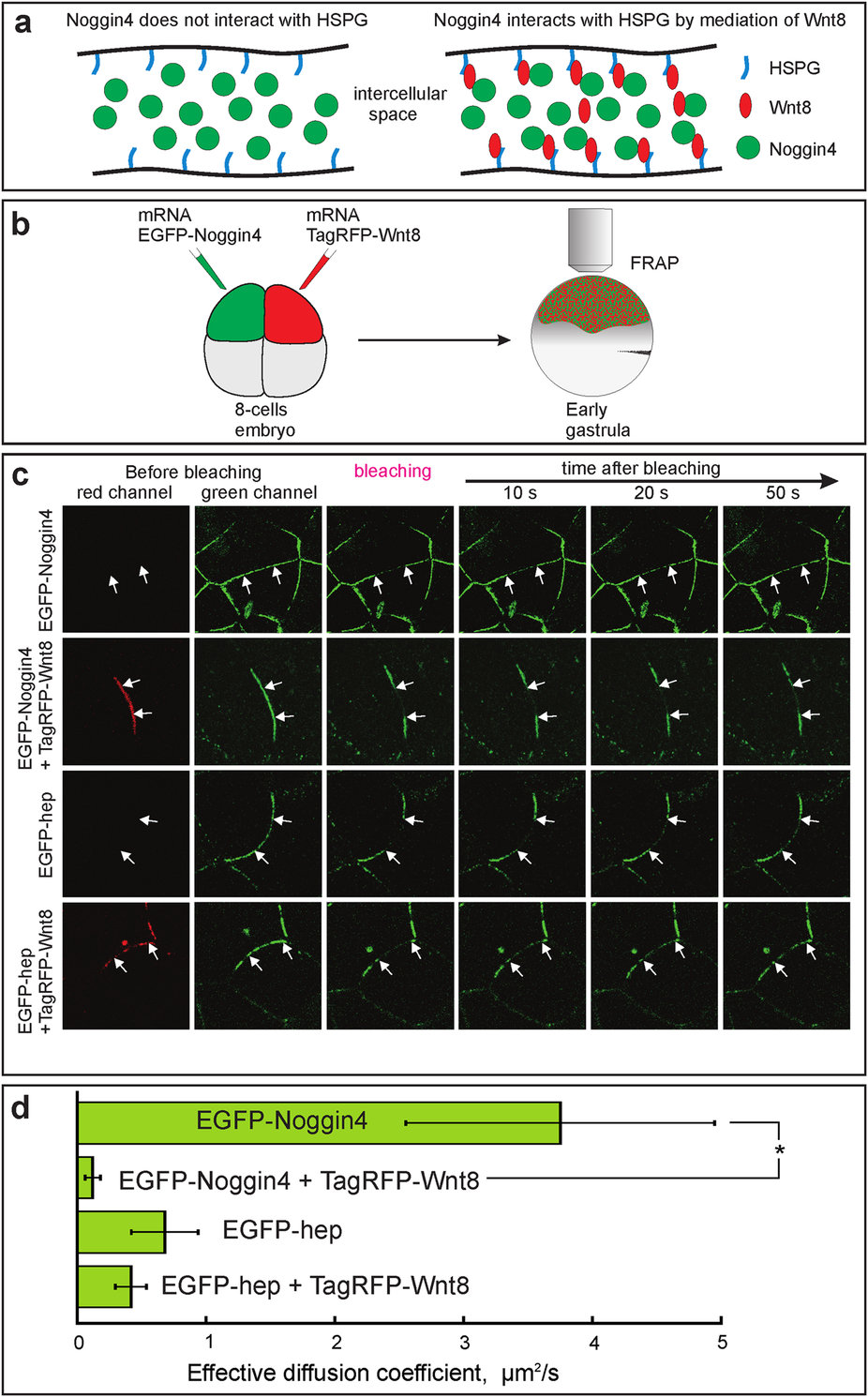

	Figure 6. Investigation of Noggin4 interaction with Wnt8 in living embryos via FRAP assay.(a) The cartoon explains how free diffusion of Noggin4 is retarded by its interaction with Wnt8 adsorbed on HSPG. (b) Schema for obtaining embryos that express EGFP-Noggin4 and TagRFP-Wnt8 in different cells. (c) Representative examples of FRAP in the intracellular space of animal ectoderm in embryos injected, as shown in B, with mRNAs of indicated fluorescently labelled proteins. Arrows mark the borders of the bleached region. (d) Mean values of the effective diffusion coefficients of EGFP-Noggin4 and EGFP-hep measured experimentally and shown in (a–c). Five to 7 series of experiments (10 to 20 individual measurements per experiment) were conducted for each of the four types of injections. Averaged FRAP curves are presented at Fig. S15.

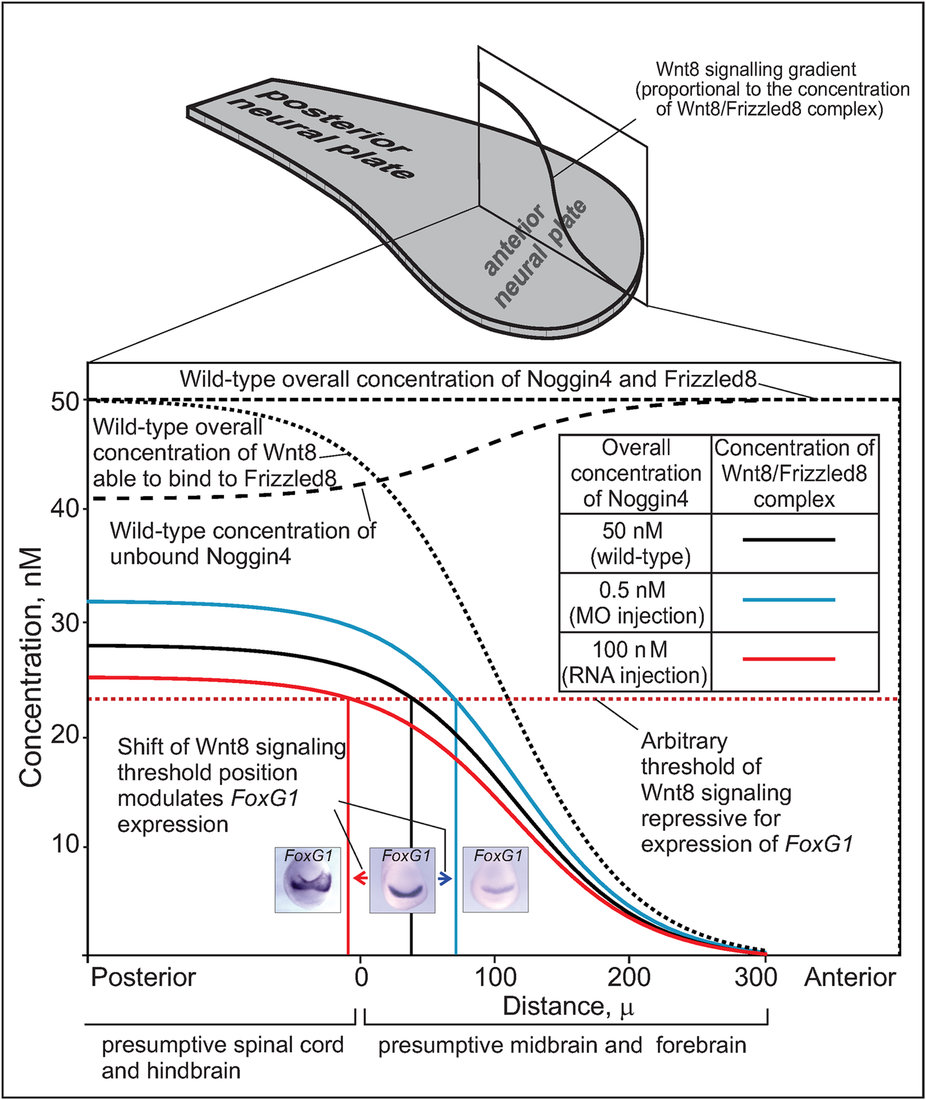

	Figure 7. Mathematical modelling of the Noggin4 influence on the anterior-posterior Wnt8 signalling gradient.During neurulation, Wnt8 diffusing from the posterior regions within the anterior neural plate and interacting there with Frizzled8 forms a gradient of Wnt8 signalling, which is schematically presented by a solid black line within the rectangle standing along the neural plate midline on the schema shown above. Coloured curves within an enlarged version of this rectangle (below) demonstrate the theoretically calculated spatial distribution of the Wnt8/Frizzled8 complex (i.e., Frizzled8 receptor activated by Wnt8 binding) at three concentrations of Noggin4 (wild-type, decreased by Noggin4 MO injections and incresased by Noggin4 mRNA injections) indicated in the inserted table. Three inserted photos illustrate the assumed effects of the corresponding spatial shifts of the Wnt8/Frizzled8 complex arbitrary threshold concentration on the forebrain marker FoxG1 expression. See main text, Supplementary Materials and Methods 4.2 and Fig. 1 for details.
