Turner-Bridger B et al. (2018), Single-molecule analysis of endogenous β-actin ...

XB-ART-55442

Proc Natl Acad Sci U S A 2018 Oct 09;11541:E9697-E9706. doi: 10.1073/pnas.1806189115.

Show Gene links Show Anatomy links

Single-molecule analysis of endogenous β-actin mRNA trafficking reveals a mechanism for compartmentalized mRNA localization in axons.

Turner-Bridger B , Jakobs M , Muresan L , Wong HH , Franze K , Harris WA , Holt CE .

???displayArticle.abstract???
During embryonic nervous system assembly, mRNA localization is precisely regulated in growing axons, affording subcellular autonomy by allowing controlled protein expression in space and time. Different sets of mRNAs exhibit different localization patterns across the axon. However, little is known about how mRNAs move in axons or how these patterns are generated. Here, we couple molecular beacon technology with highly inclined and laminated optical sheet microscopy to image single molecules of identified endogenous mRNA in growing axons. By combining quantitative single-molecule imaging with biophysical motion models, we show that β-actin mRNA travels mainly as single copies and exhibits different motion-type frequencies in different axonal subcompartments. We find that β-actin mRNA density is fourfold enriched in the growth cone central domain compared with the axon shaft and that a modicum of directed transport is vital for delivery of mRNA to the axon tip. Through mathematical modeling we further demonstrate that directional differences in motor-driven mRNA transport speeds are sufficient to generate β-actin mRNA enrichment at the growth cone. Our results provide insight into how mRNAs are trafficked in axons and a mechanism for generating different mRNA densities across axonal subcompartments.

???displayArticle.pubmedLink??? 30254174
???displayArticle.pmcLink??? PMC6187124
???displayArticle.link??? Proc Natl Acad Sci U S A
???displayArticle.grants??? [+]

Species referenced: Xenopus laevis
Genes referenced: igf2bp3 pou4f1

???attribute.lit??? ???displayArticles.show???

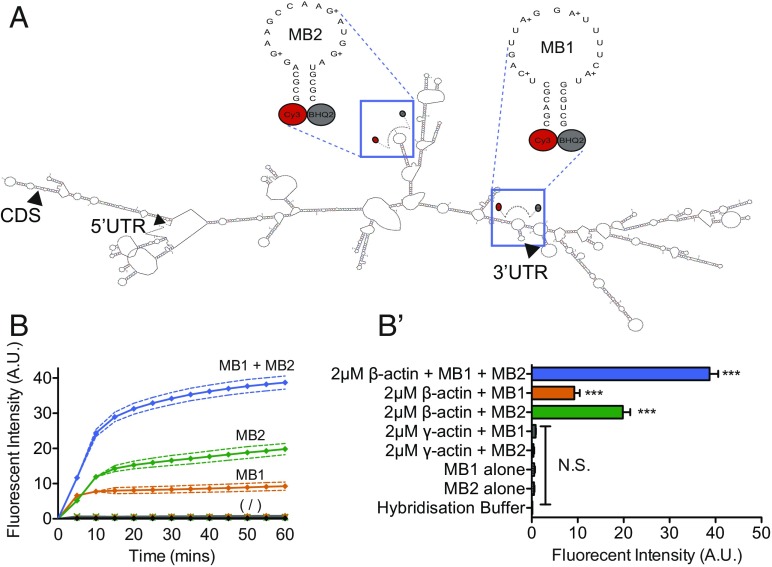

	Fig. 1. Molecular beacons selectively label Î²-actin mRNA to single-nucleotide precision in vitro. (A) Schematic showing the predicted secondary structure of the sequences of each molecular beacon used to target Î²-actin mRNA (mFOLD) and the molecular beacon sequences used to target predicted single-stranded regions in the mRNA. Arrowheads indicate the start site of the 5â² UTR, coding sequence (CDS), and 3â² UTR. (B) The addition of 2-Î¼M Î²-actin mRNA to 1-Î¼M solutions of MB1 or MB2 significantly increased the fluorescent intensity of the solutions compared with MBs in hybridization solution alone and cumulatively amplified fluorescence further when 2-Î¼M Î²-actin mRNA was added to 1-Î¼M solutions of MB1 and MB2 together (MB1 + MB2). Below the symbol (/) are the changes in fluorescence over time for 1 Î¼M MB1 alone, 1 Î¼M MB2 alone, hybridization buffer alone, 2 Î¼M Î³-actin + MB1, and 2 Î¼M Î³-actin + MB2. In contrast, the addition of 2-Î¼M Î³-actin mRNA did not elicit a change in fluorescent intensity in solutions containing 1 Î¼M of either MB1 or MB2. (Bâ²) For a clearer comparison, Bâ² shows the fluorescent intensity of each condition at 60 min. ***P < 0.0001 unpaired Students t test; N.S., not significant; n = 3 replicates per condition.

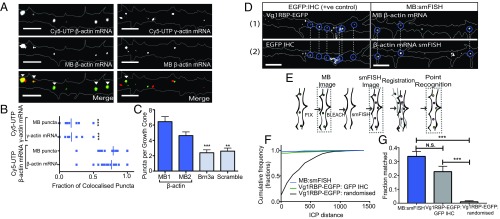

	Fig. 2. Molecular beacons label Î²-actin mRNA in growing axons. (A) MBs colocalize significantly more with exogenous fluorescently tagged Î²-actin mRNA than with exogenous fluorescently tagged Î³-actin mRNA in growing RGC axons. (Scale bars: 5 Î¼m.) (B) Quantification of colocalization between Î²-actin mRNA-targeting MBs and exogenous Cy5-UTP Î²-actin mRNA and Cy5-UTP Î³-actin mRNA. P < 0.0001, n = 21 axons and 11 axons, respectively. (C) MBs targeting Î²-actin mRNA showed significantly more puncta per growth cone than control MBs targeting Brn3a mRNA or a scrambled sequence. P = 0.0043, P = 0.001, unpaired t test. n = 64, 73, 82, and 86 axons for Î²-actin MB1, Î²-actin MB2, Brn3a, and the scrambled sequence, respectively. (D) MBs and smFISH puncta could be observed to mark the same place in nonsimultaneous images, similar to EGFP puncta and IHC against EGFP. (Scale bars: 5 Î¼m.) (E) Schematic showing the workflow for the registration of nonsimultaneous images used to quantify colocalization. (F) Cumulative frequency distribution of ICP distance between matched puncta in MB and smFISH images (n = 14 axons) and in Vg1RBP-EGFP and IHC positive and randomized negative controls (n = 11 axons). (G) Quantification of colocalization based on an ICP distance threshold of 1. **P < 0.0001, unpaired t test; N.S., not significant.

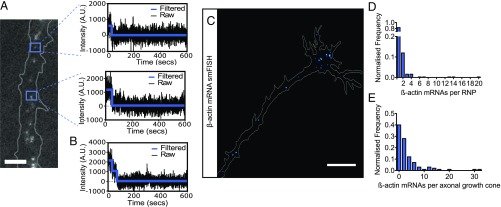

	Fig. 3. Endogenous Î²-actin mRNA stoichiometry in growing axons. (A) Single stepwise photobleaching events were observed using MB1 and HILO microscopy. Black lines represent background-subtracted intensity trace of MB puncta; colored lines show the median intensity of each step after filtering. (Scale bar: 5 Î¼m.) (B) An example of two stepwise photobleaching events in one trace. (C) Representative image of Î²-actin mRNA distribution using smFISH. (Scale bar: 10 Î¼m.) (D) Frequency distribution of the number of Î²-actin mRNAs per RNP calculated from smFISH spot intensity distributions. (E) Variability in the number of Î²-actin mRNAs within axonal growth cones was observed. n = 35 RNase-Aâtreated axons and n = 100 untreated axons.

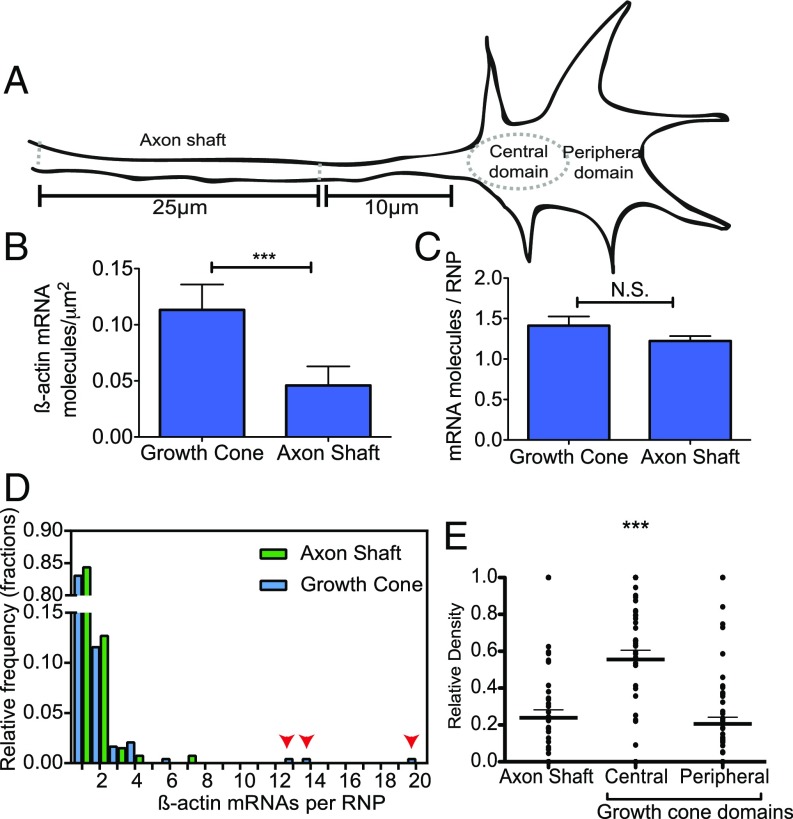

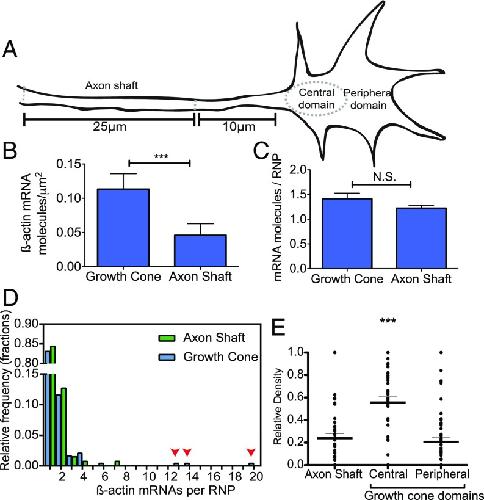

	Fig. 4. smFISH reveals that the localization patterns of Î²-actin mRNA vary according to axonal subcompartment. (A) Cartoon representation of the different axonal regions analyzed. (B) A comparison of the density of Î²-actin mRNA molecules in the growth cone and axon shaft via smFISH shows significantly increased density of Î²-actin mRNA in the growth cone. (C) No difference between Î²-actin mRNA RNP stoichiometry was observed in the different subcompartments. N.S. not significant. (D) Histogram of Î²-actin mRNA stoichiometry. Arrowheads indicate more highly multiplexed copy numbers in the growth cone. (E) Relative density of Î²-actin mRNA across subcompartments of the same axon shows significant enrichment in the central domain of the growth cone. ***P < 0.0001; paired Studentâ€™s t test; n = 63 axons.

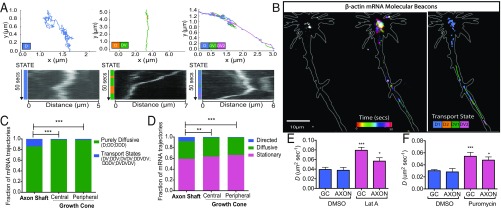

	Fig. 5. Differential subcompartmental trafficking of Î²-actin mRNA. (A) Examples of complex motion trajectories displayed by Î²-actin mRNA in axons. Different transport modes were characterized through HMMâ€“Bayes. D, diffusive states; DV, directed transport states. (B) Î²-Actin mRNA dynamics within a representative axon. (Left) Initial Î²-actin mRNA distribution labeled by MBs. (Center) Temporally color-coded Î²-actin mRNA dynamics. (Right) Annotated mRNA trajectories. (C) Significantly more trajectories undergo motion with directed transport in the axon shaft than in the central and peripheral domains of the growth cone. (D) Trajectories annotated according to the predominant motion state again show a significantly greater fraction of directed transport of Î²-actin mRNA in the axon shaft. *P < 0.001, P < 0.0025; Ï‡2 test; n = 6, 66 axons. (E) The addition of latrunculin A significantly increased the diffusive mobility of MB Î²-actin mRNA puncta compared with DMSO treatment only [**P < 0.0001 and P = 0.0454 for growth cone (GC) and axon shaft; n = 12 axons for DMSO treatment, and n =11 axons for latrunculin A]. (F) Dissociation from ribosomes by puromycin addition increased the diffusion coefficient of MB puncta in both axons and growth cones compared with wild-type untreated axons [n = 11 puromycin-treated axons and n = 66 wild-type axons, **P < 0.0001 (growth cone) and P = 0.0253 (axon)].

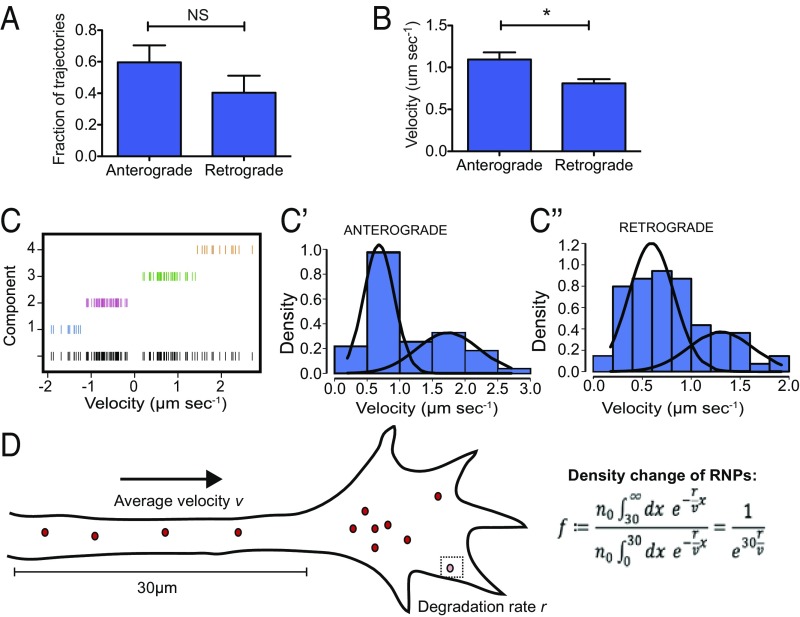

	Fig. 6. Directional differences in Î²-actin mRNA-directed transport along the axon shaft are sufficient to confer localization patterns. (A) No significant difference (NS) was found in the frequency of anterograde- versus retrograde-directed transport of Î²-actin mRNA in axons. (B) A comparison of the velocity of anterograde- and retrograde-directed transport states shows that Î²-actin mRNA moves significantly faster in the anterograde direction. (C) Multimixture modeling of Gaussian modal distributions of directed transport speeds best fits a quadmodal distribution in which velocities exhibit a bimodal distribution in the anterograde (Câ€²) and retrograde (Câ€²â€²) directions. (D) A mathematical model shows that fold change in density resulting from an anterograde bias in directed transport speeds is sufficient to predict enriched Î²-actin mRNA density in the central domain of the growth cone. *P = 0.0167; Mannâ€“Whitney U test; n = 124 puncta, and n =66 axons.
