Nucleic Acids Res
2020 Apr 06;486:3328-3342. doi: 10.1093/nar/gkaa062.
Show Gene links
Show Anatomy links
Structural basis of the fanconi anemia-associated mutations within the FANCA and FANCG complex.
Jeong E
,
Lee SG
,
Kim HS
,
Yang J
,
Shin J
,
Kim Y
,
Kim J
,
Schärer OD
,
Kim Y
,
Yeo JE
,
Kim HM
,
Cho Y
.
???displayArticle.abstract???
Monoubiquitination of the Fanconi anemia complementation group D2 (FANCD2) protein by the FA core ubiquitin ligase complex is the central event in the FA pathway. FANCA and FANCG play major roles in the nuclear localization of the FA core complex. Mutations of these two genes are the most frequently observed genetic alterations in FA patients, and most point mutations in FANCA are clustered in the C-terminal domain (CTD). To understand the basis of the FA-associated FANCA mutations, we determined the cryo-electron microscopy (EM) structures of Xenopus laevis FANCA alone at 3.35 Å and 3.46 Å resolution and two distinct FANCA-FANCG complexes at 4.59 and 4.84 Å resolution, respectively. The FANCA CTD adopts an arc-shaped solenoid structure that forms a pseudo-symmetric dimer through its outer surface. FA- and cancer-associated point mutations are widely distributed over the CTD. The two different complex structures capture independent interactions of FANCG with either FANCA C-terminal HEAT repeats, or the N-terminal region. We show that mutations that disturb either of these two interactions prevent the nuclear localization of FANCA, thereby leading to an FA pathway defect. The structure provides insights into the function of FANCA CTD, and provides a framework for understanding FA- and cancer-associated mutations.

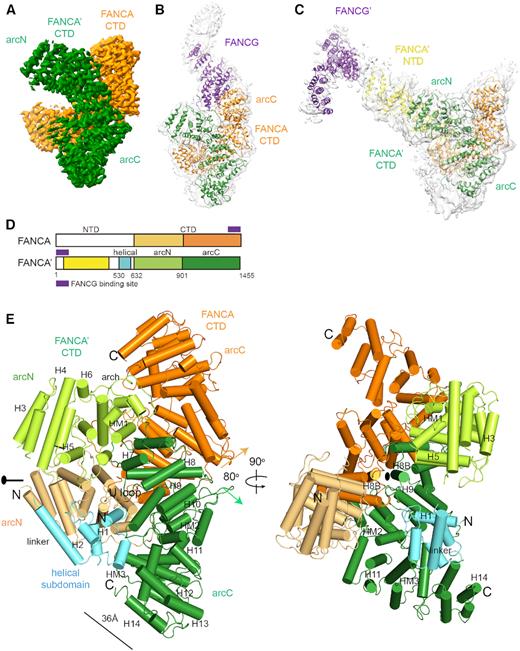

Figure 1. Three classes of the overall structures of the FANCA–FANCG complex. (A) Cryo-EM map of the FANCA CTD dimer at an average resolution of 3.35 Å. Each FANCA molecule is shown in orange (FANCA) and green (FANCA’). The arc-shaped CTD is divided into the N-terminal half (arcN) and the C-terminal half (arcC). (B) Cryo-EM map (gray) of the FANCA CTD dimer complexed with a FANCG (purple) molecule at 4.6 Å. FANCG CTD packs at the C-terminal end of FANCA. Orientation of the CTD dimer is same as that in (A). (C) Cryo-EM map (gray) of the FANCA and FANCG complex at 4.84 Å. FANCG’ is bound at the FANCA’ NTD (yellow). (D) Overall scheme of the subdomain composition in FANCA and FANCA’. Each subdomain is painted with same colors as in (A) to (E). (E) Two views of the 3.46 Å structure of the FANCA CTD dimer. Left, A 2-fold rotation axis is along the horizontal axis. Each HEAT repeat consists of the HA and HB helices that forms inner and outer surfaces, respectively. The central axes (along each H8B helix) of two solenoids are arranged in ∼80°. Right, View orthogonal to the left view looking down the 2-fold axis which is along the H8B helices from the two FANCA molecules. The CTD structure is divided into the N-terminal helical subdomain (H1 to linker helix), arcN (H3 to HM1) and arcC (H7 to H14) subdomains. The helical subdomain of FANCA’ is shown in cyan. The arcN and arcC subdomains of FANCA CTD are colored in light orange and orange, respectively. The arcN and arcC subdomains of FANCA’ CTD are shown in light green and green, respectively.

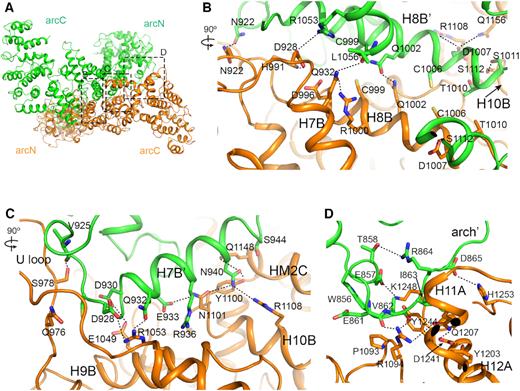

Figure 2. The dimer interface of FANCA. (A) View looking down the dimer interface between the arcC of FANCA CTD (orange) and the arcN of FANCA’ CTD (green). Boxes contain clusters of contacts with their respective segments labeled. (B) Close-up view of the central interface in box b from (A). A view is orthogonal to the projection in (A). Black dotted lines indicate polar interactions. The interface is formed by the interactions between the H8B and the H8B’ helices and between the H8B’ and the H10B helices. (C) Close-up view of the interface between the H7B’ helix from FANCA’ CTD and the H9B, H10B and HM2C from FANCA CTD. A view is orthogonal to the projection in (A). The interface is formed primarily by the hydrogen bonds and polar interactions between the main chain and side chain. (D) Close-up view of the interface between the arch’ loop and the H11A and H12A helices in the same projection of (A)

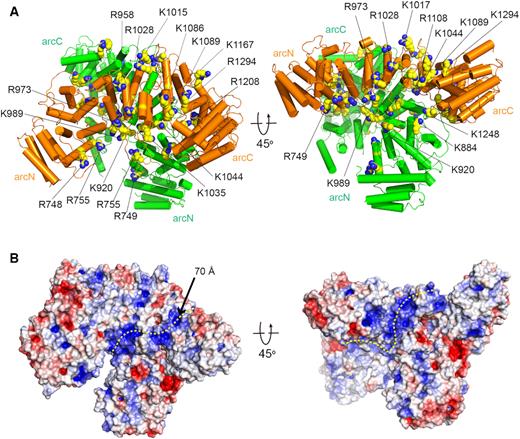

Figure 3. A putative ssDNA binding path in the FANCA CTD dimer. (A) Two views of the structure of the FANCA CTD dimer with positively charged residues in space-filling model. (B) Surface representation of the FANCA CTD dimer with electrostatic potential in two different views. The electrostatic potential was calculated with Adaptive Poisson-Boltzmann Solver (APBS) and illustrated (–6 to +6 kT) with PyMOL. The positive potential is shown in blue and the negative potential is shown in red. A putative ssDNA binding path is shown in a yellow dotted line. Orientations of the structures are same as those in (A).

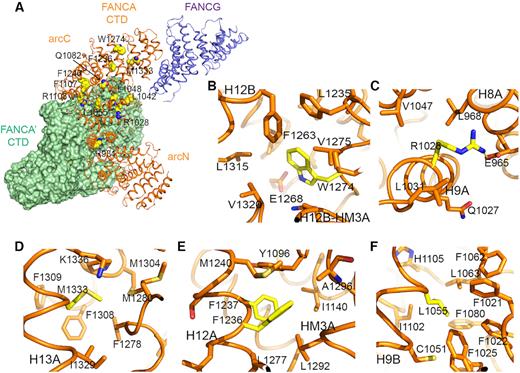

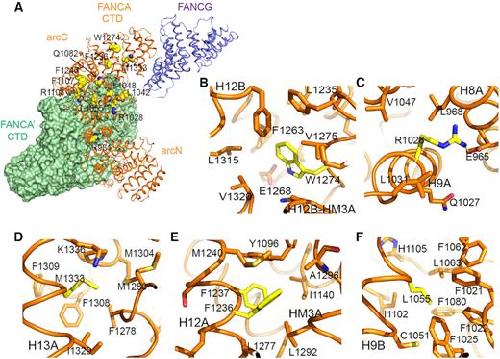

Figure 4. Structure of the selected missense mutations of FANCA from the Fanconi Anemia Mutation Database (http://www2.rockefeller.edu/fanconi/) and Catalogue of Somatic Mutations in Cancer (https://cancer.sanger.ac.uk/cosmic/gene/analysis?ln=FANCA). (A) An overall structure of the FANCA CTD complexed with the FANCG CTD (purple). The selected FA- and cancer-associated mutations are illustrated in space filling model. FANCA CTD (green) is shown in surface representation. FANCG is packed against the C-terminal end of a FANCA CTD molecule. (B) A mutated residue analyzed in the present study is shown in yellow color. Trp1274 (Trp1302Arg mutation in human FANCA). (C) Arg1028 (Arg1055Trp). (D) Met1333 (Met1360Ile). (E) Phe1236 (Phe1262Leu) and Phe1237 are patient-derived missense and deletion mutation, respectively. (F) Leu1055 (Leu1082Pro).

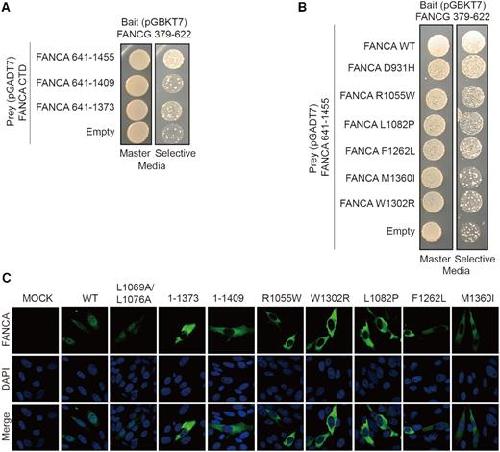

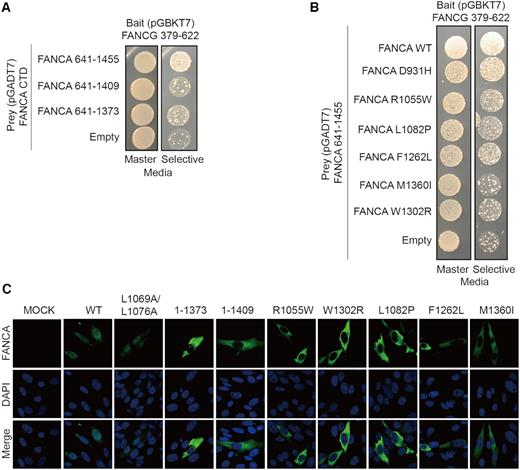

Figure 5. Interactions between FANCA CTD mutants and FANCG CTD and their mutational effects in nuclear localization of FANCA (A) Yeast two hybrid analyses between deletion mutants of FANCA CTD and FANCG CTD. Master plate (SD-LeuTrp) and a selective plate (SD-LeuTrpHis containing 10 mM of 3-AT) are shown on the left and right, respectively. (B) Yeast two hybrid analyses between FANCA CTD with selected point mutants and FANCG CTD. Master plate (SD-LeuTrp) and a selective plate (SD-LeuTrpHis containing 10 mM of 3-AT) are shown on the left and right, respectively. Structures of the point mutants are shown in Figure 4. (C) FANCA-knockout U2OS cells expressing indicated mutants in the presence of 1uM MMC were immunostained to visualize FANCA. Cell nuclei were detected with 4′,6-diamidino-2-phenylindole (DAPI).

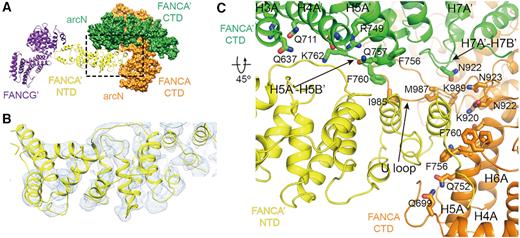

Figure 6. Structure of the FANCA’ complexed with FANCG’ through its NTD. (A) The NTD (yellow) of FANCA’ is docked into the inner surface of its CTD dimer. The deep groove is formed at the middle of the inner surface, in which the FANCA’ NTD is lodged. The opposite end of the NTD interacts with FANCG’ (purple). (B) The EM density for the NTD of FANCA’. The NTD consists of multiple HEAT repeats. (C) Close-up view of the interface between FANCA’ NTD and the CTD dimer. Side chains from the two CTD protomers are shown.

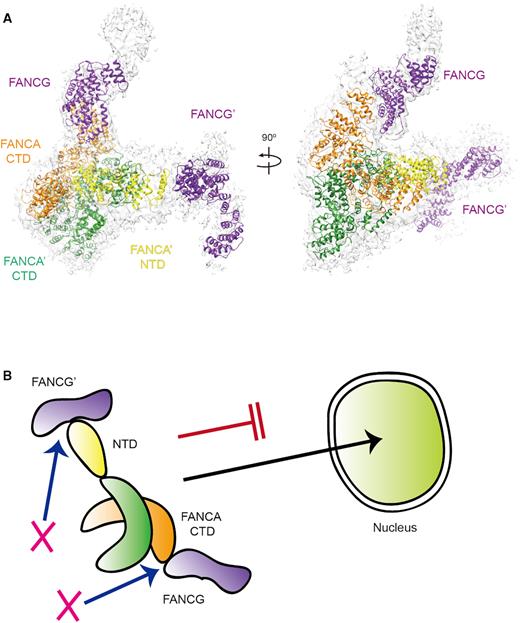

Figure 7. The two interfaces between the FANCA and FANCG complex are required for nuclear transport of FANCA. (A) Structure of the FANCA–FANCG hetero-tetramer complex in two different views. The structure was reconstituted by aligning a FANCA CTD dimer of one FANCA–FANCG complex onto that of another complex. The EM map for the two FANCG molecules are shown in gray color. FANCA binds to the FANCG CTD via its C-terminal helical repeats and FANCA’ binds to FANCG’ through its NTD. (B) A cartoon representing a model by which disruption of either one of the two interfaces prevents the localization of FANCA into the nucleus.
