J Biol Chem
2020 Mar 13;29511:3614-3634. doi: 10.1074/jbc.RA119.011527.
Show Gene links
Show Anatomy links
The small molecule GAT1508 activates brain-specific GIRK1/2 channel heteromers and facilitates conditioned fear extinction in rodents.
Xu Y
,
Cantwell L
,
Molosh AI
,
Plant LD
,
Gazgalis D
,
Fitz SD
,
Dustrude ET
,
Yang Y
,
Kawano T
,
Garai S
,
Noujaim SF
,
Shekhar A
,
Logothetis DE
,
Thakur GA
.
???displayArticle.abstract???
G-protein-gated inwardly-rectifying K+ (GIRK) channels are targets of Gi/o-protein-signaling systems that inhibit cell excitability. GIRK channels exist as homotetramers (GIRK2 and GIRK4) or heterotetramers with nonfunctional homomeric subunits (GIRK1 and GIRK3). Although they have been implicated in multiple conditions, the lack of selective GIRK drugs that discriminate among the different GIRK channel subtypes has hampered investigations into their precise physiological relevance and therapeutic potential. Here, we report on a highly-specific, potent, and efficacious activator of brainGIRK1/2 channels. Using a chemical screen and electrophysiological assays, we found that this activator, the bromothiophene-substituted small molecule GAT1508, is specific for brain-expressed GIRK1/2 channels rather than for cardiac GIRK1/4 channels. Computational models predicted a GAT1508-binding site validated by experimental mutagenesis experiments, providing insights into how urea-based compounds engage distant GIRK1 residues required for channel activation. Furthermore, we provide computational and experimental evidence that GAT1508 is an allosteric modulator of channel-phosphatidylinositol 4,5-bisphosphate interactions. Through brain-slice electrophysiology, we show that subthreshold GAT1508 concentrations directly stimulate GIRK currents in the basolateral amygdala (BLA) and potentiate baclofen-induced currents. Of note, GAT1508 effectively extinguished conditioned fear in rodents and lacked cardiac and behavioral side effects, suggesting its potential for use in pharmacotherapy for post-traumatic stress disorder. In summary, our findings indicate that the small molecule GAT1508 has high specificity for brainGIRK1/2 channel subunits, directly or allosterically activates GIRK1/2 channels in the BLA, and facilitates fear extinction in a rodent model.

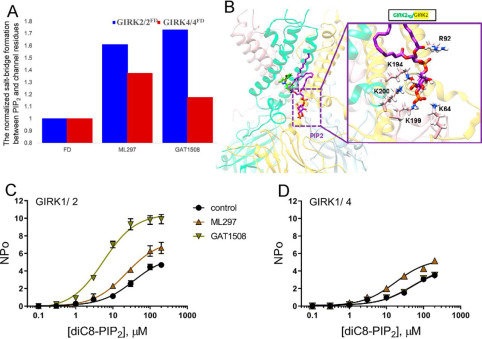

Figure 6. Specific activation by GAT compounds increases brain GIRK2 but not cardiac GIRK4 channelâPIP2 interactions. A and B, normalized salt-bridge formation between the head group PIP2 and positively-charged channel residues are calculated during the last 25 ns of the 100-ns MD simulation runs in the absence of ligand or with ML297 and GAT1508 bound in the GIRK2/2FD (blue) and GIRK4/4FD (red) systems. C, GIRK1/2 channel NPo was assessed by diC8âPIP2 concentrationâresponse curves using inside-out macropatches from Xenopus oocytes in the presence and absence of 10 μm ML297 or GAT1508; data are means ± S.E. for 5â6 patches per condition. When studied under control conditions (black solid circle), GIRK1/2 channels showed an apparent affinity to diC8âPIP2 of 36 ± 7 μm and an EMAX of 5.7 ± 0.3 (100%). ML297 (brown solid triangle) increases the apparent affinity to 23 ± 5 μm and the EMAX to 7.5 ± 0.4 (100%). GAT1508 (olive green inverted solid triangle) increased the apparent affinity and EMAX further to 5.5 ± 7 and 10.5 ± 0.3 μm (184%), respectively. D, under control conditions, GIRK1/4 channels had an apparent affinity for diC8-PIP2 of 48.4 ± 8 μm and an EMAX of 4.4 ± 0.2 (100%). ML297 increased the apparent affinity to 17.4 ± 2 μm and raised the EMAX to 5.4 ± 0.2 (123% of the control). In contrast, treatment with GAT1508 did not change the apparent affinity for diC8-PIP2 from control (46 ± 7.4 μm) or the efficacy (98.6 and 103%, respectively.
Chan,
A recombinant inwardly rectifying potassium channel coupled to GTP-binding proteins.
1996, Pubmed,
Xenbase
Chan,
A recombinant inwardly rectifying potassium channel coupled to GTP-binding proteins.
1996,
Pubmed
,
Xenbase
Chan,
Specific regions of heteromeric subunits involved in enhancement of G protein-gated K+ channel activity.
1997,
Pubmed
,
Xenbase
Chan,
Control of channel activity through a unique amino acid residue of a G protein-gated inwardly rectifying K+ channel subunit.
1996,
Pubmed
,
Xenbase
Clapham,
G protein beta gamma subunits.
1997,
Pubmed
Dascal,
The Roles of Gβγ and Gα in Gating and Regulation of GIRK Channels.
2015,
Pubmed
Davis,
The amygdala: vigilance and emotion.
2001,
Pubmed
Doupnik,
RGS Redundancy and Implications in GPCR-GIRK Signaling.
2015,
Pubmed
Fanselow,
Why we think plasticity underlying Pavlovian fear conditioning occurs in the basolateral amygdala.
1999,
Pubmed
Farid,
New insights about HERG blockade obtained from protein modeling, potential energy mapping, and docking studies.
2006,
Pubmed
Glaaser,
Structural Insights into GIRK Channel Function.
2015,
Pubmed
Ha,
Hydrogen sulfide inhibits Kir2 and Kir3 channels by decreasing sensitivity to the phospholipid phosphatidylinositol 4,5-bisphosphate (PIP2).
2018,
Pubmed
,
Xenbase
Hibino,
Inwardly rectifying potassium channels: their structure, function, and physiological roles.
2010,
Pubmed
Hickey,
Benchmarking quantum chemical methods for the calculation of molecular dipole moments and polarizabilities.
2014,
Pubmed
Ho,
Molecular determinants for sodium-dependent activation of G protein-gated K+ channels.
1999,
Pubmed
,
Xenbase
Ho,
Molecular mechanism for sodium-dependent activation of G protein-gated K+ channels.
1999,
Pubmed
,
Xenbase
Huang,
Direct activation of inward rectifier potassium channels by PIP2 and its stabilization by Gbetagamma.
1998,
Pubmed
,
Xenbase
Idevall-Hagren,
Optogenetic control of phosphoinositide metabolism.
2012,
Pubmed
Jelacic,
Functional and biochemical evidence for G-protein-gated inwardly rectifying K+ (GIRK) channels composed of GIRK2 and GIRK3.
2000,
Pubmed
Jespersen,
Dual-function vector for protein expression in both mammalian cells and Xenopus laevis oocytes.
2002,
Pubmed
,
Xenbase
Johnson,
Pharmacological depletion of serotonin in the basolateral amygdala complex reduces anxiety and disrupts fear conditioning.
2015,
Pubmed
Karschin,
IRK(1-3) and GIRK(1-4) inwardly rectifying K+ channel mRNAs are differentially expressed in the adult rat brain.
1996,
Pubmed
Kaufmann,
ML297 (VU0456810), the first potent and selective activator of the GIRK potassium channel, displays antiepileptic properties in mice.
2013,
Pubmed
Kobayashi,
Ethanol opens G-protein-activated inwardly rectifying K+ channels.
1999,
Pubmed
,
Xenbase
Kobayashi,
G protein-activated inwardly rectifying potassium channels as potential therapeutic targets.
2006,
Pubmed
Krapivinsky,
The G-protein-gated atrial K+ channel IKACh is a heteromultimer of two inwardly rectifying K(+)-channel proteins.
1995,
Pubmed
,
Xenbase
LeDoux,
Emotion circuits in the brain.
2000,
Pubmed
Lee,
Repeated stimulation of CRF receptors in the BNST of rats selectively induces social but not panic-like anxiety.
2008,
Pubmed
Lewohl,
G-protein-coupled inwardly rectifying potassium channels are targets of alcohol action.
1999,
Pubmed
,
Xenbase
Li,
PSD95 and nNOS interaction as a novel molecular target to modulate conditioned fear: relevance to PTSD.
2018,
Pubmed
Liao,
Heteromultimerization of G-protein-gated inwardly rectifying K+ channel proteins GIRK1 and GIRK2 and their altered expression in weaver brain.
1996,
Pubmed
Liman,
Subunit stoichiometry of a mammalian K+ channel determined by construction of multimeric cDNAs.
1992,
Pubmed
,
Xenbase
Lin,
Do Halogen-Hydrogen Bond Donor Interactions Dominate the Favorable Contribution of Halogens to Ligand-Protein Binding?
2017,
Pubmed
Logothetis,
Unifying Mechanism of Controlling Kir3 Channel Activity by G Proteins and Phosphoinositides.
2015,
Pubmed
Logothetis,
The beta gamma subunits of GTP-binding proteins activate the muscarinic K+ channel in heart.
,
Pubmed
Logothetis,
Phosphoinositide control of membrane protein function: a frontier led by studies on ion channels.
2015,
Pubmed
Luján,
New insights into the therapeutic potential of Girk channels.
2014,
Pubmed
Luján,
Localization and Targeting of GIRK Channels in Mammalian Central Neurons.
2015,
Pubmed
Lüscher,
Emerging roles for G protein-gated inwardly rectifying potassium (GIRK) channels in health and disease.
2010,
Pubmed
Ma,
Diverse trafficking patterns due to multiple traffic motifs in G protein-activated inwardly rectifying potassium channels from brain and heart.
2002,
Pubmed
Mahajan,
A computational model predicts that Gβγ acts at a cleft between channel subunits to activate GIRK1 channels.
2013,
Pubmed
Mahan,
Fear conditioning, synaptic plasticity and the amygdala: implications for posttraumatic stress disorder.
2012,
Pubmed
Manteghi,
Baclofen add-on to citalopram in treatment of posttraumatic stress disorder.
2014,
Pubmed
Maren,
Neurobiology of Pavlovian fear conditioning.
2001,
Pubmed
Marron Fernandez de Velasco,
GIRK Channel Plasticity and Implications for Drug Addiction.
2015,
Pubmed
Mase,
Structural basis for modulation of gating property of G protein-gated inwardly rectifying potassium ion channel (GIRK) by i/o-family G protein α subunit (Gαi/o).
2012,
Pubmed
Mayfield,
Behavioral and Genetic Evidence for GIRK Channels in the CNS: Role in Physiology, Pathophysiology, and Drug Addiction.
2015,
Pubmed
McGaughey,
pi-Stacking interactions. Alive and well in proteins.
1998,
Pubmed
Meng,
The molecular mechanism by which PIP(2) opens the intracellular G-loop gate of a Kir3.1 channel.
2012,
Pubmed
Mirshahi,
GIRK channel trafficking: different paths for different family members.
2002,
Pubmed
Molosh,
Social learning and amygdala disruptions in Nf1 mice are rescued by blocking p21-activated kinase.
2014,
Pubmed
Quirk,
Neural mechanisms of extinction learning and retrieval.
2008,
Pubmed
Reuveny,
Activation of the cloned muscarinic potassium channel by G protein beta gamma subunits.
1994,
Pubmed
,
Xenbase
Rogan,
Fear conditioning induces associative long-term potentiation in the amygdala.
1997,
Pubmed
Scholfield,
Structure-Energy Relationships of Halogen Bonds in Proteins.
2017,
Pubmed
Schüttelkopf,
PRODRG: a tool for high-throughput crystallography of protein-ligand complexes.
2004,
Pubmed
Sherman,
Use of an induced fit receptor structure in virtual screening.
2006,
Pubmed
Sherman,
Novel procedure for modeling ligand/receptor induced fit effects.
2006,
Pubmed
Slesinger,
Identification of structural elements involved in G protein gating of the GIRK1 potassium channel.
1995,
Pubmed
,
Xenbase
Sosulina,
Neuropeptide Y activates a G-protein-coupled inwardly rectifying potassium current and dampens excitability in the lateral amygdala.
2008,
Pubmed
Sui,
Na+ activation of the muscarinic K+ channel by a G-protein-independent mechanism.
1996,
Pubmed
,
Xenbase
Sui,
Activation of the atrial KACh channel by the betagamma subunits of G proteins or intracellular Na+ ions depends on the presence of phosphatidylinositol phosphates.
1998,
Pubmed
,
Xenbase
Takemoto,
Structural basis for the antiarrhythmic blockade of a potassium channel with a small molecule.
2018,
Pubmed
Tipps,
GIRK Channels: A Potential Link Between Learning and Addiction.
2015,
Pubmed
Weigl,
G protein-gated inwardly rectifying potassium channels are targets for volatile anesthetics.
2001,
Pubmed
,
Xenbase
Wen,
Discovery of potent and selective GIRK1/2 modulators via 'molecular switches' within a series of 1-(3-cyclopropyl-1-phenyl-1H-pyrazol-5-yl)ureas.
2014,
Pubmed
Whorton,
X-ray structure of the mammalian GIRK2-βγ G-protein complex.
2013,
Pubmed
Whorton,
Crystal structure of the mammalian GIRK2 K+ channel and gating regulation by G proteins, PIP2, and sodium.
2011,
Pubmed
,
Xenbase
Wieting,
Discovery and Characterization of 1H-Pyrazol-5-yl-2-phenylacetamides as Novel, Non-Urea-Containing GIRK1/2 Potassium Channel Activators.
2017,
Pubmed
Wydeven,
Structural elements in the Girk1 subunit that potentiate G protein-gated potassium channel activity.
2012,
Pubmed
Wydeven,
Mechanisms underlying the activation of G-protein-gated inwardly rectifying K+ (GIRK) channels by the novel anxiolytic drug, ML297.
2014,
Pubmed
Xu,
Probing binding sites and mechanisms of action of an I(Ks) activator by computations and experiments.
2015,
Pubmed
Yamakura,
Differential effects of general anesthetics on G protein-coupled inwardly rectifying and other potassium channels.
2001,
Pubmed
,
Xenbase
Yow,
Naringin directly activates inwardly rectifying potassium channels at an overlapping binding site to tertiapin-Q.
2011,
Pubmed
,
Xenbase
Zarzoso,
Nerves projecting from the intrinsic cardiac ganglia of the pulmonary veins modulate sinoatrial node pacemaker function.
2013,
Pubmed
Zhang,
Activation of inwardly rectifying K+ channels by distinct PtdIns(4,5)P2 interactions.
1999,
Pubmed
,
Xenbase
