XB-ART-59821
Sci Rep
2023 Jun 20;131:9967. doi: 10.1038/s41598-023-36354-3.
Show Gene links
Show Anatomy links
TGFβ inhibition and mesenchymal to epithelial transition initiation by Xenopus egg extract: first steps towards early reprogramming in fish somatic cell.
Chênais N
,
Le Cam A
,
Guillet B
,
Lareyre JJ
,
Labbé C
.
???displayArticle.abstract???
Xenopus egg extract is a powerful material to modify cultured cells fate and to induce cellular reprogramming in mammals. In this study, the response of goldfish fin cells to in vitro exposure to Xenopus egg extract, and subsequent culture, was studied using a cDNA microarray approach, gene ontology and KEGG pathways analyses, and qPCR validation. We observed that several actors of the TGFβ and Wnt/β-catenin signaling pathways, as well as some mesenchymal markers, were inhibited in treated cells, while several epithelial markers were upregulated. This was associated with morphological changes of the cells in culture, suggesting that egg extract drove cultured fin cells towards a mesenchymal-epithelial transition. This indicates that Xenopus egg extract treatment relieved some barriers of somatic reprogramming in fish cells. However, the lack of re-expression of pou2 and nanog pluripotency markers, the absence of DNA methylation remodeling of their promoter region, and the strong decrease in de novo lipid biosynthesis metabolism, indicate that reprogramming was only partial. The observed changes may render these treated cells more suitable for studies on in vivo reprogramming after somatic cell nuclear transfer.
???displayArticle.pubmedLink??? 37339990
???displayArticle.pmcLink??? PMC10281987
???displayArticle.link??? Sci Rep
???attribute.lit??? ???displayArticles.show???
|
|
|
|
|
|

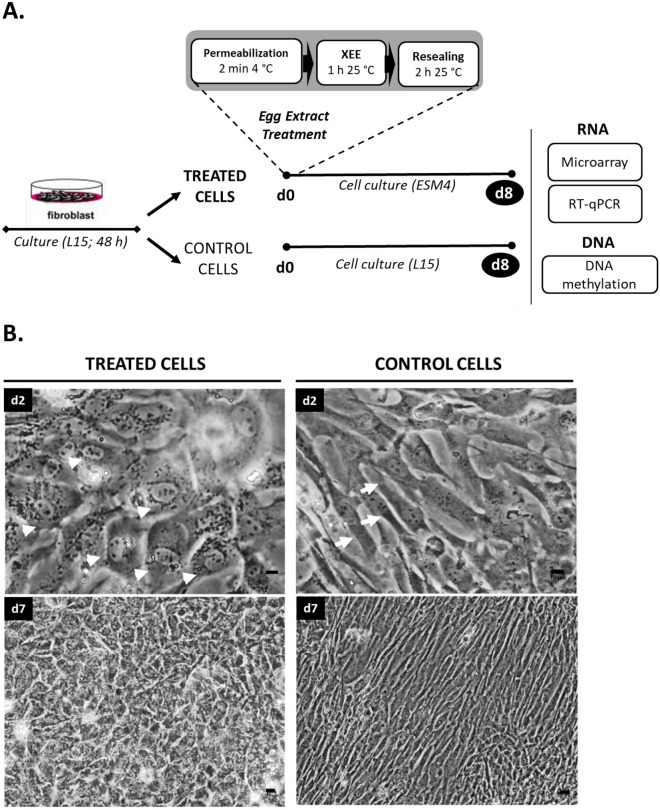

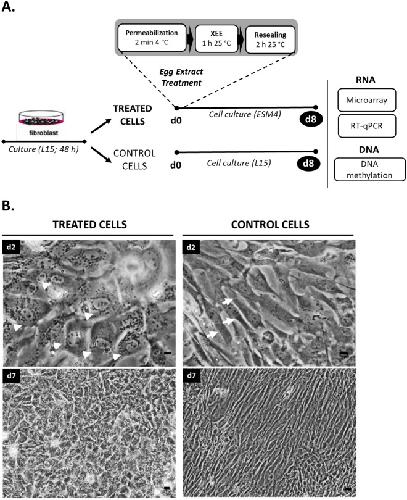

Figure 1. Fish somatic cell treatment with Xenopus laevis egg extracts. (A) : Summary of the treatment and culture steps. Cell treatment included (i) plasma membrane permeabilization with 30 µg/ mL digitonin, (ii) exposure of the permeabilized cells to egg extracts (XEE) and, (iii) plasma membrane resealing in medium with 2 mM calcium. Treated cells were cultured in ESM4 medium. Control cells originating from the same batches were cultured in L15 medium. (B) : Pictures of the treated and control cells over culture time. White arrowheads show treated cells with a cubic shape morphology 2 days after the treatment (d2), contrasting with the elongated (white arrows) control cells. This difference in morphology between treated and control cells was still observed at confluence, 7 days after the treatment (d7). Pictures are representative of three experiments with different cells and egg extract batches. Scale bar = 10 µm. |
|

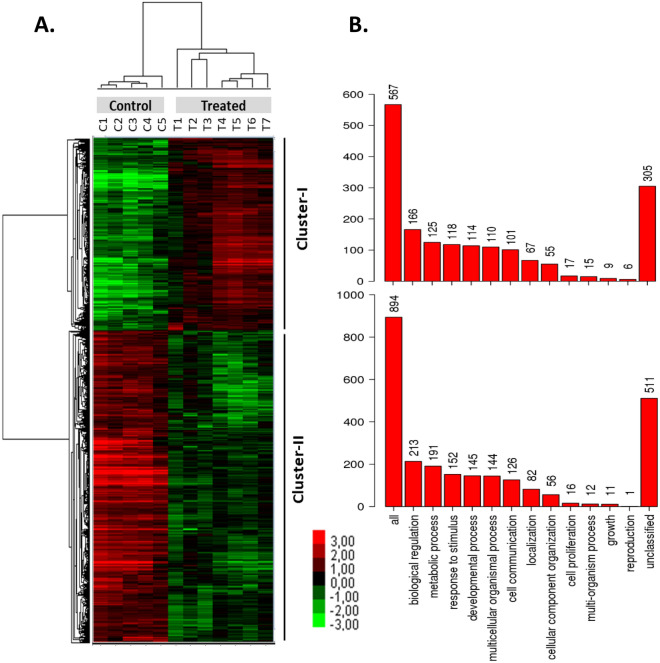

Figure 2. Clustering and gene ontology of the differentially expressed genes after egg extract treatment. (A) Heatmap of the hierarchical clustering analysis by unsupervised approach using 52,362 goldfish genes (Java TreeView software; https://bitbucket.org/TreeView3Dev/treeview3/src/master/). Control: control cultured cells (C1-5); Treated: treated cultured cells (T1–7). Each row represents a single gene. Differentially expressed genes (Fold Change > 2; False Discovery Rate (FDR) < 0.05) between treated and control cells are shown on the heatmap (2,286 genes). Two clusters were identified. Cluster-I (872 genes) and cluster-II (1414 genes) contain the genes that were respectively up- and downregulated in treated cells compared to control cells. (B) Gene ontology bar chart of the biological process categories after gene ontology (GO) analysis of differentially expressed genes between egg extract-treated and control cells. Distribution of biological process GO in cluster-I and cluster-II (WebGestalt web tool). |
|

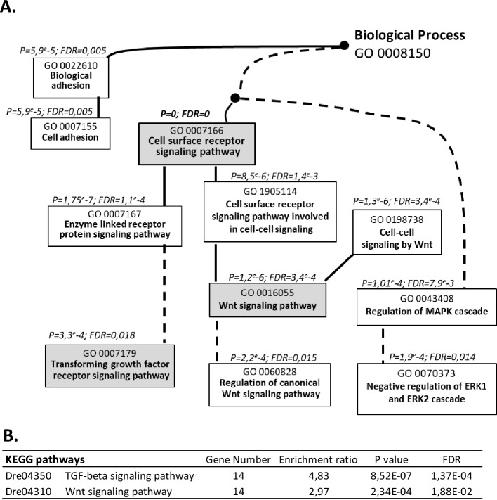

Figure 3. Gene Ontology (GO) flow diagram of the terms related to cell surface receptor signaling pathway (A) and KEGG pathways (B). The analysis was performed on the cluster of upregulated genes in treated cells (fold change > 2) using WebGestalt web tool. The set of genes spotted on the microarray was used as the reference gene list. A: The black and the dotted lines represent respectively direct and indirect and KEGG pathway (www.kegg.jp/kegg/kegg1.html), p values (P) below 0.05 and false discovery rate (FDR) below 0.05 are indicated. Both A and B highlight the disturbance of the TGFβ and Wnt signaling pathways in response to egg extract treatment. |
|

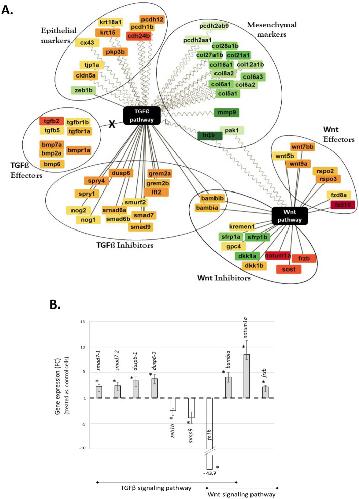

Figure 4. Differentially expressed genes related to TGFβ and Wnt signaling pathways. (A) Cytoscape76 representation of the genes described in Tables 1, 2. The darkest the node color, the highest the fold change (down regulation in green shades, upregulation in red shades; see Tables 1, 2 for fold change values). (B) Expression profile from qRT-PCR analysis of several genes associated to the TGFβ signaling pathway (smad7-1, smad7-2, dusp6-1, dusp6-2, zeb1b, mmp9), to Wnt/β-catenin signaling pathway (notum1a, frzb), to both pathways (bambia, fn1b), a mesenchymal marker gene (col1a1a), and a set of genes related to pluripotency (nanog, pou2, sox2, c-myca1 and c-myca2). Data are presented as fold change (FC) between treated and non-treated (control) cells. Error bars: SEM errors of the FC mean. A total of 5 to 9 paired samples (treated versus control cells) were analyzed per gene. Statistical test was performed using the nonparametric Wilcoxon test comparing the paired normalized expression values between egg extract treated and control cells. *Significant differences (p < 0.05) between treated and control values. Grey bars: upregulated genes; white bars: down regulated genes. Extensions -1 or -2 in the gene name correspond to duplicated gene copies in goldfish. It should be noted that these qPCR data confirm the microarray results indicating a deregulation of both signaling pathways. |
|

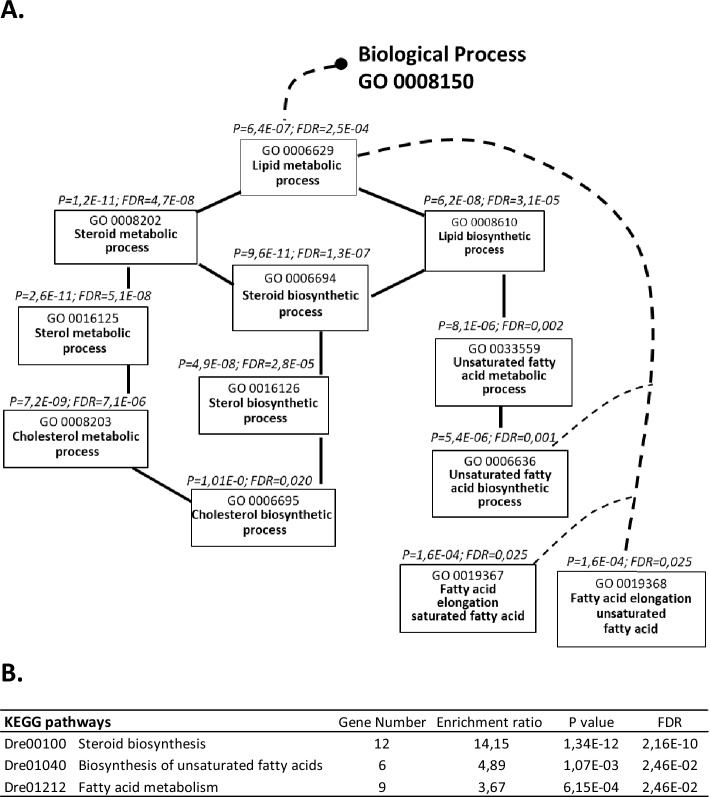

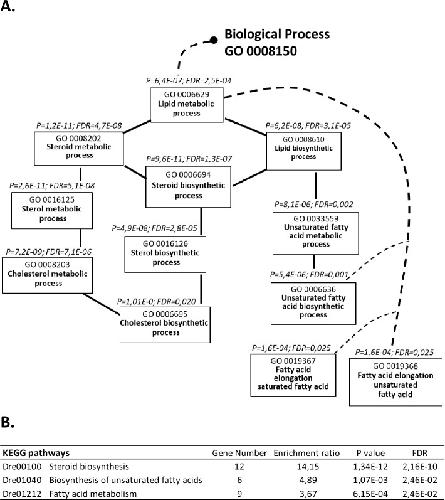

Figure 5. Gene Ontology (GO) flow diagram of the terms related to lipid metabolic process (A) and KEGG pathways (B). The analysis was performed on the cluster of genes downregulated in treated cells (fold change > 2) using WebGestalt web tool. The set of genes spotted on the microarray was used as the reference gene list. (A) The black and the dotted lines represent respectively direct and indirect connections between GO terms. (B) Dre, Danio rerio prefix of the KEGG identifier. For each GO term and KEGG pathway (www.kegg.jp/kegg/kegg1.html), p values (P) below 0.05 and false discovery rate (FDR) below 0.05 are indicated. Both A and B figures highlight the disturbance of lipid metabolism after egg extract treatment, and specifically cholesterol and fatty acid biosynthesis. |
References [+] :
Alvarez,
Fish ES cells and applications to biotechnology.
2007, Pubmed
Alvarez, Fish ES cells and applications to biotechnology. 2007, Pubmed
Aulicino, Temporal perturbation of the Wnt signaling pathway in the control of cell reprogramming is modulated by TCF1. 2014, Pubmed
Bail, Optimization of somatic cell injection in the perspective of nuclear transfer in goldfish. 2010, Pubmed
Bru, Rapid induction of pluripotency genes after exposure of human somatic cells to mouse ES cell extracts. 2008, Pubmed , Xenbase
Bubenshchikova, Generation of fertile and diploid fish, medaka (Oryzias latipes), from nuclear transplantation of blastula and four-somite-stage embryonic cells into nonenucleated unfertilized eggs. 2005, Pubmed
Buganim, Mechanisms and models of somatic cell reprogramming. 2013, Pubmed
Castro, Greatwall kinase at a glance. 2018, Pubmed
Chenais, Stabilization of gene expression and cell morphology after explant recycling during fin explant culture in goldfish. 2015, Pubmed
Chênais, Nuclear import of Xenopus egg extract components into cultured cells for reprogramming purposes: a case study on goldfish fin cells. 2019, Pubmed , Xenbase
Cheng, Lipid metabolism reprogramming and its potential targets in cancer. 2018, Pubmed
David, Phases of reprogramming. 2014, Pubmed
Depincé, Embryonic fate after somatic cell nuclear transfer in non-enucleated goldfish oocytes is determined by first cleavages and DNA methylation patterns. 2021, Pubmed
Edgar, Gene Expression Omnibus: NCBI gene expression and hybridization array data repository. 2002, Pubmed
Esteban, Vitamin C improves the quality of somatic cell reprogramming. 2012, Pubmed
Farzaneh, Suppression of TGF-β and ERK Signaling Pathways as a New Strategy to Provide Rodent and Non-Rodent Pluripotent Stem Cells. 2019, Pubmed
Fatira, A newly developed cloning technique in sturgeons; an important step towards recovering endangered species. 2019, Pubmed
Flowers, A zebrafish Notum homolog specifically blocks the Wnt/β-catenin signaling pathway. 2012, Pubmed
Fraher, Zebrafish Embryonic Lipidomic Analysis Reveals that the Yolk Cell Is Metabolically Active in Processing Lipid. 2016, Pubmed
Ganier, Synergic reprogramming of mammalian cells by combined exposure to mitotic Xenopus egg extracts and transcription factors. 2011, Pubmed , Xenbase
Gordeeva, TGFβ Family Signaling Pathways in Pluripotent and Teratocarcinoma Stem Cells' Fate Decisions: Balancing Between Self-Renewal, Differentiation, and Cancer. 2019, Pubmed
Grainger, Mechanisms of Wnt signaling and control. 2018, Pubmed
Hansis, Nuclear reprogramming of human somatic cells by xenopus egg extract requires BRG1. 2004, Pubmed , Xenbase
Hattori, Nuclear transfer of embryonic cell nuclei to non-enucleated eggs in zebrafish, Danio rerio. 2011, Pubmed
Hong, Suppression of induced pluripotent stem cell generation by the p53-p21 pathway. 2009, Pubmed
Huh, Suppression of the ERK-SRF axis facilitates somatic cell reprogramming. 2018, Pubmed
Ichida, A small-molecule inhibitor of tgf-Beta signaling replaces sox2 in reprogramming by inducing nanog. 2009, Pubmed
Jullien, Mechanisms of nuclear reprogramming by eggs and oocytes: a deterministic process? 2011, Pubmed , Xenbase
Kavsak, Smad7 binds to Smurf2 to form an E3 ubiquitin ligase that targets the TGF beta receptor for degradation. 2000, Pubmed , Xenbase
Ke, Connexin 43 is involved in the generation of human-induced pluripotent stem cells. 2013, Pubmed
Lamouille, Molecular mechanisms of epithelial-mesenchymal transition. 2014, Pubmed
Lee, Cloned zebrafish by nuclear transfer from long-term-cultured cells. 2002, Pubmed
Li, A mesenchymal-to-epithelial transition initiates and is required for the nuclear reprogramming of mouse fibroblasts. 2010, Pubmed
Liao, WebGestalt 2019: gene set analysis toolkit with revamped UIs and APIs. 2019, Pubmed
Lin, A chemical platform for improved induction of human iPSCs. 2009, Pubmed
Liu, Cell colony formation induced by Xenopus egg extract as a marker for improvement of cloned blastocyst formation in the pig. 2011, Pubmed , Xenbase
Liu, Factors affecting the efficiency of somatic cell nuclear transplantation in the fish embryo. 2002, Pubmed
Luo, Identification of differentially expressed genes between cloned and zygote-developing zebrafish (Danio rerio) embryos at the dome stage using suppression subtractive hybridization. 2009, Pubmed
MacDonald, Wnt/beta-catenin signaling: components, mechanisms, and diseases. 2009, Pubmed , Xenbase
Maherali, Tgfbeta signal inhibition cooperates in the induction of iPSCs and replaces Sox2 and cMyc. 2009, Pubmed
Mao, Kremen proteins are Dickkopf receptors that regulate Wnt/beta-catenin signalling. 2002, Pubmed
Marandel, Do not put all teleosts in one net: focus on the sox2 and pou2 genes. 2013, Pubmed
Marandel, Evolutionary history of c-myc in teleosts and characterization of the duplicated c-myca genes in goldfish embryos. 2012, Pubmed
Marandel, nanog 5'-upstream sequence, DNA methylation, and expression in gametes and early embryo reveal striking differences between teleosts and mammals. 2012, Pubmed
Matoba, Somatic Cell Nuclear Transfer Reprogramming: Mechanisms and Applications. 2018, Pubmed
Mauger, Cryobanking of fish somatic cells: optimizations of fin explant culture and fin cell cryopreservation. 2006, Pubmed
Miyamoto, Cell-free extracts from mammalian oocytes partially induce nuclear reprogramming in somatic cells. 2009, Pubmed
Miyamoto, Reversible membrane permeabilization of mammalian cells treated with digitonin and its use for inducing nuclear reprogramming by Xenopus egg extracts. 2008, Pubmed , Xenbase
Miyamoto, Reprogramming events of mammalian somatic cells induced by Xenopus laevis egg extracts. 2007, Pubmed , Xenbase
Moritz, Cryopreservation of goldfish fins and optimization for field scale cryobanking. 2008, Pubmed
Niwa, Transplantation of blastula nuclei to non-enucleated eggs in the medaka, Oryzias latipes. 1999, Pubmed
Onichtchouk, Silencing of TGF-beta signalling by the pseudoreceptor BAMBI. 1999, Pubmed , Xenbase
Pei, Improvement in Mouse iPSC Induction by Rab32 Reveals the Importance of Lipid Metabolism during Reprogramming. 2015, Pubmed
Prukudom, Use of soluble sperm extract to improve cloning efficiency in zebrafish. 2019, Pubmed
Rathbone, Reprogramming of ovine somatic cells with Xenopus laevis oocyte extract prior to SCNT improves live birth rate. 2010, Pubmed , Xenbase
Rouillon, Somatic cell nuclear transfer in non-enucleated goldfish oocytes: understanding DNA fate during oocyte activation and first cellular division. 2019, Pubmed
Samavarchi-Tehrani, Functional genomics reveals a BMP-driven mesenchymal-to-epithelial transition in the initiation of somatic cell reprogramming. 2010, Pubmed
Shannon, Cytoscape: a software environment for integrated models of biomolecular interaction networks. 2003, Pubmed
Sharma, Genetic polymorphism in extracellular regulators of Wnt signaling pathway. 2015, Pubmed
Shi, Mechanisms of TGF-beta signaling from cell membrane to the nucleus. 2003, Pubmed
Siripattarapravat, Somatic cell nuclear transfer in zebrafish. 2009, Pubmed
Stadtfeld, Induced pluripotency: history, mechanisms, and applications. 2010, Pubmed
Tanaka, Morphometric characteristics and reproductive capacity of nuclear transplants derived from embryonic cells of loach, Misgurnus anguillicaudatus. 2009, Pubmed
Ten Dijke, Regulation of cell proliferation by Smad proteins. 2002, Pubmed
Vidal, Combinatorial modulation of signaling pathways reveals cell-type-specific requirements for highly efficient and synchronous iPSC reprogramming. 2014, Pubmed
Vigneron, Characterization of the mechanisms controlling Greatwall activity. 2011, Pubmed , Xenbase
Wakamatsu, Novel method for the nuclear transfer of adult somatic cells in medaka fish (Oryzias latipes): use of diploidized eggs as recipients. 2008, Pubmed
Wakamatsu, Fertile and diploid nuclear transplants derived from embryonic cells of a small laboratory fish, medaka (Oryzias latipes). 2001, Pubmed
Wang, Fatty acid synthesis is critical for stem cell pluripotency via promoting mitochondrial fission. 2017, Pubmed
Wu, Phospholipid remodeling is critical for stem cell pluripotency by facilitating mesenchymal-to-epithelial transition. 2019, Pubmed
Yang, Xenopus egg extract treatment reduced global DNA methylation of donor cells and enhanced somatic cell nuclear transfer embryo development in pigs. 2012, Pubmed , Xenbase
Yi, Derivation and characterization of haploid embryonic stem cell cultures in medaka fish. 2010, Pubmed
Zhang, Lipid Supplement in the Cultural Condition Facilitates the Porcine iPSC Derivation through cAMP/PKA/CREB Signal Pathway. 2018, Pubmed
Zhang, Non-Smad pathways in TGF-beta signaling. 2009, Pubmed
Zhu, Transient in vitro epigenetic reprogramming of skin fibroblasts into multipotent cells. 2010, Pubmed
