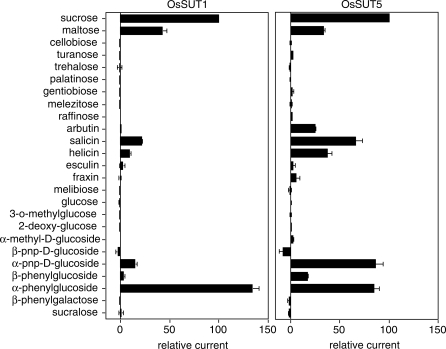

Fig. 4. Substrate specificity of OsSUT1 (A) and OsSUT5 (B). Substrate-dependent currents were at a membrane potential of −117 mV. Substrates were applied at a concentration of 10 mM in Na Ringer solution, pH 5.6 except for fraxin (1 mM) and esculin (5 mM) that were added at their limits of solubility. Currents were normalized to currents for 10 mM sucrose to eliminate the influence of expression level differences between oocytes. Values correspond to the mean ± SE of data from 3–5 oocytes. Larger Image Printer Friendly View |
