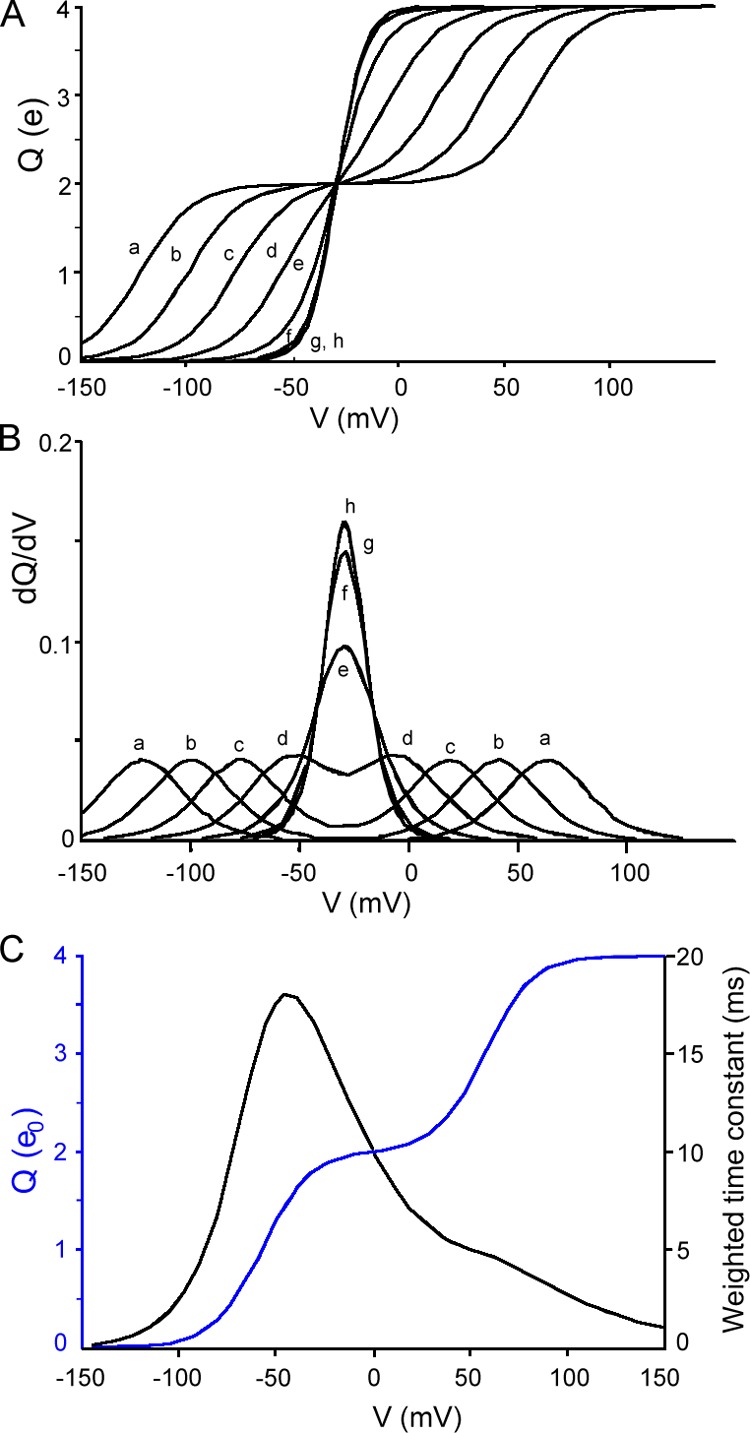

Figure 11. Simulations with the 3-state model. (A) Q-V curves computed for several values of K1 and K2, as follows (a): K1 = 0.0001, K2 = 166.7, s = 14.8; (b): K1 = 0.0004, K2 = 27.8, s = 11.2; (c): K1 = 0.0022, K2 = 4.63, s = 7.67; (d): K1 = 0.013, K2 = 0.77, s = 4.09; (e): K1 = 0.078, K2 = 0.129, s = 0.5. The next three curves are (f): K1 = 0.467, K2 = 0.021, s = â3.08; (g): K1 = 2.8, K2 = 0.0036, s = â6.66; and (h): K1 = 16.8, K2 = 0.0006, s = â10.25. Curves eâh can be well fit by a single Boltzmann given apparent valences of 2.36, 3.54, 3.91, and 3.99, respectively. (B) First derivative of the Q-V curves shown in part A. (C) Q-V and weighted time constant versus V curves computed with the 3-state model with the following parameters: z1f = 0.5, z1b = 1.5, z2f = 1.2, z2b = 0.8, α10 = 0.1, β10 = 0.001, α20 = 0.001, β20 = 0.1. Image published in: Lacroix JJ et al. (2012) © 2012 Lacroix et al. Creative Commons Attribution-NonCommercial-ShareAlike license Larger Image Printer Friendly View |
