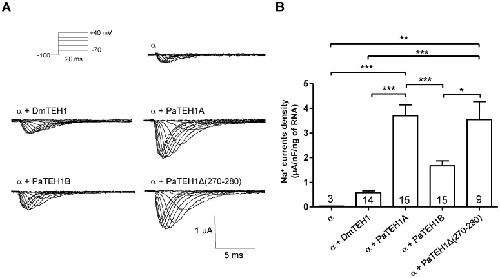

Figure 4. Modulation of Na+ current densities by different TEH1 auxiliary subunit subtypes.A. Family of Na+ currents measured at test potentials of −70 mV to 40 mV from a holding potential of −100 mV for DmNav1-1 alone (α) or co-expressed with DmTEH1 (α+DmTEH1), PaTEH1A (α+PaTEH1A), PaTEH1B (α+PaTEH1B) or PaTEH1Δ(270-280) (α+PaTEH1Δ(270-280)) injected with about 35 ng, 8 ng, 2 ng, 3 ng and 2 ng of RNA (α∶β, 1∶1), respectively. The protocol of depolarizing voltage-clamp steps is shown. B. Na+ current density per ng of injected RNA after 3-days incubation, except for DmNav1-1 (10 days after injection). Results are expressed in µA per nF per ng of injected RNA (One-way ANOVA: F(4,55) = 15.11, p<0.0001 post hoc Tukey test). The number of tested oocytes is indicated in the bar histogram.
