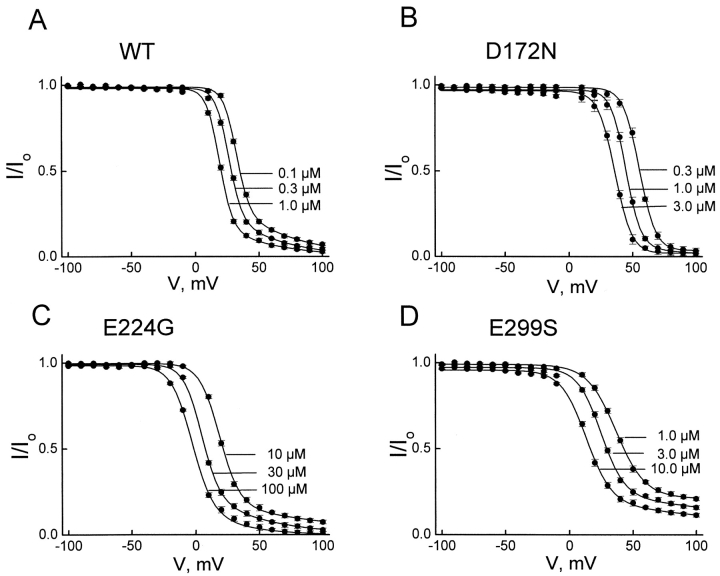

Figure 11. . Effects of mutations on voltage-dependent block of IRK1 current by octomethylene-bis-amine. The fraction of wild-type and mutant channel currents (mean ± SEM; n = 4–6) not blocked by bis-C8 (at the concentrations indicated) is plotted against membrane voltage. The curves superimposed on the data are fits as described for the case of PUT in results. Image published in: Guo D and Lu Z (2003) Copyright © 2003, The Rockefeller University Press. Creative Commons Attribution-NonCommercial-ShareAlike license Larger Image Printer Friendly View |
