XB-IMG-124509
Xenbase Image ID: 124509
|

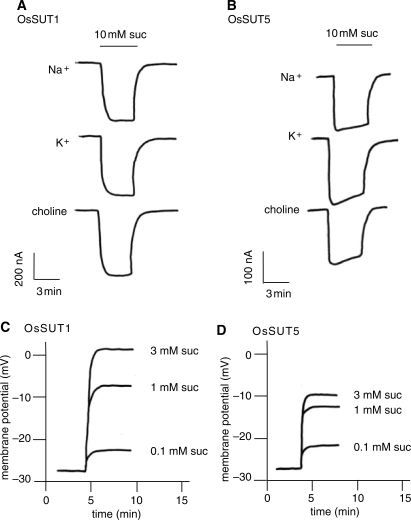

Fig. 2. Sucrose-induced currents and membrane depolarization in oocytes expressing OsSUT1 and OsSUT5. (A, B) In Na+, K+ and choline Ringer solutions at pH 5.6, SUT-expressing oocytes were voltage clamped at −40 mV and currents were recorded. Each trace represents a current induced by 10 mM sucrose in a modified Ringer solution. (C, D) Membrane potential was recorded using an oocyte impaled with a single electrode, referenced against the bath electrodes. Membrane depolarization was observed when the oocyte was perfused with Na Ringer solution at pH 5.6 containing sucrose at the indicated concentrations. Larger Image Printer Friendly View |
