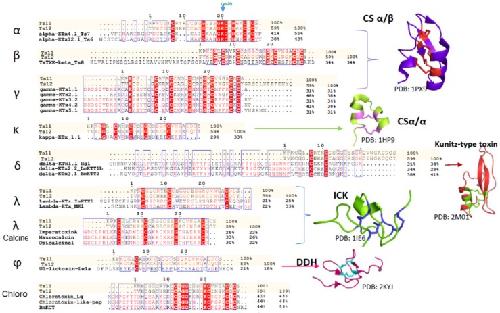

Figure 5. Amino acid sequence alignments and identities (%) among Ts11 and representatives of α-β-γ-κ-δ-λ-KTx-subfamilies, λ-KTx/calcine toxins, ϕ-liotoxin-Lw1a and chlorotoxins; and representatives of the five different structural folds adopted for scorpion toxins affecting KvsAlignment performed using ClustalW and MultAlin. The structures were created using Pymol and PDB database. Image published in: Cremonez CM et al. (2016) © 2016 by the authors; licensee MDPI, Basel, Switzerland. Creative Commons Attribution license Larger Image Printer Friendly View |
