Figure 8—figure supplement 3

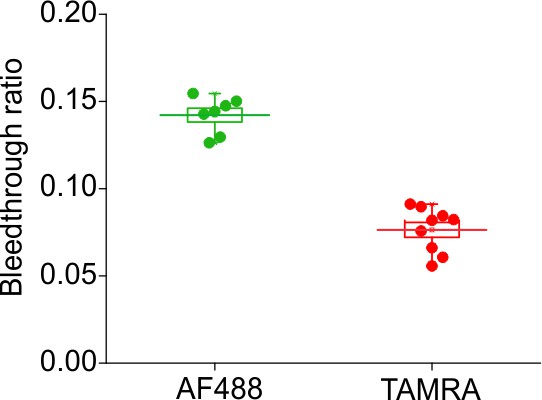

Bleed through ratio of fluorescence from AF488 and TAMRA through FRET cube.
Ratio of maximal ΔF obtained through FRET cube (ex. 480/40 nm; em. 610/75 nm) and 488 filter cube (ex. 480/40 nm; em. 535/50 nm) or TAMRA filter cube (ex. 535/50 nm; em. 610/75 nm) for AF488-DBCO (green, n = 7) or TAMRA-MTS (red, n = 9) labeled oocytes expressing Shaker-M356*-S424C (M356/M448L/C245V/C462A/S424C). Image published in: Gupta K et al. (2019) Image downloaded from an Open Access article in PubMed Central. Image reproduced on Xenbase with permission of the publisher and the copyright holder. Larger Image Printer Friendly View |
