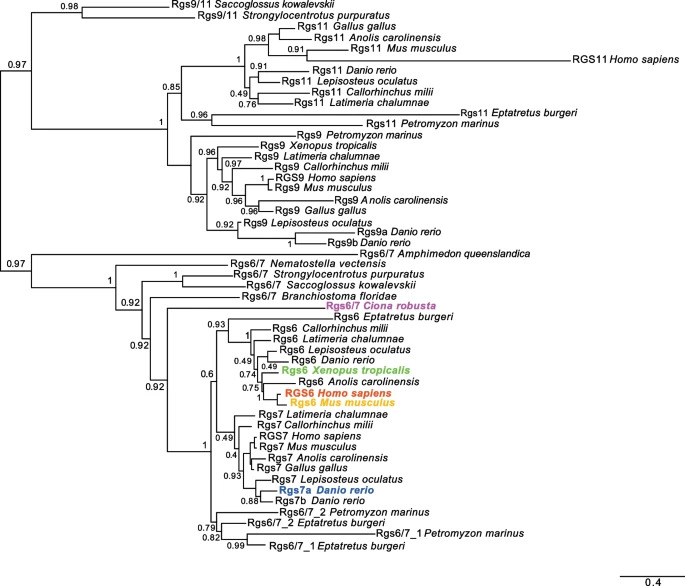

Fig. 4 Phylogenetic reconstruction of the evolutionary relationships between proteins of the Rgs6/7 and Rgs9/11 subfamilies. A global phylogenetic study of the Rgs proteins found in Ciona robusta is available [38]. This ML phylogenetic tree is centered on the Rgs6/7 subfamily, since the expression of some of its members has been studied here, and on the Rgs9/11 subfamily, because of its close relationship to the Rgs6/7 subfamily. Distinct colors highlight the family members whose expression was analyzed in this study. Values at the branches indicate replicates obtained using the aLRT method
