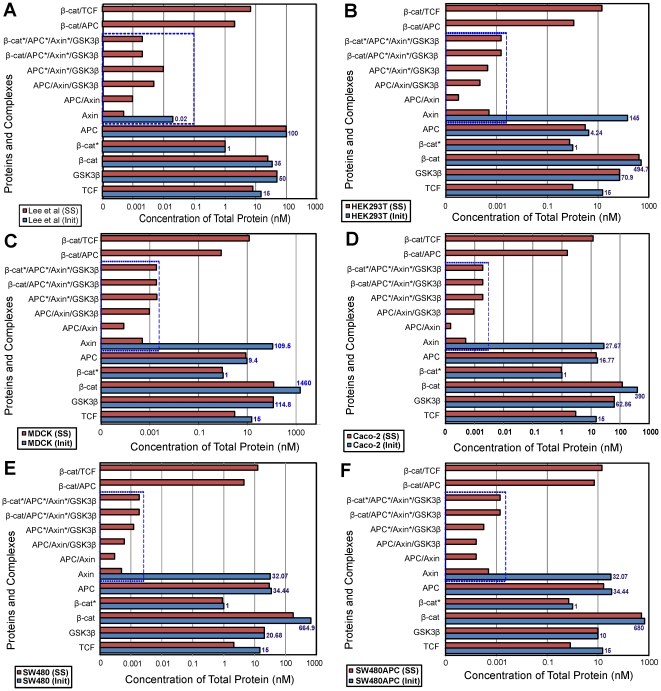

Figure 11. Steady State Analysis of protein complex for different cell lines.Initial to steady state protein redistribution among the interacting complexes of the Wnt signalling pathway for the different cell lines. (A) Xenopus (B) HEK293T (C) MDCK (D) Caco-2 (E) SW480 and (F) SW480APC. Note: Concentrations of protein and complexes involving Axin (in dotted box) are significantly low in all cell lines. Image published in: Tan CW et al. (2012) Tan et al. Creative Commons Attribution license Larger Image Printer Friendly View |
