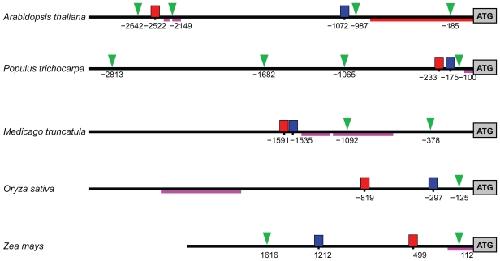

Figure 8. Possible regulatory elements and promoters of M20L. Upstream regions with predicted TATA boxes are indicated by a green triangle, motif 1 by a red box, motif 2 by a blue box, and EST hit regions by dark pink lines. For A. thaliana, the core promoter given in AGRIS (Palaniswamy et al 2006) is indicated by a red line. The lines are scaled to actual sequence length and positions are given in base pairs from translation start.

Image published in: Rajangam AS et al. (2008)

Image downloaded from an Open Access article in PubMed Central. © 2008 Rajangam et al, publisher and licensee Dove Medical Press Ltd.
