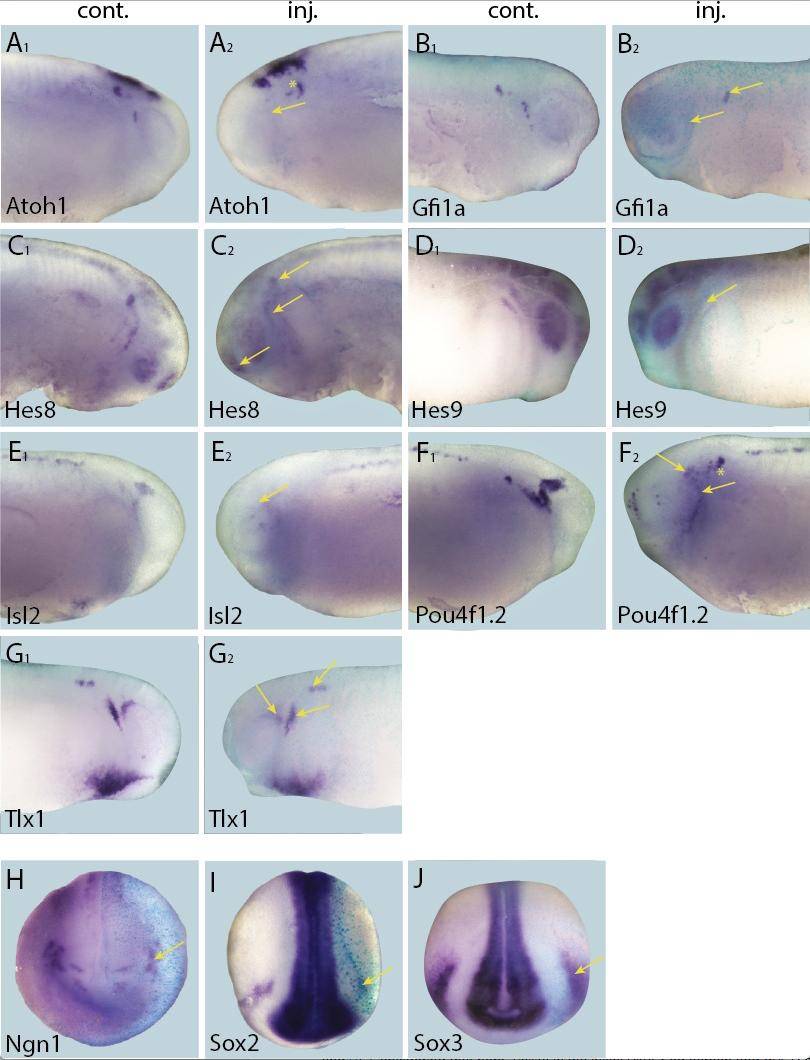

Figure 5—figure supplement 1. Effects of Six1 knockdown on target genes. Tail bud stage (A–G) and neural plate stage (H–J) embryos after unilateral injection of Six1-MO1+2. In each case, lacZ was co-injected as a lineage tracer and panels A1–G1 show the control (un-injected) side and A2–G2 show the injected side. The injected side is positioned to the right in H–J, as marked by blue lacZ staining (lacZ staining out of frame in some specimens). Arrows mark reductions in marker gene expression in placodal derivatives, and asterisks indicate increased expression. Image published in: Riddiford N and Schlosser G (2016) © 2016, Riddiford et al. Creative Commons Attribution license Gene Synonyms Species Stage(s) Tissue neurog1.L neurod3, neurogenin, neurogenin 1, neurogenin-1, neurogenin1, ngn, ngn1 X. laevis Throughout NF stage 18 neuron Rohon-Beard neuron anterior placodal area sox2.S anop3, LOC108718087, mcops3, Sox-2, XLSOX-2, Xsox-2, XSox2 X. laevis Throughout NF stage 18 neural plate pre-chordal neural plate chordal neural plate neural groove anterior placodal area eye primordium sox3.L Sry, Xlsox3, xSox3, Xtsox3 X. laevis Throughout NF stage 18 neural plate pre-chordal neural plate chordal neural plate anterior placodal area eye primordium atoh1.L ath1, bhlha14, hath1, math-1, math1, xath-1 X. laevis Throughout NF stage 24 hindbrain profundal placode profundus ganglion gfi1.L gfi1a X. laevis Throughout NF stage 24 otic placode trigeminal placode trigeminal ganglion hes5.4.L hes8 X. laevis Throughout NF stage 24 profundal placode profundus ganglion trigeminal placode trigeminal ganglion optic vesicle olfactory placode hes5.6.L X. laevis Throughout NF stage 24 lateral line placode olfactory placode midbrain hindbrain optic vesicle isl2.L islet-2, islet2b, LOC108711275 X. laevis Throughout NF stage 24 lateral line placode profundal placode trigeminal placode otic placode spinal cord spinal neuron pou4f4.L Brn3d, pou4f1.2 X. laevis Throughout NF stage 24 lateral line placode profundal placode profundus ganglion trigeminal placode trigeminal ganglion otic placode spinal cord spinal neuron tlx1.L hox11, hox11-a, LOC108697427, Xhox11, XHox11L2 X. laevis Throughout NF stage 24 lateral line placode profundal placode profundus ganglion otic placode ventral mesoderm Image source: Published Larger Image Printer Friendly View
