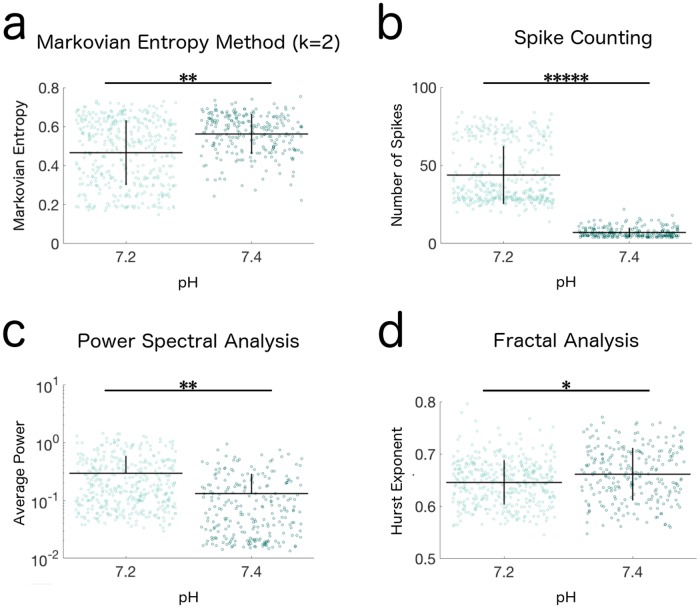

Fig 6. Distributions of Markovian Entropy and other analysis measures of calcium activity from synaptic neurons.Univariate scatterplots represent the (a) Markovian Entropy, (b) Number of Spikes, (c) Average Power, and (d) Hurst Exponent of murine retrotrapezoid nucleus neurons’ calcium activity in solution with pH 7.2 or 7.4. Data received from [15]. Lines represent mean ± SD of 397 and 244 cells, respectively. All comparisons between distributions were statistically significant according to a two-sample Kolmogorov-Smirnov Test (p < 0.01). Hence stars are used to represent the effect size, rather than the significance of difference, between distributions via Cohen’s d statistic (*: |d| ≥ 0.20, **: |d| ≥ 0.50, ***: |d| ≥ 0.80, ****: |d| ≥ 1.00, *****: |d| ≥ 2.00) [29]. Markovian Entropy is calculated with n = 2 and k = 2. Image published in: Marken JP et al. (2016) © 2016 Marken et al. Creative Commons Attribution license Larger Image Printer Friendly View
