Xenbase Image ID: 200190

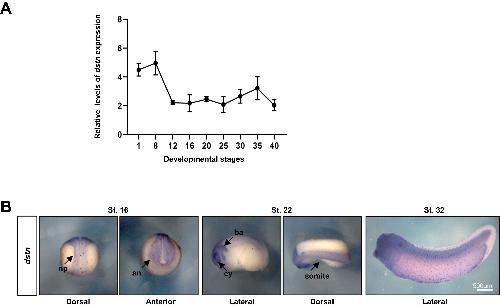

Fig. 1. dstn is expressed in anterior neural tissues and the epidermis during Xenopus embryogenesis. (A) Temporal expression of dstn analyzed by real-time qPCR at 9 landmark stages of embryonic development. (B) Spatial expression patterns of dstn were examined by whole-mount in situ hybridization (WISH). np, neural plate; an, anterior neural; ey, eye; ba, branchial arch; qPCR, quantitative polymerase chain reaction. Image published in: Kim Y et al. (2024) © 2024 The Author(s). Creative Commons Attribution-NonCommercial-NoDerivatives license Gene Synonyms Species Stage(s) Tissue dstn.L actdp, ADF, destrin X. laevis Throughout NF stage 16 neural plate neural fold pre-chordal neural plate chordal neural plate dstn.L actdp, ADF, destrin X. laevis Throughout NF stage 22 pharyngeal arch eye primordium neural tube somite dstn.L actdp, ADF, destrin X. laevis Throughout NF stage 32 otic vesicle epidermis cement gland Image source: Published Larger Image Printer Friendly View
