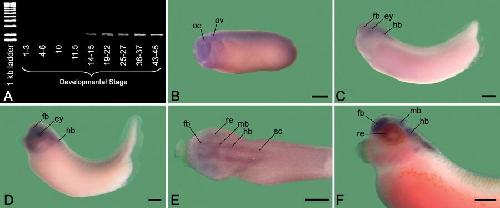

Figure 4. Developmental expression of XlNLRR-6. A: Reverse transcriptase-polymerase chain reaction (RT-PCR) of XlNLRR-6 reveals expression beginning at neurula stages 14-15, and continuing through the early larval period. Expected product size for the PCR was approximately 2.1 kb, as indicated by the bands shown. The portion of the gel below 1.5 kb has been cropped (and contained no extraneous bands). B-F: In situ hybridization of XlNLRR-6 transcript. B, lateral view of tail bud stage 26. C: Stage 29 lateral view. D: Stage 35 lateral view. E: Stage 37 dorsal view of head. F: Stage 39 lateral view of head. ey, eye; fb, forebrain; hb, hindbrain; mb, midbrain; oc, optic cup; ov, otic vesicle; re, retina; sc, spinal cord. Scale bars = 500 mu m in B-G. Image published in: Wolfe AD and Henry JJ (2006) Copyright © 2006. Image reproduced with permission of the Publisher, John Wiley & Sons. Gene Synonyms Species Stage(s) Tissue lrrn1l.L X. laevis Throughout NF stage 26 otic placode optic vesicle lrrn1l.L X. laevis Throughout NF stage 29 and 30 eye forebrain hindbrain lrrn1l.L X. laevis Throughout NF stage 35 and 36 eye forebrain hindbrain lrrn1l.L X. laevis Throughout NF stage 37 and 38 forebrain hindbrain midbrain spinal cord retina lrrn1l.L X. laevis Throughout NF stage 39 forebrain hindbrain midbrain retina Image source: Published Larger Image Printer Friendly View
