Xenbase Image ID: 124224

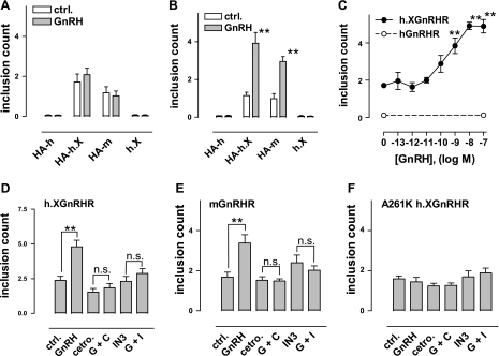

Fig. 6. Agonist-induced redistribution of HA-GnRHR. A and B: HeLa cells transduced with HA-tagged hGnRHR, h.XGnRHR, or mGnRHR or with nontagged h.XGnRHR as a negative control (HA-h, HA-h.X, HA-m, and h.X, respectively) were washed and incubated for 60 min at room temperature (∼21°C) in medium with anti-HA (1:200). They were then washed and incubated for 15 min (A) or 60 min (B) at 37°C in medium with 0 or 10−7 M GnRH as indicated before being processed for determination of inclusion count, as above. GnRH effects were only statistically significant (**P < 0.01 compared with corresponding control) after 60 min in cells expressing HA-h.XGnRHR or HA-mGnRHR. C: HeLa cells transduced with HA-h.XGnRHR (●) or HA-hGnRHR (○) were loaded with primary Ab as above, then washed and incubated for 60 min at 37°C in medium with the indicated concentration of GnRH. D–F: HeLa cells transduced with HA-h.XGnRHR, HA-mGnRHR, or HA-A261K h.XGnRHR were prepared and loaded with anti-HA as above, before being washed and incubated for 60 min at 37°C in medium with no addition (CTRL), GnRH (10−9 M), cetrorelix (Cetro; 10−7 M), IN3 (10−7 M), or with GnRH plus cetrorelix (G + C) or GnRH plus IN3 (G + I) as indicated. In all cases, incubations were terminated by washing at 4°C and cells were then processed to determine the inclusion count, as described in materials and methods. The data shown are means ± SE (n = 3 or 4) pooled from 3 or 4 separate experiments (each with 2–4 replicate wells per treatment). ANOVAs revealed “treatment” as a significant variable in A–E (but not in F). NS, not significant. **P < 0.01 compared with corresponding control without GnRH. Image published in: Finch AR et al. (2009) Image downloaded from an Open Access article in PubMed Central. Copyright © 2009 the American Physiological Society Larger Image Printer Friendly View
