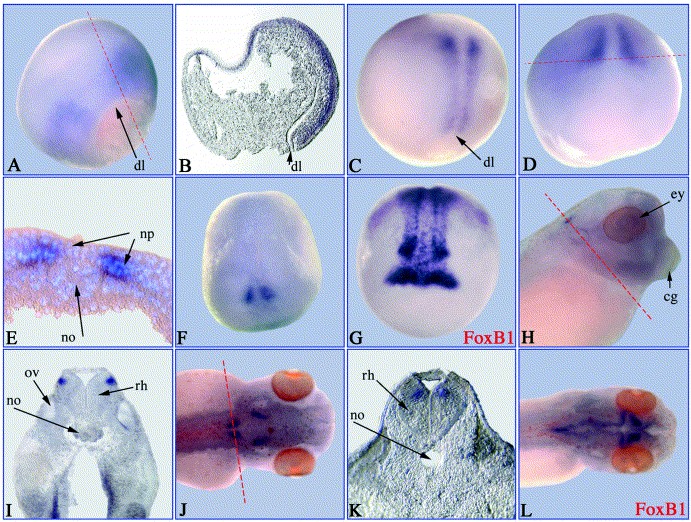

Fig. 3. Spatial expression of xFoxB2. Whole mount in situ hybridisation was performed with xFoxB2 and xFoxB1 (G, L) antisense probes and embryos at different developmental stages. (A) Stage 11; (B) parasagittal section of A; (C) stage 12; (D) stage 14; (E) transversal section of D, nuclei stained with DAPI; (F) stage 15; (G) FoxB1 (Fkh-5), stage 16; (H) stage 35; (I) horizontal section of H; (J) stage 41; (K) horizontal section of J; (L) FoxB1, stage 41. Embryos shown in (A–C) are orientated with dorsal side to the right and animal half to the top; D, F, G anterior view; H shows a lateral and J as well as L a dorsal view. The plane of sections is marked by red lines. cg, cement gland; dl, dorsal lip; ey, eye; np, neural plate; no, notochord; ov, otic vesicle; rh, rhombencephalon. Image published in: Pohl BS et al. (2002) Copyright © 2002. Image reproduced with permission of the Publisher, Elsevier B. V. Gene Synonyms Species Stage(s) Tissue foxb2.S LOC108696911, xfd-5, xFoxB2 X. laevis Throughout NF stage 11 upper blastopore lip foxb2.S LOC108696911, xfd-5, xFoxB2 X. laevis Throughout NF stage 14 notochord neural plate foxb2.S LOC108696911, xfd-5, xFoxB2 X. laevis Throughout NF stage 35 and 36 cement gland eye notochord otic vesicle hindbrain foxb2.S LOC108696911, xfd-5, xFoxB2 X. laevis Throughout NF stage 41 notochord hindbrain Image source: Published Larger Image Printer Friendly View
